KDJ125R-GJPEYW (2002)
Toyota Land Cruiser Prado

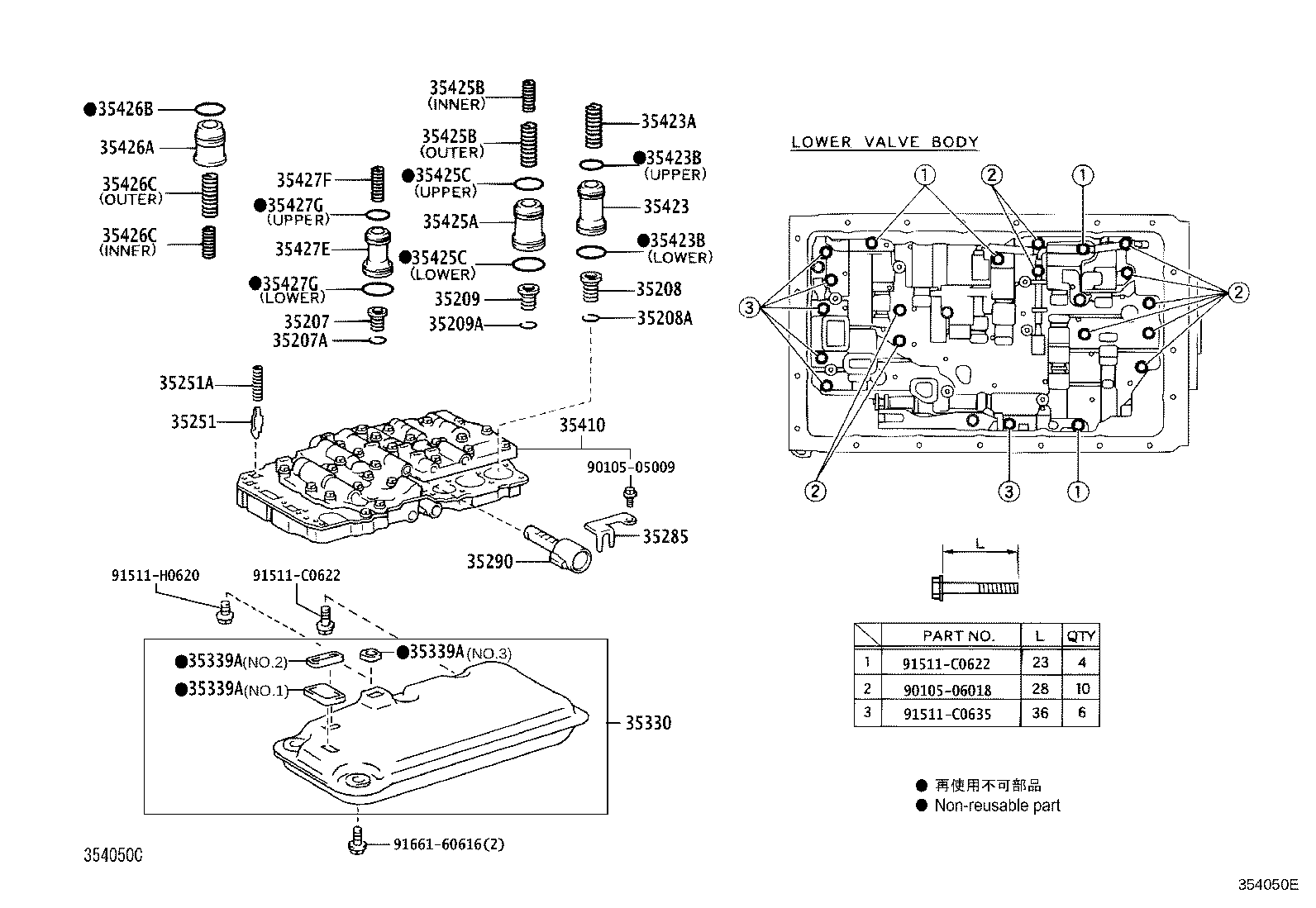

ILLUST NO. 1 OF 2(0209- )4FC
A340F,A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR | ||||
| 35207-22010 |
GRJ12#,KDJ12#..4FC |
1 | ||
| 35207A - RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GRJ12#,KDJ12#..4FC |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-30010 |
GRJ12#,KDJ12#..4FC |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GRJ12#,KDJ12#..4FC |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-22020 |
KDJ12#..4FC |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GRJ12#,KDJ12#..4FC |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
GRJ12#,KDJ12#..ATM |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
GRJ12#,KDJ12#..ATM |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-24020 |
GRJ12#,KDJ12#..4FC |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-60020 |
GRJ12#,KDJ12#..4FC |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-60030 |
GRJ12#,KDJ12#..4FC |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30100 |
KDJ12#..4FC NO.3 |
1 | ||
| 35339-30080 |
KDJ12#..4FC NO.1 |
1 | ||
| 35339-30090 |
KDJ12#..4FC NO.2 |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30100 |
KDJ12#..4FC NO.3 |
1 | ||
| 35339-30080 |
KDJ12#..4FC NO.1 |
1 | ||
| 35339-30090 |
KDJ12#..4FC NO.2 |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30100 |
KDJ12#..4FC NO.3 |
1 | ||
| 35339-30080 |
KDJ12#..4FC NO.1 |
1 | ||
| 35339-30090 |
KDJ12#..4FC NO.2 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-60550 |
KDJ12#..4FC |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-30030 |
GRJ12#,KDJ12#..4FC |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-25028 |
KDJ12#..4FC |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
GRJ12#,KDJ12#..4FC LOWER |
1 | ||
| 90301-23010 |
GRJ12#,KDJ12#..4FC UPPER |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
GRJ12#,KDJ12#..4FC LOWER |
1 | ||
| 90301-23010 |
GRJ12#,KDJ12#..4FC UPPER |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-30020 |
GRJ12#,KDJ12#..4FC |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-25027 |
GRJ12#,KDJ12#..4FC INNER |
1 | ||
| 90501-22015 |
GRJ12#,KDJ12#..4FC OUTER |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-25027 |
GRJ12#,KDJ12#..4FC INNER |
1 | ||
| 90501-22015 |
GRJ12#,KDJ12#..4FC OUTER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
GRJ12#,KDJ12#..4FC LOWER |
1 | ||
| 90301-25010 |
GRJ12#,KDJ12#..4FC UPPER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
GRJ12#,KDJ12#..4FC LOWER |
1 | ||
| 90301-25010 |
GRJ12#,KDJ12#..4FC UPPER |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-40010 |
KDJ12#..4FC |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24010 |
GRJ12#,KDJ12#..4FC |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-22008 |
KDJ12#..4FC INNER |
1 | ||
| 90501-23073 |
KDJ12#..4FC OUTER |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-22008 |
KDJ12#..4FC INNER |
1 | ||
| 90501-23073 |
KDJ12#..4FC OUTER |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-30040 |
GRJ12#,KDJ12#..4FC |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-23095 |
KDJ12#..4FC |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
GRJ12#,KDJ12#..4FC UPPER |
1 | ||
| 90301-26011 |
GRJ12#,KDJ12#..4FC LOWER |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
GRJ12#,KDJ12#..4FC UPPER |
1 | ||
| 90301-26011 |
GRJ12#,KDJ12#..4FC LOWER |
1 | ||
| Common parts | ||||
| 90105-05009 | ||||
| 90105-06018 | ||||
| 91511-C0622 | ||||
| 91511-C0635 | ||||
| 91511-H0620 | ||||
| 91661-60616 | ||||

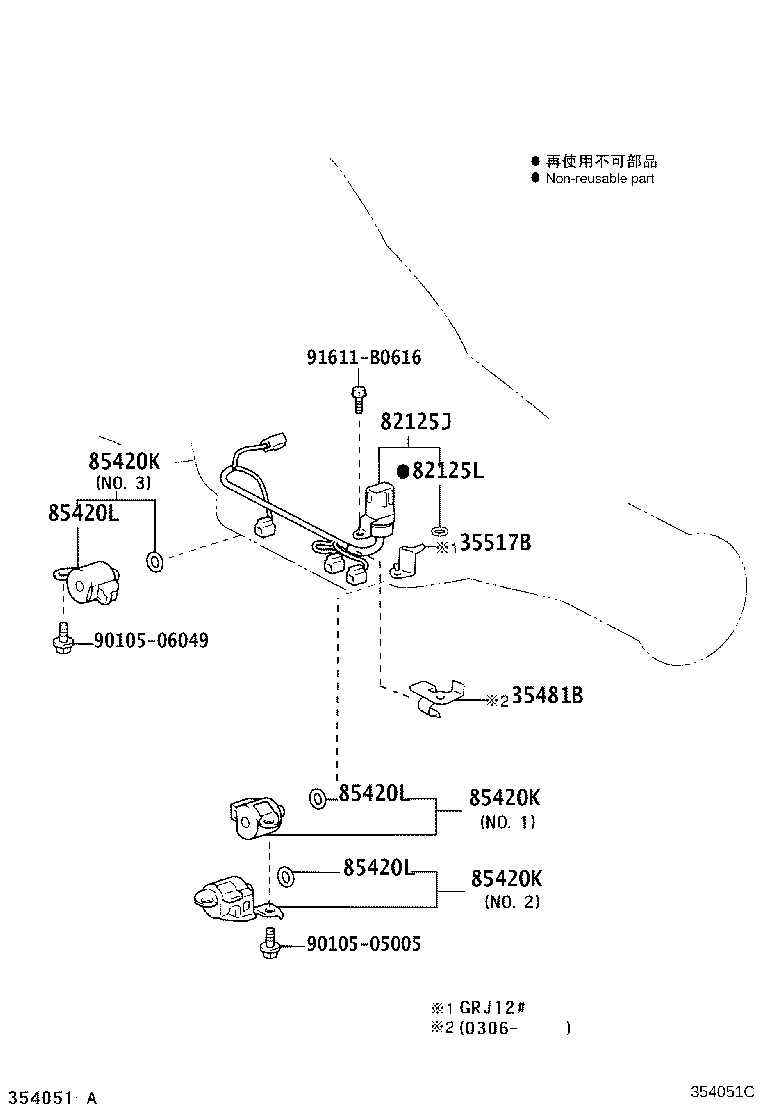

ILLUST NO. 2 OF 2(0209- )4FC
A340F,A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35481B - CLAMP, VALVE BODY WIRE HARNESS | ||||
| 35481-24010 |
GRJ12#,KDJ12#..4FC |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-60310 |
GRJ12#,KDJ12#..4FC |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 96721-24018 |
GRJ12#,KDJ12#..4FC |
1 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-50030 |
GRJ12#,KDJ12#..4FC NO.3 |
1 | ||
| 35250-30070 |
GRJ12#,KDJ12#..4FC NO.2 |
1 | ||
| 35250-30050 |
GRJ12#,KDJ12#..4FC NO.1 |
1 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-50030 |
GRJ12#,KDJ12#..4FC NO.3 |
1 | ||
| 35250-30070 |
GRJ12#,KDJ12#..4FC NO.2 |
1 | ||
| 35250-30050 |
GRJ12#,KDJ12#..4FC NO.1 |
1 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-50030 |
GRJ12#,KDJ12#..4FC NO.3 |
1 | ||
| 35250-30070 |
GRJ12#,KDJ12#..4FC NO.2 |
1 | ||
| 35250-30050 |
GRJ12#,KDJ12#..4FC NO.1 |
1 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
GRJ12#,KDJ12#..4FC |
3 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
GRJ12#,KDJ12#..4FC |
3 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
GRJ12#,KDJ12#..4FC |
3 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06049 | ||||
| 91611-B0616 | ||||
