Toyota Land cruiser prado KDJ125 STARTER

KDJ125R-GJPEYW (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004

Engine 1KDFTV

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

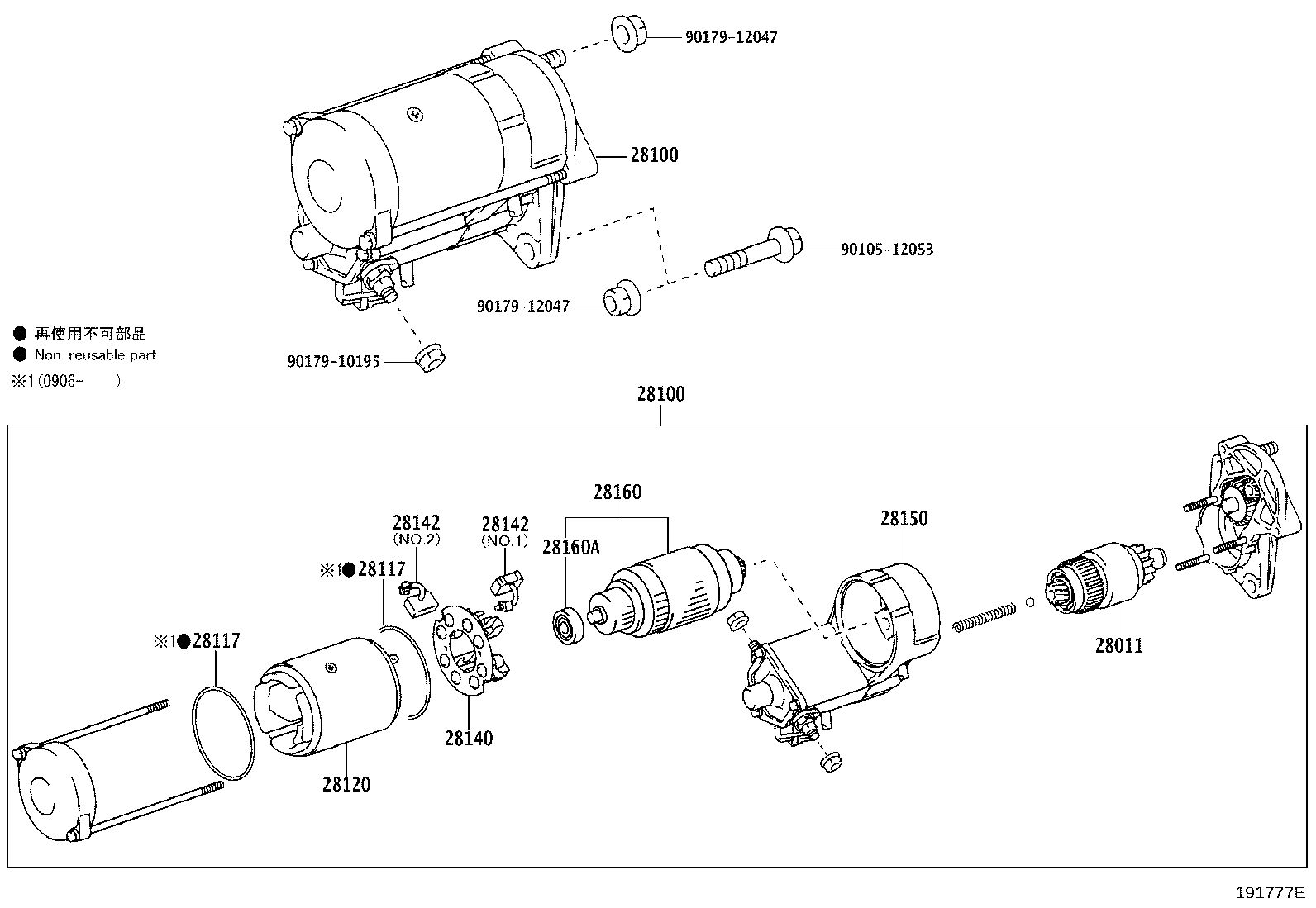

Click highlighted areas on diagram

12V 2.7KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-30050	1KDFTV..KDJ12#..ATM	09/2002 - 12/2999	1
28100 - STARTER ASSY
28100-30070	1KDFTV..KDJ12#..ATM 12V 3.0KW,COLD SPEC	09/2002 - 05/2009	1
28100-30050	1KDFTV..KDJ12#..ATM 12V 2.7KW	09/2002 - 05/2009	1
28100 - STARTER ASSY
28100-30070	1KDFTV..KDJ12#..ATM 12V 3.0KW,COLD SPEC	09/2002 - 05/2009	1
28100-30050	1KDFTV..KDJ12#..ATM 12V 2.7KW	09/2002 - 05/2009	1
28120 - YOKE ASSY, STARTER
28120-67020	1KDFTV..KDJ12#..ATM	09/2002 - 12/2999	1
28120-67090	1KDFTV..KDJ12#..ATM COLD SPEC	09/2002 - 12/2999	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090	1KDFTV..KDJ12#..ATM	09/2002 - 12/2999	1
28140-67090	1KDFTV..KDJ12#..ATM COLD SPEC	09/2002 - 12/2999	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-30070	1KDFTV..KDJ12#..ATM COLD SPEC	09/2002 - 12/2999	1
28150-30050	1KDFTV..KDJ12#..ATM	09/2002 - 12/2999	1
28160 - ARMATURE ASSY, STARTER
28160-67090	1KDFTV..KDJ12#..ATM COLD SPEC	09/2002 - 12/2999	1
28160-54140	1KDFTV..KDJ12#..ATM	09/2002 - 12/2999	1
Common parts
90105-12053
90179-10195
90179-12047

Click highlighted areas on diagram

12V 3.0KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-30050	1KDFTV..KDJ12#..ATM	09/2002 - 12/2999	1
28100 - STARTER ASSY
28100-30070	1KDFTV..KDJ12#..ATM 12V 3.0KW,COLD SPEC	09/2002 - 05/2009	1
28100-30050	1KDFTV..KDJ12#..ATM 12V 2.7KW	09/2002 - 05/2009	1
28100 - STARTER ASSY
28100-30070	1KDFTV..KDJ12#..ATM 12V 3.0KW,COLD SPEC	09/2002 - 05/2009	1
28100-30050	1KDFTV..KDJ12#..ATM 12V 2.7KW	09/2002 - 05/2009	1
28120 - YOKE ASSY, STARTER
28120-67020	1KDFTV..KDJ12#..ATM	09/2002 - 12/2999	1
28120-67090	1KDFTV..KDJ12#..ATM COLD SPEC	09/2002 - 12/2999	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090	1KDFTV..KDJ12#..ATM	09/2002 - 12/2999	1
28140-67090	1KDFTV..KDJ12#..ATM COLD SPEC	09/2002 - 12/2999	1
28142 - BRUSH, STARTER
28142-67090	1KDFTV..KDJ12#..ATM COLD SPEC,NO.1,POSITIVE	09/2002 - 08/2009	2
28142-67100	1KDFTV..KDJ12#..ATM COLD SPEC,NO.2,NEGATIVE	09/2002 - 08/2009	2
28142 - BRUSH, STARTER
28142-67090	1KDFTV..KDJ12#..ATM COLD SPEC,NO.1,POSITIVE	09/2002 - 08/2009	2
28142-67100	1KDFTV..KDJ12#..ATM COLD SPEC,NO.2,NEGATIVE	09/2002 - 08/2009	2
28150 - SWITCH ASSY, MAGNET STARTER
28150-30070	1KDFTV..KDJ12#..ATM COLD SPEC	09/2002 - 12/2999	1
28150-30050	1KDFTV..KDJ12#..ATM	09/2002 - 12/2999	1
28160 - ARMATURE ASSY, STARTER
28160-67090	1KDFTV..KDJ12#..ATM COLD SPEC	09/2002 - 12/2999	1
28160-54140	1KDFTV..KDJ12#..ATM	09/2002 - 12/2999	1
28160A - BEARING, STARTER ARMATURE
90099-65030	1KDFTV..KDJ12#..ATM COLD SPEC	09/2002 - 08/2009	1
Common parts
90105-12053
90179-10195
90179-12047
