KDJ125R-GJMEYW (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004
Engine 1KDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0209-0408)

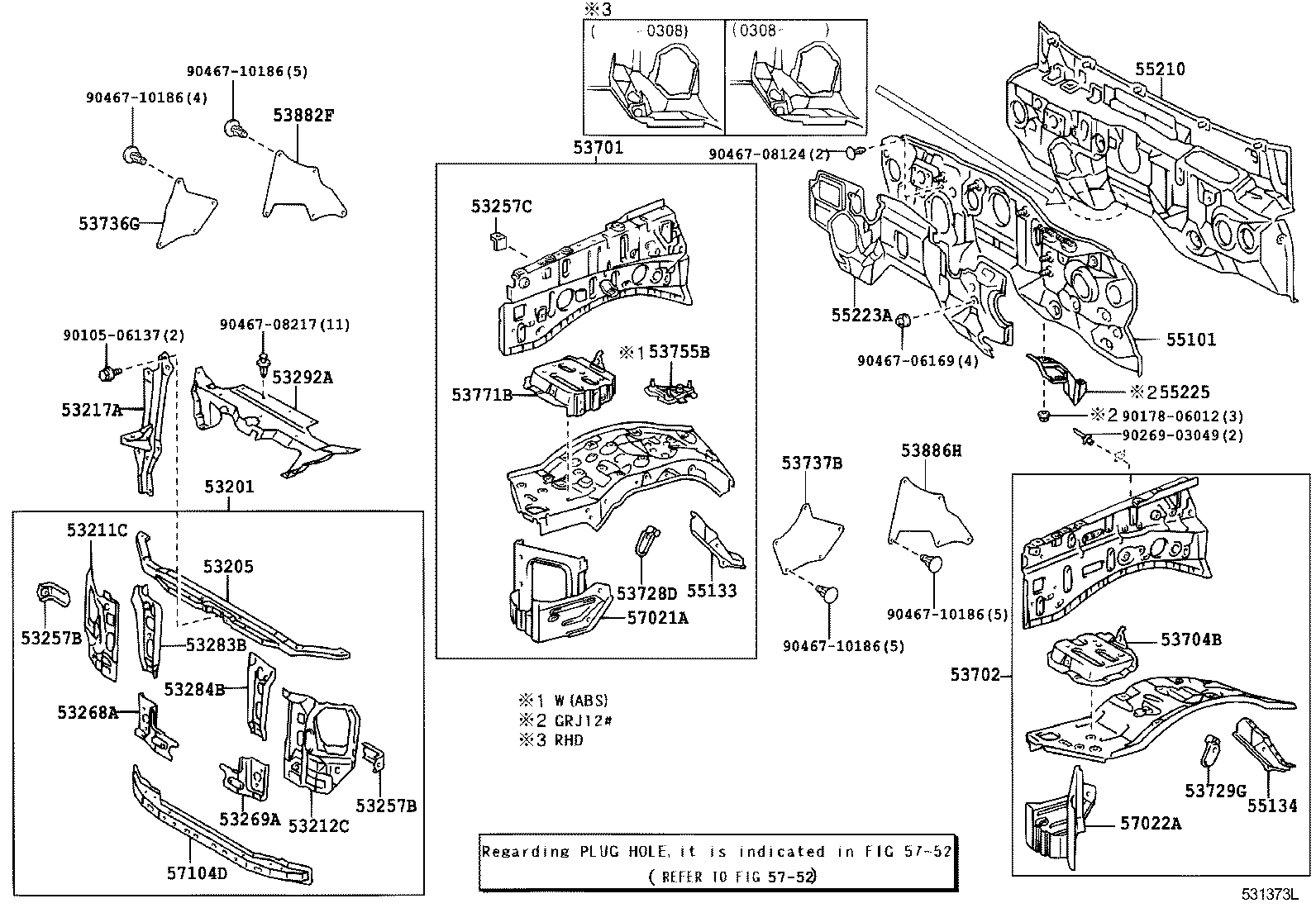

Click highlighted areas on diagram

diagram 53201 53205 53211C 53212C 53217A 53257B 53257B 53257C 53268A 53269A 53283B 53284B 53292A 53701 53702 53704B 53728D 53729G 53736G 53737B 53755B 53771B 53882F 53886H 55101 55133 55134 55210 55223A 55225 57021A 57022A 57104D 5752 9010506137 9017806012 9026903049 9046706169 9046708124 9046708217 9046710186 9046710186 9046710186 9046710186
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-60091

GRJ12#,KDJ12#

 1
53201-60090

GRJ12#,KDJ12#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-60030

GRJ12#,KDJ12#

 1
53205-60030

GRJ12#,KDJ12#

 1
53205-60030

GRJ12#,KDJ12#..4FC,5F

 1
53211C - SUPPORT, RADIATOR, RH
53211-60190

GRJ12#,KDJ12#

 1
53212C - SUPPORT, RADIATOR, LH
53212-60150

GRJ12#,KDJ12#

 1
53217A - BRACE, HOOD LOCK SUPPORT
53209-60070

GRJ12#,KDJ12#

 1
53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER
53257-60030

GRJ12#,KDJ12#

 2
53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER
53257-60030

GRJ12#,KDJ12#

 2
53257C - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, NO.2
53257-35030

KDJ12#

COLD SPEC

 1
53257-35030

KDJ12#

COLD SPEC&ABS-WITH

 1
53268A - REINFORCEMENT, RADIATOR MOUNTING, RH
53268-35040

GRJ12#,KDJ12#

 1
53268-35040

GRJ12#,KDJ12#..4FC,5F

 1
53269A - REINFORCEMENT, RADIATOR MOUNTING, LH
53269-35040

GRJ12#,KDJ12#..4FC,5F

 1
53269-35040

GRJ12#,KDJ12#

 1
53283B - REINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH
53283-35030

GRJ12#,KDJ12#

 1
53283-35030

GRJ12#,KDJ12#..4FC,5F

 1
53284B - REINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH
53284-35020

GRJ12#,KDJ12#

 1
53284-35020

GRJ12#,KDJ12#..4FC,5F

 1
53292A - SEAL, RADIATOR SUPPORT, UPPER
53292-60040

GRJ12#,KDJ12#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-60780

KDJ12#

 1
53701-60800

KDJ12#

COLD SPEC

 1
53701-60750

KDJ12#

COLD SPEC&ABS-WITH

 1
53701-60740

KDJ12#

ABS-WITH

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-6A050

KDJ12#

 1
53704B - SUPPORT SUB-ASSY, BATTERY, LH
53704-35080

GRJ12#,KDJ12#

 1
53728D - BRACKET, FENDER APRON, RH
53728-35060

GRJ12#,KDJ12#

 1
53729G - BRACKET, FENDER APRON, LH
53728-35060

GRJ12#,KDJ12#

 1
53736G - SEAL, FRONT FENDER APRON, FRONT RH
53735-35150

GRJ12#,KDJ12#

 1
53737B - SEAL, FRONT FENDER APRON, LH
53736-35150

GRJ12#,KDJ12#

 1
53755B - REINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1
53755-35060

GRJ12#,KDJ12#

ABS-WITH

 1
53755-35060

KDJ12#

COLD SPEC&ABS-WITH

 1
53771B - SUPPORT, BATTERY CARRIER, RH
53703-35040

KDJ12#

COLD SPEC

 1
53771-35080

GRJ12#,KDJ12#

 1
53703-35040

KDJ12#

COLD SPEC&ABS-WITH

 1
53882F - SEAL, FRONT FENDER
53886-35020

GRJ12#,KDJ12#

 1
53886H - SHIELD, FRONT FENDER SPLASH, REAR LH
53886-35020

GRJ12#,KDJ12#

 1
55101 - PANEL SUB-ASSY, DASH
55101-6E310

KDJ12#..RHD..5F

 1
55133 - PLATE, FRONT FENDER APRON SET, LOWER RH
55133-35020

GRJ12#,KDJ12#

 1
55134 - PLATE, FRONT FENDER APRON SET, LOWER LH
55134-35020

GRJ12#,KDJ12#

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-60160

KDJ12#..RHD..5F

 1
55210-60161

KDJ12#..RHD..5F

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-60320

KDJ12#..RHD

 1
57021A - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH
57021-35060

GRJ12#,KDJ12#

 1
57022A - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH
57022-35050

GRJ12#,KDJ12#

 1
57104D - MEMBER SUB-ASSY, FRONT CROSS
57104-35050

GRJ12#,KDJ12#

 1
Common parts
90105-06137
90178-06012
90269-03049
90467-06169
90467-08124
90467-08217
90467-10186
Linked diagrams
5752
