KDJ125R-GJMEYW (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004
Engine 1KDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

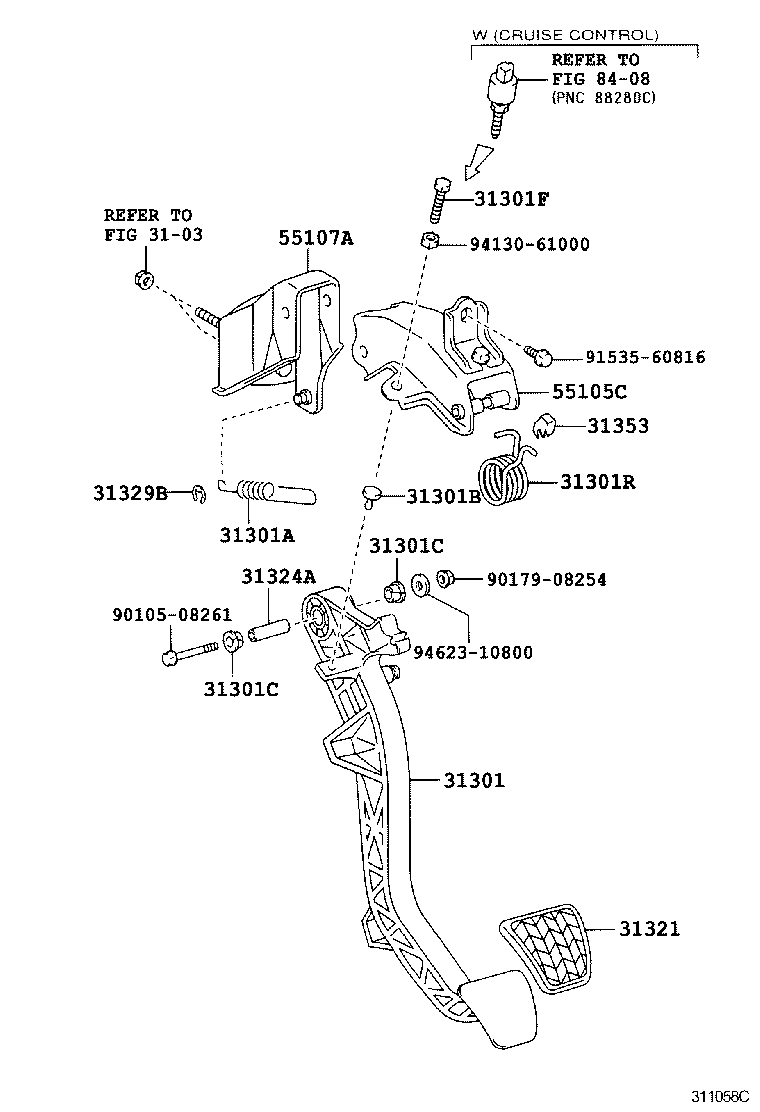

ILLUST NO. 1 OF 2(0209- )RHD..MTM

Click highlighted areas on diagram

diagram 3103 31301 31301A 31301B 31301C 31301C 31301F 31301R 31321 31324A 31329B 31353 55105C 55107A 8408 9010508261 9017908254 9153560816 9413061000 9462310800
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31311-60220

KDJ12#..RHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-26008

KDJ12#..RHD..5F

 1
90507-23024

KDJ12#..RHD..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

KDJ12#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-14015

KDJ12#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-14015

KDJ12#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

KDJ12#..MTM

 1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03126

KDJ12#..RHD..5F

 1
90949-03131

KDJ12#..RHD..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

KDJ12#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-08160

KDJ12#..MTM

 1
31329B - RING, E(FOR CLUTCH PEDAL PAWL)
96160-00600

KDJ12#..5F

 1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-26010

KDJ12#..MTM

 1
55105C - SUPPORT, PEDAL BRACKET CLUTCH WIRE
55105-60020

KDJ12#..RHD..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-60200

KDJ12#..RHD..MTM

 1
Common parts
90105-08261
90179-08254
91535-60816
94130-61000
94623-10800
Linked diagrams
3103
8408

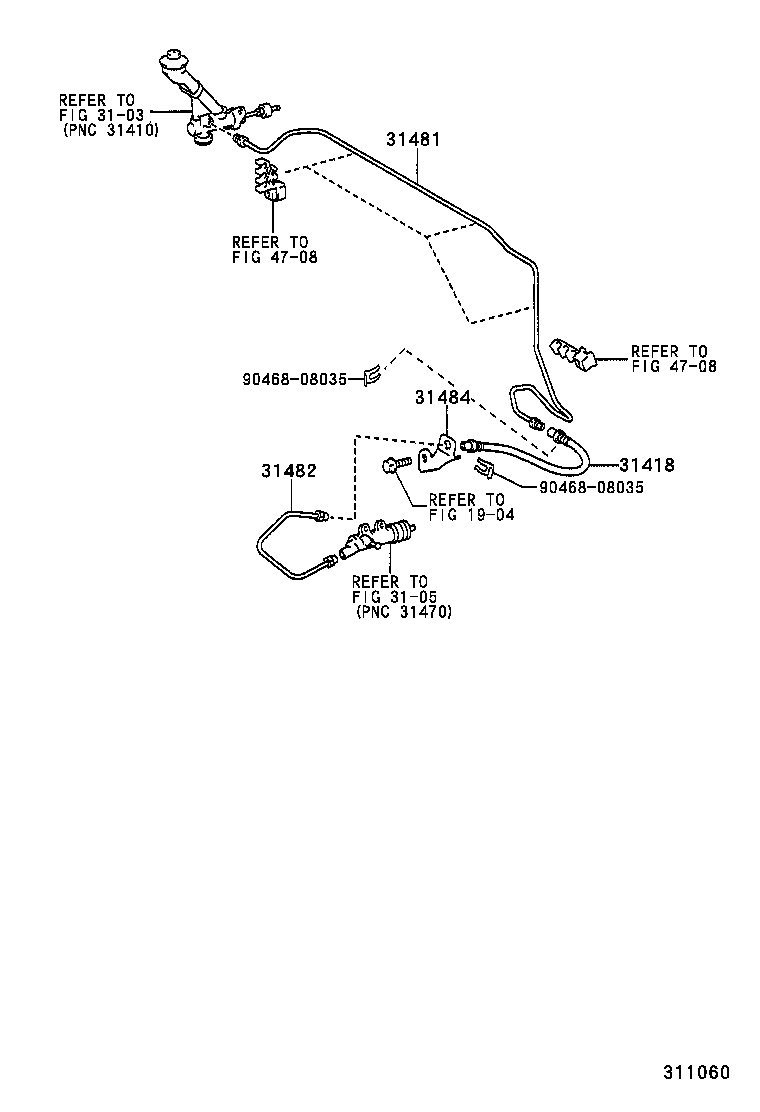

ILLUST NO. 2 OF 2(0209- )RHD..5F

Click highlighted areas on diagram

diagram 1904 3103 3105 31418 31481 31482 31484 4708 4708 9046808035 9046808035
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-02D37

KDJ12#..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-6A060

KDJ12#..RHD..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-60100

KDJ12#..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-60220

KDJ12#..MTM

 1
Common parts
90468-08035
Linked diagrams
1904
3103
3105
4708
