KDJ125R-GJMEYW (2002)
Toyota Land Cruiser Prado
Production
Sep 2002
-
Aug 2004
Engine
1KDFTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

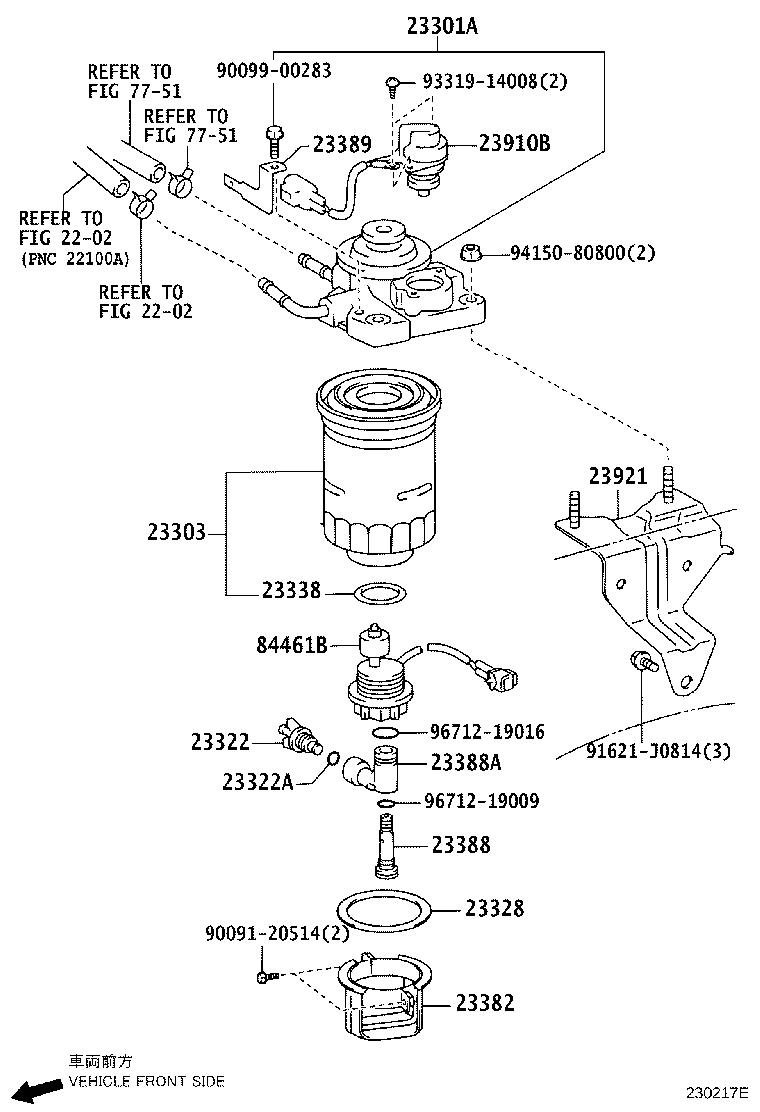

(0209- )1KDFTV
Click highlighted areas on diagram
W(FUEL HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23380-30160 |
1KDFTV..KDJ12# |
1 | ||
| 23380-30170 |
1KDFTV..KDJ12# COLD SPEC |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23390-30150 |
1KDFTV..KDJ12# |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23388-64470 |
1KDFTV..KDJ12# |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
1KDFTV..KDJ12# |
1 | ||
| 23328 - GASKET(FOR FUEL FILTER) | ||||
| 23385-30160 |
1KDFTV..KDJ12# |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
1KDFTV..KDJ12# |
1 | ||
| 23382 - CASE, FUEL FILTER | ||||
| 23382-30160 |
1KDFTV..KDJ12# |
1 | ||
| 23388 - PLUG, FUEL FILTER DRAIN | ||||
| 23388-30160 |
1KDFTV..KDJ12# |
1 | ||
| 23388A - PLUG, FUEL FILTER DRAIN | ||||
| 23388-30170 |
1KDFTV..KDJ12# |
1 | ||
| 23389 - CLAMP, FUEL FILTER | ||||
| 23389-30170 |
1KDFTV..KDJ12# |
1 | ||
| 23389-30170 |
1KDFTV..KDJ12# COLD SPEC |
1 | ||
| 23910B - HEATER ASSY, FUEL | ||||
| 23910-30020 |
1KDFTV..KDJ12# COLD SPEC |
1 | ||
| 23910-30020 |
1KDFTV..KDJ12# |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-30050 |
1KDFTV..KDJ12# |
1 | ||
| 84461B - SWITCH, LEVEL WARNING | ||||
| 84461-60090 |
KDJ12# |
1 | ||
| Common parts | ||||
| 90091-20514 | ||||
| 90099-00283 | ||||
| 91621-J0814 | ||||
| 93319-14008 | ||||
| 94150-80800 | ||||
| 96712-19009 | ||||
| 96712-19016 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 7751 | ||||

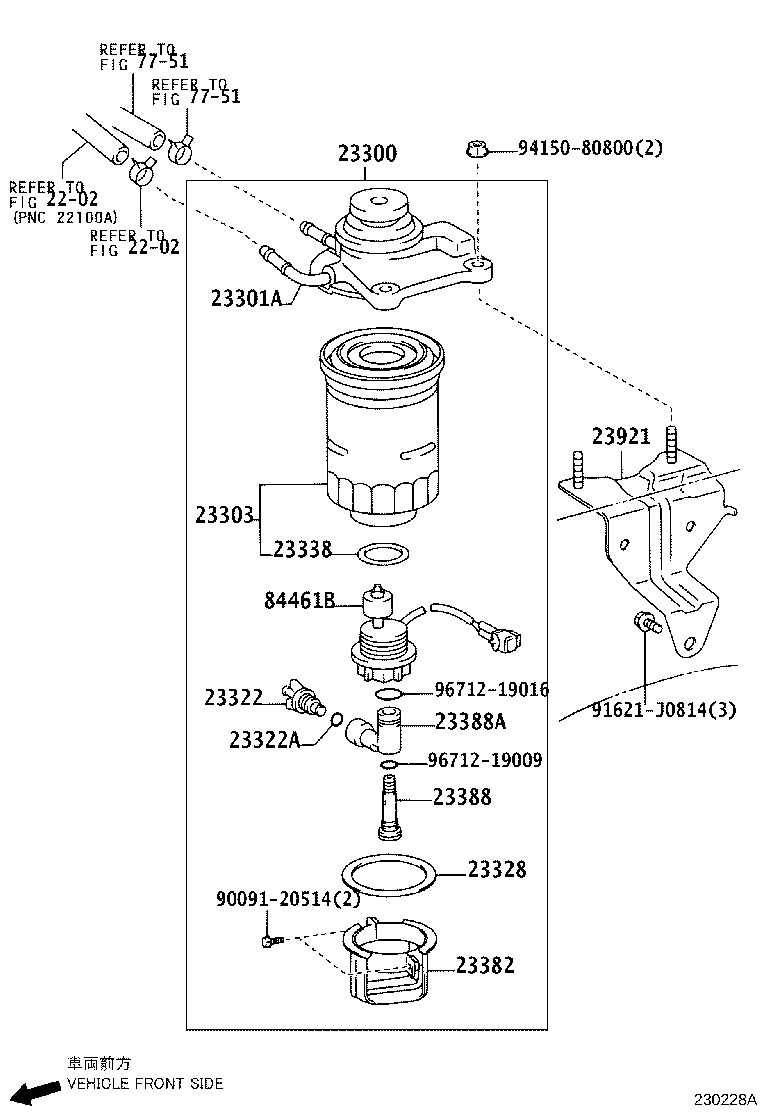

(0209-0307)1KDFTV
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300 - FILTER ASSY, FUEL | ||||
| 23300-30160 |
1KDFTV..KDJ12# |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23380-30160 |
1KDFTV..KDJ12# |
1 | ||
| 23380-30170 |
1KDFTV..KDJ12# COLD SPEC |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23390-30150 |
1KDFTV..KDJ12# |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23388-64470 |
1KDFTV..KDJ12# |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
1KDFTV..KDJ12# |
1 | ||
| 23328 - GASKET(FOR FUEL FILTER) | ||||
| 23385-30160 |
1KDFTV..KDJ12# |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
1KDFTV..KDJ12# |
1 | ||
| 23382 - CASE, FUEL FILTER | ||||
| 23382-30160 |
1KDFTV..KDJ12# |
1 | ||
| 23388 - PLUG, FUEL FILTER DRAIN | ||||
| 23388-30160 |
1KDFTV..KDJ12# |
1 | ||
| 23388A - PLUG, FUEL FILTER DRAIN | ||||
| 23388-30170 |
1KDFTV..KDJ12# |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-30050 |
1KDFTV..KDJ12# |
1 | ||
| 84461B - SWITCH, LEVEL WARNING | ||||
| 84461-60090 |
KDJ12# |
1 | ||
| Common parts | ||||
| 90091-20514 | ||||
| 91621-J0814 | ||||
| 94150-80800 | ||||
| 96712-19009 | ||||
| 96712-19016 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 7751 | ||||
