KDJ125L-GJPEYW (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004
Engine 1KDFTV
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

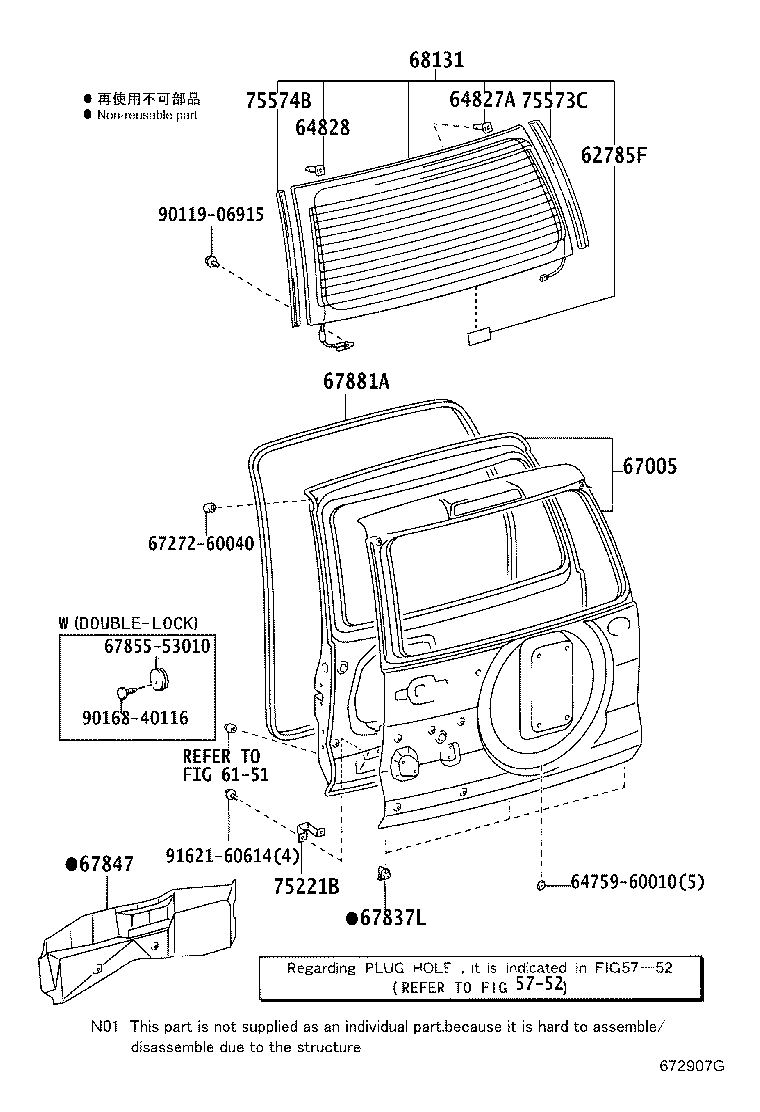

ILLUST NO. 2 OF 2(0209- )

Click highlighted areas on diagram

W(SPARE TIRE CARRIER = BACK DOOR)

diagram 5752 6151 62785F 6475960010 64827A 64828 67005 6727260040 67837L 67847 6785553010 67881A 68131 75221B 75573C 75574B 9011906915 9016840116 9162160614
Part # Description Qty Price
62785F - SPACER, BACK DOOR GLASS
62785-60030

GRJ12#,KDJ12#

 2
64827A - CLIP, BACK WINDOW GLASS, RH
64827-60030

GRJ12#,KDJ12#

 1
64828 - CLIP, BACK WINDOW GLASS, LH
64828-60030

GRJ12#,KDJ12#

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-6A800

GRJ12#,KDJ12#

 1
67837L - SEAL, DOOR DUST PROOF
67837-60020

GRJ12#,KDJ12#

 3
67847 - COVER, BACK DOOR SERVICE HOLE, RH
67847-60060

GRJ12#,KDJ12#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-60131

GRJ12#,KDJ12#

 1
67881-60130

GRJ12#,KDJ12#

 1
68131 - GLASS, BACK DOOR
68105-60081

GRJ12#,KDJ12#

*EHTT,T=3.1,GREEN

 1
68105-60080

KDJ12#

*EHTT,T=3.1,GREEN

 1
75221B - BRACKET, TOOL BOX
75221-60010

GRJ12#,KDJ12#

 2
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-60050

GRJ12#,KDJ12#

 1
75574B - MOULDING, BACK WINDOW, OUTSIDE LH
75573-60050

GRJ12#,KDJ12#

 1
Common parts
64759-60010
67272-60040
67855-53010
90119-06915
90168-40116
91621-60614
Linked diagrams
5752
6151

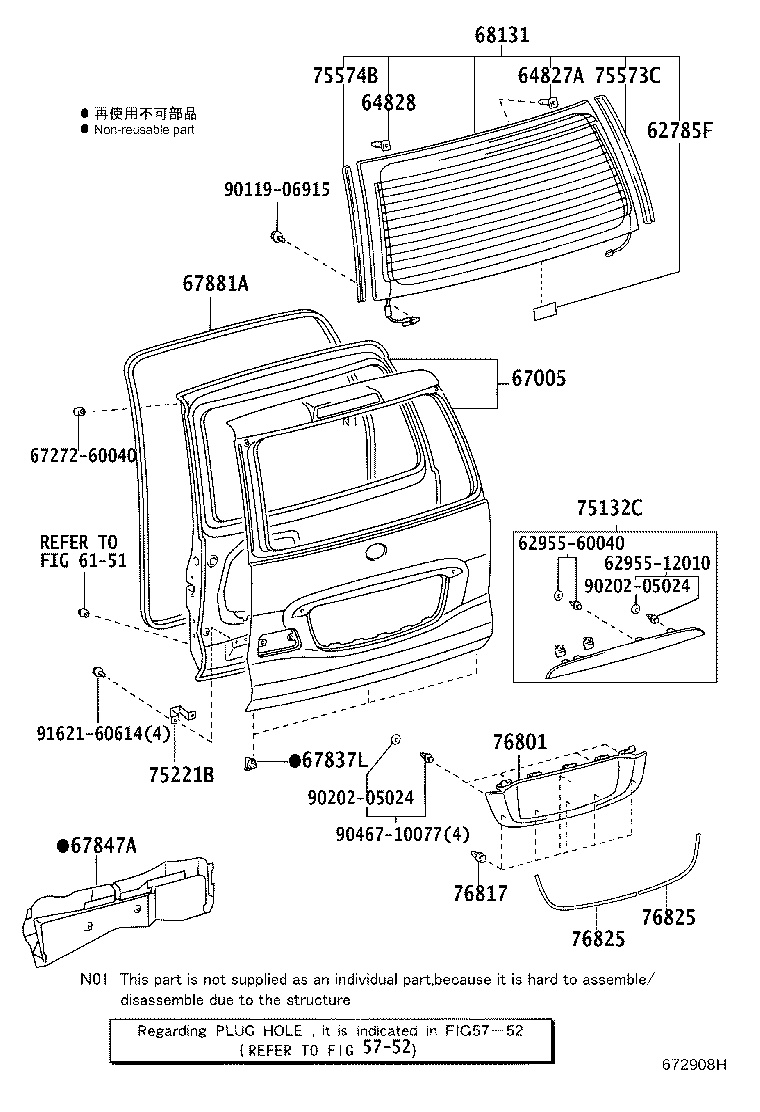

ILLUST NO. 2 OF 2(0209- )

Click highlighted areas on diagram

W(SPARE TIRE CARRIER = FRAME)

diagram 5752 6151 62785F 6295512010 6295560040 64827A 64828 67005 6727260040 67837L 67847A 67881A 68131 75132C 75221B 75573C 75574B 76801 76817 76825 76825 9011906915 9020205024 9020205024 9046710077 9162160614
Part # Description Qty Price
62785F - SPACER, BACK DOOR GLASS
62785-60030

GRJ12#,KDJ12#

 2
64827A - CLIP, BACK WINDOW GLASS, RH
64827-60030

GRJ12#,KDJ12#

 1
64828 - CLIP, BACK WINDOW GLASS, LH
64828-60030

GRJ12#,KDJ12#

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-6A800

GRJ12#,KDJ12#

 1
67837L - SEAL, DOOR DUST PROOF
67837-60020

GRJ12#,KDJ12#

 3
67881A - WEATHERSTRIP, BACK DOOR
67881-60131

GRJ12#,KDJ12#

 1
67881-60130

GRJ12#,KDJ12#

 1
68131 - GLASS, BACK DOOR
68105-60081

GRJ12#,KDJ12#

*EHTT,T=3.1,GREEN

 1
68105-60080

KDJ12#

*EHTT,T=3.1,GREEN

 1
75221B - BRACKET, TOOL BOX
75221-60010

GRJ12#,KDJ12#

 2
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-60050

GRJ12#,KDJ12#

 1
75574B - MOULDING, BACK WINDOW, OUTSIDE LH
75573-60050

GRJ12#,KDJ12#

 1
Common parts
62955-12010
62955-60040
67272-60040
90119-06915
90202-05024
90467-10077
91621-60614
Linked diagrams
5752
6151

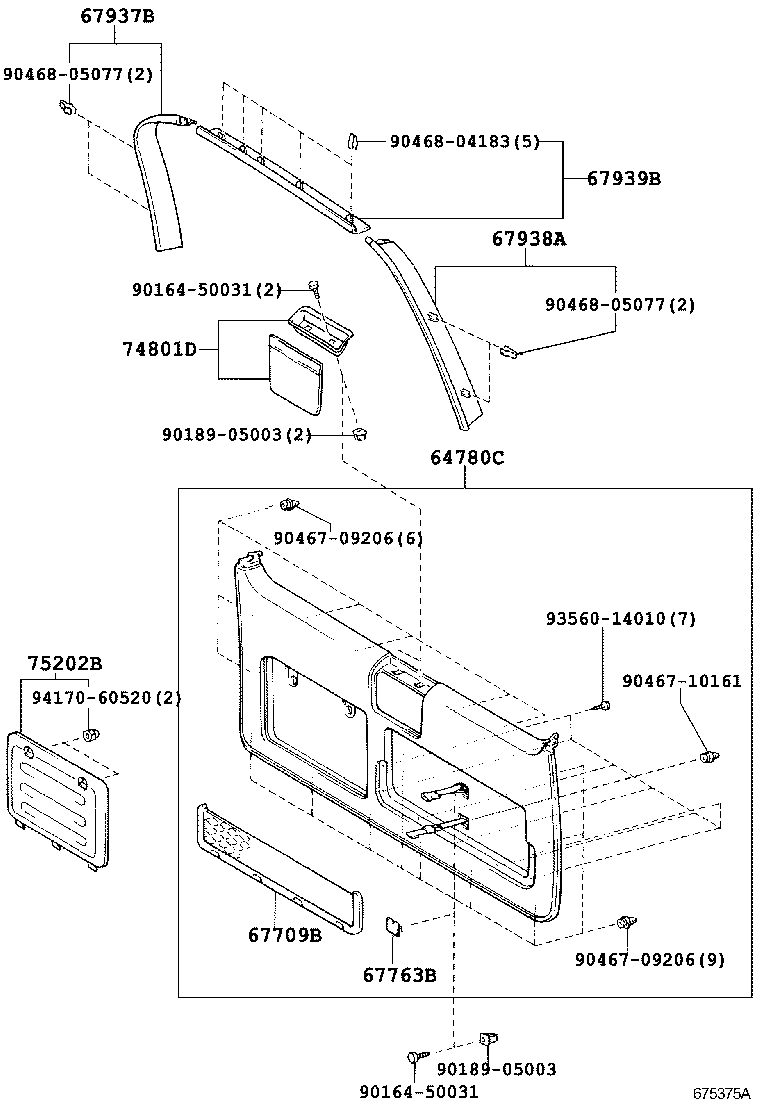

ILLUST NO. 1 OF 2(0209- )

Click highlighted areas on diagram

SPARE TIRE CARRIER=BACK DOOR

diagram 64780C 67709B 67763B 67937B 67938A 67939B 74801D 75202B 9016450031 9016450031 9018905003 9018905003 9046709206 9046709206 9046710161 9046804183 9046805077 9046805077 9356014010 9417060520
Part # Description Qty Price
64780C - PANEL ASSY, BACK DOOR TRIM, RH
64780-60300A0

GRJ12#,KDJ12#

IVORY,TRIM0#

 1
64780-60300B0

GRJ12#,KDJ12#

MD.GRAY,TRIM1#

 1
67709B - POCKET SUB-ASSY, BACK DOOR TRIM
67709-60030A0

GRJ12#,KDJ12#

IVORY,TRIM0#

 1
67709-60030B0

GRJ12#,KDJ12#

GRAY,TRIM1#

 1
67763B - COVER, BACK DOOR TRIM, LOWER RH
67763-60080B0

GRJ12#,KDJ12#

MD.GRAY,TRIM1#

 2
67763-60080A0

GRJ12#,KDJ12#

IVORY,TRIM0#

 2
67937B - GARNISH, BACK DOOR SIDE, RH
67937-60090B0

GRJ12#,KDJ12#

MD.GRAY,TRIM1#

 1
67937-60090A0

GRJ12#,KDJ12#

IVORY,TRIM0#

 1
67938A - GARNISH, BACK DOOR SIDE, LH
67938-60070B0

GRJ12#,KDJ12#

MD.GRAY,TRIM1#

 1
67938-60070A0

GRJ12#,KDJ12#

IVORY,TRIM0#

 1
67939B - GARNISH, BACK DOOR, CENTER
67939-60080A0

GRJ12#,KDJ12#

IVORY,TRIM0#

 1
67939-60080B0

GRJ12#,KDJ12#

MD.GRAY,TRIM1#

 1
74801D - HANDLE SUB-ASSY, DOOR PULL
74801-60010A0

GRJ12#,KDJ12#

IVORY,TRIM0#

 1
74801-60010B0

GRJ12#,KDJ12#

MD.GRAY,TRIM1#

 1
75202B - PANEL SUB-ASSY, TOOL BOX, UPPER
75202-60080A0

GRJ12#,KDJ12#

IVORY,TRIM0#

 1
75202-60080B0

GRJ12#,KDJ12#

MD.GRAY,TRIM1#

 1
Common parts
90164-50031
90189-05003
90467-09206
90467-10161
90468-04183
90468-05077
93560-14010
94170-60520
