KDJ125L-GJPEYW (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004
Engine 1KDFTV
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209-0408)1KDFTV

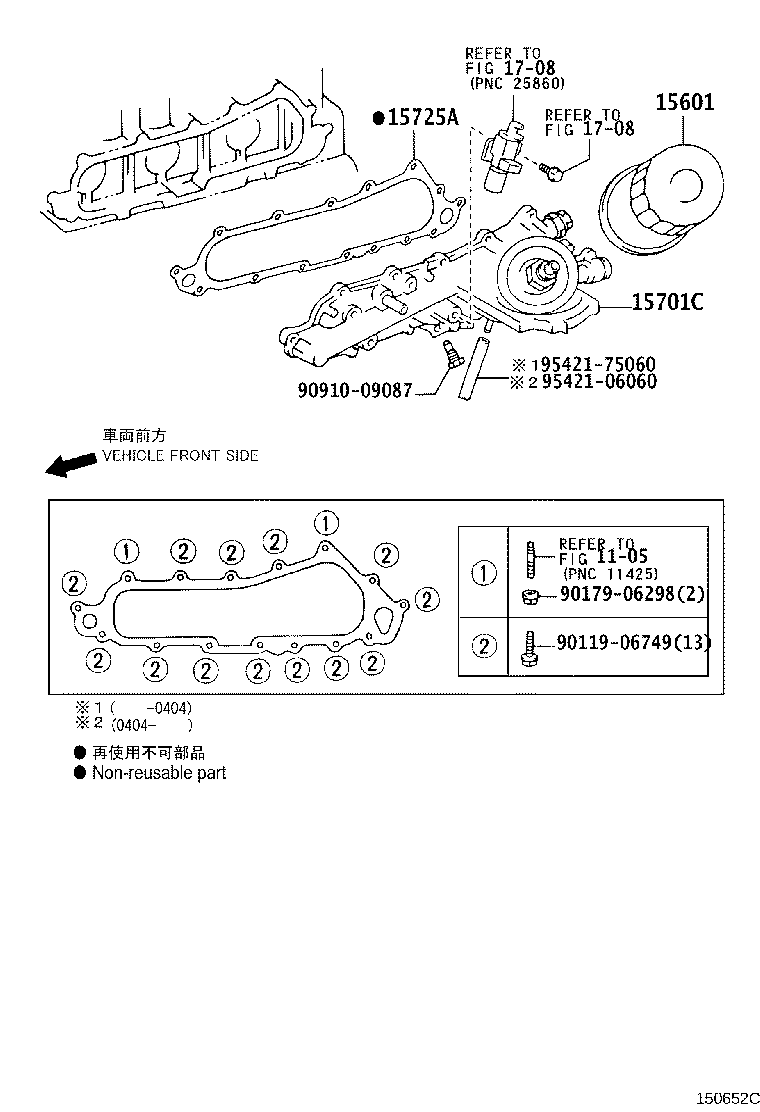

Click highlighted areas on diagram

diagram 1105 15601 15701C 15725A 1708 1708 9011906749 9017906298 9091009087 9542106060 9542175060
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-30002

1KDFTV..KDJ12#

 1
15701C - COVER SUB-ASSY, OIL COOLER
15701-30050

1KDFTV..KDJ12#

 1
15725A - GASKET, OIL COOLER COVER
15725-67010

1KDFTV..KDJ12#

 1
Common parts
90119-06749
90179-06298
90910-09087
95421-06060
95421-75060
Linked diagrams
1105
1708
