KDJ125L-GJMEYW (2002)
Toyota Land Cruiser Prado

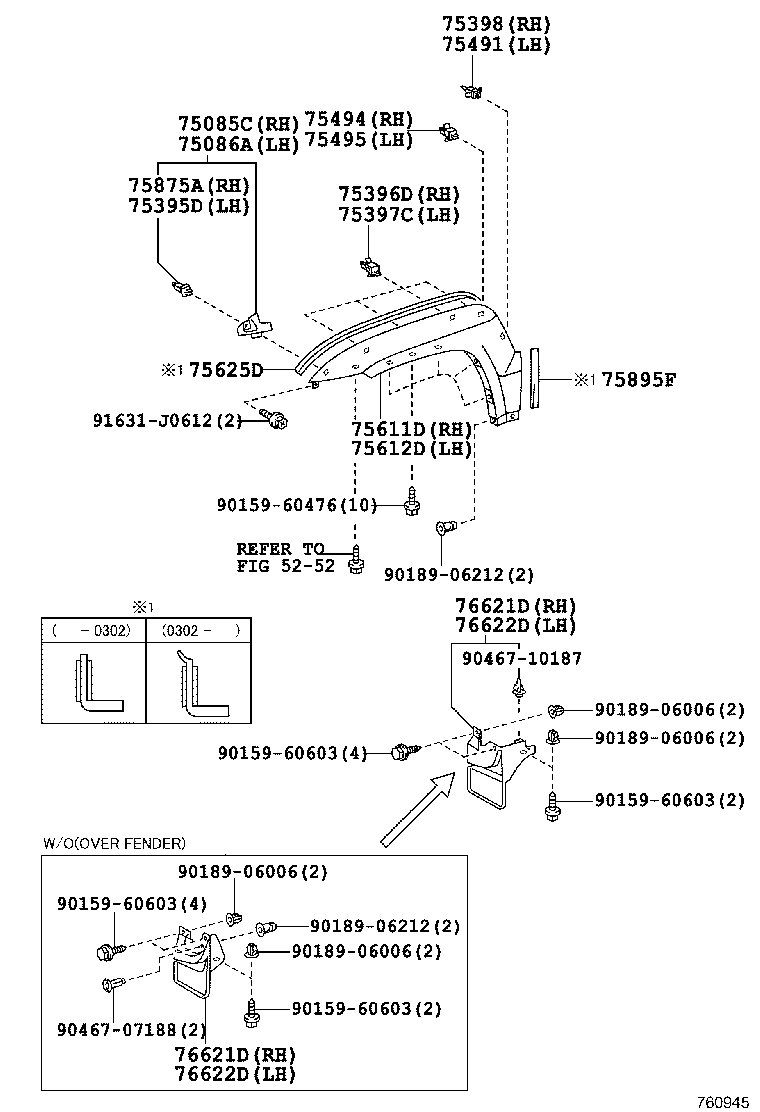

ILLUST NO. 1 OF 3(0209- )GRJ125,KDJ125
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75085C - MOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, RH | ||||
| 75085-60061 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75085-60060 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75086A - MOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, LH | ||||
| 75086-60061 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75086-60060 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75395D - CLIP, OUTSIDE MOULDING, NO.1 | ||||
| 75397-35010 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75395-60040 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75396D - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 75396-60030 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
3 | ||
| 75396-60031 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
3 | ||
| 75397C - CLIP, OUTSIDE MOULDING, NO.3 | ||||
| 75397-60031 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
3 | ||
| 75397-60030 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
3 | ||
| 75398 - CLIP, OUTSIDE MOULDING, NO.5 | ||||
| 75398-60021 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75398-60020 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75491 - CLIP, OUTSIDE MOULDING, NO.6 | ||||
| 75491-60011 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75491-60010 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75494 - CLIP, OUTSIDE MOULDING, NO.3 | ||||
| 75494-60010 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75494-60011 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75495 - CLIP, OUTSIDE MOULDING, NO.4 | ||||
| 75495-60011 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75495-60010 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75611D - MOULDING, FRONT FENDER, OUTSIDE FRONT RH | ||||
| 75611-60110D0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,DARK RED MC.,3Q8 |
1 | ||
| 75611-60110B1 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,DK.GRAY M.M.,1E9 |
1 | ||
| 75611-60110G0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,DK.GREEN MC.,6Q7 |
1 | ||
| 75611-60110B0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,SILVER ME.,1D4 |
1 | ||
| 75611-60110C0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,BLACK,202 |
1 | ||
| 75611-60110J0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,DARK BLUE M.M.,8R4 |
1 | ||
| 75611-60110F0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,CHAMPAGNE M.M.,587 |
1 | ||
| 75611-60110A0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,WHITE,056 |
1 | ||
| 75612D - MOULDING, FRONT FENDER, OUTSIDE FRONT LH | ||||
| 75612-60110B0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,SILVER ME.,1D4 |
1 | ||
| 75612-60110C0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,BLACK,202 |
1 | ||
| 75612-60110A0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,WHITE,056 |
1 | ||
| 75612-60110J0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,DARK BLUE M.M.,8R4 |
1 | ||
| 75612-60110F0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,CHAMPAGNE M.M.,587 |
1 | ||
| 75612-60110D0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,DARK RED MC.,3Q8 |
1 | ||
| 75612-60110B1 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,DK.GRAY M.M.,1E9 |
1 | ||
| 75612-60110G0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,DK.GREEN MC.,6Q7 |
1 | ||
| 75625D - PAD, FRONT FENDER OUTSIDE MOULDING, UPPRER | ||||
| 75898-60040 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
2 | ||
| 75898-60041 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
2 | ||
| 75875A - CLIP, FRONT FENDER WHEEL OPENING MOULDING | ||||
| 75397-35010 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75875-60010 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75895F - TAPE, MOULDING, NO.1 | ||||
| 75895-60051 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
2 | ||
| 75895-60050 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
2 | ||
| 76621D - MUDGUARD, FRONT FENDER, RH | ||||
| 76621-60100 |
GRJ12#,KDJ12# |
1 | ||
| 76603-60110F0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,GRAY ME.,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 76621D - MUDGUARD, FRONT FENDER, RH | ||||
| 76621-60100 |
GRJ12#,KDJ12# |
1 | ||
| 76603-60110F0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,GRAY ME.,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 76622D - MUDGUARD, FRONT FENDER, LH | ||||
| 76604-60110F0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,GRAY ME.,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 76622-60090 |
GRJ12#,KDJ12# |
1 | ||
| 76622D - MUDGUARD, FRONT FENDER, LH | ||||
| 76604-60110F0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,GRAY ME.,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 76622-60090 |
GRJ12#,KDJ12# |
1 | ||
| Common parts | ||||
| 90159-60476 | ||||
| 90159-60603 | ||||
| 90189-06006 | ||||
| 90189-06212 | ||||
| 90467-07188 | ||||
| 90467-10187 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 5252 | ||||

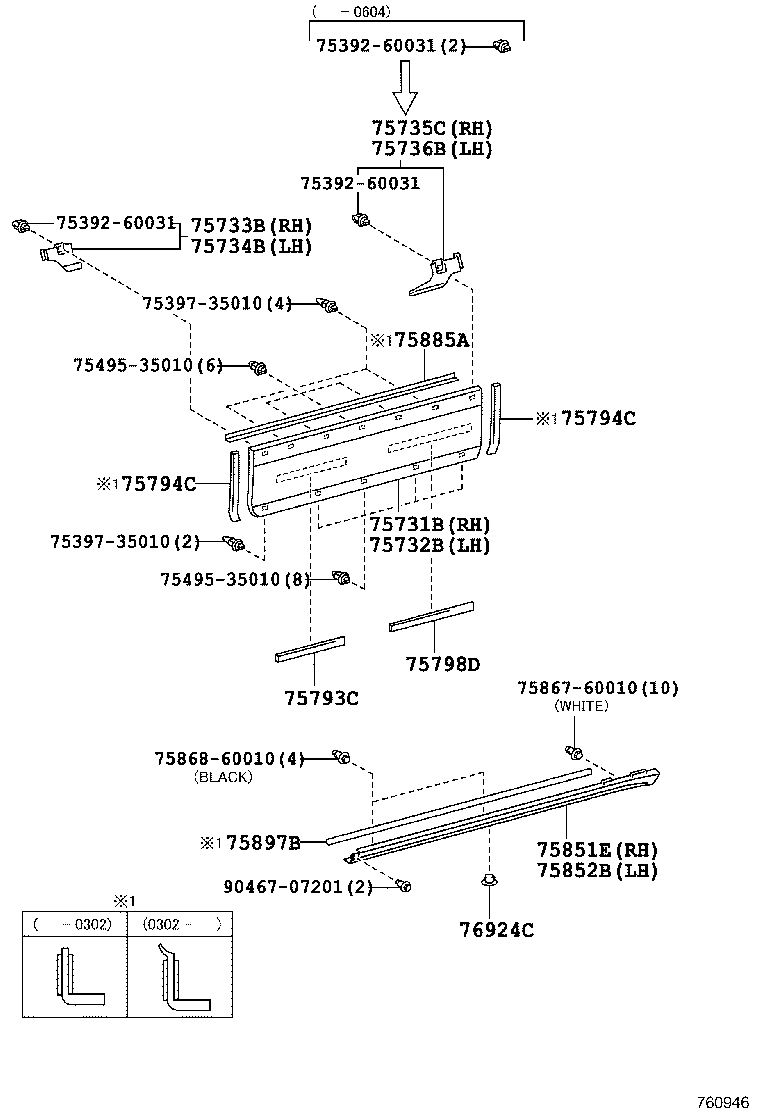

ILLUST NO. 2 OF 3(0209- )GRJ125,KDJ125
CENTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75731B - MOULDING, FRONT DOOR, OUTSIDE RH | ||||
| 75731-60160A0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,WHITE,056 |
1 | ||
| 75731-60160F0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,CHAMPAGNE M.M.,587 |
1 | ||
| 75731-60160J0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,DARK BLUE M.M.,8R4 |
1 | ||
| 75731-60160B1 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,DK.GRAY M.M.,1E9 |
1 | ||
| 75731-60160C0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,BLACK,202 |
1 | ||
| 75731-60160D0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,DARK RED MC.,3Q8 |
1 | ||
| 75731-60160G0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,DK.GREEN MC.,6Q7 |
1 | ||
| 75731-60160B0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,SILVER ME.,1D4 |
1 | ||
| 75732B - MOULDING, FRONT DOOR, OUTSIDE LH | ||||
| 75732-60160J0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,DARK BLUE M.M.,8R4 |
1 | ||
| 75732-60160A0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,WHITE,056 |
1 | ||
| 75732-60160B0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,SILVER ME.,1D4 |
1 | ||
| 75732-60160B1 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,DK.GRAY M.M.,1E9 |
1 | ||
| 75732-60160D0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,DARK RED MC.,3Q8 |
1 | ||
| 75732-60160F0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,CHAMPAGNE M.M.,587 |
1 | ||
| 75732-60160G0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,DK.GREEN MC.,6Q7 |
1 | ||
| 75732-60160C0 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC,BLACK,202 |
1 | ||
| 75733B - MOULDING, FRONT DOOR, OUTSIDE UPPER REAR RH | ||||
| 75073-60040 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75073-60041 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75734B - MOULDING, FRONT DOOR, OUTSIDE UPPER REAR LH | ||||
| 75074-60040 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75074-60041 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75793C - PAD, FRONT DOOR OUTSIDE MOULDING, UPPER | ||||
| 75793-60020 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
2 | ||
| 75794C - PAD, FRONT DOOR OUTSIDE MOULDING, REAR | ||||
| 75794-60010 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 75794-60011 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 75794C - PAD, FRONT DOOR OUTSIDE MOULDING, REAR | ||||
| 75794-60010 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 75794-60011 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 75798D - PAD, FRONT DOOR OUTSIDE MOULDING, REAR | ||||
| 75798-60020 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
2 | ||
| 75851E - MOULDING, BODY ROCKER PANEL, RH | ||||
| 75851-60060 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75852B - MOULDING, BODY ROCKER PANEL, LH | ||||
| 75852-60060 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 75885A - TAPE, MOULDING, NO.6 | ||||
| 75885-60021 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
2 | ||
| 75885-60020 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
2 | ||
| 75897B - TAPE, MOULDING, NO.3 | ||||
| 75897-60061 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC |
2 | ||
| 75897-60060 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC |
2 | ||
| 76924C - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-13020 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC |
12 | ||
| Common parts | ||||
| 75392-60031 | ||||
| 75397-35010 | ||||
| 75495-35010 | ||||
| 75867-60010 | ||||
| 75868-60010 | ||||
| 90467-07201 | ||||
ILLUST NO. 3 OF 3(0209- )GRJ125,KDJ125
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75653B - MOULDING, QUARTER OUTSIDE, RH NO.3 | ||||
| 75653-60030F0 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,CHAMPAGNE M.M.,587 |
1 | ||
| 75653-60030A0 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,WHITE,056 |
1 | ||
| 75653-60030C0 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,BLACK,202 |
1 | ||
| 75653-60030B1 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,DK.GRAY M.M.,1E9 |
1 | ||
| 75653-60030J0 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,DARK BLUE M.M.,8R4 |
1 | ||
| 75653-60030B0 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,SILVER ME.,1D4 |
1 | ||
| 75653-60030G0 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,DK.GREEN MC.,6Q7 |
1 | ||
| 75653-60030D0 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,DARK RED MC.,3Q8 |
1 | ||
| 75654B - MOULDING, QUARTER, OUTSIDE NO.4 | ||||
| 75654-60030A0 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,WHITE,056 |
1 | ||
| 75654-60030B0 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,SILVER ME.,1D4 |
1 | ||
| 75654-60030F0 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,CHAMPAGNE M.M.,587 |
1 | ||
| 75654-60030J0 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,DARK BLUE M.M.,8R4 |
1 | ||
| 75654-60030D0 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,DARK RED MC.,3Q8 |
1 | ||
| 75654-60030G0 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,DK.GREEN MC.,6Q7 |
1 | ||
| 75654-60030B1 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,DK.GRAY M.M.,1E9 |
1 | ||
| 75654-60030C0 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,BLACK,202 |
1 | ||
| 75695A - PAD, QUARTER OUTSIDE MOULDING | ||||
| 75798-60020 |
GRJ125,KDJ125..4FC,5F OVER FENDER & CHROME PLATED SPEC |
2 | ||
| 75886 - JOINT, QUARTER PANEL MOULDING, NO.1 RH | ||||
| 75886-60010 |
GRJ125,KDJ125..4FC,5F OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 76625G - MUDGUARD, QUARTER PANEL, REAR RH | ||||
| 76625-60180F0 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,GRAY ME.,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 76625-60160 |
GRJ12#,KDJ12# |
1 | ||
| 76625G - MUDGUARD, QUARTER PANEL, REAR RH | ||||
| 76625-60180F0 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,GRAY ME.,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 76625-60160 |
GRJ12#,KDJ12# |
1 | ||
| 76626E - MUDGUARD, QUARTER PANEL, REAR LH | ||||
| 76626-60180F0 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,GRAY ME.,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 76626-60160 |
GRJ12#,KDJ12# |
1 | ||
| 76626E - MUDGUARD, QUARTER PANEL, REAR LH | ||||
| 76626-60180F0 |
GRJ125,KDJ125 OVER FENDER & CHROME PLATED SPEC,GRAY ME.,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 76626-60160 |
GRJ12#,KDJ12# |
1 | ||
| Common parts | ||||
| 52591-60030 | ||||
| 75394-60030 | ||||
| 75492-60020 | ||||
| 75493-60020 | ||||
| 75881-60010 | ||||
| 75882-60010 | ||||
| 75883-60010 | ||||
| 75884-60010 | ||||
| 75887-60010 | ||||
| 75888-60010 | ||||
| 75889-60010 | ||||
| 75896-60041 | ||||
| 75898-60041 | ||||
| 90159-60476 | ||||
| 90159-60603 | ||||
| 90189-06006 | ||||
| 90189-06029 | ||||
| 90189-06065 | ||||
| 90189-06212 | ||||
| 90467-07188 | ||||
| 90467-09189 | ||||
| Linked diagrams | ||||
| 5253 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
