Toyota Land cruiser prado KDJ125 CLUTCH & RELEASE FORK - JDM Part Detective

Home Blog About Contact Search

KDJ125L-GJMEYW (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004

Engine 1KDFTV

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0209- )5F

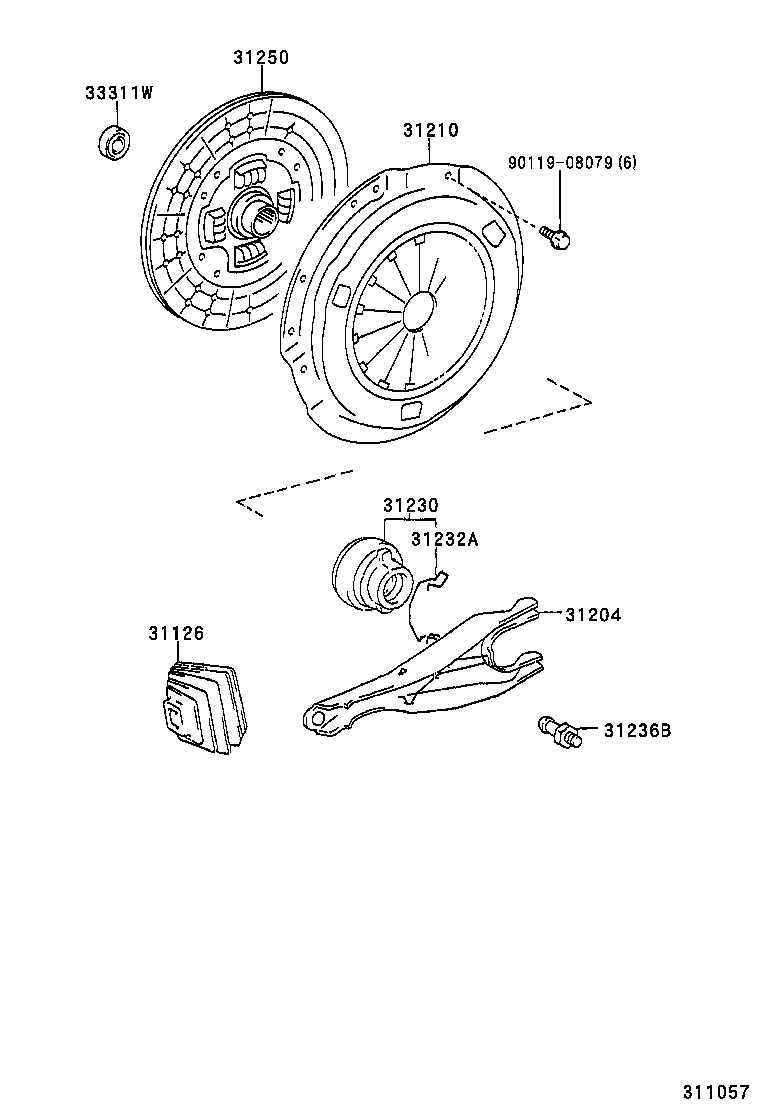

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-60081	KDJ12#..5F	09/2002 - 08/2004	1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-60090	KDJ12#..5F	09/2002 - 08/2004	1
31210 - COVER ASSY, CLUTCH
31210-60221	KDJ12#..5F	07/2004 - 08/2004	1
31210-60220	KDJ12#..5F	09/2002 - 06/2004	1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-60220	KDJ12#..5F	09/2002 - 08/2004	1
31232A - CLIP, RELEASE BEARING HUB
31232-60030	KDJ12#..5F	09/2002 - 08/2004	1
31236B - SUPPORT, RELEASE FORK
31236-60060	KDJ12#..5F	09/2002 - 08/2004	1
31250 - DISC ASSY, CLUTCH
31250-60350	KDJ12#..5F	09/2002 - 08/2004	1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002	KDJ12#..5F	09/2002 - 12/2999	1
Common parts
90119-08079
