Toyota Land cruiser prado KDJ125 TIMING GEAR COVER & REAR END PLATE

Manufacturers Home
Toyota
EU
LAND CRUISER PRADO
KDJ125L-GJMEYW (2002)
1106 - TIMING GEAR COVER & REAR END PLATE

KDJ125L-GJMEYW (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004

Engine 1KDFTV

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

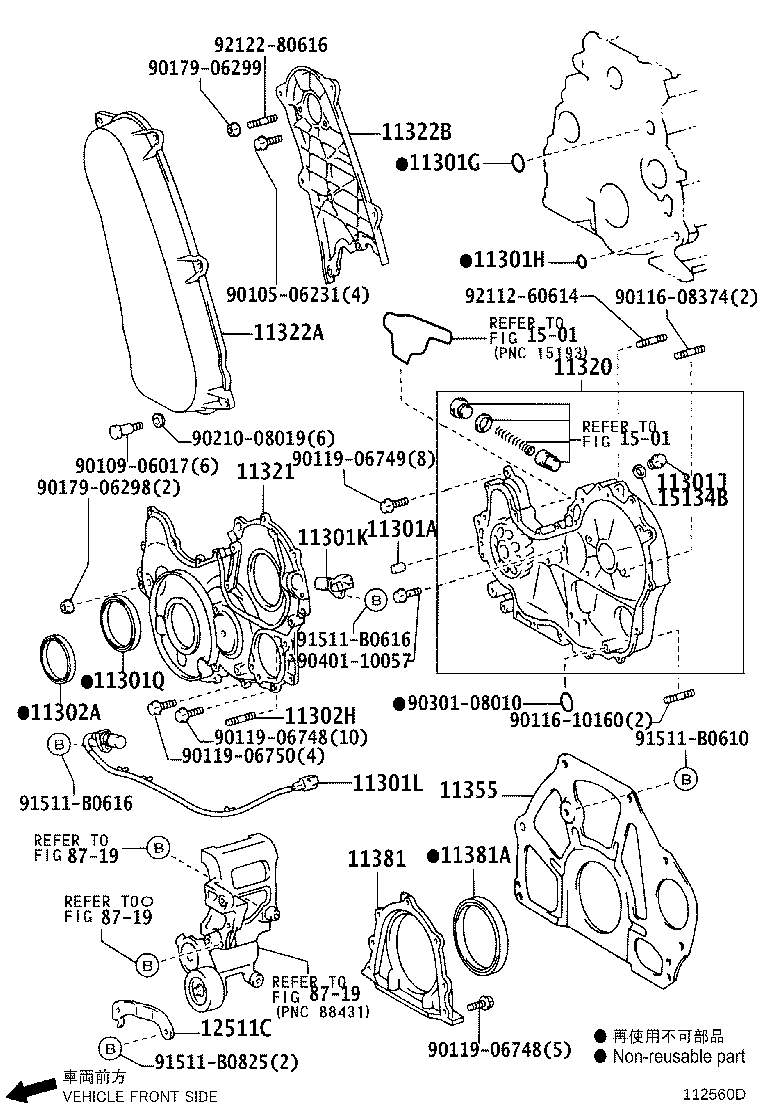

(0209-0406)1KDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120	1KDFTV..KDJ12# L=18,OD=8	09/2002 - 12/2999	1
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90301-22007	1KDFTV..KDJ12#	09/2002 - 12/2999	1
11301H - RING, O(FOR TIMING GEAR CASE, LOWER)
90301-09018	1KDFTV..KDJ12#	09/2002 - 12/2999	1
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
90341-18015	1KDFTV..KDJ12#	09/2002 - 12/2999	1
11301K - SENSOR, CRANK POSITION
90919-05052	1KDFTV..KDJ12#	09/2002 - 12/2999	1
11301L - SENSOR, CRANK POSITION NO.2
90919-05066	1KDFTV..KDJ12#	07/2004 - 12/2999	1
90919-05050	1KDFTV..KDJ12#	09/2002 - 07/2004	1
11301Q - SEAL, TYPE T OIL(FOR INJECTION PUMP)
90311-65003	1KDFTV..KDJ12#	09/2002 - 08/2009	1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-50017	1KDFTV..KDJ12#	09/2002 - 08/2009	1
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08376	1KDFTV..KDJ12#	09/2002 - 08/2006	2
11320 - CASE ASSY, TIMING GEAR
11320-30030	1KDFTV..KDJ12#	09/2002 - 05/2007	1
11321 - CASE, TIMING GEAR
11321-30020	1KDFTV..KDJ12#	09/2002 - 12/2999	1
11322A - COVER, TIMING BELT, NO.1
11332-30010	1KDFTV..KDJ12#	09/2002 - 06/2004	1
11332-30011	1KDFTV..KDJ12#	06/2004 - 12/2999	1
11322B - COVER, TIMING BELT, NO.2
11322-30010	1KDFTV..KDJ12#	09/2002 - 12/2999	1
11355 - PLATE, REAR END
11355-67010	1KDFTV..KDJ12#	09/2002 - 02/2005	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-67020	1KDFTV..KDJ12#	09/2002 - 12/2999	1
11381A - SEAL, ENGINE REAR OIL
90311-95008	1KDFTV..KDJ12#	09/2002 - 12/2999	1
12511C - BRACKET, ALTERNATOR
12511-30020	1KDFTV..KDJ12#	09/2002 - 07/2006	1
15134B - GASKET, OIL PUMP RELIEF VALVE
15134-67010	1KDFTV..KDJ12#	09/2002 - 12/2999	1
Common parts
90105-06231
90109-06017
90116-08374
90116-10160
90119-06748
90119-06749
90119-06750
90179-06298
90179-06299
90210-08019
90301-08010
90401-10057
91511-B0610
91511-B0616
91511-B0825
92112-60614
92122-80616
Linked diagrams
1501
8719

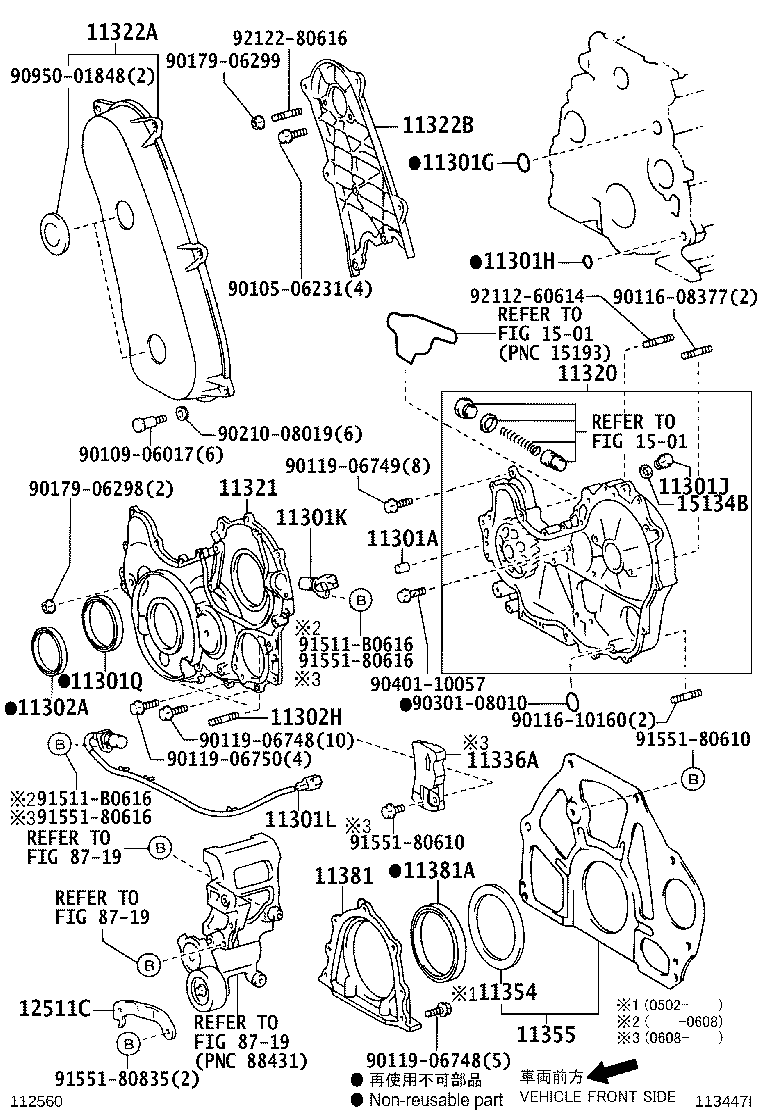

(0406- )1KDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120	1KDFTV..KDJ12# L=18,OD=8	09/2002 - 12/2999	1
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90301-22007	1KDFTV..KDJ12#	09/2002 - 12/2999	1
11301H - RING, O(FOR TIMING GEAR CASE, LOWER)
90301-09018	1KDFTV..KDJ12#	09/2002 - 12/2999	1
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
90341-18015	1KDFTV..KDJ12#	09/2002 - 12/2999	1
11301K - SENSOR, CRANK POSITION
90919-05052	1KDFTV..KDJ12#	09/2002 - 12/2999	1
11301L - SENSOR, CRANK POSITION NO.2
90919-05066	1KDFTV..KDJ12#	07/2004 - 12/2999	1
90919-05050	1KDFTV..KDJ12#	09/2002 - 07/2004	1
11301Q - SEAL, TYPE T OIL(FOR INJECTION PUMP)
90311-65003	1KDFTV..KDJ12#	09/2002 - 08/2009	1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-50017	1KDFTV..KDJ12#	09/2002 - 08/2009	1
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08376	1KDFTV..KDJ12#	09/2002 - 08/2006	2
11320 - CASE ASSY, TIMING GEAR
11320-30030	1KDFTV..KDJ12#	09/2002 - 05/2007	1
11321 - CASE, TIMING GEAR
11321-30020	1KDFTV..KDJ12#	09/2002 - 12/2999	1
11322A - COVER, TIMING BELT, NO.1
11332-30010	1KDFTV..KDJ12#	09/2002 - 06/2004	1
11332-30011	1KDFTV..KDJ12#	06/2004 - 12/2999	1
11322B - COVER, TIMING BELT, NO.2
11322-30010	1KDFTV..KDJ12#	09/2002 - 12/2999	1
11355 - PLATE, REAR END
11355-67010	1KDFTV..KDJ12#	09/2002 - 02/2005	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-67020	1KDFTV..KDJ12#	09/2002 - 12/2999	1
11381A - SEAL, ENGINE REAR OIL
90311-95008	1KDFTV..KDJ12#	09/2002 - 12/2999	1
12511C - BRACKET, ALTERNATOR
12511-30020	1KDFTV..KDJ12#	09/2002 - 07/2006	1
15134B - GASKET, OIL PUMP RELIEF VALVE
15134-67010	1KDFTV..KDJ12#	09/2002 - 12/2999	1
Common parts
90105-06231
90109-06017
90116-08377
90116-10160
90119-06748
90119-06749
90119-06750
90179-06298
90179-06299
90210-08019
90301-08010
90401-10057
90950-01848
91511-B0616
91551-80610
91551-80616
91551-80835
92112-60614
92122-80616
Linked diagrams
1501
8719

KDJ125L-GJMEYW (2002)

(0209-0406)1KDFTV

(0406- )1KDFTV
