KDJ120R-GKMEYW (2002)
Toyota Land Cruiser Prado

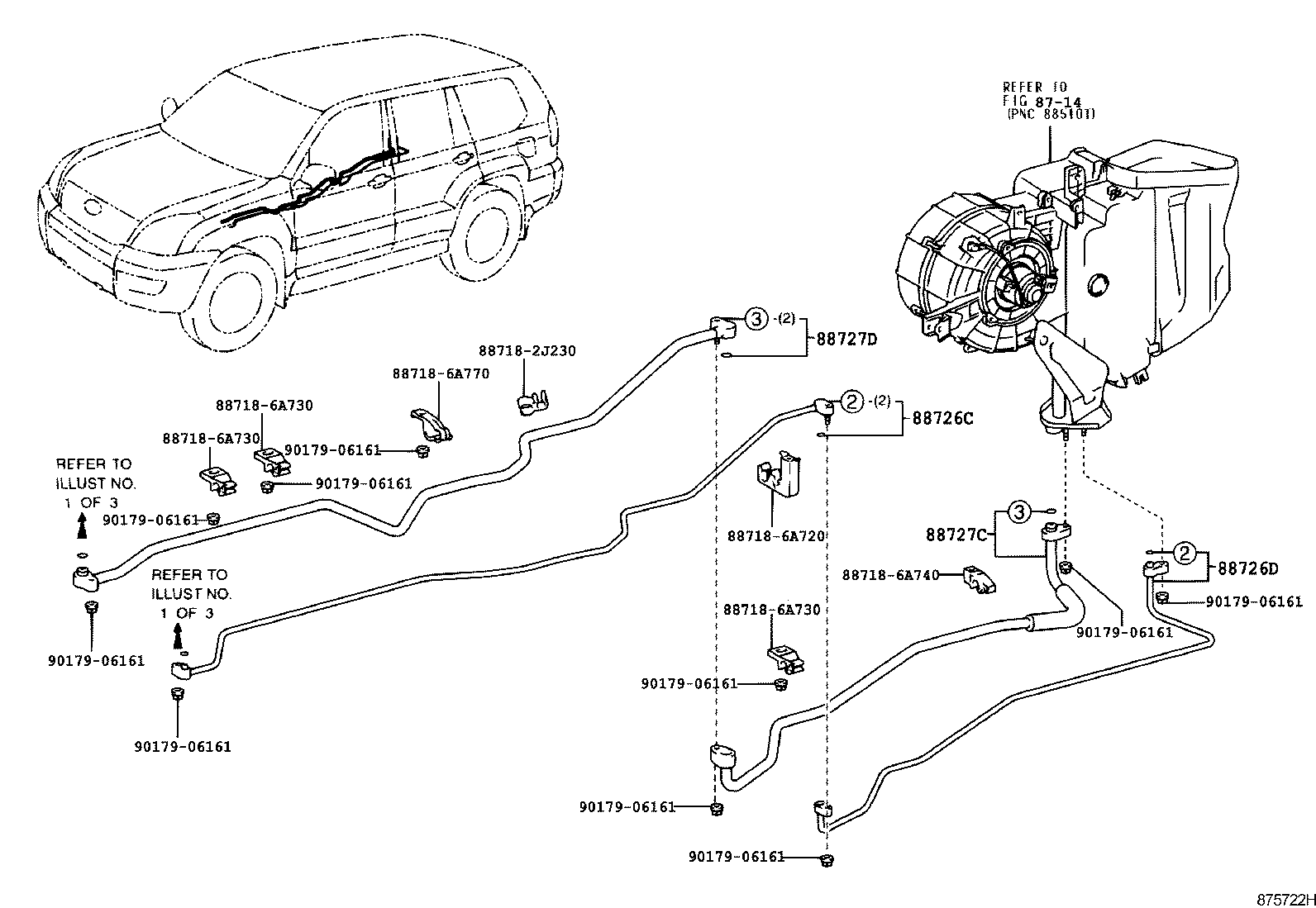

ILLUST NO. 2 OF 3(0209- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88726C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-6B460 |
KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88716-6B460 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
2 | ||
| 88716-6B620 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88726D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-6B420 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88727C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88712-6A240 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88727D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-6A690 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88717-6A550 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
2 | ||
| 88717-6A550 |
KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| Common parts | ||||
| 88718-2J230 | ||||
| 88718-6A720 | ||||
| 88718-6A730 | ||||
| 88718-6A740 | ||||
| 88718-6A770 | ||||
| 90179-06161 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 3 OF 3(0209- )

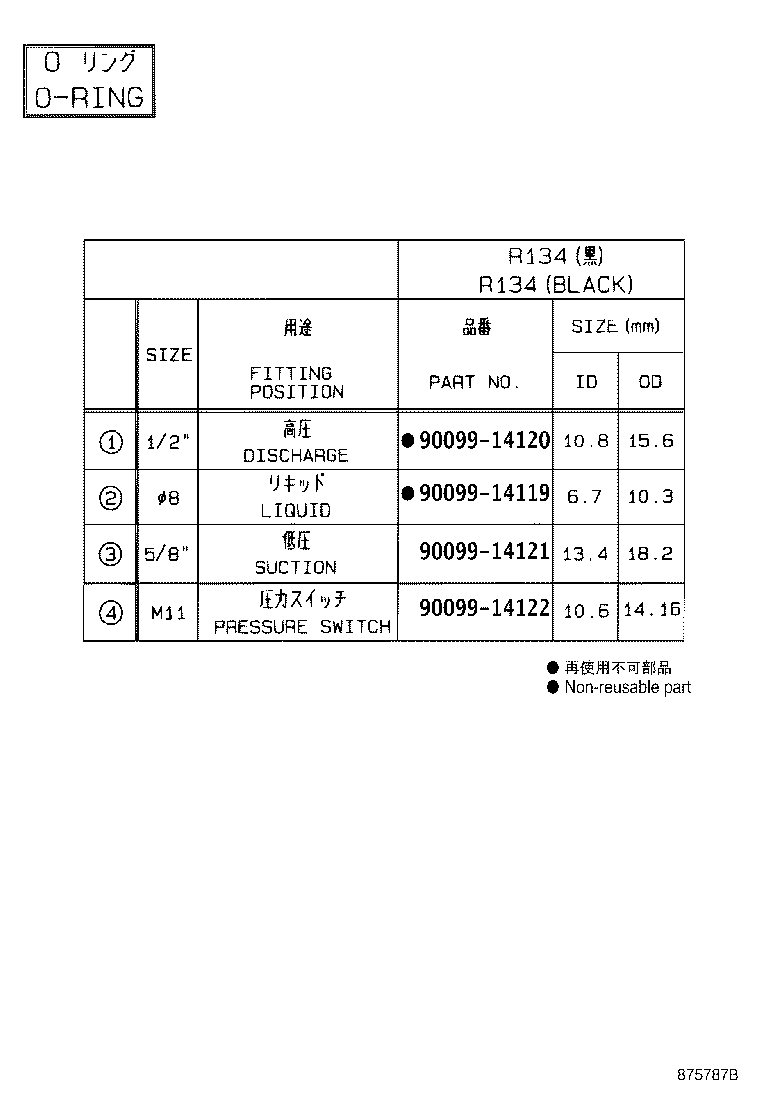

O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

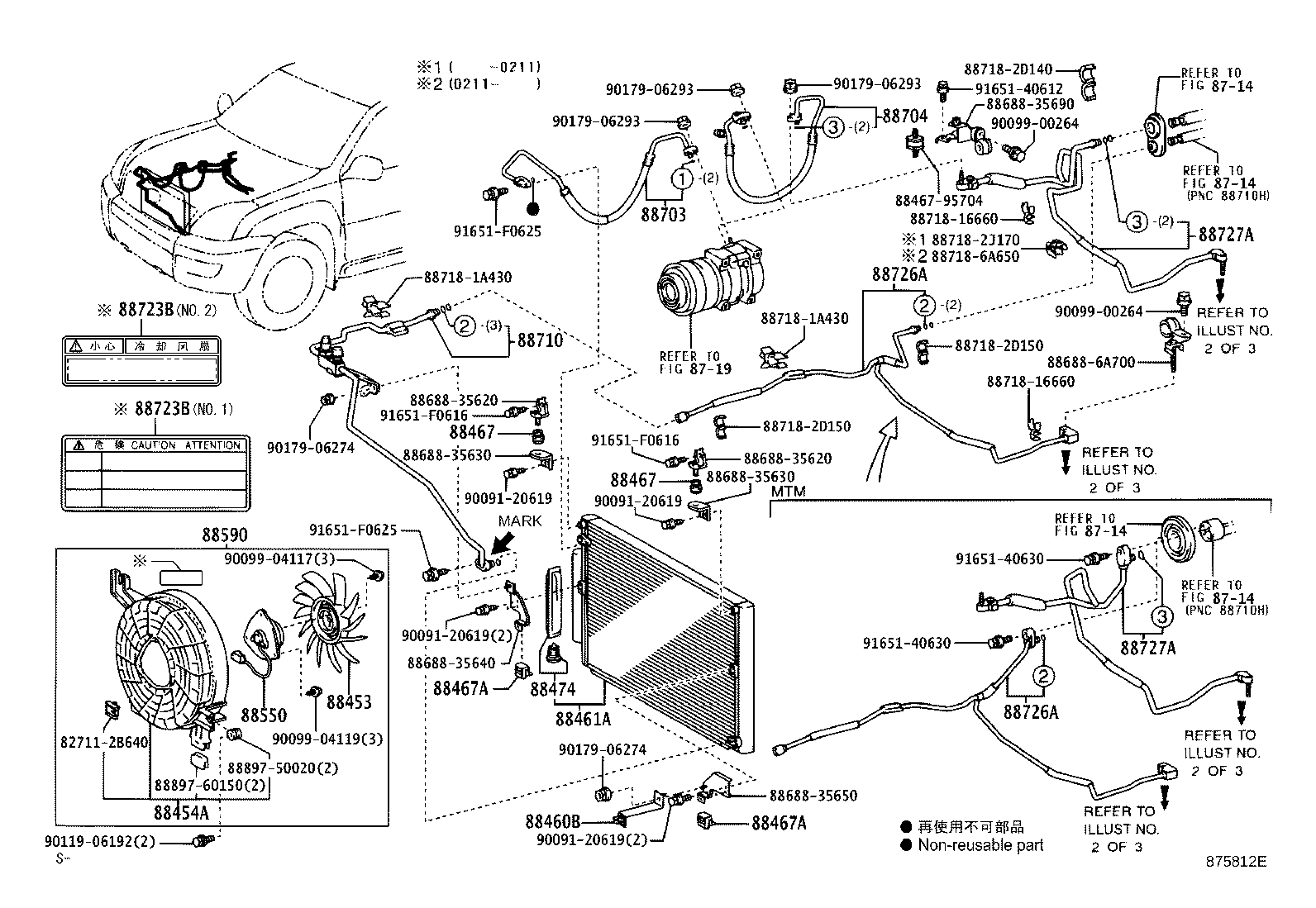

ILLUST NO. 1 OF 3(0209- )KDJ12#
FRONT-SINGLE AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-35570 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88688-35570 |
KDJ12# COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88688-35570 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88688-35570 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88688-35570 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-35160 |
KDJ12# AIR CONDITIONER-SINGLE MANUAL,TYPE A:REFER ILLUST. |
1 | ||
| 88461-35160 |
KDJ12# AIR CONDITIONER-SINGLE AUTO,TYPE A:REFER ILLUST. |
1 | ||
| 88461-35160 |
KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET,TYPE A:REFER ILLUST. |
1 | ||
| 88461-35160 |
KDJ12# COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET,TYPE A:REFER ILLUST. |
1 | ||
| 88461-60100 |
KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 88467-28050 |
KDJ120;GRJ120..5FC AIR CONDITIONER-DUAL AUTO |
2 | ||
| 88467-28050 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET |
2 | ||
| 88467-28050 |
KDJ12# COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
2 | ||
| 88467-28050 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE MANUAL |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 88467-28050 |
KDJ120;GRJ120..5FC AIR CONDITIONER-DUAL AUTO |
2 | ||
| 88467-28050 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET |
2 | ||
| 88467-28050 |
KDJ12# COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
2 | ||
| 88467-28050 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE MANUAL |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-35080 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE MANUAL |
2 | ||
| 88467-35080 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 88467-35080 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET |
2 | ||
| 88467-35080 |
KDJ120;GRJ120..5FC AIR CONDITIONER-DUAL AUTO |
2 | ||
| 88467-35080 |
KDJ12# COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-35080 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE MANUAL |
2 | ||
| 88467-35080 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 88467-35080 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET |
2 | ||
| 88467-35080 |
KDJ120;GRJ120..5FC AIR CONDITIONER-DUAL AUTO |
2 | ||
| 88467-35080 |
KDJ12# COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KDJ12#..4FC,5F COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88474-17010 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88474-17010 |
KDJ12#..4FC,5F AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88474-17010 |
KDJ120;GRJ120..5FC AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88474-17010 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88711-35690 |
KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88711-35690 |
KDJ12# AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88711-35690 |
KDJ12# AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88711-35690 |
KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88711-35690 |
KDJ12# COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88712-35630 |
KDJ12# AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88712-35630 |
KDJ12# AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88712-35630 |
KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88712-35630 |
KDJ12# COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88712-35630 |
KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-35540 |
KDJ12# COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88710-35540 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88710-35540 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88710-6A770 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,MARK : GREEN TAPE |
1 | ||
| 88710-35540 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88710C - TUBE ASSY, AIR CONDITIONER | ||||
| 88707-35020 |
KDJ12#..RHD..MTM COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88707-35020 |
KDJ12#..RHD..MTM AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88707-35020 |
KDJ12#..RHD..MTM AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88707-35020 |
KDJ12#..RHD..MTM AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88710C - TUBE ASSY, AIR CONDITIONER | ||||
| 88707-35020 |
KDJ12#..RHD..MTM COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88707-35020 |
KDJ12#..RHD..MTM AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88707-35020 |
KDJ12#..RHD..MTM AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88707-35020 |
KDJ12#..RHD..MTM AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-35630 |
KDJ12#..RHD..MTM AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88716-35630 |
KDJ12#..RHD..MTM AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88716-35630 |
KDJ12#..RHD..MTM AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88716-35630 |
KDJ12#..RHD..MTM COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-35630 |
KDJ12#..RHD..MTM AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88716-35630 |
KDJ12#..RHD..MTM AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88716-35630 |
KDJ12#..RHD..MTM AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88716-35630 |
KDJ12#..RHD..MTM COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| Common parts | ||||
| 88688-35620 | ||||
| 88688-35630 | ||||
| 88688-35640 | ||||
| 88688-35650 | ||||
| 88718-1A430 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-2J150 | ||||
| 88718-35160 | ||||
| 90091-20619 | ||||
| 90179-06274 | ||||
| 90179-06293 | ||||
| 91651-40612 | ||||
| 91651-40630 | ||||
| 91651-F0616 | ||||
| 91651-F0625 | ||||
| 93315-14010 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 1 OF 3(0209- )KDJ12#
FRONT-DUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-60010 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-60030 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-35570 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88688-35570 |
KDJ12# COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88688-35570 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88688-35570 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88688-35570 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-35160 |
KDJ12# AIR CONDITIONER-SINGLE MANUAL,TYPE A:REFER ILLUST. |
1 | ||
| 88461-35160 |
KDJ12# AIR CONDITIONER-SINGLE AUTO,TYPE A:REFER ILLUST. |
1 | ||
| 88461-35160 |
KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET,TYPE A:REFER ILLUST. |
1 | ||
| 88461-35160 |
KDJ12# COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET,TYPE A:REFER ILLUST. |
1 | ||
| 88461-60100 |
KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 88467-28050 |
KDJ120;GRJ120..5FC AIR CONDITIONER-DUAL AUTO |
2 | ||
| 88467-28050 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET |
2 | ||
| 88467-28050 |
KDJ12# COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
2 | ||
| 88467-28050 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE MANUAL |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 88467-28050 |
KDJ120;GRJ120..5FC AIR CONDITIONER-DUAL AUTO |
2 | ||
| 88467-28050 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET |
2 | ||
| 88467-28050 |
KDJ12# COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
2 | ||
| 88467-28050 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE MANUAL |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-35080 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE MANUAL |
2 | ||
| 88467-35080 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 88467-35080 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET |
2 | ||
| 88467-35080 |
KDJ120;GRJ120..5FC AIR CONDITIONER-DUAL AUTO |
2 | ||
| 88467-35080 |
KDJ12# COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-35080 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE MANUAL |
2 | ||
| 88467-35080 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 88467-35080 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET |
2 | ||
| 88467-35080 |
KDJ120;GRJ120..5FC AIR CONDITIONER-DUAL AUTO |
2 | ||
| 88467-35080 |
KDJ12# COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KDJ12#..4FC,5F COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88474-17010 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88474-17010 |
KDJ12#..4FC,5F AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88474-17010 |
KDJ120;GRJ120..5FC AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88474-17010 |
KDJ12#;GRJ12#..5FC AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12160 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-60040 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88711-35690 |
KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88711-35690 |
KDJ12# AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88711-35690 |
KDJ12# AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88711-35690 |
KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88711-35690 |
KDJ12# COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88712-35630 |
KDJ12# AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88712-35630 |
KDJ12# AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88712-35630 |
KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88712-35630 |
KDJ12# COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88712-35630 |
KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-35540 |
KDJ12# COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88710-35540 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88710-35540 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88710-6A770 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,MARK : GREEN TAPE |
1 | ||
| 88710-35540 |
GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20081 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20081 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6B490 |
KDJ120..RHD..MTM AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6B490 |
KDJ120..RHD..MTM AIR CONDITIONER-DUAL AUTO |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88467-95704 | ||||
| 88688-35620 | ||||
| 88688-35630 | ||||
| 88688-35640 | ||||
| 88688-35650 | ||||
| 88688-35690 | ||||
| 88688-6A700 | ||||
| 88718-16660 | ||||
| 88718-1A430 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-2J170 | ||||
| 88718-6A650 | ||||
| 88897-50020 | ||||
| 88897-60150 | ||||
| 90091-20619 | ||||
| 90099-00264 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-06192 | ||||
| 90179-06274 | ||||
| 90179-06293 | ||||
| 91651-40612 | ||||
| 91651-40630 | ||||
| 91651-F0616 | ||||
| 91651-F0625 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
