KDJ120R-GKMEYW (2002)
Toyota Land Cruiser Prado
Production
Sep 2002
-
Aug 2004
Engine
1KDFTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0209- )GRJ120,KDJ120

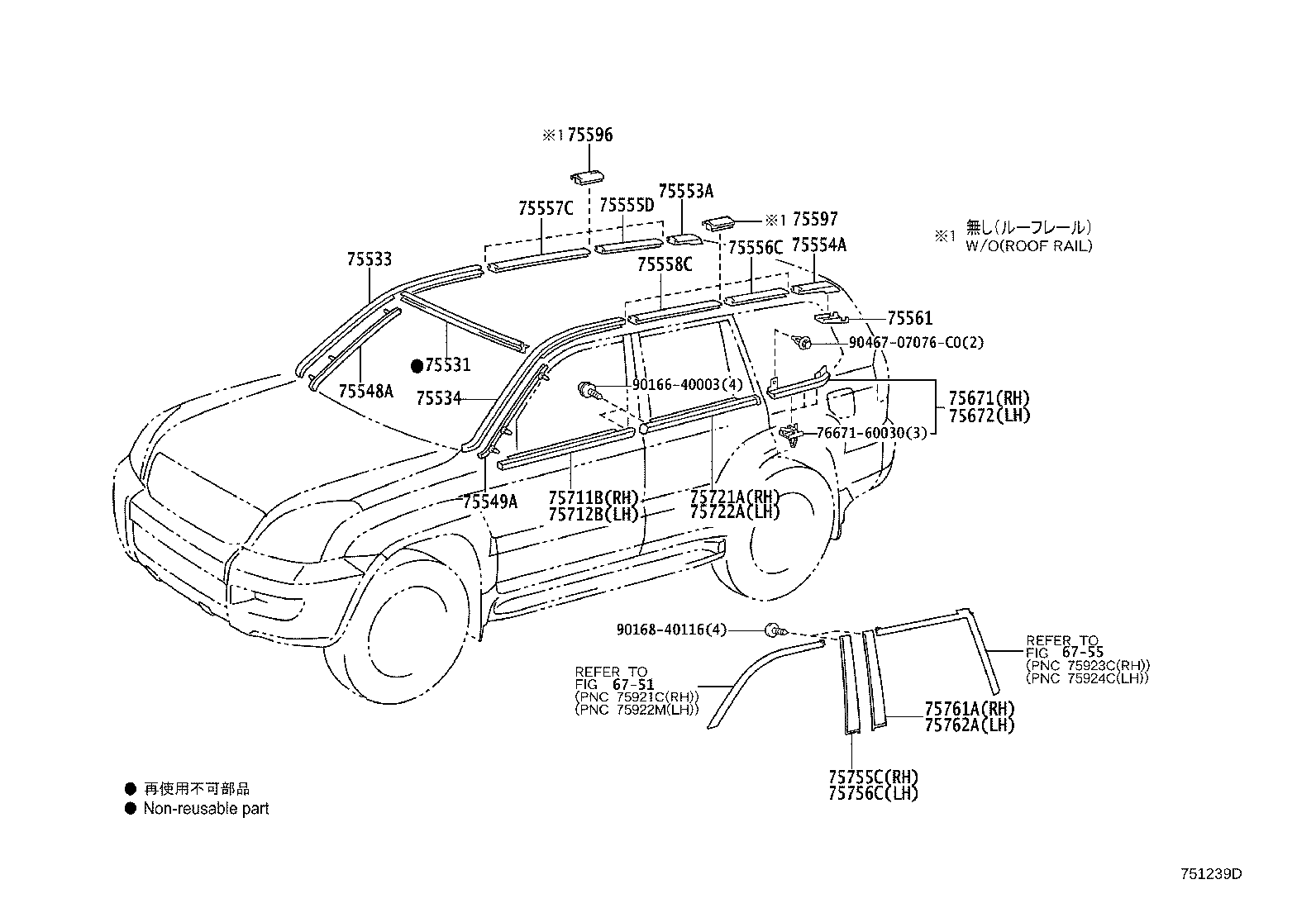

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75531 - MOULDING, WINDSHIELD, OUTER UPPER | ||||
| 75531-60040 |
GRJ12#,KDJ12# NO PAINT REQ. |
1 | ||
| 75533 - MOULDING, WINDSHIELD, OUTSIDE RH | ||||
| 75533-60040 |
GRJ120,KDJ120 |
1 | ||
| 75534 - MOULDING, WINDSHIELD, OUTSIDE LH | ||||
| 75534-60030 |
GRJ120,KDJ120 |
1 | ||
| 75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1 | ||||
| 75548-60010 |
GRJ12#,KDJ12# |
1 | ||
| 75549A - MOULDING, WINDSHIELD OUTSIDE SUB | ||||
| 75549-60020 |
GRJ12#,KDJ12# |
1 | ||
| 75553A - MOULDING, ROOF DRIP SIDE FINISH, REAR RH | ||||
| 75553-60030 |
GRJ12#,KDJ12# |
1 | ||
| 75554A - MOULDING, ROOF DRIP SIDE FINISH, REAR LH | ||||
| 75554-60030 |
GRJ12#,KDJ12# |
1 | ||
| 75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH | ||||
| 75555-60010 |
GRJ12#,KDJ12# |
1 | ||
| 75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH | ||||
| 75555-60010 |
GRJ12#,KDJ12# |
1 | ||
| 75557C - MOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH | ||||
| 75557-60030 |
GRJ120,KDJ120 |
1 | ||
| 75558C - MOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH | ||||
| 75557-60030 |
GRJ120,KDJ120 |
1 | ||
| 75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75561-42030 |
GRJ12#,KDJ12# |
2 | ||
| 75596 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH | ||||
| 75596-42010 |
GRJ12#,KDJ12# |
3 | ||
| 75597 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH | ||||
| 75596-42010 |
GRJ12#,KDJ12# |
3 | ||
| 75671 - MOULDING, QUARTER BELT, RH | ||||
| 75660-60050 |
GRJ120,KDJ120 |
1 | ||
| 75672 - MOULDING, QUARTER BELT, LH | ||||
| 75670-60050 |
GRJ120,KDJ120 |
1 | ||
| 75711B - MOULDING, FRONT DOOR BELT, RH | ||||
| 75711-60060 |
GRJ12#,KDJ12# |
1 | ||
| 75712B - MOULDING, FRONT DOOR BELT, LH | ||||
| 75712-60060 |
GRJ12#,KDJ12# |
1 | ||
| 75721A - MOULDING, REAR DOOR BELT, RH | ||||
| 75721-60060 |
GRJ120,KDJ120 |
1 | ||
| 75722A - MOULDING, REAR DOOR BELT, LH | ||||
| 75722-60060 |
GRJ120,KDJ120 |
1 | ||
| 75755C - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH | ||||
| 75755-60010 |
GRJ12#,KDJ12# |
1 | ||
| 75755-60030 |
GRJ12#,KDJ12# |
1 | ||
| 75756C - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH | ||||
| 75756-60030 |
GRJ12#,KDJ12# |
1 | ||
| 75756-60010 |
GRJ12#,KDJ12# |
1 | ||
| 75761A - MOULDING, REAR DOOR WINDOW FRAME, FRONT RH | ||||
| 75761-60010 |
GRJ120,KDJ120 NO PAINT REQ. |
1 | ||
| 75761-60030 |
GRJ120,KDJ120 NO PAINT REQ. |
1 | ||
| 75762A - MOULDING, REAR DOOR WINDOW FRAME, FRONT LH | ||||
| 75762-60010 |
GRJ120,KDJ120 NO PAINT REQ. |
1 | ||
| 75762-60030 |
GRJ120,KDJ120 NO PAINT REQ. |
1 | ||
| Common parts | ||||
| 76671-60030 | ||||
| 90166-40003 | ||||
| 90168-40116 | ||||
| 90467-07076C0 | ||||
| Linked diagrams | ||||
| 6751 | ||||
| 6755 | ||||
