KDJ120R-GKMEYW (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004
Engine 1KDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )5F

Click highlighted areas on diagram

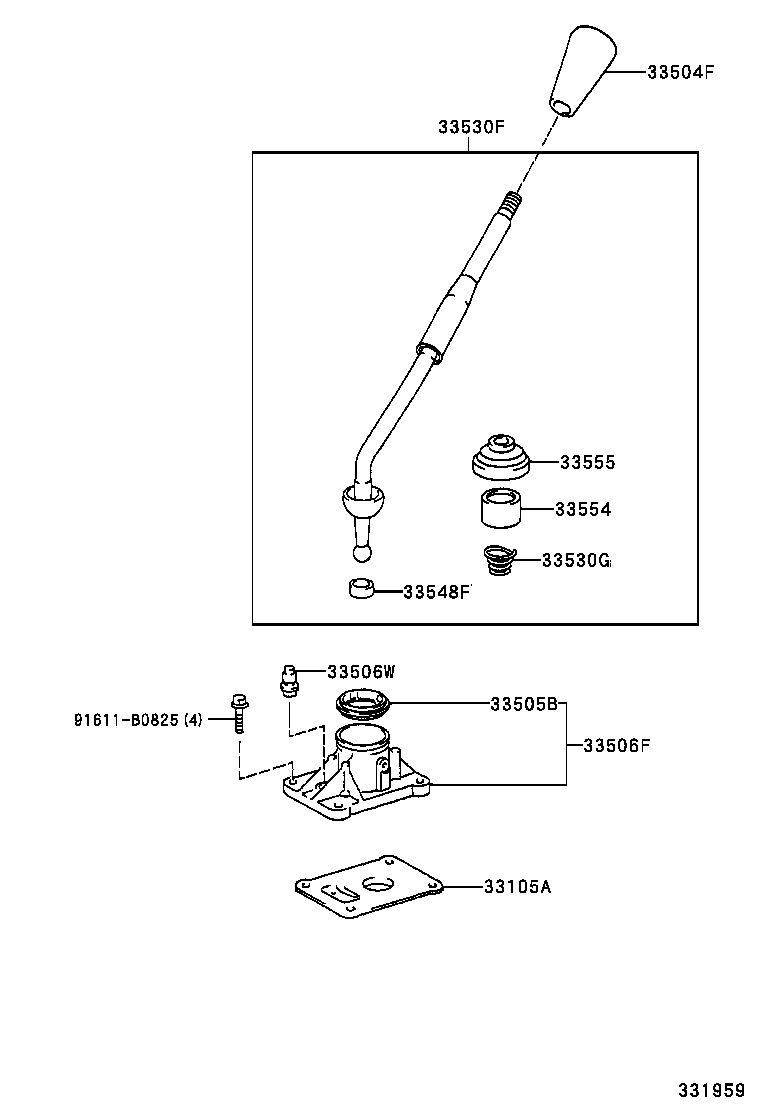

diagram 33105A 33504F 33505B 33506F 33506W 33530F 33530G 33548F 33554 33555 91611B0825
Part # Description Qty Price
33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)
33144-35030

KDJ12#..5F

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-20100C0

KDJ12#..5F

BLACK,TRIM0#,1#

 1
33504-20120C0

KDJ12#..5F

W(*LEP1),BLACK,TRIM0#,1#

 1
33504-20120C0

KDJ12#..5F

W(*LEP1) & LEATHER SEAT PACKAGE,BLACK,TRIM0#,1#

 1
33505B - SEAT SUB-ASSY, SHIFT LEVER
33505-35030

KDJ12#..5F

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-60060

KDJ12#..5F

 1
33506W - PLUG, BREATHER (FOR SHIFT LEVER RETAINER)
90930-03075

KDJ12#..5F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-60540

KDJ12#..RHD..5F

 1
33530G - SPRING, CONICAL (FOR SHIFT LEVER)
90502-26008

KDJ12#..5F

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-31010

KDJ12#..5F

 1
33554 - CAP, SHIFT LEVER
33554-60120

KDJ12#..5F

 1
33555 - BOOT, SHIFT LEVER
33555-60030

KDJ12#..5F

 1
Common parts
91611-B0825
