Toyota Land cruiser prado KDJ120 STARTER

KDJ120R-GKMEYW (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004

Engine 1KDFTV

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

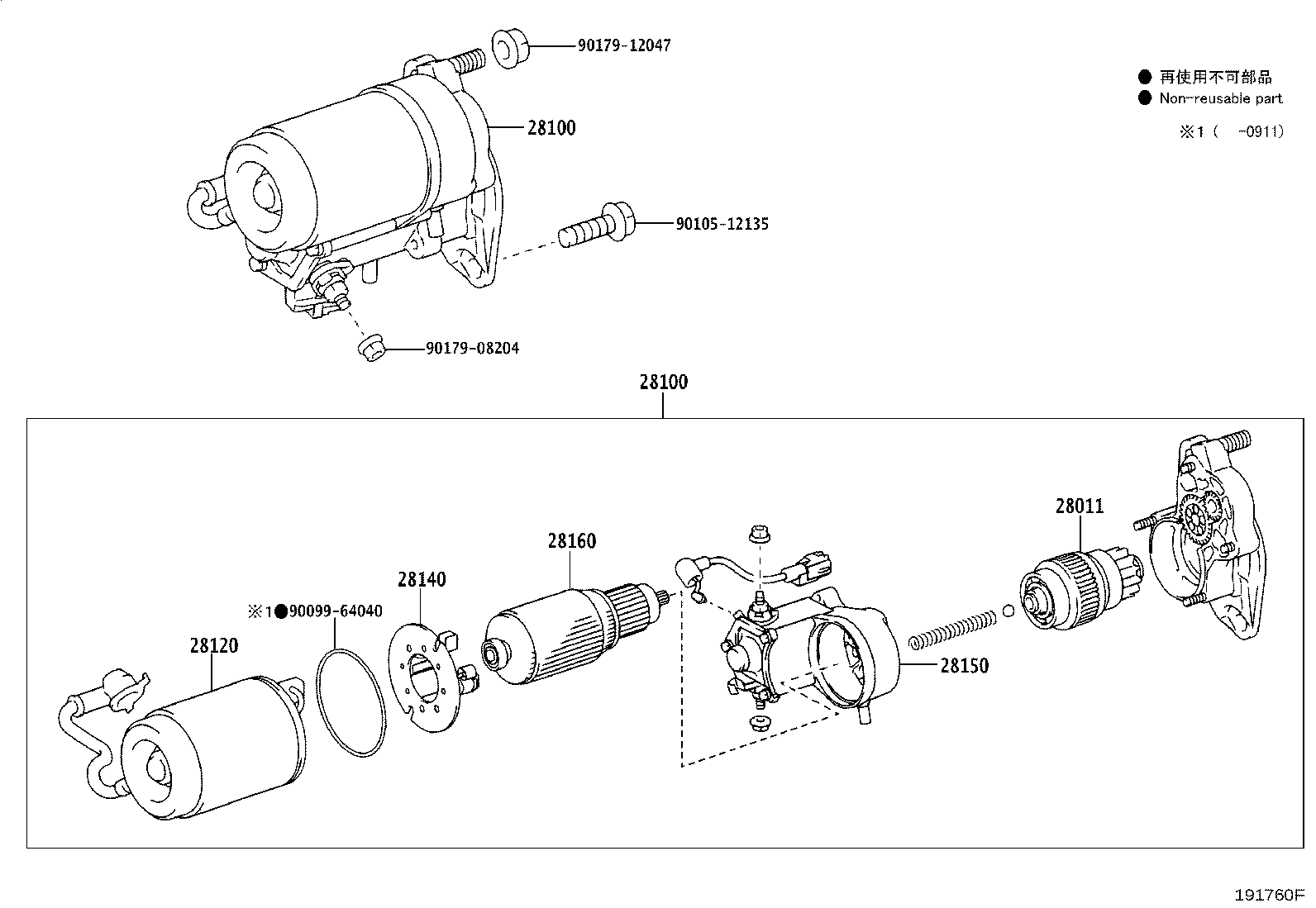

Click highlighted areas on diagram

12V 2.2KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-67030	1KDFTV..KDJ12#..MTM	09/2002 - 12/2999	1
28011-30050	1KDFTV..KDJ12#..MTM COLD SPEC	09/2002 - 12/2999	1
28100 - STARTER ASSY
28100-67050	1KDFTV..KDJ12#..MTM 12V 2.2KW	09/2002 - 10/2009	1
28100-30050	1KDFTV..KDJ12#..MTM 12V 2.7KW,COLD SPEC	09/2002 - 05/2009	1
28100 - STARTER ASSY
28100-67050	1KDFTV..KDJ12#..MTM 12V 2.2KW	09/2002 - 10/2009	1
28100-30050	1KDFTV..KDJ12#..MTM 12V 2.7KW,COLD SPEC	09/2002 - 05/2009	1
28120 - YOKE ASSY, STARTER
28120-64040	1KDFTV..KDJ12#..MTM	09/2002 - 12/2999	1
28120-67020	1KDFTV..KDJ12#..MTM COLD SPEC	09/2002 - 12/2999	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-64040	1KDFTV..KDJ12#..MTM	09/2002 - 12/2999	1
28140-77090	1KDFTV..KDJ12#..MTM COLD SPEC	09/2002 - 12/2999	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-30050	1KDFTV..KDJ12#..MTM COLD SPEC	09/2002 - 12/2999	1
28150-67050	1KDFTV..KDJ12#..MTM	09/2002 - 12/2999	1
28160 - ARMATURE ASSY, STARTER
28160-54140	1KDFTV..KDJ12#..MTM COLD SPEC	09/2002 - 12/2999	1
28160-64041	1KDFTV..KDJ12#..MTM	09/2002 - 12/2999	1
Common parts
90099-64040
90105-12135
90179-08204
90179-12047

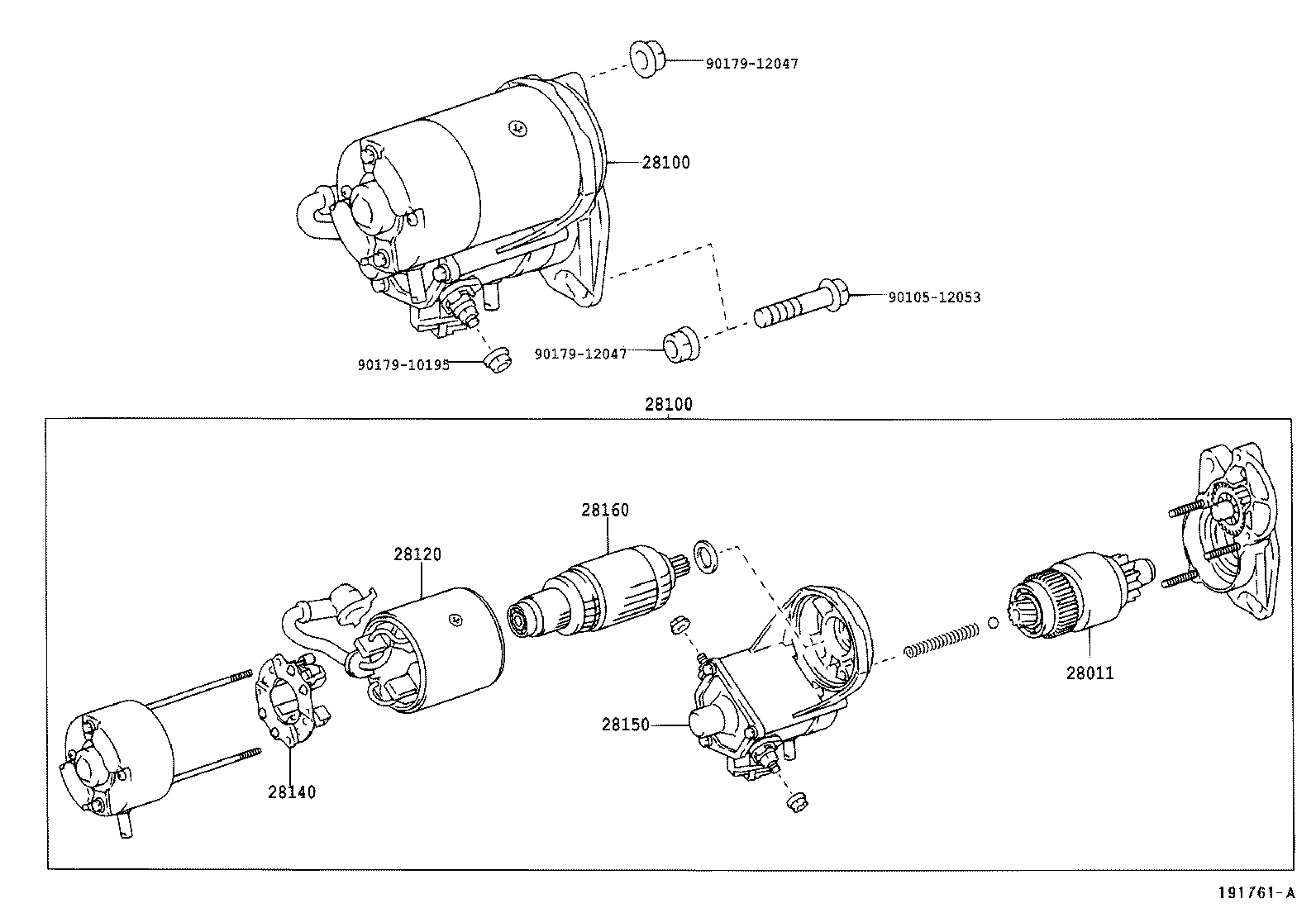

Click highlighted areas on diagram

12V 2.7KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-67030	1KDFTV..KDJ12#..MTM	09/2002 - 12/2999	1
28011-30050	1KDFTV..KDJ12#..MTM COLD SPEC	09/2002 - 12/2999	1
28100 - STARTER ASSY
28100-67050	1KDFTV..KDJ12#..MTM 12V 2.2KW	09/2002 - 10/2009	1
28100-30050	1KDFTV..KDJ12#..MTM 12V 2.7KW,COLD SPEC	09/2002 - 05/2009	1
28100 - STARTER ASSY
28100-67050	1KDFTV..KDJ12#..MTM 12V 2.2KW	09/2002 - 10/2009	1
28100-30050	1KDFTV..KDJ12#..MTM 12V 2.7KW,COLD SPEC	09/2002 - 05/2009	1
28120 - YOKE ASSY, STARTER
28120-64040	1KDFTV..KDJ12#..MTM	09/2002 - 12/2999	1
28120-67020	1KDFTV..KDJ12#..MTM COLD SPEC	09/2002 - 12/2999	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-64040	1KDFTV..KDJ12#..MTM	09/2002 - 12/2999	1
28140-77090	1KDFTV..KDJ12#..MTM COLD SPEC	09/2002 - 12/2999	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-30050	1KDFTV..KDJ12#..MTM COLD SPEC	09/2002 - 12/2999	1
28150-67050	1KDFTV..KDJ12#..MTM	09/2002 - 12/2999	1
28160 - ARMATURE ASSY, STARTER
28160-54140	1KDFTV..KDJ12#..MTM COLD SPEC	09/2002 - 12/2999	1
28160-64041	1KDFTV..KDJ12#..MTM	09/2002 - 12/2999	1
Common parts
90105-12053
90179-10195
90179-12047
