KDJ120R-GKMEYW (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004
Engine 1KDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0209-0408)1KDFTV

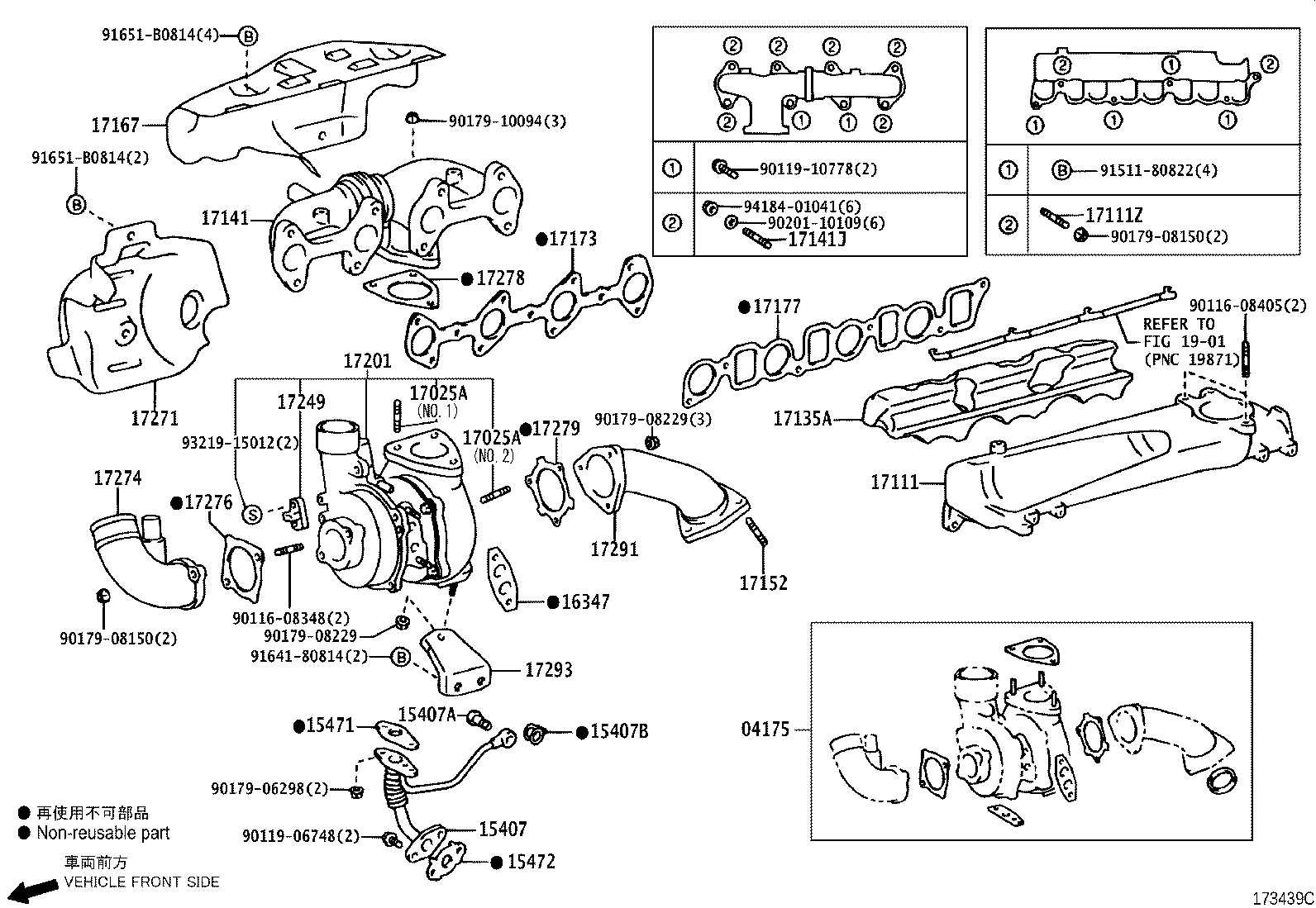

Click highlighted areas on diagram

diagram 04175 15407 15407A 15407B 15471 15472 16347 17025A 17025A 17111 17111Z 17135A 17141 17141J 17152 17167 17173 17177 17201 17249 17271 17274 17276 17278 17279 17291 17293 1901 9011608348 9011608405 9011906748 9011910778 9017906298 9017908150 9017908150 9017908229 9017908229 9017910094 9020110109 9151180822 9164180814 91651B0814 91651B0814 9321915012 9418401041
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-30040

1KDFTV..KDJ12#

 1
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-30010

1KDFTV..KDJ12#

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-12097

1KDFTV..KDJ12#

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90904-30004

1KDFTV..KDJ12#

 1
15471 - GASKET, TURBO OIL INLET
15471-30010

1KDFTV..KDJ12#

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-67010

1KDFTV..KDJ12#

 1
16347 - GASKET, WATER BY-PASS
16347-30010

1KDFTV..KDJ12#

 1
17025A - BOLT, STUD(FOR TURBINE HOUSING)
90126-08009

1KDFTV..KDJ12#

NO.2

 3
90116-10175

1KDFTV..KDJ12#

NO.1

 3
17025A - BOLT, STUD(FOR TURBINE HOUSING)
90126-08009

1KDFTV..KDJ12#

NO.2

 3
90116-10175

1KDFTV..KDJ12#

NO.1

 3
17111 - MANIFOLD, INTAKE
17111-30071

1KDFTV..KDJ12#

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92122-80822

1KDFTV..KDJ12#

 2
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-30011

1KDFTV..KDJ12#

 1
17141 - MANIFOLD, EXHAUST
17104-30010

1KDFTV..KDJ12#

 1
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90126-10017

1KDFTV..KDJ12#

 6
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10088

1KDFTV..KDJ12#

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-30011

1KDFTV..KDJ12#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-30020

1KDFTV..KDJ12#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-30010

1KDFTV..KDJ12#

 1
17201 - TURBOCHARGER SUB-ASSY
17201-30010

1KDFTV..KDJ12#

 1
17249 - RESISTOR, TURBOCHARGER COMPENSATE
17249-30020

1KDFTV..KDJ12#

MARK 2

 1
17249-30090

1KDFTV..KDJ12#

MARK 9

 1
17249-30060

1KDFTV..KDJ12#

MARK 6

 1
17249-30010

1KDFTV..KDJ12#

MARK 1

 1
17249-30050

1KDFTV..KDJ12#

MARK 5

 1
17249-30070

1KDFTV..KDJ12#

MARK 7

 1
17249-30080

1KDFTV..KDJ12#

MARK 8

 1
17249-30030

1KDFTV..KDJ12#

MARK 3

 1
17249-30040

1KDFTV..KDJ12#

MARK 4

 1
17271 - INSULATOR, TURBO, NO.1
17271-30011

1KDFTV..KDJ12#

 1
17274 - ELBOW, COMPRESSOR INLET
17274-30010

1KDFTV..KDJ12#

 1
17276 - GASKET, COMPRESSOR INLET
17276-67010

1KDFTV..KDJ12#

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-67010

1KDFTV..KDJ12#

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-30030

1KDFTV..KDJ12#

 1
17291 - ELBOW, TURBINE OUTLET
17291-30010

1KDFTV..KDJ12#

 1
17293 - STAY, TURBOCHARGER
17293-30010

1KDFTV..KDJ12#

 1
Common parts
90116-08348
90116-08405
90119-06748
90119-10778
90179-06298
90179-08150
90179-08229
90179-10094
90201-10109
91511-80822
91641-80814
91651-B0814
93219-15012
94184-01041
Linked diagrams
1901
