Toyota Land cruiser prado KDJ120 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
EU
LAND CRUISER PRADO
KDJ120R-GKAEYW (2004)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

KDJ120R-GKAEYW (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009

Engine 1KDFTV

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0209-0608)KDJ12#..RHD

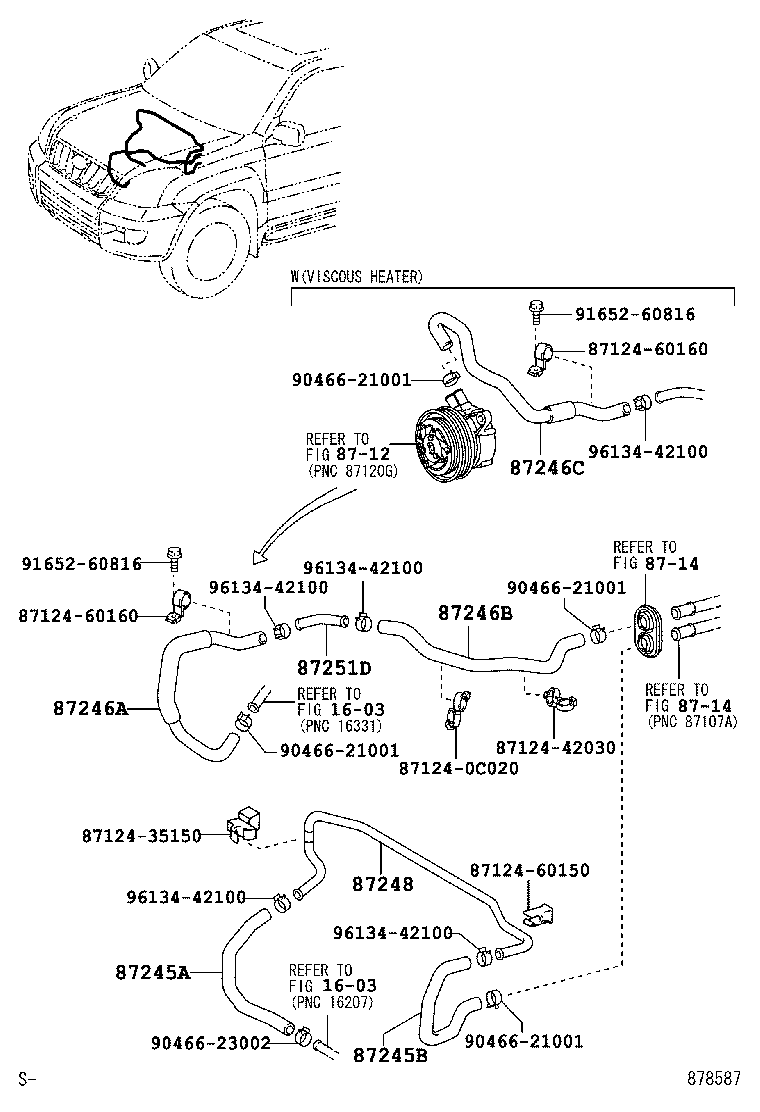

Click highlighted areas on diagram

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-3D590	KDJ12#..RHD	09/2002 - 08/2006	1
87245-60A00	KDJ12#..RHD COLD SPEC	08/2006 - 12/2999	1
87245-3D590	KDJ12#..RHD COLD SPEC	09/2002 - 08/2006	1
87245-60A00	KDJ12#..RHD	08/2006 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-3D630	KDJ12#..RHD	09/2002 - 08/2006	1
87245-60A10	KDJ12#..RHD	08/2006 - 12/2999	1
87245-60A10	KDJ12#..RHD COLD SPEC	08/2006 - 12/2999	1
87245-3D630	KDJ12#..RHD COLD SPEC	09/2002 - 08/2006	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3D600	KDJ12#	08/2004 - 08/2006	1
87245-60A20	KDJ12#	08/2006 - 12/2999	1
87245-6A860	KDJ12#	09/2002 - 08/2004	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-6A850	KDJ12# COLD SPEC	09/2002 - 08/2004	1
87245-3D610	KDJ12# COLD SPEC	08/2004 - 08/2006	1
87245-6A850	KDJ12#	09/2002 - 08/2004	1
87245-3D610	KDJ12#	08/2004 - 08/2006	1
87245-60A30	KDJ12#	08/2006 - 12/2999	1
87245-60A30	KDJ12# COLD SPEC	08/2006 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-6A850	KDJ12# COLD SPEC	09/2002 - 08/2004	1
87245-3D610	KDJ12# COLD SPEC	08/2004 - 08/2006	1
87245-6A850	KDJ12#	09/2002 - 08/2004	1
87245-3D610	KDJ12#	08/2004 - 08/2006	1
87245-60A30	KDJ12#	08/2006 - 12/2999	1
87245-60A30	KDJ12# COLD SPEC	08/2006 - 12/2999	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-6A880	KDJ12# COLD SPEC	09/2002 - 08/2004	1
87245-3D620	KDJ12# COLD SPEC	08/2004 - 08/2006	1
87245-60A40	KDJ12# COLD SPEC	08/2006 - 12/2999	1
87248 - PIPE SUB-ASSY, WATER
87248-35100	KDJ12#..RHD	09/2002 - 12/2999	1
87251D - JOINT, WATER, NO.1
87251-35020	KDJ12#	09/2002 - 08/2006	1
87251-60060	KDJ12#	08/2006 - 12/2999	1
87251D - JOINT, WATER, NO.1
87251-35020	KDJ12#	09/2002 - 08/2006	1
87251-60060	KDJ12#	08/2006 - 12/2999	1
Common parts
87124-0C020
87124-35130
87124-35150
87124-35190
87124-42030
90466-21001
90466-23002
91652-60816
96134-42100
Linked diagrams
1603
8712
8714

(0608- )KDJ12#..RHD

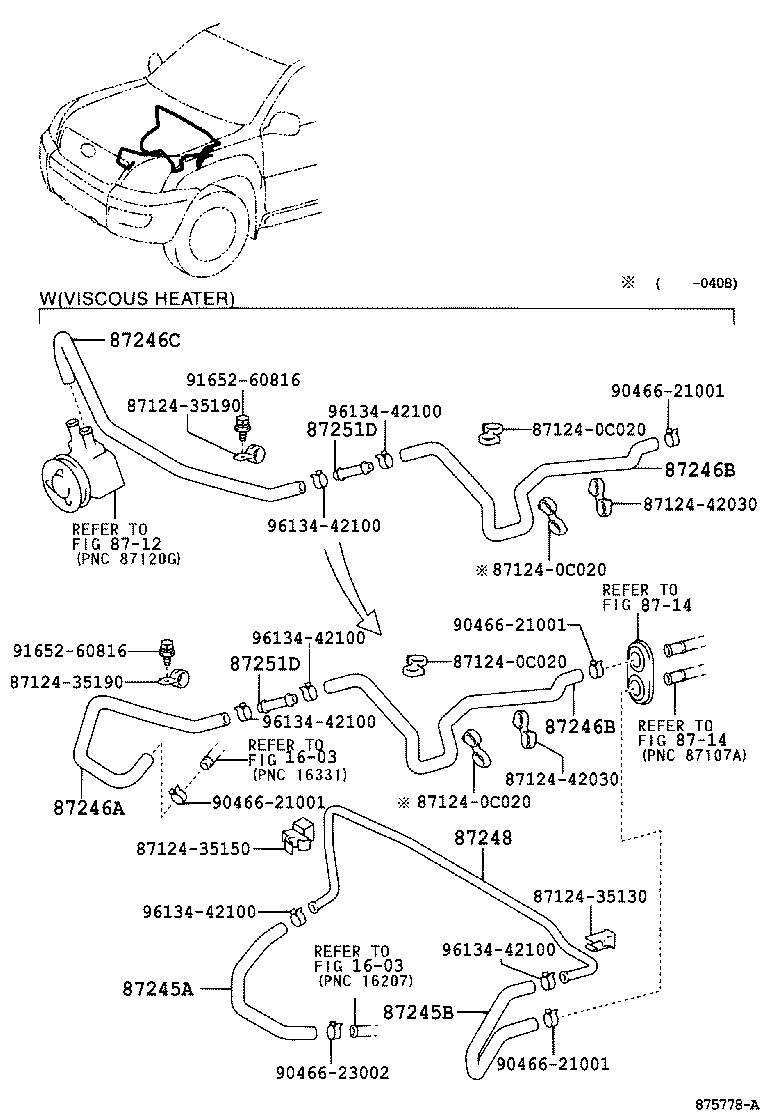

Click highlighted areas on diagram

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-3D590	KDJ12#..RHD	09/2002 - 08/2006	1
87245-60A00	KDJ12#..RHD COLD SPEC	08/2006 - 12/2999	1
87245-3D590	KDJ12#..RHD COLD SPEC	09/2002 - 08/2006	1
87245-60A00	KDJ12#..RHD	08/2006 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-3D630	KDJ12#..RHD	09/2002 - 08/2006	1
87245-60A10	KDJ12#..RHD	08/2006 - 12/2999	1
87245-60A10	KDJ12#..RHD COLD SPEC	08/2006 - 12/2999	1
87245-3D630	KDJ12#..RHD COLD SPEC	09/2002 - 08/2006	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3D600	KDJ12#	08/2004 - 08/2006	1
87245-60A20	KDJ12#	08/2006 - 12/2999	1
87245-6A860	KDJ12#	09/2002 - 08/2004	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-6A850	KDJ12# COLD SPEC	09/2002 - 08/2004	1
87245-3D610	KDJ12# COLD SPEC	08/2004 - 08/2006	1
87245-6A850	KDJ12#	09/2002 - 08/2004	1
87245-3D610	KDJ12#	08/2004 - 08/2006	1
87245-60A30	KDJ12#	08/2006 - 12/2999	1
87245-60A30	KDJ12# COLD SPEC	08/2006 - 12/2999	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-6A880	KDJ12# COLD SPEC	09/2002 - 08/2004	1
87245-3D620	KDJ12# COLD SPEC	08/2004 - 08/2006	1
87245-60A40	KDJ12# COLD SPEC	08/2006 - 12/2999	1
87248 - PIPE SUB-ASSY, WATER
87248-35100	KDJ12#..RHD	09/2002 - 12/2999	1
87251D - JOINT, WATER, NO.1
87251-35020	KDJ12#	09/2002 - 08/2006	1
87251-60060	KDJ12#	08/2006 - 12/2999	1
Common parts
87124-0C020
87124-35150
87124-42030
87124-60150
87124-60160
90466-21001
90466-23002
91652-60816
96134-42100
Linked diagrams
1603
8712
8714

KDJ120R-GKAEYW (2004)

(0209-0608)KDJ12#..RHD

(0608- )KDJ12#..RHD
