KDJ120R-GKAEYW (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0707- )GRJ120,KDJ120

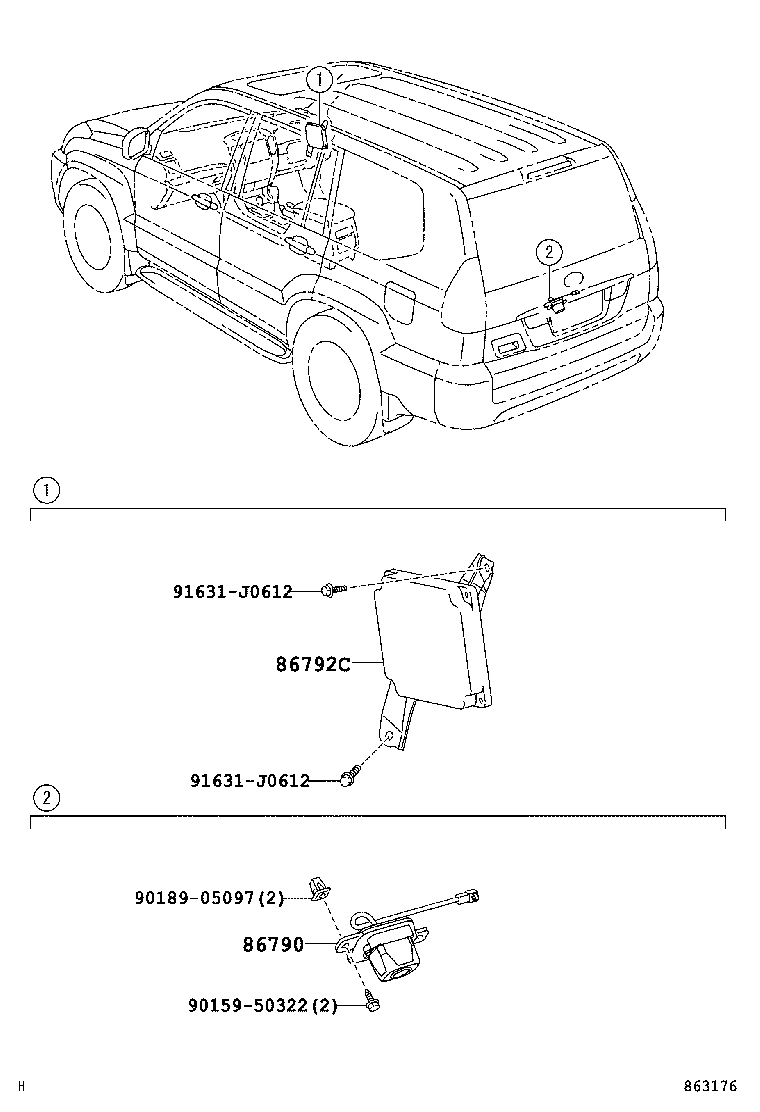

Click highlighted areas on diagram

diagram 86790 86792C 9015950322 9018905097 91631J0612 91631J0612
Part # Description Qty Price
86790 - CAMERA ASSY, TELEVISION
86790-60040

GRJ120,KDJ120

SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&AUDIO(FOR OVERSEAS MARKET)-03'EMV-W 9SP

 1
86792C - COMPUTER, PARKING ASSIST
86792-60180

GRJ120,KDJ120..RHD

REAR SUSPENSION-WITH(AIR SUSPENSION)&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&AUDIO(FOR OVERSEAS MARKET)-03'EMV-W 9SP

 1
86792-60180

GRJ120,KDJ120..RHD

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&AUDIO(FOR OVERSEAS MARKET)-03'EMV-W 9SP

 1
86792-60180

GRJ120,KDJ120..RHD

SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&AUDIO(FOR OVERSEAS MARKET)-03'EMV-W 9SP

 1
86792-60180

GRJ120,KDJ120..RHD

REAR SUSPENSION-WITH(AIR SUSPENSION)&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&AUDIO(FOR OVERSEAS MARKET)-03'EMV-W 9SP

 1
Common parts
90159-50322
90189-05097
91631-J0612
