KDJ120R-GKAEYW (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209-0908)RHD

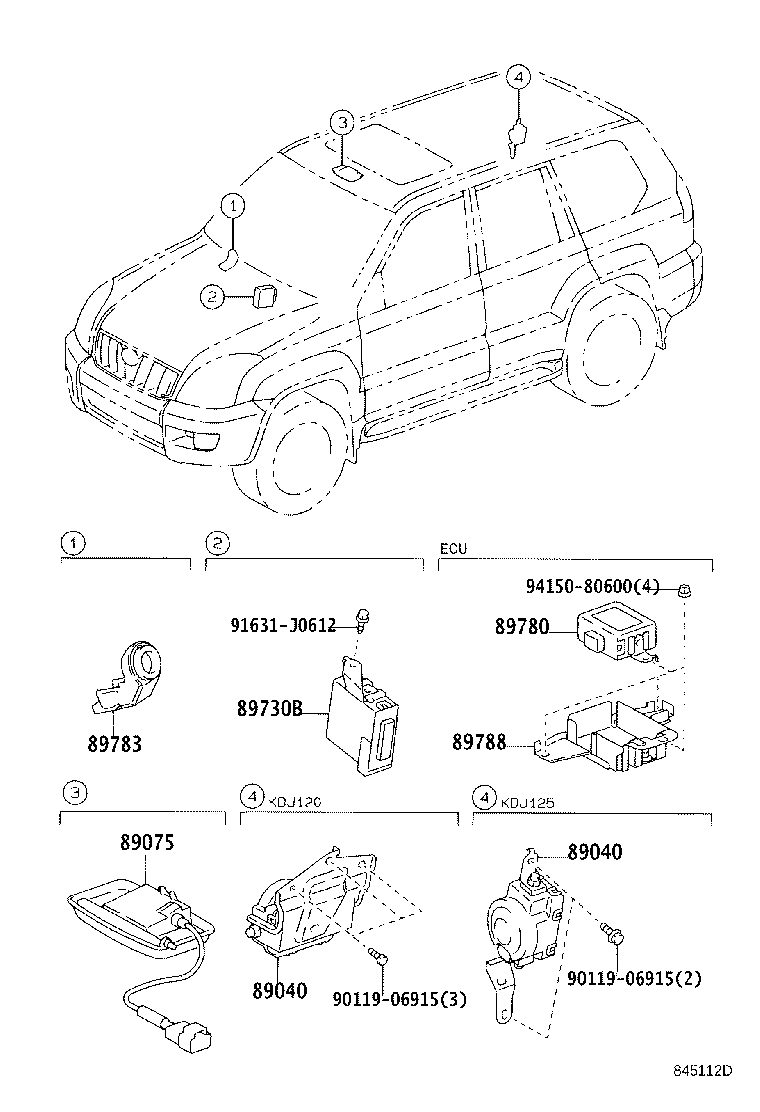

Click highlighted areas on diagram

diagram 89040 89040 89075 89730B 89780 89783 89788 9011906915 9011906915 91631J0612 9415080600
Part # Description Qty Price
89040 - SIREN ASSY, THEFT WARNING
89040-60020

GRJ120,KDJ120..RHD

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK

 1
89040-60020

GRJ120,KDJ120

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

 1
89040 - SIREN ASSY, THEFT WARNING
89040-60020

GRJ120,KDJ120..RHD

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK

 1
89040-60020

GRJ120,KDJ120

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

 1
89075 - SENSOR SUB-ASSY, THEFT WARNING
89075-60010B0

GRJ12#,KDJ12#

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,STONE,TRIM1#

 1
89075-60010A0

GRJ12#,KDJ12#

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,IVORY,TRIM0#

 1
89075-60010A0

GRJ120,KDJ12#..RHD

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,IVORY,TRIM0#

 1
89075-60020A0

GRJ12#,KDJ12#

LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,IVORY,TRIM0#

 1
89075-60010B0

GRJ120,KDJ12#..RHD

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,STONE,TRIM1#

 1
89075-60020A0

GRJ120,KDJ12#..RHD

W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,IVORY,TRIM0#

 1
89075-60020A0

GRJ120,KDJ12#..RHD

LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,IVORY,TRIM0#

 1
89075-60020B0

GRJ120,KDJ12#..RHD

LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,STONE,TRIM1#

 1
89075-60020A0

GRJ12#,KDJ12#

W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,IVORY,TRIM0#

 1
89075-60020B0

GRJ120,KDJ12#..RHD

W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,STONE,TRIM1#

 1
89075-60020B0

GRJ12#,KDJ12#

LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,STONE,TRIM1#

 1
89075-60020B0

GRJ12#,KDJ12#

W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,STONE,TRIM1#

 1
89730B - COMPUTER ASSY, THEFT WARNING
89730-60080

GRJ12#,KDJ12#

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

 1
89730-60081

GRJ120,KDJ12#..RHD

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK

 1
89730-60081

GRJ12#,KDJ12#

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

 1
89730-60080

GRJ120,KDJ12#..RHD

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-60340

GRJ120,KDJ12#..RHD

 1
89780-60341

GRJ120,KDJ12#..RHD

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-48050

GRJ12#,KDJ12#

 1
89783-48051

GRJ12#,KDJ12#

 1
89783-35030

GRJ12#,KDJ12#

 1
89783-60110

GRJ12#,KDJ12#

 1
89788 - BRACKET, TRANSPONDER KEY
89788-60020

GRJ120,KDJ12#..RHD

 1
Common parts
90119-06915
91631-J0612
94150-80600
