KDJ120R-GKAEYW (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )RHD

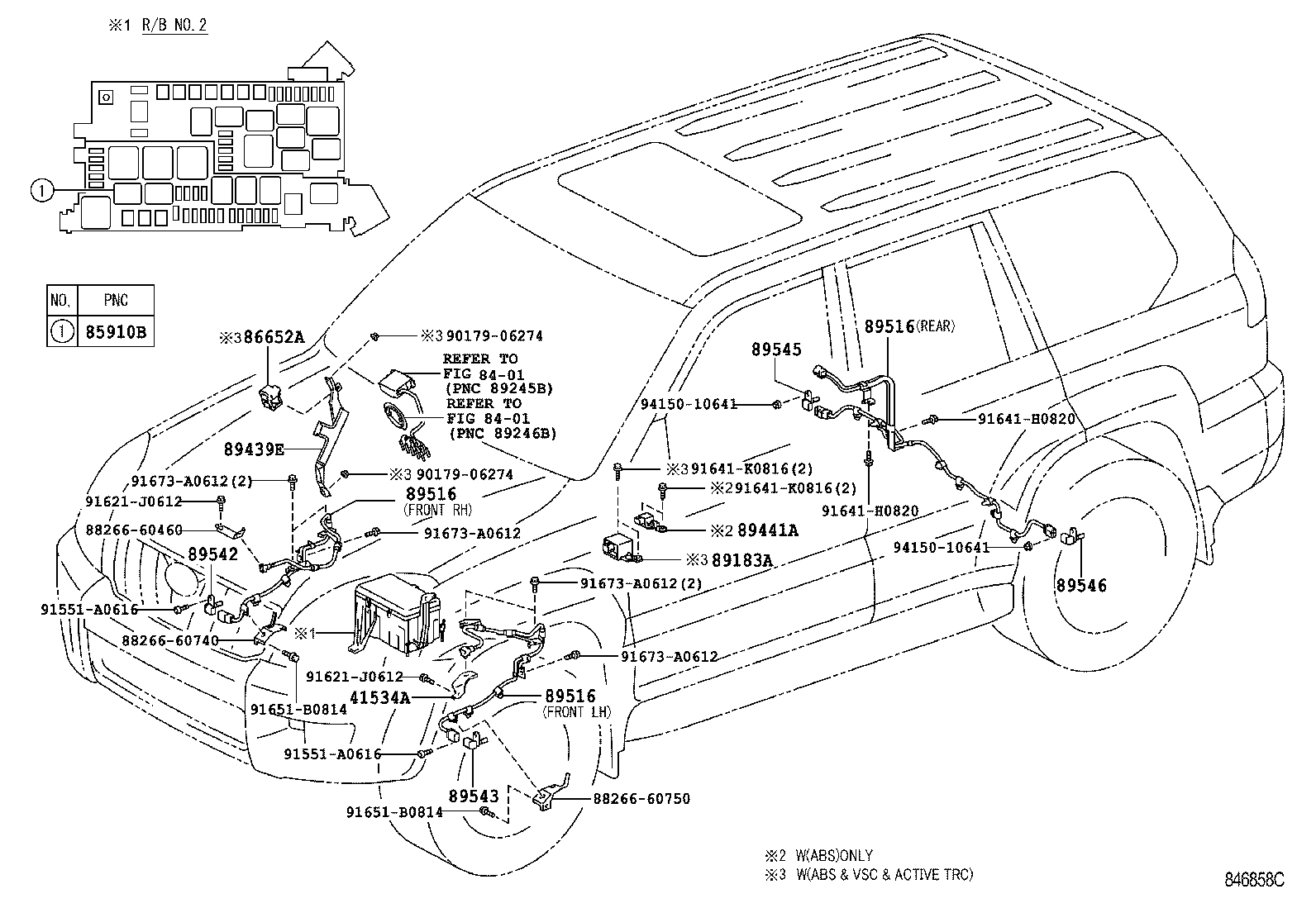

Click highlighted areas on diagram

diagram 41534A 8401 8401 85910B 86652A 8826660460 8826660740 8826660750 89183A 89439E 89441A 89516 89516 89516 89542 89543 89545 89546 9017906274 9017906274 91551A0616 91551A0616 91621J0612 91621J0612 91641H0820 91641H0820 91641K0816 91641K0816 91651B0814 91651B0814 91673A0612 91673A0612 91673A0612 91673A0612 9415010641 9415010641
Part # Description Qty Price
41534A - BRACKET, FRONT DIFFERENTIAL BREATHER
41534-60020

GRJ12#,KDJ12#

 1
85910B - RELAY ASSY, CIRCUIT OPENING (FOR ESC)
90987-04004

GRJ12#,KDJ12#

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

 1
86652A - BUZZER ASSY, SKID CONTROL
86652-48010

KDJ12#..RHD..5FC

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

 1
86652-51010

GRJ12#;KDJ12#..LHD..5FC;KDJ12#..4FC,5F,6F

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

 1
89183A - SENSOR, YAWRATE
89180-60050

KDJ12#..5F

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

 1
89180-60080

GRJ12#,KDJ12#..5FC

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

 1
89441A - SENSOR, DECELERATION
89440-60130

GRJ12#,KDJ12#

 1
89440-60130

GRJ12#,KDJ12#

DIFFERENTIAL LOCK-WITH&ABS-WITH

 1
89440-60130

GRJ12#,KDJ12#

ABS-WITH

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-60080

GRJ12#,KDJ12#

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),FRONT LH

 1
89516-60090

GRJ120,KDJ120

ABS-WITH,REAR

 1
89516-60080

GRJ12#,KDJ12#

FRONT LH

 1
89516-60070

GRJ12#,KDJ12#

ABS-WITH,FRONT RH

 1
89516-60090

GRJ120,KDJ120

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),REAR

 1
89516-60080

GRJ12#,KDJ12#

ABS-WITH,FRONT LH

 1
89516-60160

GRJ12#,KDJ12#

FRONT RH

 1
89516-60090

GRJ120,KDJ120

REAR

 1
89516-60070

GRJ12#,KDJ12#

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),FRONT RH

 1
89516-60070

GRJ12#,KDJ12#

FRONT RH

 1
89516-60170

GRJ12#,KDJ12#

FRONT LH

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-60080

GRJ12#,KDJ12#

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),FRONT LH

 1
89516-60090

GRJ120,KDJ120

ABS-WITH,REAR

 1
89516-60080

GRJ12#,KDJ12#

FRONT LH

 1
89516-60070

GRJ12#,KDJ12#

ABS-WITH,FRONT RH

 1
89516-60090

GRJ120,KDJ120

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),REAR

 1
89516-60080

GRJ12#,KDJ12#

ABS-WITH,FRONT LH

 1
89516-60160

GRJ12#,KDJ12#

FRONT RH

 1
89516-60090

GRJ120,KDJ120

REAR

 1
89516-60070

GRJ12#,KDJ12#

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),FRONT RH

 1
89516-60070

GRJ12#,KDJ12#

FRONT RH

 1
89516-60170

GRJ12#,KDJ12#

FRONT LH

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-60080

GRJ12#,KDJ12#

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),FRONT LH

 1
89516-60090

GRJ120,KDJ120

ABS-WITH,REAR

 1
89516-60080

GRJ12#,KDJ12#

FRONT LH

 1
89516-60070

GRJ12#,KDJ12#

ABS-WITH,FRONT RH

 1
89516-60090

GRJ120,KDJ120

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),REAR

 1
89516-60080

GRJ12#,KDJ12#

ABS-WITH,FRONT LH

 1
89516-60160

GRJ12#,KDJ12#

FRONT RH

 1
89516-60090

GRJ120,KDJ120

REAR

 1
89516-60070

GRJ12#,KDJ12#

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),FRONT RH

 1
89516-60070

GRJ12#,KDJ12#

FRONT RH

 1
89516-60170

GRJ12#,KDJ12#

FRONT LH

 1
89542 - SENSOR, SPEED, FRONT RH
89542-60050

GRJ12#,KDJ12#

 1
89542-60050

GRJ12#,KDJ12#

ABS-WITH

 1
89542-60050

GRJ12#,KDJ12#

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

 1
89543 - SENSOR, SPEED, FRONT LH
89543-60050

GRJ12#,KDJ12#

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

 1
89543-60050

GRJ12#,KDJ12#

 1
89543-60050

GRJ12#,KDJ12#

ABS-WITH

 1
89545 - SENSOR, SPEED, REAR RH
89542-60050

GRJ12#,KDJ12#

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

 1
89542-60050

GRJ12#,KDJ12#

 1
89542-60050

GRJ12#,KDJ12#

ABS-WITH

 1
89546 - SENSOR, SPEED, REAR LH
89543-60050

GRJ12#,KDJ12#

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

 1
89543-60050

GRJ12#,KDJ12#

 1
89543-60050

GRJ12#,KDJ12#

ABS-WITH

 1
Common parts
88266-60460
88266-60740
88266-60750
90179-06274
91551-A0616
91621-J0612
91641-H0820
91641-K0816
91651-B0814
91673-A0612
94150-10641
Linked diagrams
8401
