Toyota Land cruiser prado KDJ120 FUEL TANK & TUBE

KDJ120R-GKAEYW (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009

Engine 1KDFTV

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0408-0608)KDJ120

Click highlighted areas on diagram

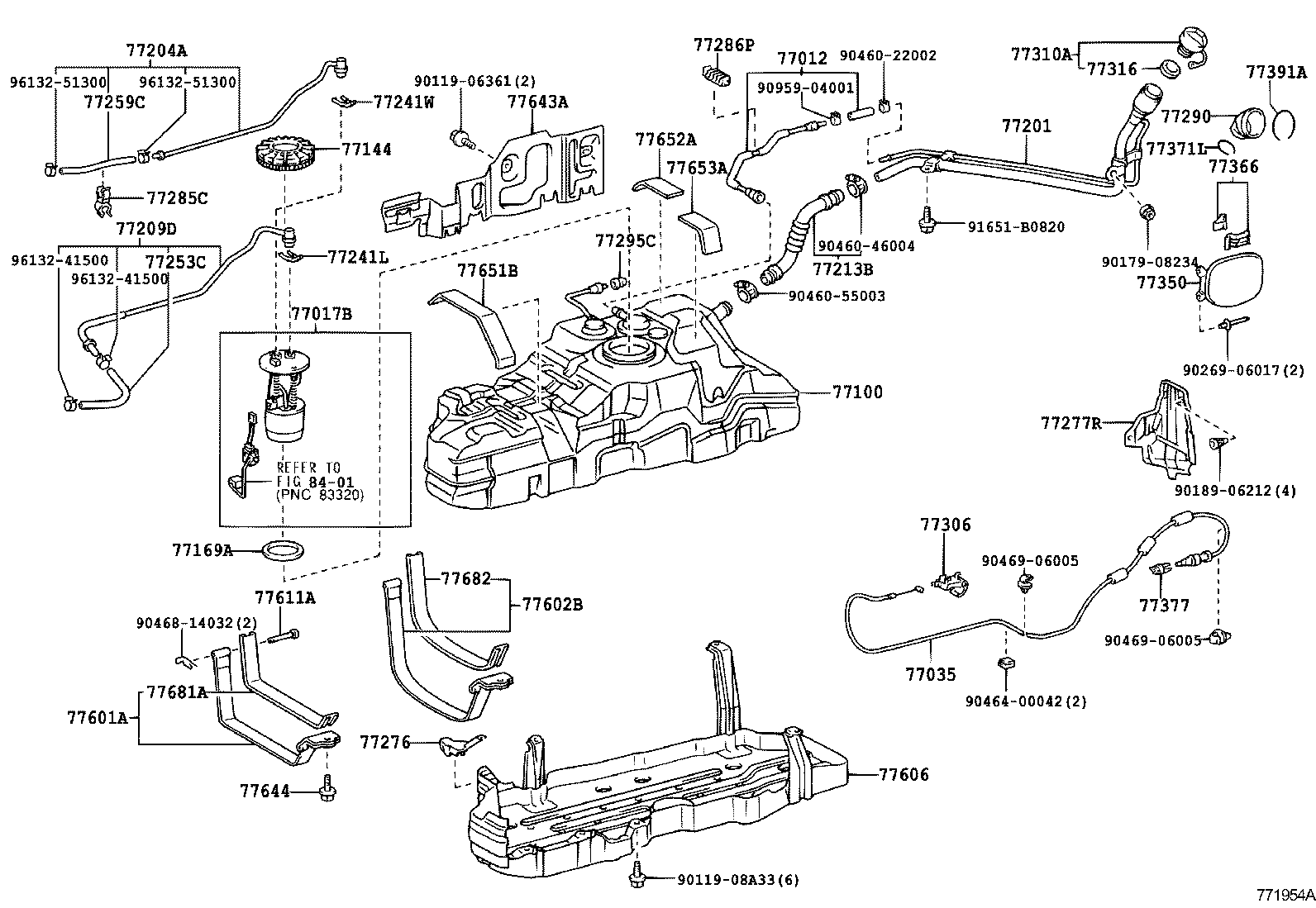

FUEL TANK

Part #	Description	Period	Qty
77012 - TUBE SUB-ASSY, FUEL TANK BREATHER
77012-35060	KDJ120	09/2002 - 08/2009	1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77010-35030	KDJ120	09/2002 - 08/2009	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-60090	GRJ120,KDJ120..RHD	09/2002 - 08/2009	1
77100 - TANK ASSY, FUEL
77001-3D530	KDJ120	09/2002 - 05/2004	1
77001-3D541	KDJ120	08/2004 - 08/2006	1
77001-3D531	KDJ120	08/2006 - 08/2009	1
77144 - RETAINER, FUEL PUMP GAUGE
77144-35010	GRJ120,KDJ120	09/2002 - 08/2009	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-35010	GRJ120,KDJ120	09/2002 - 08/2009	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-60800	KDJ120	09/2002 - 08/2009	1
77204A - TUBE, FUEL TANK RETURN
77204-35050	KDJ120	09/2002 - 08/2004	1
77204-60050	KDJ120	08/2006 - 08/2009	1
77204-35060	KDJ120	08/2004 - 08/2006	1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-35430	KDJ120	09/2002 - 08/2009	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-35390	KDJ120	09/2002 - 08/2009	1
77241L - TUBE, FUEL TANK SUCTION
77241-35450	KDJ120	09/2002 - 12/2999	1
77241W - CLIP, TUBE JOINT
77241-60320	KDJ120	09/2002 - 08/2009	1
77253C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.3 TUBE)
77259-25130	KDJ120	08/2006 - 12/2999	1
95332-10018	KDJ120	09/2002 - 08/2004	1
95332-10018	KDJ120	08/2004 - 07/2006	2
77276 - PROTECTOR, FUEL HOSE
77276-35040	GRJ120,KDJ120	09/2002 - 08/2009	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-60080	GRJ12#,KDJ12#	09/2002 - 08/2009	1
77286P - CLAMP, FUEL TUBE, NO.8
77285-35620	GRJ120,KDJ120	09/2002 - 08/2009	1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-60100	GRJ120,KDJ120	09/2002 - 08/2009	1
77295C - GROMMET, FUEL TUBE
77295-27010	KDJ120	09/2002 - 12/2999	1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-58010A0	GRJ12#,KDJ12# IVORY,TRIM0#	10/2007 - 08/2009	1
77306-28050C0	GRJ12#,KDJ12# BLACK,TRIM1#	09/2002 - 09/2007	1
77306-28050A0	GRJ12#,KDJ12# IVORY,TRIM0#	09/2002 - 09/2007	1
77306-58010C0	GRJ12#,KDJ12# BLACK,TRIM1#	10/2007 - 08/2009	1
77310A - CAP ASSY, FUEL TANK
77300-35020	KDJ12#	09/2002 - 08/2003	1
77316 - GASKET, FUEL TANK CAP
77316-33042	GRJ12#,KDJ12#	09/2002 - 08/2009	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-60070	GRJ120,KDJ120	09/2002 - 08/2009	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-35040	GRJ12#,KDJ12#	10/2004 - 08/2009	1
77360-30080	GRJ12#,KDJ12#	09/2002 - 09/2004	1
77371L - RING, FUEL TANK FILLER PIPE SHIELD
77371-35010	GRJ12#,KDJ12#	09/2002 - 08/2009	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-35010	GRJ12#,KDJ12#	09/2002 - 08/2009	1
77391A - RING, FUEL INLET BOX
77391-60050	GRJ12#,KDJ12#	09/2002 - 08/2009	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-35090	GRJ120,KDJ120	09/2002 - 08/2009	1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-35030	GRJ120,KDJ120	09/2002 - 08/2009	1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-35060	GRJ120,KDJ120	09/2002 - 08/2009	1
77611A - PIN (FOR FUEL TANK BAND)
77653-35040	GRJ120,KDJ120	09/2002 - 08/2009	2
77643A - PROTECTOR, FUEL TANK, NO.3
77643-35020	GRJ120,KDJ120	09/2002 - 08/2009	1
77644 - BOLT, FUEL TANK
77644-35030	GRJ120,KDJ120	09/2002 - 08/2009	2
77651B - CUSHION, FUEL TANK
77651-35070	GRJ120,KDJ120	09/2002 - 08/2009	1
77652A - CUSHION, FUEL TANK, NO.2
77652-35060	GRJ120,KDJ120	09/2002 - 08/2009	1
77653A - CUSHION, FUEL TANK, NO.3
77653-35050	GRJ120,KDJ120	09/2002 - 08/2009	1
77681A - SEAT, FUEL TANK BAND
77681-35030	GRJ120,KDJ120	09/2002 - 04/2007	1
77681-35031	GRJ120,KDJ120	05/2007 - 08/2009	1
77682 - SEAT, FUEL TANK BAND, LH
77681-35040	GRJ120,KDJ120	09/2002 - 04/2007	1
77681-35041	GRJ120,KDJ120	05/2007 - 08/2009	1
Common parts
90119-06361
90119-08A33
90179-08234
90189-06212
90269-06017
90460-22002
90460-46004
90460-55003
90464-00042
90468-14032
90469-06005
90959-04001
91651-B0820
96132-41500
Linked diagrams
8401

ILLUST NO. 2 OF 2(0408-0608)KDJ120

Click highlighted areas on diagram

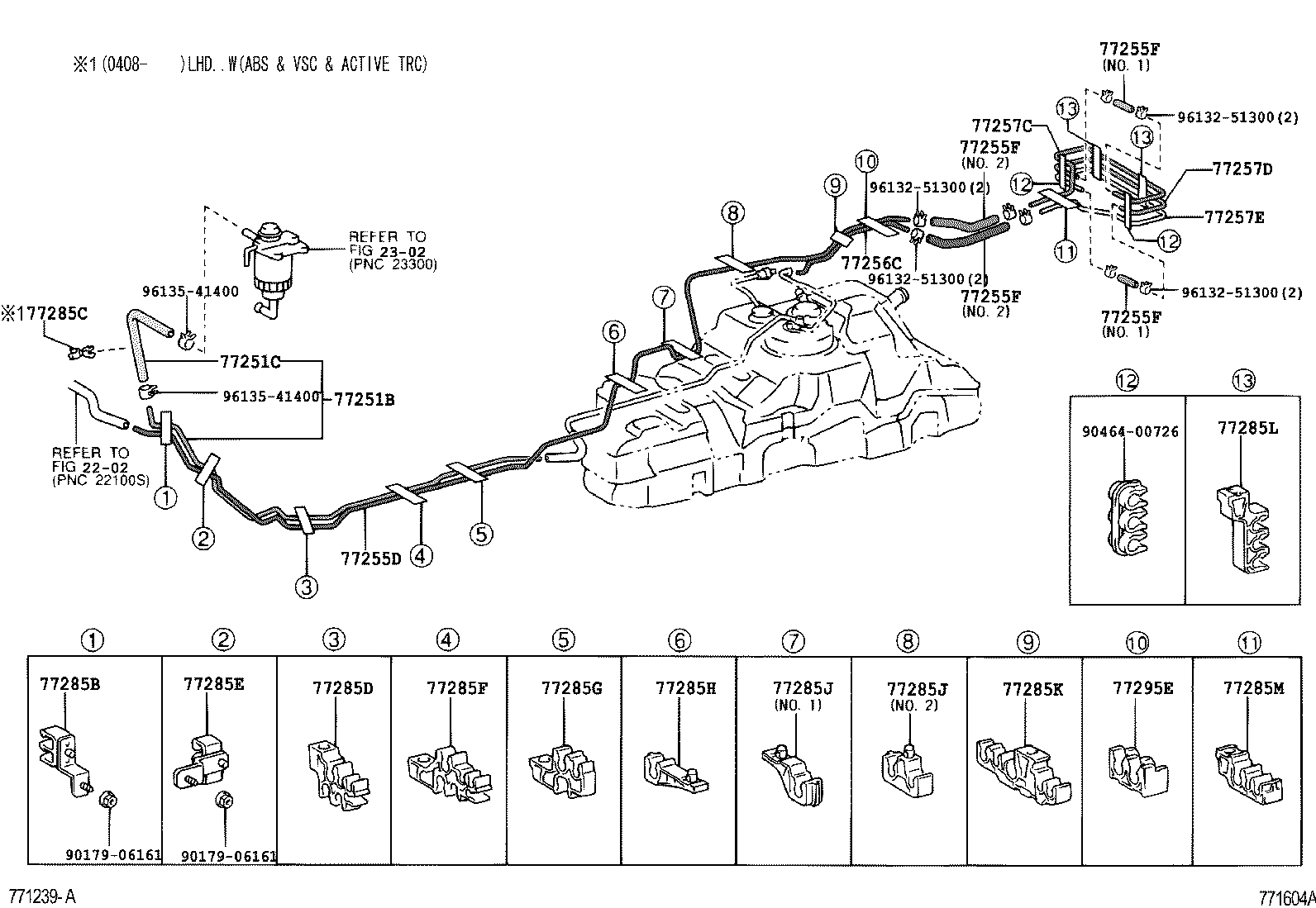

FUEL TUBE

Part #	Description	Period	Qty
77251B - TUBE, FUEL MAIN
77205-35310	KDJ120	09/2002 - 08/2006	1
77205-60A30	KDJ120	08/2006 - 08/2009	1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95332-10040	KDJ120 *H,L=320	09/2002 - 08/2006	1
77259-60690	KDJ120	08/2006 - 12/2999	1
77255D - TUBE, FUEL RETURN
77255-3D100	KDJ120	08/2004 - 08/2006	1
77255-3D090	KDJ120	09/2002 - 08/2004	1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-08020	KDJ120 *H,L=150,NO.2	08/2004 - 08/2006	2
95333-08010	KDJ120 *H,L=80,NO.1	08/2004 - 08/2006	2
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-08020	KDJ120 *H,L=150,NO.2	08/2004 - 08/2006	2
95333-08010	KDJ120 *H,L=80,NO.1	08/2004 - 08/2006	2
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-08020	KDJ120 *H,L=150,NO.2	08/2004 - 08/2006	2
95333-08010	KDJ120 *H,L=80,NO.1	08/2004 - 08/2006	2
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-08020	KDJ120 *H,L=150,NO.2	08/2004 - 08/2006	2
95333-08010	KDJ120 *H,L=80,NO.1	08/2004 - 08/2006	2
77256C - TUBE, FUEL RETURN, NO.2
77256-35110	KDJ120	08/2004 - 08/2006	1
77207-60250	KDJ12#	08/2006 - 12/2999	1
77257C - TUBE, FUEL RETURN, NO.3
77257-35020	KDJ120	08/2004 - 08/2006	1
77257D - HOSE, FUEL, NO.1(FOR FUEL RETURN NO.3 TUBE)
77257-35030	KDJ120	08/2004 - 08/2006	1
77257E - HOSE, FUEL, NO.2(FOR FUEL RETURN NO.3 TUBE)
95333-06020	KDJ120	09/2002 - 08/2004	1
77257-35040	KDJ120	08/2004 - 08/2006	1
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-35650	KDJ12#	09/2002 - 08/2009	1
77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN)
77285-60810	KDJ120	08/2006 - 12/2999	1
77285D - CLAMP, FUEL TUBE, NO.1
77285-35670	GRJ12#,KDJ12#	09/2002 - 08/2009	1
77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-35660	KDJ12#	09/2002 - 08/2009	1
77285F - CLAMP, FUEL TUBE, NO.1
77285-35680	GRJ12#,KDJ12#	09/2002 - 08/2009	1
77285G - CLAMP, FUEL TUBE, NO.1
77285-35690	GRJ12#,KDJ12#	09/2002 - 08/2009	1
77285J - CLAMP, FUEL TUBE, NO.1
77285-35710	KDJ120 NO.1	08/2004 - 08/2006	1
77285-35610	KDJ120 NO.2	08/2004 - 08/2006	1
77285J - CLAMP, FUEL TUBE, NO.1
77285-35710	KDJ120 NO.1	08/2004 - 08/2006	1
77285-35610	KDJ120 NO.2	08/2004 - 08/2006	1
77285K - CLAMP, FUEL TUBE, NO.1
77285-35620	KDJ120	08/2004 - 08/2006	1
77285L - CLAMP, FUEL TUBE, NO.1
77285-35720	KDJ12#	08/2004 - 08/2006	2
77285M - CLAMP, FUEL TUBE, NO.1
77285-60490	KDJ120	08/2004 - 08/2006	1
77295E - GROMMET, FUEL TUBE
77295-25010	KDJ120	08/2004 - 08/2006	1
Common parts
90179-06161
90464-00726
96132-51300
96135-41400
Linked diagrams
2202
2302

ILLUST NO. 2 OF 2(0608- )KDJ12#

Click highlighted areas on diagram

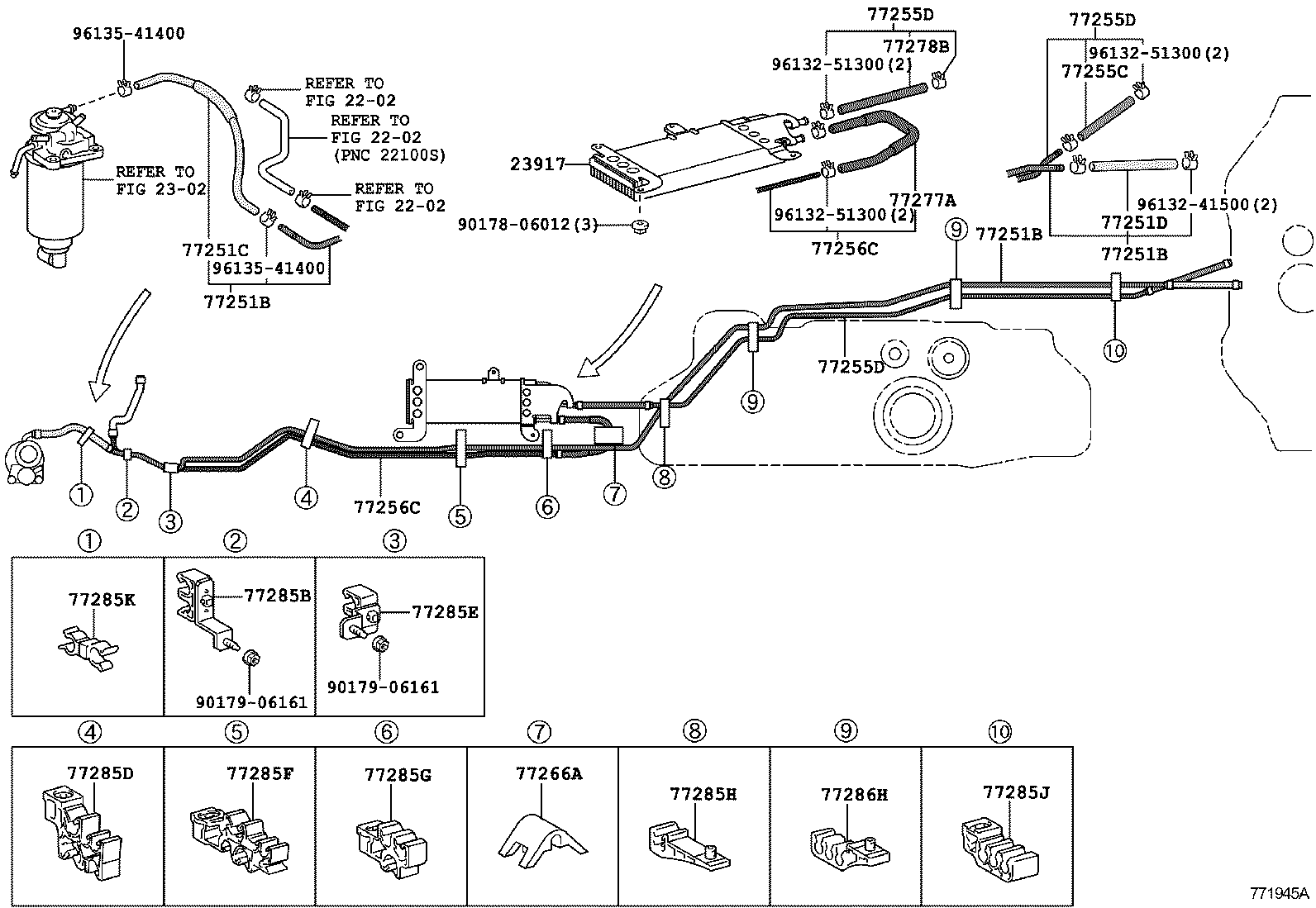

FUEL TUBE

Part #	Description	Period	Qty
23917 - COOLER, FUEL
23917-30040	1KDFTV..KDJ12#	08/2006 - 03/2008	1
23917-30041	1KDFTV..KDJ12#	04/2008 - 08/2009	1
77251B - TUBE, FUEL MAIN
77205-35310	KDJ120	09/2002 - 08/2006	1
77205-60A30	KDJ120	08/2006 - 08/2009	1
77251B - TUBE, FUEL MAIN
77205-35310	KDJ120	09/2002 - 08/2006	1
77205-60A30	KDJ120	08/2006 - 08/2009	1
77251B - TUBE, FUEL MAIN
77205-35310	KDJ120	09/2002 - 08/2006	1
77205-60A30	KDJ120	08/2006 - 08/2009	1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95332-10040	KDJ120 *H,L=320	09/2002 - 08/2006	1
77259-60690	KDJ120	08/2006 - 12/2999	1
77255D - TUBE, FUEL RETURN
77255-3D100	KDJ120	08/2004 - 08/2006	1
77255-3D090	KDJ120	09/2002 - 08/2004	1
77255D - TUBE, FUEL RETURN
77255-3D100	KDJ120	08/2004 - 08/2006	1
77255-3D090	KDJ120	09/2002 - 08/2004	1
77255D - TUBE, FUEL RETURN
77255-3D100	KDJ120	08/2004 - 08/2006	1
77255-3D090	KDJ120	09/2002 - 08/2004	1
77256C - TUBE, FUEL RETURN, NO.2
77256-35110	KDJ120	08/2004 - 08/2006	1
77207-60250	KDJ12#	08/2006 - 12/2999	1
77256C - TUBE, FUEL RETURN, NO.2
77256-35110	KDJ120	08/2004 - 08/2006	1
77207-60250	KDJ12#	08/2006 - 12/2999	1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-60030	KDJ12#	08/2006 - 12/2999	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
77259-60560	KDJ12#	08/2006 - 12/2999	1
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-35650	KDJ12#	09/2002 - 08/2009	1
77285D - CLAMP, FUEL TUBE, NO.1
77285-35670	GRJ12#,KDJ12#	09/2002 - 08/2009	1
77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-35660	KDJ12#	09/2002 - 08/2009	1
77285F - CLAMP, FUEL TUBE, NO.1
77285-35680	GRJ12#,KDJ12#	09/2002 - 08/2009	1
77285G - CLAMP, FUEL TUBE, NO.1
77285-35690	GRJ12#,KDJ12#	09/2002 - 08/2009	1
77285J - CLAMP, FUEL TUBE, NO.1
77285-35710	KDJ120 NO.1	08/2004 - 08/2006	1
77285-35610	KDJ120 NO.2	08/2004 - 08/2006	1
77285K - CLAMP, FUEL TUBE, NO.1
77285-35620	KDJ120	08/2004 - 08/2006	1
Common parts
90178-06012
90179-06161
96132-41500
96132-51300
96135-41400
Linked diagrams
2202
2302

ILLUST NO. 1 OF 2(0608- )KDJ120

Click highlighted areas on diagram

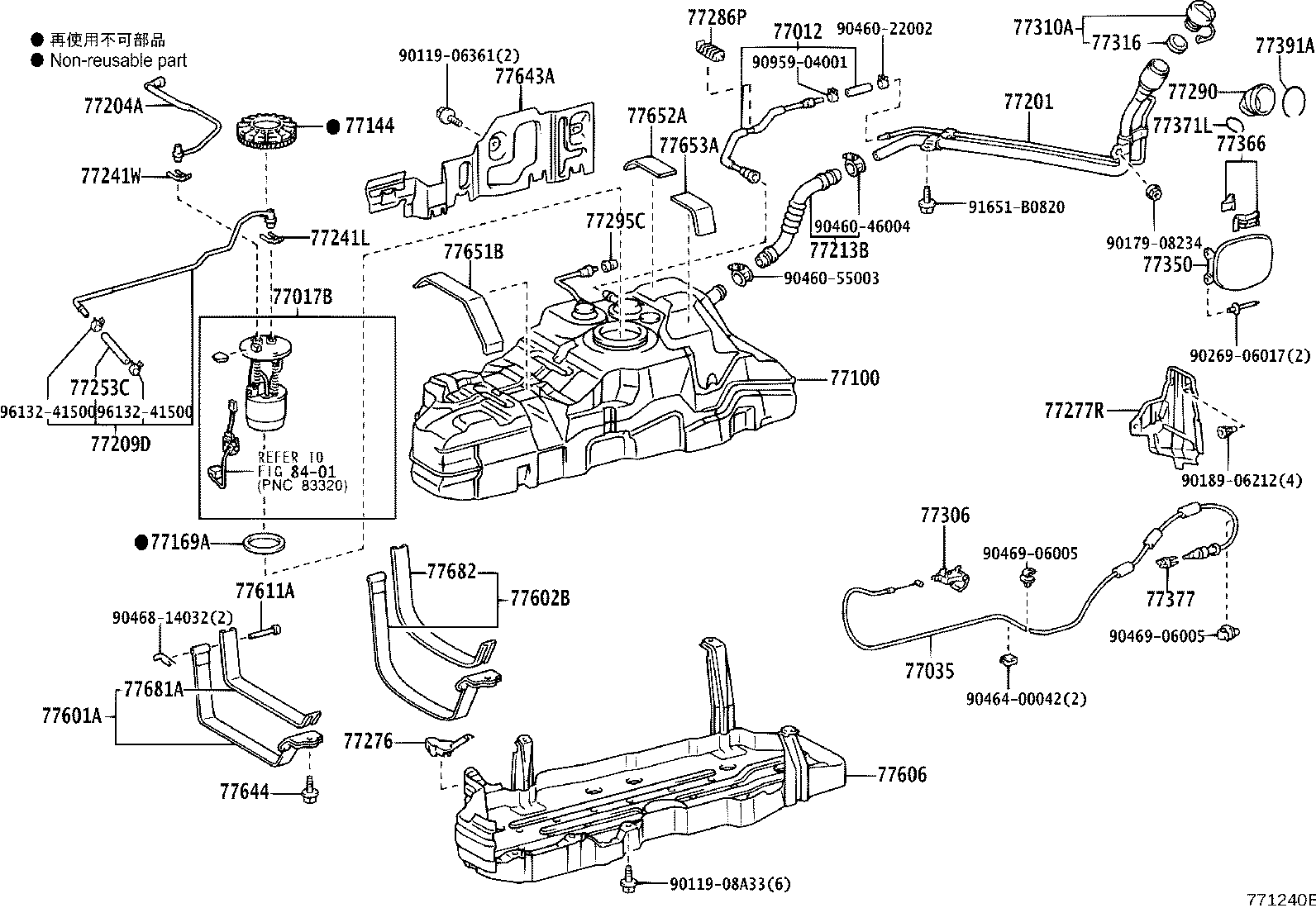

FUEL TANK

Part #	Description	Period	Qty
77012 - TUBE SUB-ASSY, FUEL TANK BREATHER
77012-35060	KDJ120	09/2002 - 08/2009	1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77010-35030	KDJ120	09/2002 - 08/2009	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-60090	GRJ120,KDJ120..RHD	09/2002 - 08/2009	1
77100 - TANK ASSY, FUEL
77001-3D530	KDJ120	09/2002 - 05/2004	1
77001-3D541	KDJ120	08/2004 - 08/2006	1
77001-3D531	KDJ120	08/2006 - 08/2009	1
77144 - RETAINER, FUEL PUMP GAUGE
77144-35010	GRJ120,KDJ120	09/2002 - 08/2009	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-35010	GRJ120,KDJ120	09/2002 - 08/2009	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-60800	KDJ120	09/2002 - 08/2009	1
77204A - TUBE, FUEL TANK RETURN
77204-35050	KDJ120	09/2002 - 08/2004	1
77204-60050	KDJ120	08/2006 - 08/2009	1
77204-35060	KDJ120	08/2004 - 08/2006	1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-35430	KDJ120	09/2002 - 08/2009	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-35390	KDJ120	09/2002 - 08/2009	1
77241L - TUBE, FUEL TANK SUCTION
77241-35450	KDJ120	09/2002 - 12/2999	1
77241W - CLIP, TUBE JOINT
77241-60320	KDJ120	09/2002 - 08/2009	1
77253C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.3 TUBE)
77259-25130	KDJ120	08/2006 - 12/2999	1
95332-10018	KDJ120	09/2002 - 08/2004	1
95332-10018	KDJ120	08/2004 - 07/2006	2
77259C - HOSE, FUEL
95337-08024	KDJ120	08/2006 - 12/2999	1
77276 - PROTECTOR, FUEL HOSE
77276-35040	GRJ120,KDJ120	09/2002 - 08/2009	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-60080	GRJ12#,KDJ12#	09/2002 - 08/2009	1
77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN)
77285-60810	KDJ120	08/2006 - 12/2999	1
77286P - CLAMP, FUEL TUBE, NO.8
77285-35620	GRJ120,KDJ120	09/2002 - 08/2009	1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-60100	GRJ120,KDJ120	09/2002 - 08/2009	1
77295C - GROMMET, FUEL TUBE
77295-27010	KDJ120	09/2002 - 12/2999	1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-58010A0	GRJ12#,KDJ12# IVORY,TRIM0#	10/2007 - 08/2009	1
77306-28050C0	GRJ12#,KDJ12# BLACK,TRIM1#	09/2002 - 09/2007	1
77306-28050A0	GRJ12#,KDJ12# IVORY,TRIM0#	09/2002 - 09/2007	1
77306-58010C0	GRJ12#,KDJ12# BLACK,TRIM1#	10/2007 - 08/2009	1
77310A - CAP ASSY, FUEL TANK
77300-35020	KDJ12#	09/2002 - 08/2003	1
77316 - GASKET, FUEL TANK CAP
77316-33042	GRJ12#,KDJ12#	09/2002 - 08/2009	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-60070	GRJ120,KDJ120	09/2002 - 08/2009	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-35040	GRJ12#,KDJ12#	10/2004 - 08/2009	1
77360-30080	GRJ12#,KDJ12#	09/2002 - 09/2004	1
77371L - RING, FUEL TANK FILLER PIPE SHIELD
77371-35010	GRJ12#,KDJ12#	09/2002 - 08/2009	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-35010	GRJ12#,KDJ12#	09/2002 - 08/2009	1
77391A - RING, FUEL INLET BOX
77391-60050	GRJ12#,KDJ12#	09/2002 - 08/2009	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-35090	GRJ120,KDJ120	09/2002 - 08/2009	1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-35030	GRJ120,KDJ120	09/2002 - 08/2009	1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-35060	GRJ120,KDJ120	09/2002 - 08/2009	1
77611A - PIN (FOR FUEL TANK BAND)
77653-35040	GRJ120,KDJ120	09/2002 - 08/2009	2
77643A - PROTECTOR, FUEL TANK, NO.3
77643-35020	GRJ120,KDJ120	09/2002 - 08/2009	1
77644 - BOLT, FUEL TANK
77644-35030	GRJ120,KDJ120	09/2002 - 08/2009	2
77651B - CUSHION, FUEL TANK
77651-35070	GRJ120,KDJ120	09/2002 - 08/2009	1
77652A - CUSHION, FUEL TANK, NO.2
77652-35060	GRJ120,KDJ120	09/2002 - 08/2009	1
77653A - CUSHION, FUEL TANK, NO.3
77653-35050	GRJ120,KDJ120	09/2002 - 08/2009	1
77681A - SEAT, FUEL TANK BAND
77681-35030	GRJ120,KDJ120	09/2002 - 04/2007	1
77681-35031	GRJ120,KDJ120	05/2007 - 08/2009	1
77682 - SEAT, FUEL TANK BAND, LH
77681-35040	GRJ120,KDJ120	09/2002 - 04/2007	1
77681-35041	GRJ120,KDJ120	05/2007 - 08/2009	1
Common parts
90119-06361
90119-08A33
90179-08234
90189-06212
90269-06017
90460-22002
90460-46004
90460-55003
90464-00042
90468-14032
90469-06005
90959-04001
91651-B0820
96132-41500
96132-51300
Linked diagrams
8401

KDJ120R-GKAEYW (2004)

ILLUST NO. 1 OF 2(0408-0608)KDJ120

ILLUST NO. 2 OF 2(0408-0608)KDJ120

ILLUST NO. 2 OF 2(0608- )KDJ12#

ILLUST NO. 1 OF 2(0608- )KDJ120

Part Price Details
