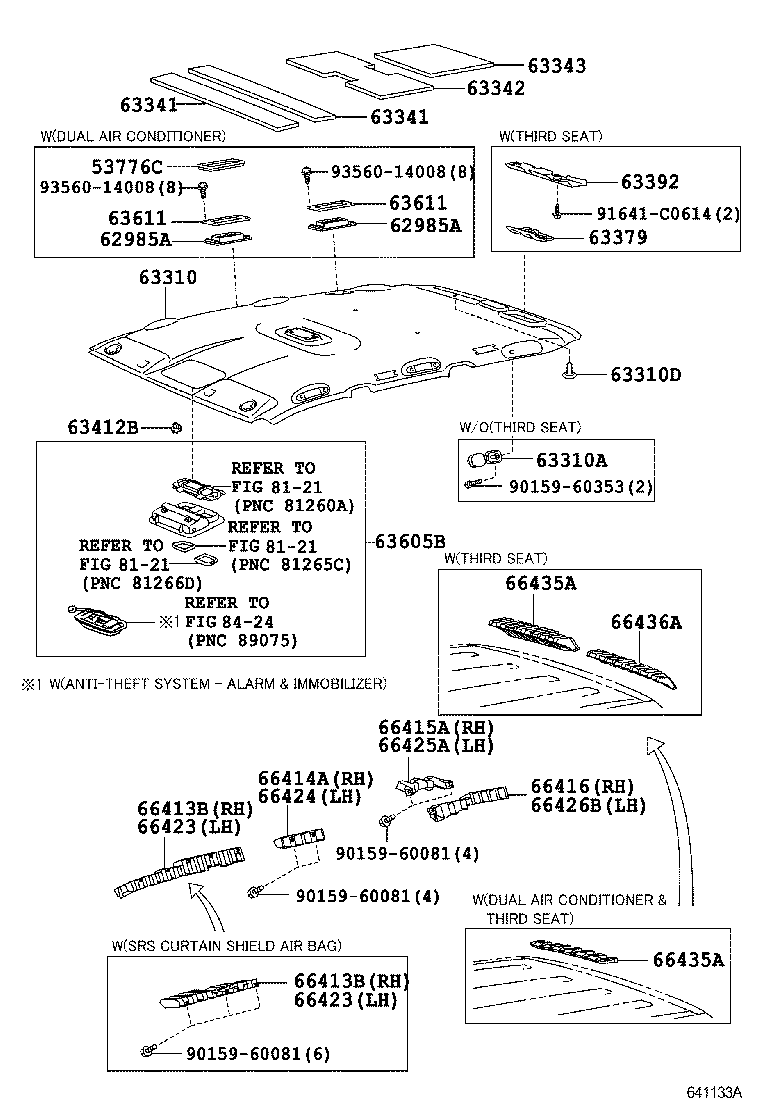

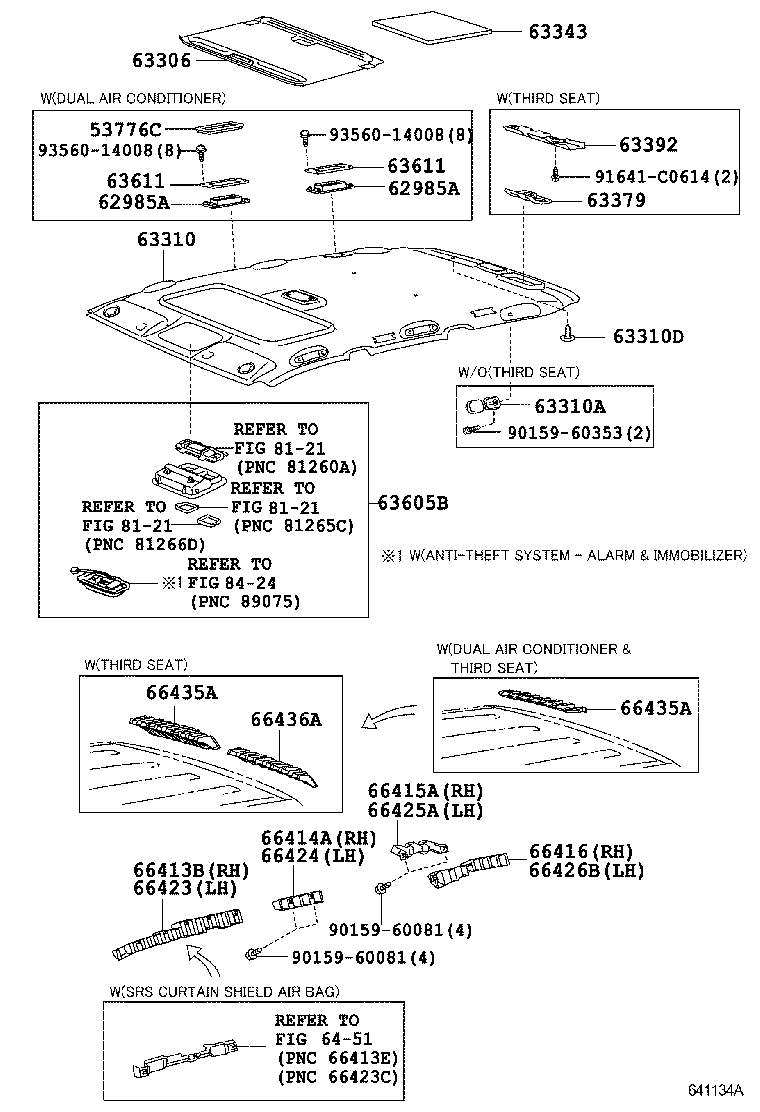

KDJ120R-GKAEYW (2004)
Toyota Land Cruiser Prado
(0209-0604)GRJ120,KDJ120
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53776C - BRACKET, COOL AIR, NO.2 | ||||
| 53776-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
2 | ||
| 62985A - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-60010A0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,IVORY,TRIM0# |
4 | ||
| 62985-60010B0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,STONE,TRIM1# |
4 | ||
| 62985A - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-60010A0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,IVORY,TRIM0# |
4 | ||
| 62985-60010B0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,STONE,TRIM1# |
4 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-60914B2 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60720B0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60918A1 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60720A0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60790A0 |
GRJ120,KDJ120 W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63310-60914A1 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0#,10 |
1 | ||
| 63310-60918B2 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60914A1 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60790B0 |
GRJ120,KDJ120 W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63310-60700B0 |
GRJ120,KDJ120 STONE,TRIM1# |
1 | ||
| 63310-60740B0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60820A0 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60700A0 |
GRJ120,KDJ120 IVORY,TRIM0# |
1 | ||
| 63310-60800A0 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60800B0 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60914B2 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM10 |
1 | ||
| 63310-60740A0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60820B0 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310A - PLUG, HOLE(FOR ROOF HEADLINING ASSY) | ||||
| 74618-35010A0 |
GRJ120,KDJ120 IVORY,TRIM0# |
2 | ||
| 74618-35010B0 |
GRJ120,KDJ120 STONE,TRIM1# |
2 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05164A0 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 90467-05164B1 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,STONE,TRIM1# |
3 | ||
| 90467-05164B1 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE,STONE,TRIM1# |
3 | ||
| 90467-05164A0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 90467-05164A0 |
GRJ12#,KDJ12# IVORY,TRIM0# |
4 | ||
| 90467-05164B1 |
GRJ12#,KDJ12# STONE,TRIM1# |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-60070 |
GRJ120,KDJ120 |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-60070 |
GRJ120,KDJ120 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-60070 |
GRJ12#,KDJ12# |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-60050 |
GRJ120,KDJ120 |
1 | ||
| 63379 - COVER, ROOF HEADLINING REAR TRIM, LH | ||||
| 63379-60011A0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63379-60011B0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63392 - TRIM, ROOF HEADLINING, REAR | ||||
| 63392-60071B0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63392-60071A0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63412B - RETAINER, ROOF CONSOLE | ||||
| 63412-35010 |
GRJ12#,KDJ12# |
1 | ||
| 63605B - BOX SUB-ASSY, ROOF CONSOLE | ||||
| 63670-60070A0 |
GRJ12#,KDJ12# IVORY,TRIM0# |
1 | ||
| 63670-60080B0 |
GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,STONE,TRIM1# |
1 | ||
| 63670-60170A0 |
GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60070B0 |
GRJ12#,KDJ12# STONE,TRIM1# |
1 | ||
| 63670-60170A0 |
GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60080A0 |
GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,IVORY,TRIM0# |
1 | ||
| 63670-60080B0 |
GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,STONE,TRIM1# |
1 | ||
| 63670-60310A0 |
GRJ12#,KDJ12# W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,IVORY,TRIM0# |
1 | ||
| 63670-60160A0 |
GRJ12#,KDJ12# W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60170B0 |
GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60160B0 |
GRJ12#,KDJ12# W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60170B0 |
GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60310B0 |
GRJ12#,KDJ12# W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,STONE,TRIM1# |
1 | ||
| 63670-60080A0 |
GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,IVORY,TRIM0# |
1 | ||
| 63670-60310B0 |
GRJ120,KDJ12#..RHD W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,STONE,TRIM1# |
1 | ||
| 63670-60320B0 |
GRJ120,KDJ12#..RHD W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60310A0 |
GRJ120,KDJ12#..RHD W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,IVORY,TRIM0# |
1 | ||
| 63670-60310A0 |
GRJ12#,KDJ12# LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,IVORY,TRIM0# |
1 | ||
| 63670-60320B0 |
GRJ12#,KDJ12# LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60320A0 |
GRJ12#,KDJ12# LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60310A0 |
GRJ120,KDJ12#..RHD LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,IVORY,TRIM0# |
1 | ||
| 63670-60320B0 |
GRJ120,KDJ12#..RHD LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60310B0 |
GRJ12#,KDJ12# LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,STONE,TRIM1# |
1 | ||
| 63670-60320A0 |
GRJ120,KDJ12#..RHD LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60320B0 |
GRJ12#,KDJ12# W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60310B0 |
GRJ120,KDJ12#..RHD LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,STONE,TRIM1# |
1 | ||
| 63670-60320A0 |
GRJ12#,KDJ12# W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60320A0 |
GRJ120,KDJ12#..RHD W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63611 - BRACKET, REAR COOLER, NO.1 | ||||
| 63611-60010 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
4 | ||
| 63611 - BRACKET, REAR COOLER, NO.1 | ||||
| 63611-60010 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
4 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-60010 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66413-60010 |
GRJ120,KDJ120 W/MOON ROOF |
1 | ||
| 66413-60020 |
GRJ120,KDJ120 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66413-60040 |
GRJ120,KDJ120 |
1 | ||
| 66413-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66413-60020 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66413-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-60010 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66413-60010 |
GRJ120,KDJ120 W/MOON ROOF |
1 | ||
| 66413-60020 |
GRJ120,KDJ120 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66413-60040 |
GRJ120,KDJ120 |
1 | ||
| 66413-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66413-60020 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66413-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-60010 |
GRJ120,KDJ120 |
1 | ||
| 66415A - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-60010 |
GRJ120,KDJ120 |
1 | ||
| 66416 - SPACER, SIDE RAIL, REAR NO.3 RH | ||||
| 66416-60010 |
GRJ120,KDJ120 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-60020 |
GRJ120,KDJ120 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66423-60010 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66423-60020 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66423-60040 |
GRJ120,KDJ120 |
1 | ||
| 66423-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66423-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66423-60010 |
GRJ120,KDJ120 W/MOON ROOF |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-60020 |
GRJ120,KDJ120 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66423-60010 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66423-60020 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66423-60040 |
GRJ120,KDJ120 |
1 | ||
| 66423-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66423-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66423-60010 |
GRJ120,KDJ120 W/MOON ROOF |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-60010 |
GRJ120,KDJ120 |
1 | ||
| 66425A - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-60010 |
GRJ120,KDJ120 |
1 | ||
| 66426B - SPACER, SIDE RAIL, REAR NO.3 LH | ||||
| 66426-60010 |
GRJ120,KDJ120 |
1 | ||
| 66435A - PAD, SIDE REAR STEP, RH | ||||
| 66435-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435A - PAD, SIDE REAR STEP, RH | ||||
| 66435-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66436A - PAD, SIDE REAR STEP, LH | ||||
| 66436-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66436-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66436-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE |
1 | ||
| 66436-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90159-60353 | ||||
| 91641-C0614 | ||||
| 93560-14008 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8424 | ||||
(0209-0604)GRJ120,KDJ120
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53776C - BRACKET, COOL AIR, NO.2 | ||||
| 53776-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
2 | ||
| 62985A - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-60010A0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,IVORY,TRIM0# |
4 | ||
| 62985-60010B0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,STONE,TRIM1# |
4 | ||
| 62985A - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-60010A0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,IVORY,TRIM0# |
4 | ||
| 62985-60010B0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,STONE,TRIM1# |
4 | ||
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-60130A0 |
GRJ12#,KDJ12# W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63306-60130B0 |
GRJ12#,KDJ12# W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63306-60133A0 |
GRJ12#,KDJ12# W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63306-60133B0 |
GRJ12#,KDJ12# W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-60914B2 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60720B0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60918A1 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60720A0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60790A0 |
GRJ120,KDJ120 W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63310-60914A1 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0#,10 |
1 | ||
| 63310-60918B2 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60914A1 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60790B0 |
GRJ120,KDJ120 W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63310-60700B0 |
GRJ120,KDJ120 STONE,TRIM1# |
1 | ||
| 63310-60740B0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60820A0 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60700A0 |
GRJ120,KDJ120 IVORY,TRIM0# |
1 | ||
| 63310-60800A0 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60800B0 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60914B2 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM10 |
1 | ||
| 63310-60740A0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60820B0 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310A - PLUG, HOLE(FOR ROOF HEADLINING ASSY) | ||||
| 74618-35010A0 |
GRJ120,KDJ120 IVORY,TRIM0# |
2 | ||
| 74618-35010B0 |
GRJ120,KDJ120 STONE,TRIM1# |
2 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05164A0 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 90467-05164B1 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,STONE,TRIM1# |
3 | ||
| 90467-05164B1 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE,STONE,TRIM1# |
3 | ||
| 90467-05164A0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 90467-05164A0 |
GRJ12#,KDJ12# IVORY,TRIM0# |
4 | ||
| 90467-05164B1 |
GRJ12#,KDJ12# STONE,TRIM1# |
4 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-60050 |
GRJ120,KDJ120 |
1 | ||
| 63379 - COVER, ROOF HEADLINING REAR TRIM, LH | ||||
| 63379-60011A0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63379-60011B0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63392 - TRIM, ROOF HEADLINING, REAR | ||||
| 63392-60071B0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63392-60071A0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63605B - BOX SUB-ASSY, ROOF CONSOLE | ||||
| 63670-60070A0 |
GRJ12#,KDJ12# IVORY,TRIM0# |
1 | ||
| 63670-60080B0 |
GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,STONE,TRIM1# |
1 | ||
| 63670-60170A0 |
GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60070B0 |
GRJ12#,KDJ12# STONE,TRIM1# |
1 | ||
| 63670-60170A0 |
GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60080A0 |
GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,IVORY,TRIM0# |
1 | ||
| 63670-60080B0 |
GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,STONE,TRIM1# |
1 | ||
| 63670-60310A0 |
GRJ12#,KDJ12# W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,IVORY,TRIM0# |
1 | ||
| 63670-60160A0 |
GRJ12#,KDJ12# W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60170B0 |
GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60160B0 |
GRJ12#,KDJ12# W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60170B0 |
GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60310B0 |
GRJ12#,KDJ12# W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,STONE,TRIM1# |
1 | ||
| 63670-60080A0 |
GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,IVORY,TRIM0# |
1 | ||
| 63670-60310B0 |
GRJ120,KDJ12#..RHD W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,STONE,TRIM1# |
1 | ||
| 63670-60320B0 |
GRJ120,KDJ12#..RHD W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60310A0 |
GRJ120,KDJ12#..RHD W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,IVORY,TRIM0# |
1 | ||
| 63670-60310A0 |
GRJ12#,KDJ12# LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,IVORY,TRIM0# |
1 | ||
| 63670-60320B0 |
GRJ12#,KDJ12# LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60320A0 |
GRJ12#,KDJ12# LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60310A0 |
GRJ120,KDJ12#..RHD LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,IVORY,TRIM0# |
1 | ||
| 63670-60320B0 |
GRJ120,KDJ12#..RHD LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60310B0 |
GRJ12#,KDJ12# LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,STONE,TRIM1# |
1 | ||
| 63670-60320A0 |
GRJ120,KDJ12#..RHD LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60320B0 |
GRJ12#,KDJ12# W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60310B0 |
GRJ120,KDJ12#..RHD LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,STONE,TRIM1# |
1 | ||
| 63670-60320A0 |
GRJ12#,KDJ12# W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60320A0 |
GRJ120,KDJ12#..RHD W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63611 - BRACKET, REAR COOLER, NO.1 | ||||
| 63611-60010 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
4 | ||
| 63611 - BRACKET, REAR COOLER, NO.1 | ||||
| 63611-60010 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
4 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-60010 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66413-60010 |
GRJ120,KDJ120 W/MOON ROOF |
1 | ||
| 66413-60020 |
GRJ120,KDJ120 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66413-60040 |
GRJ120,KDJ120 |
1 | ||
| 66413-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66413-60020 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66413-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-60010 |
GRJ120,KDJ120 |
1 | ||
| 66415A - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-60010 |
GRJ120,KDJ120 |
1 | ||
| 66416 - SPACER, SIDE RAIL, REAR NO.3 RH | ||||
| 66416-60010 |
GRJ120,KDJ120 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-60020 |
GRJ120,KDJ120 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66423-60010 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66423-60020 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66423-60040 |
GRJ120,KDJ120 |
1 | ||
| 66423-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66423-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66423-60010 |
GRJ120,KDJ120 W/MOON ROOF |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-60010 |
GRJ120,KDJ120 |
1 | ||
| 66425A - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-60010 |
GRJ120,KDJ120 |
1 | ||
| 66426B - SPACER, SIDE RAIL, REAR NO.3 LH | ||||
| 66426-60010 |
GRJ120,KDJ120 |
1 | ||
| 66435A - PAD, SIDE REAR STEP, RH | ||||
| 66435-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435A - PAD, SIDE REAR STEP, RH | ||||
| 66435-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66436A - PAD, SIDE REAR STEP, LH | ||||
| 66436-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66436-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66436-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE |
1 | ||
| 66436-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90159-60353 | ||||
| 91641-C0614 | ||||
| 93560-14008 | ||||
| Linked diagrams | ||||
| 6451 | ||||
| 8121 | ||||
| 8424 | ||||
(0604- )GRJ120,KDJ120
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53776C - BRACKET, COOL AIR, NO.2 | ||||
| 53776-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
2 | ||
| 62985A - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-60010A0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,IVORY,TRIM0# |
4 | ||
| 62985-60010B0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,STONE,TRIM1# |
4 | ||
| 62985A - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-60010A0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,IVORY,TRIM0# |
4 | ||
| 62985-60010B0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,STONE,TRIM1# |
4 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-60914B2 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60720B0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60918A1 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60720A0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60790A0 |
GRJ120,KDJ120 W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63310-60914A1 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0#,10 |
1 | ||
| 63310-60918B2 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60914A1 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60790B0 |
GRJ120,KDJ120 W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63310-60700B0 |
GRJ120,KDJ120 STONE,TRIM1# |
1 | ||
| 63310-60740B0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60820A0 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60700A0 |
GRJ120,KDJ120 IVORY,TRIM0# |
1 | ||
| 63310-60800A0 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60800B0 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60914B2 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM10 |
1 | ||
| 63310-60740A0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60820B0 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310A - PLUG, HOLE(FOR ROOF HEADLINING ASSY) | ||||
| 74618-35010A0 |
GRJ120,KDJ120 IVORY,TRIM0# |
2 | ||
| 74618-35010B0 |
GRJ120,KDJ120 STONE,TRIM1# |
2 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05164A0 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 90467-05164B1 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,STONE,TRIM1# |
3 | ||
| 90467-05164B1 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE,STONE,TRIM1# |
3 | ||
| 90467-05164A0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 90467-05164A0 |
GRJ12#,KDJ12# IVORY,TRIM0# |
4 | ||
| 90467-05164B1 |
GRJ12#,KDJ12# STONE,TRIM1# |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-60070 |
GRJ120,KDJ120 |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-60070 |
GRJ120,KDJ120 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-60070 |
GRJ12#,KDJ12# |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-60050 |
GRJ120,KDJ120 |
1 | ||
| 63379 - COVER, ROOF HEADLINING REAR TRIM, LH | ||||
| 63379-60011A0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63379-60011B0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63392 - TRIM, ROOF HEADLINING, REAR | ||||
| 63392-60071B0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63392-60071A0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63412B - RETAINER, ROOF CONSOLE | ||||
| 63412-35010 |
GRJ12#,KDJ12# |
1 | ||
| 63605B - BOX SUB-ASSY, ROOF CONSOLE | ||||
| 63670-60070A0 |
GRJ12#,KDJ12# IVORY,TRIM0# |
1 | ||
| 63670-60080B0 |
GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,STONE,TRIM1# |
1 | ||
| 63670-60170A0 |
GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60070B0 |
GRJ12#,KDJ12# STONE,TRIM1# |
1 | ||
| 63670-60170A0 |
GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60080A0 |
GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,IVORY,TRIM0# |
1 | ||
| 63670-60080B0 |
GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,STONE,TRIM1# |
1 | ||
| 63670-60310A0 |
GRJ12#,KDJ12# W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,IVORY,TRIM0# |
1 | ||
| 63670-60160A0 |
GRJ12#,KDJ12# W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60170B0 |
GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60160B0 |
GRJ12#,KDJ12# W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60170B0 |
GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60310B0 |
GRJ12#,KDJ12# W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,STONE,TRIM1# |
1 | ||
| 63670-60080A0 |
GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,IVORY,TRIM0# |
1 | ||
| 63670-60310B0 |
GRJ120,KDJ12#..RHD W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,STONE,TRIM1# |
1 | ||
| 63670-60320B0 |
GRJ120,KDJ12#..RHD W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60310A0 |
GRJ120,KDJ12#..RHD W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,IVORY,TRIM0# |
1 | ||
| 63670-60310A0 |
GRJ12#,KDJ12# LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,IVORY,TRIM0# |
1 | ||
| 63670-60320B0 |
GRJ12#,KDJ12# LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60320A0 |
GRJ12#,KDJ12# LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60310A0 |
GRJ120,KDJ12#..RHD LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,IVORY,TRIM0# |
1 | ||
| 63670-60320B0 |
GRJ120,KDJ12#..RHD LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60310B0 |
GRJ12#,KDJ12# LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,STONE,TRIM1# |
1 | ||
| 63670-60320A0 |
GRJ120,KDJ12#..RHD LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60320B0 |
GRJ12#,KDJ12# W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60310B0 |
GRJ120,KDJ12#..RHD LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,STONE,TRIM1# |
1 | ||
| 63670-60320A0 |
GRJ12#,KDJ12# W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60320A0 |
GRJ120,KDJ12#..RHD W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63611 - BRACKET, REAR COOLER, NO.1 | ||||
| 63611-60010 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
4 | ||
| 63611 - BRACKET, REAR COOLER, NO.1 | ||||
| 63611-60010 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
4 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-60010 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66413-60010 |
GRJ120,KDJ120 W/MOON ROOF |
1 | ||
| 66413-60020 |
GRJ120,KDJ120 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66413-60040 |
GRJ120,KDJ120 |
1 | ||
| 66413-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66413-60020 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66413-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-60010 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66413-60010 |
GRJ120,KDJ120 W/MOON ROOF |
1 | ||
| 66413-60020 |
GRJ120,KDJ120 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66413-60040 |
GRJ120,KDJ120 |
1 | ||
| 66413-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66413-60020 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66413-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-60010 |
GRJ120,KDJ120 |
1 | ||
| 66415A - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-60010 |
GRJ120,KDJ120 |
1 | ||
| 66416 - SPACER, SIDE RAIL, REAR NO.3 RH | ||||
| 66416-60010 |
GRJ120,KDJ120 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-60020 |
GRJ120,KDJ120 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66423-60010 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66423-60020 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66423-60040 |
GRJ120,KDJ120 |
1 | ||
| 66423-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66423-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66423-60010 |
GRJ120,KDJ120 W/MOON ROOF |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-60020 |
GRJ120,KDJ120 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66423-60010 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66423-60020 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66423-60040 |
GRJ120,KDJ120 |
1 | ||
| 66423-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66423-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66423-60010 |
GRJ120,KDJ120 W/MOON ROOF |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-60010 |
GRJ120,KDJ120 |
1 | ||
| 66425A - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-60010 |
GRJ120,KDJ120 |
1 | ||
| 66426B - SPACER, SIDE RAIL, REAR NO.3 LH | ||||
| 66426-60010 |
GRJ120,KDJ120 |
1 | ||
| 66435A - PAD, SIDE REAR STEP, RH | ||||
| 66435-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435A - PAD, SIDE REAR STEP, RH | ||||
| 66435-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66436A - PAD, SIDE REAR STEP, LH | ||||
| 66436-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66436-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66436-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE |
1 | ||
| 66436-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90159-60353 | ||||
| 91641-C0614 | ||||
| 93560-14008 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8424 | ||||
(0604- )GRJ120,KDJ120
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53776C - BRACKET, COOL AIR, NO.2 | ||||
| 53776-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
2 | ||
| 62985A - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-60010A0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,IVORY,TRIM0# |
4 | ||
| 62985-60010B0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,STONE,TRIM1# |
4 | ||
| 62985A - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-60010A0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,IVORY,TRIM0# |
4 | ||
| 62985-60010B0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,STONE,TRIM1# |
4 | ||
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-60130A0 |
GRJ12#,KDJ12# W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63306-60130B0 |
GRJ12#,KDJ12# W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63306-60133A0 |
GRJ12#,KDJ12# W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63306-60133B0 |
GRJ12#,KDJ12# W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-60914B2 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60720B0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60918A1 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60720A0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60790A0 |
GRJ120,KDJ120 W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63310-60914A1 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0#,10 |
1 | ||
| 63310-60918B2 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60914A1 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60790B0 |
GRJ120,KDJ120 W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63310-60700B0 |
GRJ120,KDJ120 STONE,TRIM1# |
1 | ||
| 63310-60740B0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60820A0 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60700A0 |
GRJ120,KDJ120 IVORY,TRIM0# |
1 | ||
| 63310-60800A0 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60800B0 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310-60914B2 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM10 |
1 | ||
| 63310-60740A0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63310-60820B0 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63310A - PLUG, HOLE(FOR ROOF HEADLINING ASSY) | ||||
| 74618-35010A0 |
GRJ120,KDJ120 IVORY,TRIM0# |
2 | ||
| 74618-35010B0 |
GRJ120,KDJ120 STONE,TRIM1# |
2 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05164A0 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 90467-05164B1 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,STONE,TRIM1# |
3 | ||
| 90467-05164B1 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE,STONE,TRIM1# |
3 | ||
| 90467-05164A0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 90467-05164A0 |
GRJ12#,KDJ12# IVORY,TRIM0# |
4 | ||
| 90467-05164B1 |
GRJ12#,KDJ12# STONE,TRIM1# |
4 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-60050 |
GRJ120,KDJ120 |
1 | ||
| 63379 - COVER, ROOF HEADLINING REAR TRIM, LH | ||||
| 63379-60011A0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63379-60011B0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63392 - TRIM, ROOF HEADLINING, REAR | ||||
| 63392-60071B0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,STONE,TRIM1# |
1 | ||
| 63392-60071A0 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 63605B - BOX SUB-ASSY, ROOF CONSOLE | ||||
| 63670-60070A0 |
GRJ12#,KDJ12# IVORY,TRIM0# |
1 | ||
| 63670-60080B0 |
GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,STONE,TRIM1# |
1 | ||
| 63670-60170A0 |
GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60070B0 |
GRJ12#,KDJ12# STONE,TRIM1# |
1 | ||
| 63670-60170A0 |
GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60080A0 |
GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,IVORY,TRIM0# |
1 | ||
| 63670-60080B0 |
GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,STONE,TRIM1# |
1 | ||
| 63670-60310A0 |
GRJ12#,KDJ12# W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,IVORY,TRIM0# |
1 | ||
| 63670-60160A0 |
GRJ12#,KDJ12# W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60170B0 |
GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60160B0 |
GRJ12#,KDJ12# W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60170B0 |
GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60310B0 |
GRJ12#,KDJ12# W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,STONE,TRIM1# |
1 | ||
| 63670-60080A0 |
GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,IVORY,TRIM0# |
1 | ||
| 63670-60310B0 |
GRJ120,KDJ12#..RHD W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,STONE,TRIM1# |
1 | ||
| 63670-60320B0 |
GRJ120,KDJ12#..RHD W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60310A0 |
GRJ120,KDJ12#..RHD W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,IVORY,TRIM0# |
1 | ||
| 63670-60310A0 |
GRJ12#,KDJ12# LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,IVORY,TRIM0# |
1 | ||
| 63670-60320B0 |
GRJ12#,KDJ12# LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60320A0 |
GRJ12#,KDJ12# LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60310A0 |
GRJ120,KDJ12#..RHD LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,IVORY,TRIM0# |
1 | ||
| 63670-60320B0 |
GRJ120,KDJ12#..RHD LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60310B0 |
GRJ12#,KDJ12# LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,STONE,TRIM1# |
1 | ||
| 63670-60320A0 |
GRJ120,KDJ12#..RHD LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60320B0 |
GRJ12#,KDJ12# W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,STONE,TRIM1# |
1 | ||
| 63670-60310B0 |
GRJ120,KDJ12#..RHD LEATHER & BLACK WOOD STEERING PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,STONE,TRIM1# |
1 | ||
| 63670-60320A0 |
GRJ12#,KDJ12# W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63670-60320A0 |
GRJ120,KDJ12#..RHD W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK&W/MOON ROOF,IVORY,TRIM0# |
1 | ||
| 63611 - BRACKET, REAR COOLER, NO.1 | ||||
| 63611-60010 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
4 | ||
| 63611 - BRACKET, REAR COOLER, NO.1 | ||||
| 63611-60010 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO |
4 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-60010 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66413-60010 |
GRJ120,KDJ120 W/MOON ROOF |
1 | ||
| 66413-60020 |
GRJ120,KDJ120 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66413-60040 |
GRJ120,KDJ120 |
1 | ||
| 66413-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66413-60020 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66413-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-60010 |
GRJ120,KDJ120 |
1 | ||
| 66415A - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-60010 |
GRJ120,KDJ120 |
1 | ||
| 66416 - SPACER, SIDE RAIL, REAR NO.3 RH | ||||
| 66416-60010 |
GRJ120,KDJ120 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-60020 |
GRJ120,KDJ120 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66423-60010 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66423-60020 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66423-60040 |
GRJ120,KDJ120 |
1 | ||
| 66423-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66423-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66423-60010 |
GRJ120,KDJ120 W/MOON ROOF |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-60010 |
GRJ120,KDJ120 |
1 | ||
| 66425A - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-60010 |
GRJ120,KDJ120 |
1 | ||
| 66426B - SPACER, SIDE RAIL, REAR NO.3 LH | ||||
| 66426-60010 |
GRJ120,KDJ120 |
1 | ||
| 66435A - PAD, SIDE REAR STEP, RH | ||||
| 66435-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435A - PAD, SIDE REAR STEP, RH | ||||
| 66435-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 W/MOON ROOF&AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE |
1 | ||
| 66435-60020 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66436A - PAD, SIDE REAR STEP, LH | ||||
| 66436-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 66436-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE |
1 | ||
| 66436-60010 |
GRJ120,KDJ120 REAR SEAT-REMOVABLE |
1 | ||
| 66436-60010 |
GRJ120,KDJ120 W/MOON ROOF&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90159-60353 | ||||
| 91641-C0614 | ||||
| 93560-14008 | ||||
| Linked diagrams | ||||
| 6451 | ||||
| 8121 | ||||
| 8424 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
