KDJ120R-GKAEYW (2004)
Toyota Land Cruiser Prado
(0408- )

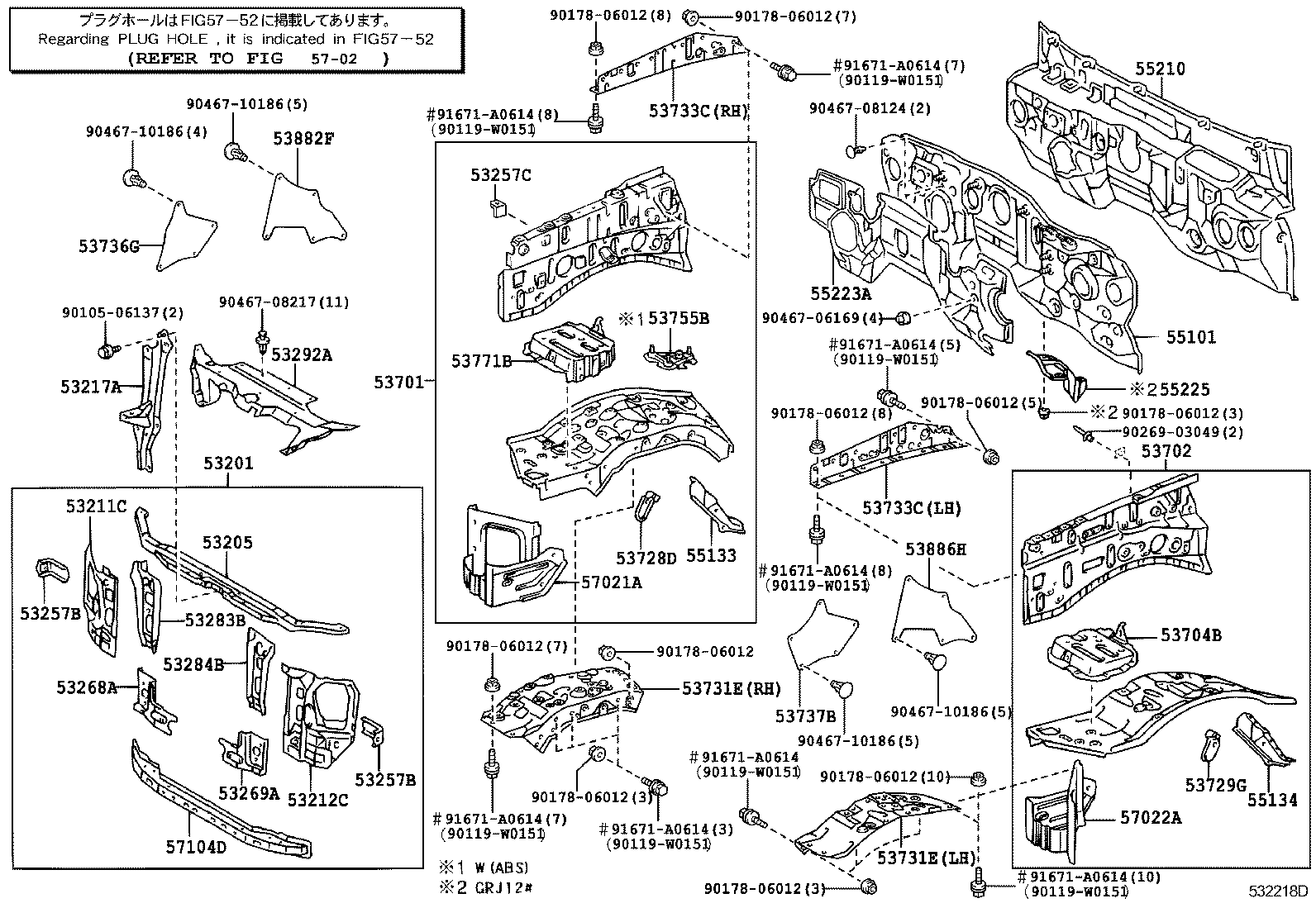

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-60093 |
GRJ12#,KDJ12# |
1 | ||
| 53201-60094 |
GRJ12#,KDJ12# |
1 | ||
| 53201-60090 |
GRJ12#,KDJ12# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-60030 |
GRJ12#,KDJ12# |
1 | ||
| 53205-60030 |
GRJ12#,KDJ12# |
1 | ||
| 53205-60030 |
GRJ12#,KDJ12#..5FC,6F |
1 | ||
| 53211C - SUPPORT, RADIATOR, RH | ||||
| 53211-60192 |
GRJ12#,KDJ12# |
1 | ||
| 53211-60190 |
GRJ12#,KDJ12# |
1 | ||
| 53211-60193 |
GRJ12#,KDJ12# |
1 | ||
| 53211-60192 |
GRJ12#,KDJ12# |
1 | ||
| 53212C - SUPPORT, RADIATOR, LH | ||||
| 53212-60150 |
GRJ12#,KDJ12# |
1 | ||
| 53212-60152 |
GRJ12#,KDJ12# |
1 | ||
| 53212-60153 |
GRJ12#,KDJ12# |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53209-60070 |
GRJ12#,KDJ12# |
1 | ||
| 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER | ||||
| 53257-60030 |
GRJ12#,KDJ12# |
2 | ||
| 53257-60031 |
GRJ12#,KDJ12# |
2 | ||
| 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER | ||||
| 53257-60030 |
GRJ12#,KDJ12# |
2 | ||
| 53257-60031 |
GRJ12#,KDJ12# |
2 | ||
| 53257C - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, NO.2 | ||||
| 53257-35030 |
KDJ12# COLD SPEC |
1 | ||
| 53257-35030 |
KDJ12# COLD SPEC&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 53257-35030 |
KDJ12# |
2 | ||
| 53257-35030 |
KDJ12# COLD SPEC&ABS-WITH |
1 | ||
| 53268A - REINFORCEMENT, RADIATOR MOUNTING, RH | ||||
| 53268-35040 |
GRJ12#,KDJ12# |
1 | ||
| 53268-35040 |
GRJ12#,KDJ12# |
1 | ||
| 53268-35040 |
GRJ12#,KDJ12# |
1 | ||
| 53268-35040 |
GRJ12#,KDJ12#..5FC,6F |
1 | ||
| 53269A - REINFORCEMENT, RADIATOR MOUNTING, LH | ||||
| 53269-35040 |
GRJ12#,KDJ12#..5FC,6F |
1 | ||
| 53269-35040 |
GRJ12#,KDJ12# |
1 | ||
| 53269-35040 |
GRJ12#,KDJ12# |
1 | ||
| 53283B - REINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH | ||||
| 53283-35030 |
GRJ12#,KDJ12# |
1 | ||
| 53283-35030 |
GRJ12#,KDJ12# |
1 | ||
| 53283-35030 |
GRJ12#,KDJ12#..5FC,6F |
1 | ||
| 53283-35030 |
GRJ12#,KDJ12# |
1 | ||
| 53284B - REINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH | ||||
| 53284-35020 |
GRJ12#,KDJ12# |
1 | ||
| 53284-35020 |
GRJ12#,KDJ12#..5FC,6F |
1 | ||
| 53284-35020 |
GRJ12#,KDJ12# |
1 | ||
| 53292A - SEAL, RADIATOR SUPPORT, UPPER | ||||
| 53292-60040 |
GRJ12#,KDJ12# |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-60780 |
KDJ12# |
1 | ||
| 53701-60800 |
KDJ12# COLD SPEC |
1 | ||
| 53701-60750 |
KDJ12# COLD SPEC&ABS-WITH |
1 | ||
| 53701-60740 |
KDJ12# ABS-WITH |
1 | ||
| 53701-60800 |
KDJ12# COLD SPEC&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 53701-60750 |
KDJ12# COLD SPEC |
1 | ||
| 53701-60A10 |
KDJ12# |
1 | ||
| 53701-60801 |
KDJ12# COLD SPEC&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 53701-60A20 |
KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 53701-60A11 |
KDJ12# |
1 | ||
| 53701-60A22 |
KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 53701-60752 |
KDJ12# COLD SPEC |
1 | ||
| 53701-60751 |
KDJ12# COLD SPEC |
1 | ||
| 53701-60A12 |
KDJ12# |
1 | ||
| 53701-60803 |
KDJ12# COLD SPEC&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 53701-60A43 |
KDJ12# |
1 | ||
| 53701-60753 |
KDJ12# COLD SPEC |
1 | ||
| 53701-60A21 |
KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 53701-60802 |
KDJ12# COLD SPEC&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 53701-60A23 |
KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 53701-60A42 |
KDJ12# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-6A050 |
KDJ12# |
1 | ||
| 53702-6A051 |
KDJ12# |
1 | ||
| 53702-6A052 |
KDJ12# |
1 | ||
| 53704B - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-35081 |
GRJ12#,KDJ12# |
1 | ||
| 53704-35080 |
GRJ12#,KDJ12# |
1 | ||
| 53704-35082 |
GRJ12#,KDJ12# |
1 | ||
| 53728D - BRACKET, FENDER APRON, RH | ||||
| 53728-35060 |
GRJ12#,KDJ12# |
1 | ||
| 53729G - BRACKET, FENDER APRON, LH | ||||
| 53728-35060 |
GRJ12#,KDJ12# |
1 | ||
| 53731E - PATCH, FRONT FENDER APRON | ||||
| 53732-60060 |
GRJ12#,KDJ12# LH |
1 | ||
| 53731-60070 |
GRJ12#,KDJ12# RH |
1 | ||
| 53731E - PATCH, FRONT FENDER APRON | ||||
| 53732-60060 |
GRJ12#,KDJ12# LH |
1 | ||
| 53731-60070 |
GRJ12#,KDJ12# RH |
1 | ||
| 53733C - PATCH, FRONT FENDER APRON | ||||
| 53734-60050 |
GRJ12#,KDJ12# LH |
1 | ||
| 53733-60040 |
GRJ12#,KDJ12# RH |
1 | ||
| 53733C - PATCH, FRONT FENDER APRON | ||||
| 53734-60050 |
GRJ12#,KDJ12# LH |
1 | ||
| 53733-60040 |
GRJ12#,KDJ12# RH |
1 | ||
| 53736G - SEAL, FRONT FENDER APRON, FRONT RH | ||||
| 53735-35150 |
GRJ12#,KDJ12# |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53736-35150 |
GRJ12#,KDJ12# |
1 | ||
| 53755B - REINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1 | ||||
| 53755-35061 |
GRJ12#,KDJ12# |
1 | ||
| 53755-35060 |
GRJ12#,KDJ12# ABS-WITH |
1 | ||
| 53755-35060 |
KDJ12# COLD SPEC&ABS-WITH |
1 | ||
| 53755-35060 |
GRJ12#,KDJ12# |
1 | ||
| 53771B - SUPPORT, BATTERY CARRIER, RH | ||||
| 53703-35040 |
KDJ12# COLD SPEC |
1 | ||
| 53703-35041 |
KDJ12# COLD SPEC |
1 | ||
| 53703-35041 |
KDJ12# COLD SPEC&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 53771-35080 |
GRJ12#,KDJ12# |
1 | ||
| 53703-35040 |
KDJ12# COLD SPEC&ABS-WITH |
1 | ||
| 53703-35042 |
KDJ12# COLD SPEC&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 53703-35042 |
KDJ12# COLD SPEC |
1 | ||
| 53703-35040 |
KDJ12# COLD SPEC&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53886-35020 |
GRJ12#,KDJ12# |
1 | ||
| 53886H - SHIELD, FRONT FENDER SPLASH, REAR LH | ||||
| 53886-35020 |
GRJ12#,KDJ12# |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-6E320 |
KDJ120..RHD..5F TEMS&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 55101-6E310 |
KDJ12#..RHD..5F |
1 | ||
| 55101-6E320 |
KDJ120..RHD..5F TEMS&ABS-WITH |
1 | ||
| 55101-6E170 |
KDJ120..RHD..5FC REAR SUSPENSION-WITH(AIR SUSPENSION) |
1 | ||
| 55101-60A30 |
KDJ12#..RHD..5FC |
1 | ||
| 55101-6E181 |
KDJ120..RHD..5FC REAR SUSPENSION-WITH(AIR SUSPENSION) |
1 | ||
| 55101-60A31 |
KDJ12#..RHD..5FC |
1 | ||
| 55101-6E181 |
KDJ120..RHD..5FC REAR SUSPENSION-WITH(AIR SUSPENSION)&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&AUDIO(FOR OVERSEAS MARKET)-03'EMV-W 9SP |
1 | ||
| 55101-6E181 |
KDJ120..RHD..5FC SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&AUDIO(FOR OVERSEAS MARKET)-03'EMV-W 9SP |
1 | ||
| 55101-6E171 |
KDJ120..RHD..5FC REAR SUSPENSION-WITH(AIR SUSPENSION) |
1 | ||
| 55133 - PLATE, FRONT FENDER APRON SET, LOWER RH | ||||
| 55133-35020 |
GRJ12#,KDJ12# |
1 | ||
| 55133-35021 |
GRJ12#,KDJ12# |
1 | ||
| 55133-60060 |
GRJ12#,KDJ12# |
1 | ||
| 55134 - PLATE, FRONT FENDER APRON SET, LOWER LH | ||||
| 55134-35020 |
GRJ12#,KDJ12# |
1 | ||
| 55134-60070 |
GRJ12#,KDJ12# |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-60160 |
KDJ12#..RHD..5F |
1 | ||
| 55210-60153 |
GRJ120,KDJ12#..RHD..5FC |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-60320 |
KDJ12#..RHD |
1 | ||
| 55223-60322 |
KDJ12#..RHD |
1 | ||
| 55223-60323 |
KDJ12#..RHD |
1 | ||
| 57021A - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH | ||||
| 57021-35060 |
GRJ12#,KDJ12# |
1 | ||
| 57022A - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH | ||||
| 57022-35050 |
GRJ12#,KDJ12# |
1 | ||
| 57104D - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-35060 |
GRJ12#,KDJ12# |
1 | ||
| 57104-35050 |
GRJ12#,KDJ12# |
1 | ||
| 57104-35061 |
GRJ12#,KDJ12# |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90119-W0151 | ||||
| 90178-06012 | ||||
| 90269-03049 | ||||
| 90467-06169 | ||||
| 90467-08124 | ||||
| 90467-08217 | ||||
| 90467-10186 | ||||
| 91671-A0614 | ||||
| Linked diagrams | ||||
| 5702 | ||||
