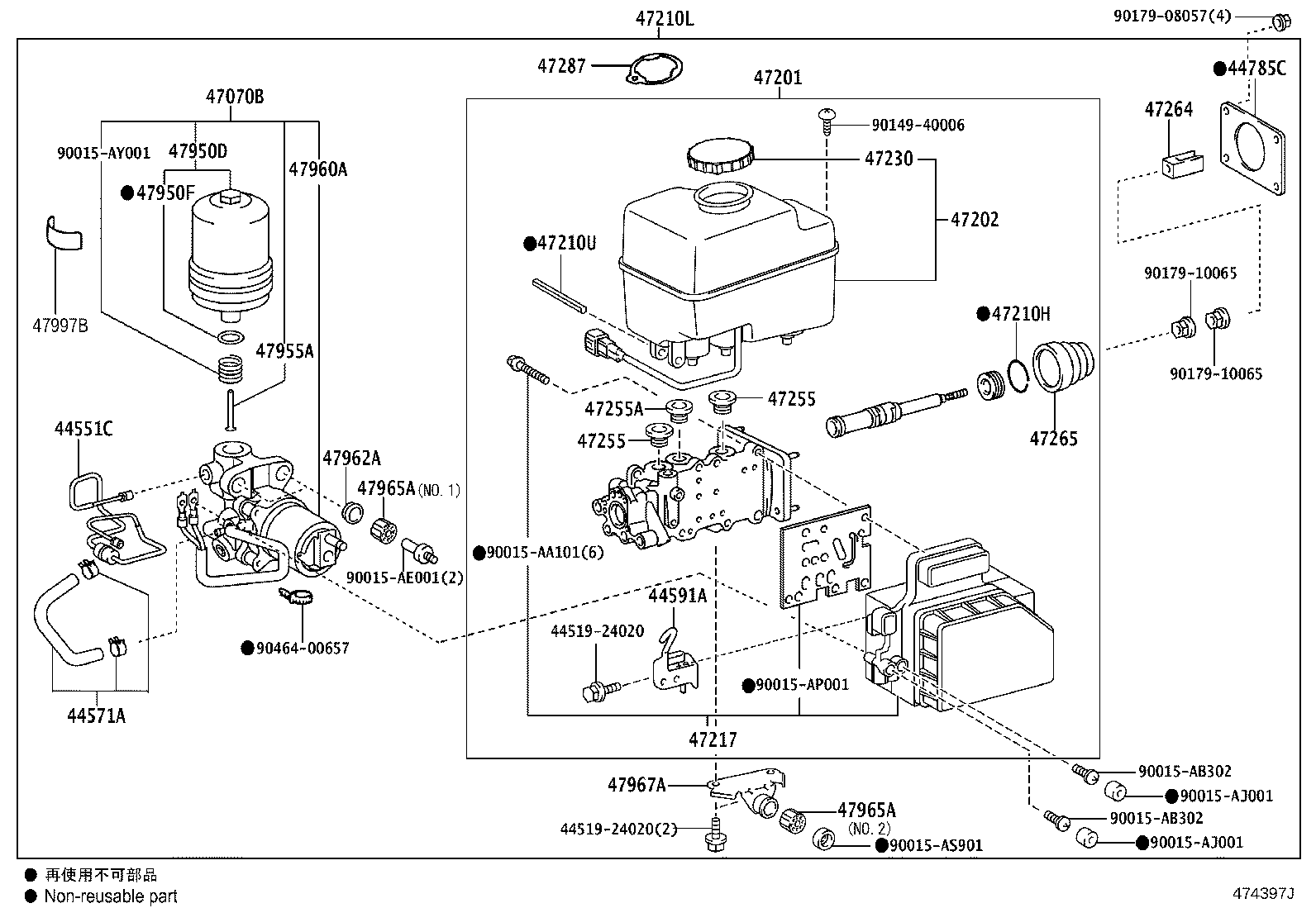

KDJ120R-GKAEYW (2004)
Toyota Land Cruiser Prado
(0408- )
W(ABS & VSC & ACTIVE TRC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-60040 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 44551-51010 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-60020 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 44571-30080 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 44591A - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-60050 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 44591-60060 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 44785C - GASKET, BRAKE BOOSTER | ||||
| 44785-60020 |
GRJ120,KDJ120..5FC,6F ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 44785-60020 |
GRJ125,KDJ125;GRJ120,KDJ120..4FC,5F ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 44785-60020 |
GRJ120,KDJ120 ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47070B - PUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR | ||||
| 47070-60030 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47070-30060 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47070-60050 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47025-60100 |
GRJ120,KDJ120 ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47025-60090 |
GRJ120,KDJ12#..RHD ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47025-60101 |
GRJ120,KDJ120 ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-60190 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47220-60180 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47210H - RING, SNAP(FOR BRAKE MASTER CYLINDER) | ||||
| 90520-32012 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-60090 |
GRJ120,KDJ12#..RHD ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47050-60110 |
GRJ120,KDJ120 ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47050-60111 |
GRJ120,KDJ120 ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-15803 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47217 - SOLENOID, MASTER CYLINDER | ||||
| 47217-60021 |
GRJ120,KDJ120 ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47217-60020 |
GRJ120,KDJ120 ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-30130 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47230-20140 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47230-20140 |
GRJ12#,KDJ12# |
1 | ||
| 47230-24010 |
GRJ120,KDJ120 ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
2 | ||
| 47255A - GROMMET, MASTER CYLINDER RESERVOIR, NO.2 | ||||
| 31417-35010 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-60020 |
GRJ12#,KDJ12# |
1 | ||
| 47264-60020 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 90029-70001 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20020 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47287-60180 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47287-20010 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47287-20010 |
GRJ12#,KDJ12# |
1 | ||
| 47950D - ACCUMULATOR ASSY, BRAKE BOOSTER | ||||
| 47950-60020 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47950-30010 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47950F - RING, O(FOR BRAKE BOOSTER ACCUMULATOR) | ||||
| 90301-13014 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47955A - PIPE, BRAKE BOOSTER ACCUMULATOR | ||||
| 47955-30010 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47955-60010 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47960A - PUMP ASSY, BRAKE BOOSTER | ||||
| 47960-30030 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47960-60090 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47960-60050 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47962A - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-60090 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
2 | ||
| 47962-24010 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
2 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-30010 |
GRJ120,KDJ120 ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),NO.1 & NO.2 |
3 | ||
| 47965-24010 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),NO.1 |
2 | ||
| 47965-30010 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),NO.2 |
1 | ||
| 90015-AL001 |
GRJ120,KDJ120 ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),NO.2 |
1 | ||
| 47965-30010 |
GRJ120,KDJ120 ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),NO.1 |
2 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-30010 |
GRJ120,KDJ120 ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),NO.1 & NO.2 |
3 | ||
| 47965-24010 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),NO.1 |
2 | ||
| 47965-30010 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),NO.2 |
1 | ||
| 90015-AL001 |
GRJ120,KDJ120 ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),NO.2 |
1 | ||
| 47965-30010 |
GRJ120,KDJ120 ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),NO.1 |
2 | ||
| 47967A - BRACKET, BRAKE BOOSTER PUMP, NO.1 | ||||
| 47967-30020 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47967-60090 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47997B - LABEL, ACCUMULATOR CAUTION, NO,2 | ||||
| 47997-60030 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47997-60050 |
GRJ120,KDJ120 ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| Common parts | ||||
| 44519-24020 | ||||
| 90015-AA101 | ||||
| 90015-AB302 | ||||
| 90015-AE001 | ||||
| 90015-AJ001 | ||||
| 90015-AP001 | ||||
| 90015-AS901 | ||||
| 90015-AY001 | ||||
| 90149-40006 | ||||
| 90179-08057 | ||||
| 90179-10065 | ||||
| 90464-00657 | ||||
