KDJ120R-GKAEYW (2004)
Toyota Land Cruiser Prado

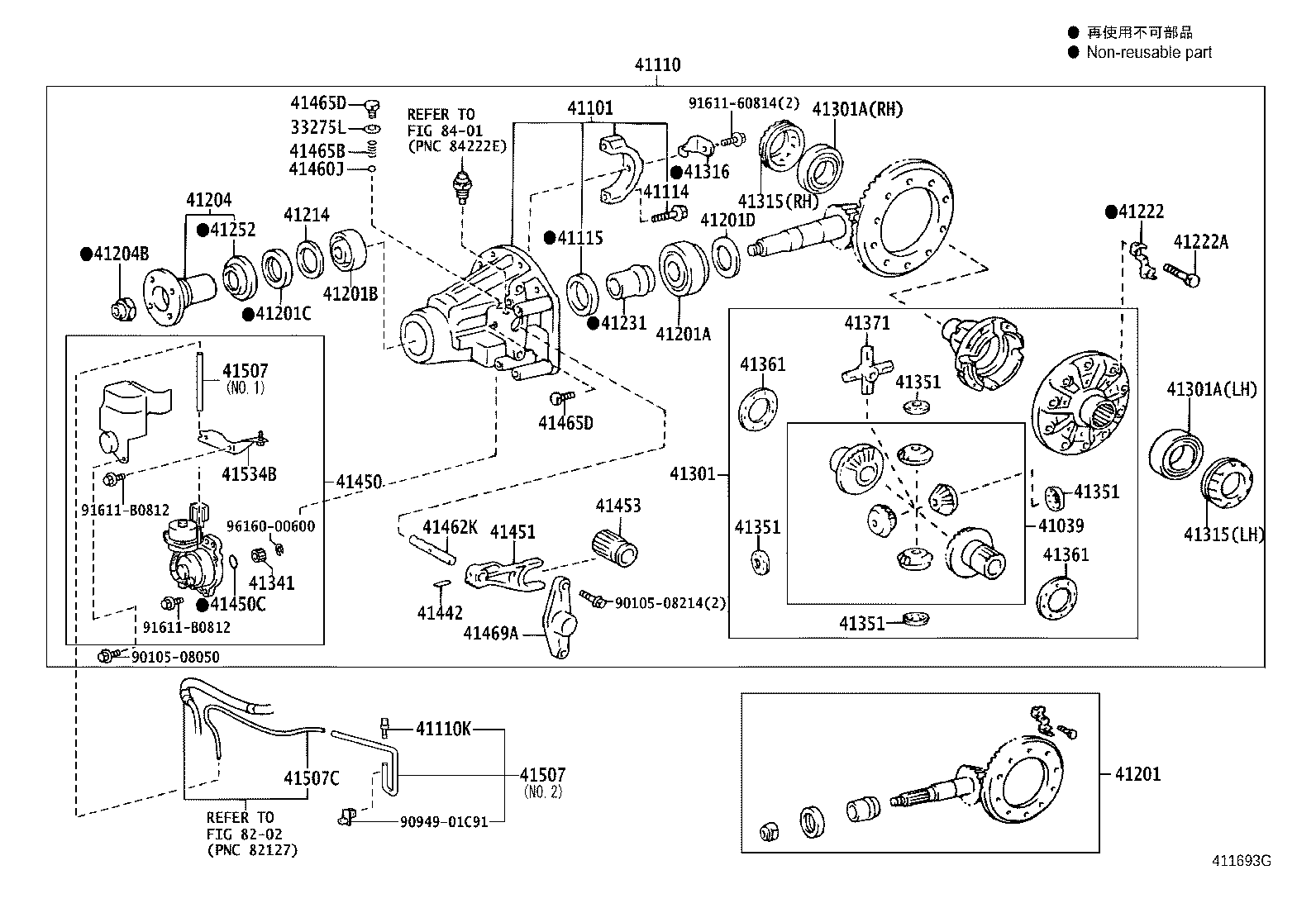

ILLUST NO. 1 OF 2(0209-0707)
REAR DIFFERENTIAL LOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33275L - SEAT, REAR DIFFERENTIAL LOCK SHIFT DETENT BALL SPRING | ||||
| 33275-16010 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-34070 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITHOUT, WITH(LSD) |
1 | ||
| 41039-34080 |
GRJ12#,KDJ12# |
1 | ||
| 41039-34060 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35170 |
GRJ12#,KDJ12# |
1 | ||
| 41101-35150 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-3D390 |
KDJ12#..5F *FGR=41:10=4.100,DIFFERENTIAL LOCK-WITHOUT, WITH(LSD) |
1 | ||
| 41110-3D570 |
KDJ12#..5F *FGR=41:10=4.100 |
1 | ||
| 41110-6A350 |
KDJ12#..5F *FGR=41:10=4.100,DIFFERENTIAL LOCK-WITH |
1 | ||
| 41110K - PLUG, BREATHER (FOR REAR DIFFERENTIAL) | ||||
| 90930-03159 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
GRJ12#,KDJ12# |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
GRJ12#,KDJ12# |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80179 |
KDJ12#..5F *FGR=41:10=4.100 |
1 | ||
| 41201-80180 |
KDJ12#..5F *FGR=41:10=4.100,DIFFERENTIAL LOCK-WITH |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35087 |
GRJ12#,KDJ12# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30067 |
GRJ12#,KDJ12# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-41009 |
GRJ12#,KDJ12# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35500 |
GRJ12#,KDJ12# OD=47,T=1.79 |
1 | ||
| 90201-35499 |
GRJ12#,KDJ12# OD=47,T=1.76 |
1 | ||
| 90201-35498 |
GRJ12#,KDJ12# OD=47,T=1.73 |
1 | ||
| 90201-35507 |
GRJ12#,KDJ12# OD=47,T=2.00 |
1 | ||
| 90201-35504 |
GRJ12#,KDJ12# OD=47,T=1.91 |
1 | ||
| 90201-35511 |
GRJ12#,KDJ12# OD=47,T=2.12 |
1 | ||
| 90201-35502 |
GRJ12#,KDJ12# OD=47,T=1.85 |
1 | ||
| 90201-35505 |
GRJ12#,KDJ12# OD=47,T=1.94 |
1 | ||
| 90201-35503 |
GRJ12#,KDJ12# OD=47,T=1.88 |
1 | ||
| 90201-35508 |
GRJ12#,KDJ12# OD=47,T=2.03 |
1 | ||
| 90201-35509 |
GRJ12#,KDJ12# OD=47,T=2.06 |
1 | ||
| 90201-35497 |
GRJ12#,KDJ12# OD=47,T=1.70 |
1 | ||
| 90201-35510 |
GRJ12#,KDJ12# OD=47,T=2.09 |
1 | ||
| 90201-35506 |
GRJ12#,KDJ12# OD=47,T=1.97 |
1 | ||
| 90201-35501 |
GRJ12#,KDJ12# OD=47,T=1.82 |
1 | ||
| 90201-35513 |
GRJ12#,KDJ12# OD=47,T=2.18 |
1 | ||
| 90201-35516 |
GRJ12#,KDJ12# OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35512 |
GRJ12#,KDJ12# OD=47,T=2.15 |
1 | ||
| 90201-35517 |
GRJ12#,KDJ12# OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35515 |
GRJ12#,KDJ12# OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35514 |
GRJ12#,KDJ12# OD=47,T=2.21 |
1 | ||
| 90201-35518 |
GRJ12#,KDJ12# OD=47,T=2.33,MARK 04 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35100 |
GRJ12#,KDJ12# |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
GRJ12#,KDJ12# OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
GRJ12#,KDJ12# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
GRJ12#,KDJ12# |
5 | ||
| 41222-60010 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
GRJ12#,KDJ12# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
GRJ12#,KDJ12# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35041 |
GRJ12#,KDJ12# |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-60060 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-75001 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90366-50007 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90366-50007 |
KDJ12#;GRJ12#..4FC RH |
2 | ||
| 90366-50007 |
GRJ12#,KDJ12# |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-75001 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90366-50007 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90366-50007 |
KDJ12#;GRJ12#..4FC RH |
2 | ||
| 90366-50007 |
GRJ12#,KDJ12# |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
GRJ12#,KDJ12# RH |
2 | ||
| 41315-60010 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 41315-35020 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
GRJ12#,KDJ12# RH |
2 | ||
| 41315-60010 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 41315-35020 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
GRJ12#,KDJ12# |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35070 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GRJ12#,KDJ12# |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GRJ12#,KDJ12# |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GRJ12#,KDJ12# |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GRJ12#,KDJ12# |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35310 |
GRJ12#,KDJ12# T=0.9,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-35340 |
GRJ12#,KDJ12# T=1.2,RH |
2 | ||
| 41361-60310 |
GRJ12#,KDJ12# T=1.10,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41361-35320 |
GRJ12#,KDJ12# T=1.0,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-35310 |
GRJ12#,KDJ12# T=0.9,RH |
2 | ||
| 41361-60290 |
GRJ12#,KDJ12# T=0.90,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41361-35350 |
GRJ12#,KDJ12# T=1.3,RH |
2 | ||
| 41361-35340 |
GRJ12#,KDJ12# T=1.2,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-35330 |
GRJ12#,KDJ12# T=1.1,RH |
2 | ||
| 41361-35160 |
GRJ12#,KDJ12# T=1.8,DIFFERENTIAL LOCK-WITHOUT, WITH(LSD) |
6 | ||
| 41361-35330 |
GRJ12#,KDJ12# T=1.1,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-60330 |
GRJ12#,KDJ12# T=1.30,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41361-35320 |
GRJ12#,KDJ12# T=1.0,RH |
2 | ||
| 41361-35350 |
GRJ12#,KDJ12# T=1.3,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-60320 |
GRJ12#,KDJ12# T=1.20,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41361-60300 |
GRJ12#,KDJ12# T=1.00,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35310 |
GRJ12#,KDJ12# T=0.9,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-35340 |
GRJ12#,KDJ12# T=1.2,RH |
2 | ||
| 41361-60310 |
GRJ12#,KDJ12# T=1.10,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41361-35320 |
GRJ12#,KDJ12# T=1.0,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-35310 |
GRJ12#,KDJ12# T=0.9,RH |
2 | ||
| 41361-60290 |
GRJ12#,KDJ12# T=0.90,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41361-35350 |
GRJ12#,KDJ12# T=1.3,RH |
2 | ||
| 41361-35340 |
GRJ12#,KDJ12# T=1.2,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-35330 |
GRJ12#,KDJ12# T=1.1,RH |
2 | ||
| 41361-35160 |
GRJ12#,KDJ12# T=1.8,DIFFERENTIAL LOCK-WITHOUT, WITH(LSD) |
6 | ||
| 41361-35330 |
GRJ12#,KDJ12# T=1.1,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-60330 |
GRJ12#,KDJ12# T=1.30,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41361-35320 |
GRJ12#,KDJ12# T=1.0,RH |
2 | ||
| 41361-35350 |
GRJ12#,KDJ12# T=1.3,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-60320 |
GRJ12#,KDJ12# T=1.20,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41361-60300 |
GRJ12#,KDJ12# T=1.00,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41306-35040 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITHOUT, WITH(LSD) |
1 | ||
| 41371-35020 |
GRJ12#,KDJ12# |
1 | ||
| 41442 - BOLT OR PIN, SHIFT FORK LOCK | ||||
| 90254-05016 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41450 - ACTUATOR, DIFFERENTIAL LOCK SHIFT | ||||
| 41450-35030 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41450C - RING, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR) | ||||
| 90301-20005 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41451 - FORK, REAR DIFFERENTIAL LOCK SHIFT | ||||
| 41451-60020 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41453 - SLEEVE, REAR DIFFERENTIAL LOCK | ||||
| 41453-60020 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41460J - BALL (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90360-08009 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41462K - SHAFT, REAR DIFFERENTIAL LOCK SHIFT FORK | ||||
| 41462-60020 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41465B - SPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINE | ||||
| 90501-12110 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
2 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
2 | ||
| 41469A - RETAINER, REAR DIFFERENTIAL LOCK SHAFT | ||||
| 41469-60010 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41507 - TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 41507-60140 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,NO.2 |
1 | ||
| 41507-35130 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,NO.1 |
1 | ||
| 41507 - TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 41507-60140 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,NO.2 |
1 | ||
| 41507-35130 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,NO.1 |
1 | ||
| 41507C - TUBE SUB-ASSY, DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 90446-04006 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41534B - BRACKET, DIFFERENTIAL BREATHER | ||||
| 41534-35030 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| Common parts | ||||
| 90105-08050 | ||||
| 90105-08214 | ||||
| 90949-01C91 | ||||
| 91611-60814 | ||||
| 91611-B0812 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

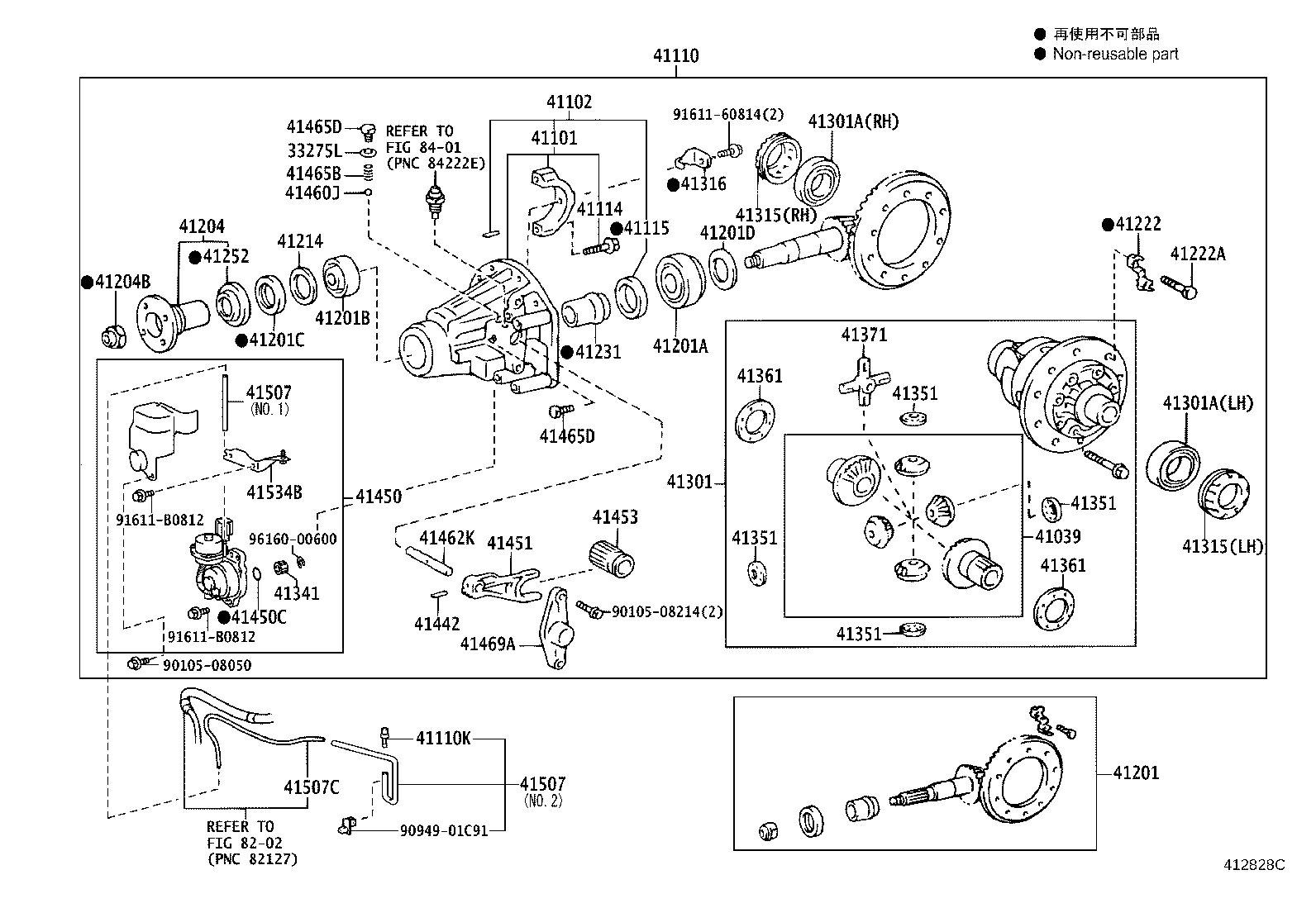

ILLUST NO. 1 OF 2(0707- )
REAR DIFFERENTIAL LOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33275L - SEAT, REAR DIFFERENTIAL LOCK SHIFT DETENT BALL SPRING | ||||
| 33275-16010 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-34070 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITHOUT, WITH(LSD) |
1 | ||
| 41039-34080 |
GRJ12#,KDJ12# |
1 | ||
| 41039-34060 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35170 |
GRJ12#,KDJ12# |
1 | ||
| 41101-35150 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41102 - CARRIER SUB-ASSY, DIFFERENTIAL W/PIN, REAR | ||||
| 41102-35010 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-3D390 |
KDJ12#..5F *FGR=41:10=4.100,DIFFERENTIAL LOCK-WITHOUT, WITH(LSD) |
1 | ||
| 41110-3D570 |
KDJ12#..5F *FGR=41:10=4.100 |
1 | ||
| 41110-6A350 |
KDJ12#..5F *FGR=41:10=4.100,DIFFERENTIAL LOCK-WITH |
1 | ||
| 41110K - PLUG, BREATHER (FOR REAR DIFFERENTIAL) | ||||
| 90930-03159 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
GRJ12#,KDJ12# |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
GRJ12#,KDJ12# |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80179 |
KDJ12#..5F *FGR=41:10=4.100 |
1 | ||
| 41201-80180 |
KDJ12#..5F *FGR=41:10=4.100,DIFFERENTIAL LOCK-WITH |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35087 |
GRJ12#,KDJ12# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30067 |
GRJ12#,KDJ12# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-41009 |
GRJ12#,KDJ12# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35500 |
GRJ12#,KDJ12# OD=47,T=1.79 |
1 | ||
| 90201-35499 |
GRJ12#,KDJ12# OD=47,T=1.76 |
1 | ||
| 90201-35498 |
GRJ12#,KDJ12# OD=47,T=1.73 |
1 | ||
| 90201-35507 |
GRJ12#,KDJ12# OD=47,T=2.00 |
1 | ||
| 90201-35504 |
GRJ12#,KDJ12# OD=47,T=1.91 |
1 | ||
| 90201-35511 |
GRJ12#,KDJ12# OD=47,T=2.12 |
1 | ||
| 90201-35502 |
GRJ12#,KDJ12# OD=47,T=1.85 |
1 | ||
| 90201-35505 |
GRJ12#,KDJ12# OD=47,T=1.94 |
1 | ||
| 90201-35503 |
GRJ12#,KDJ12# OD=47,T=1.88 |
1 | ||
| 90201-35508 |
GRJ12#,KDJ12# OD=47,T=2.03 |
1 | ||
| 90201-35509 |
GRJ12#,KDJ12# OD=47,T=2.06 |
1 | ||
| 90201-35497 |
GRJ12#,KDJ12# OD=47,T=1.70 |
1 | ||
| 90201-35510 |
GRJ12#,KDJ12# OD=47,T=2.09 |
1 | ||
| 90201-35506 |
GRJ12#,KDJ12# OD=47,T=1.97 |
1 | ||
| 90201-35501 |
GRJ12#,KDJ12# OD=47,T=1.82 |
1 | ||
| 90201-35513 |
GRJ12#,KDJ12# OD=47,T=2.18 |
1 | ||
| 90201-35516 |
GRJ12#,KDJ12# OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35512 |
GRJ12#,KDJ12# OD=47,T=2.15 |
1 | ||
| 90201-35517 |
GRJ12#,KDJ12# OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35515 |
GRJ12#,KDJ12# OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35514 |
GRJ12#,KDJ12# OD=47,T=2.21 |
1 | ||
| 90201-35518 |
GRJ12#,KDJ12# OD=47,T=2.33,MARK 04 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35100 |
GRJ12#,KDJ12# |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
GRJ12#,KDJ12# OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
GRJ12#,KDJ12# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
GRJ12#,KDJ12# |
5 | ||
| 41222-60010 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
GRJ12#,KDJ12# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
GRJ12#,KDJ12# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35041 |
GRJ12#,KDJ12# |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-60060 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-75001 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90366-50007 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90366-50007 |
KDJ12#;GRJ12#..4FC RH |
2 | ||
| 90366-50007 |
GRJ12#,KDJ12# |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-75001 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90366-50007 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90366-50007 |
KDJ12#;GRJ12#..4FC RH |
2 | ||
| 90366-50007 |
GRJ12#,KDJ12# |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
GRJ12#,KDJ12# RH |
2 | ||
| 41315-60010 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 41315-35020 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
GRJ12#,KDJ12# RH |
2 | ||
| 41315-60010 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 41315-35020 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
GRJ12#,KDJ12# |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35070 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GRJ12#,KDJ12# |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GRJ12#,KDJ12# |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GRJ12#,KDJ12# |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GRJ12#,KDJ12# |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35310 |
GRJ12#,KDJ12# T=0.9,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-35340 |
GRJ12#,KDJ12# T=1.2,RH |
2 | ||
| 41361-60310 |
GRJ12#,KDJ12# T=1.10,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41361-35320 |
GRJ12#,KDJ12# T=1.0,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-35310 |
GRJ12#,KDJ12# T=0.9,RH |
2 | ||
| 41361-60290 |
GRJ12#,KDJ12# T=0.90,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41361-35350 |
GRJ12#,KDJ12# T=1.3,RH |
2 | ||
| 41361-35340 |
GRJ12#,KDJ12# T=1.2,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-35330 |
GRJ12#,KDJ12# T=1.1,RH |
2 | ||
| 41361-35160 |
GRJ12#,KDJ12# T=1.8,DIFFERENTIAL LOCK-WITHOUT, WITH(LSD) |
6 | ||
| 41361-35330 |
GRJ12#,KDJ12# T=1.1,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-60330 |
GRJ12#,KDJ12# T=1.30,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41361-35320 |
GRJ12#,KDJ12# T=1.0,RH |
2 | ||
| 41361-35350 |
GRJ12#,KDJ12# T=1.3,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-60320 |
GRJ12#,KDJ12# T=1.20,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41361-60300 |
GRJ12#,KDJ12# T=1.00,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35310 |
GRJ12#,KDJ12# T=0.9,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-35340 |
GRJ12#,KDJ12# T=1.2,RH |
2 | ||
| 41361-60310 |
GRJ12#,KDJ12# T=1.10,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41361-35320 |
GRJ12#,KDJ12# T=1.0,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-35310 |
GRJ12#,KDJ12# T=0.9,RH |
2 | ||
| 41361-60290 |
GRJ12#,KDJ12# T=0.90,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41361-35350 |
GRJ12#,KDJ12# T=1.3,RH |
2 | ||
| 41361-35340 |
GRJ12#,KDJ12# T=1.2,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-35330 |
GRJ12#,KDJ12# T=1.1,RH |
2 | ||
| 41361-35160 |
GRJ12#,KDJ12# T=1.8,DIFFERENTIAL LOCK-WITHOUT, WITH(LSD) |
6 | ||
| 41361-35330 |
GRJ12#,KDJ12# T=1.1,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-60330 |
GRJ12#,KDJ12# T=1.30,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41361-35320 |
GRJ12#,KDJ12# T=1.0,RH |
2 | ||
| 41361-35350 |
GRJ12#,KDJ12# T=1.3,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
1 | ||
| 41361-60320 |
GRJ12#,KDJ12# T=1.20,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41361-60300 |
GRJ12#,KDJ12# T=1.00,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41306-35040 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITHOUT, WITH(LSD) |
1 | ||
| 41371-35020 |
GRJ12#,KDJ12# |
1 | ||
| 41442 - BOLT OR PIN, SHIFT FORK LOCK | ||||
| 90254-05016 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41450 - ACTUATOR, DIFFERENTIAL LOCK SHIFT | ||||
| 41450-35030 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41450C - RING, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR) | ||||
| 90301-20005 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41451 - FORK, REAR DIFFERENTIAL LOCK SHIFT | ||||
| 41451-60020 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41453 - SLEEVE, REAR DIFFERENTIAL LOCK | ||||
| 41453-60020 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41460J - BALL (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90360-08009 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41462K - SHAFT, REAR DIFFERENTIAL LOCK SHIFT FORK | ||||
| 41462-60020 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41465B - SPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINE | ||||
| 90501-12110 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
2 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
2 | ||
| 41469A - RETAINER, REAR DIFFERENTIAL LOCK SHAFT | ||||
| 41469-60010 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41507 - TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 41507-60140 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,NO.2 |
1 | ||
| 41507-35130 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,NO.1 |
1 | ||
| 41507 - TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 41507-60140 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,NO.2 |
1 | ||
| 41507-35130 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH,NO.1 |
1 | ||
| 41507C - TUBE SUB-ASSY, DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 90446-04006 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| 41534B - BRACKET, DIFFERENTIAL BREATHER | ||||
| 41534-35030 |
GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH |
1 | ||
| Common parts | ||||
| 90105-08050 | ||||
| 90105-08214 | ||||
| 90949-01C91 | ||||
| 91611-60814 | ||||
| 91611-B0812 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
