KDJ120R-GKAEYW (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )5FC

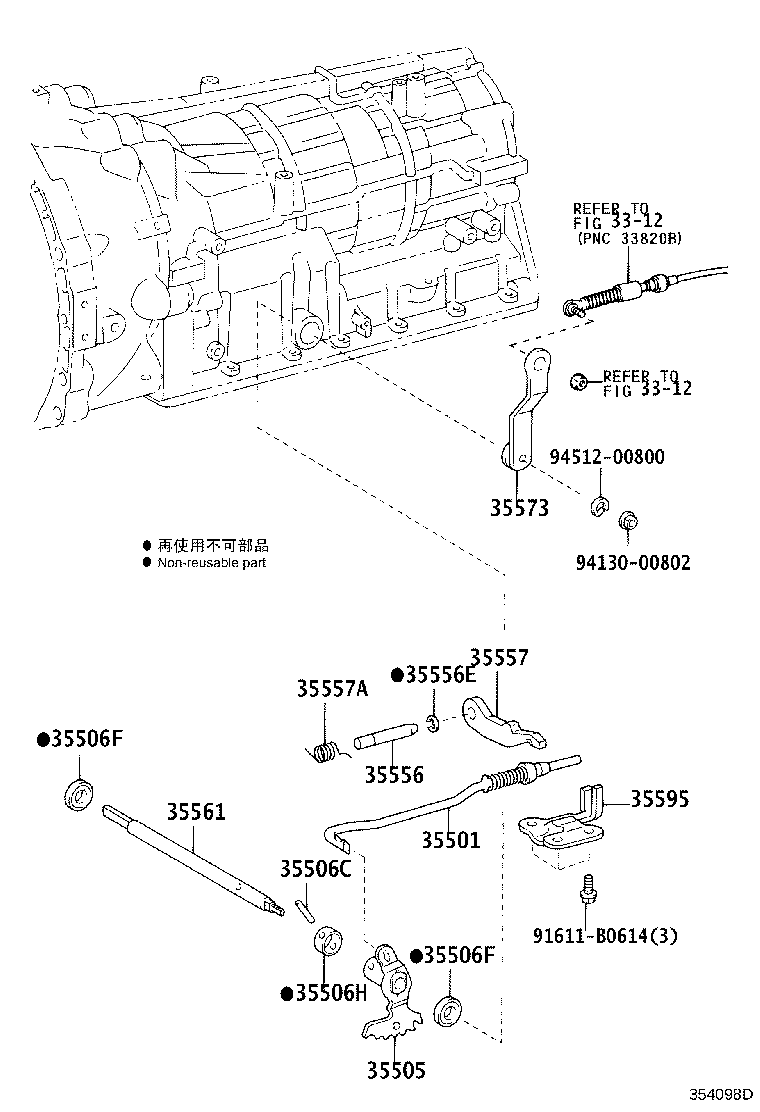

Click highlighted areas on diagram

A750F

diagram 3312 3312 35501 35505 35506C 35506F 35506F 35506H 35556 35556E 35557 35557A 35561 35573 35595 91611B0614 9413000802 9451200800
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-60020

GRJ12#,KDJ12#..5FC

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-60040

GRJ12#,KDJ12#..5FC

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011

GRJ12#,KDJ12#..ATM

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

GRJ12#,KDJ12#..ATM

 2
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

GRJ12#,KDJ12#..ATM

 2
35556 - SHAFT, PARKING LOCK PAWL
35556-60020

GRJ12#,KDJ12#..5FC

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

GRJ12#,KDJ12#..ATM

 1
35557 - PAWL, PARKING LOCK
35557-60040

GRJ12#,KDJ12#..5FC

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90949-03123

GRJ12#,KDJ12#..5FC

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-60030

GRJ12#,KDJ12#..5FC

 1
35573 - LEVER, TRANSMISSION CONTROL SHAFT, LH
35573-60020

GRJ12#,KDJ12#..ATM

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-60030

GRJ12#,KDJ12#..5FC

 1
Common parts
91611-B0614
94130-00802
94512-00800
Linked diagrams
3312
