KDJ120R-GKAEYW (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )5FC

Click highlighted areas on diagram

A750F

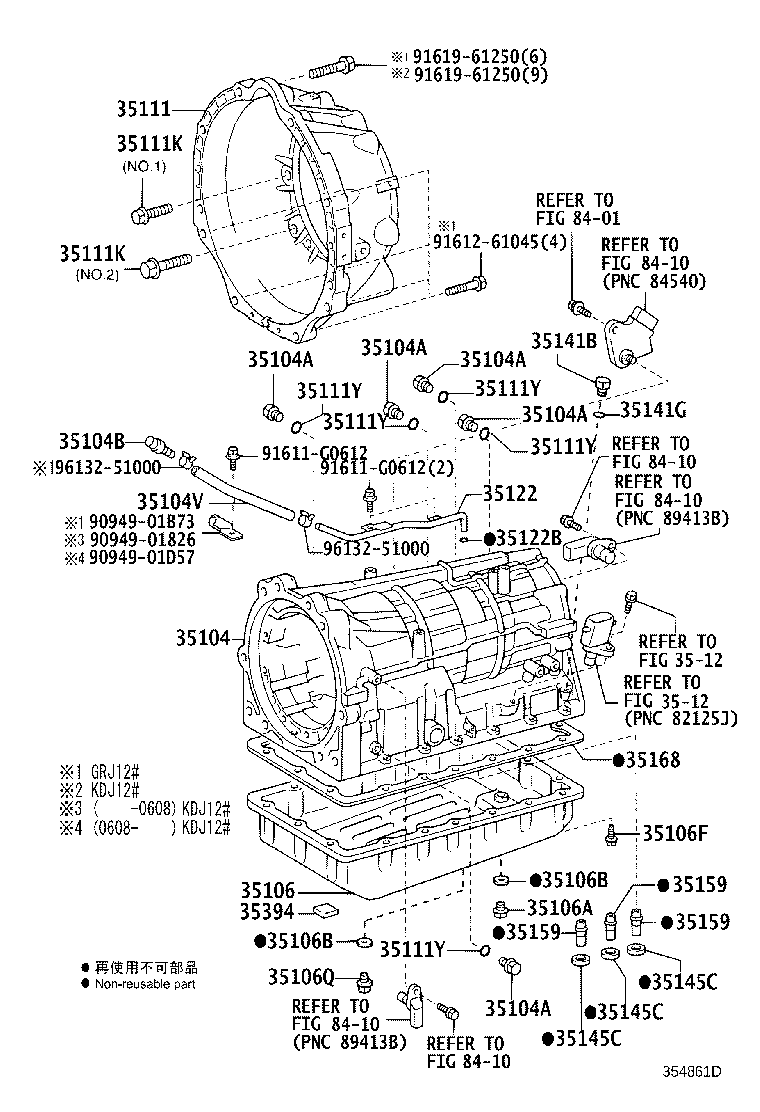

diagram 35104 35104A 35104A 35104A 35104A 35104A 35104B 35104V 35106 35106A 35106B 35106B 35106F 35106Q 35111 35111K 35111K 35111Y 35111Y 35111Y 35111Y 35111Y 3512 3512 35122 35122B 35141B 35141G 35145C 35145C 35145C 35159 35159 35159 35168 35394 8401 8410 8410 8410 8410 8410 9094901826 9094901B73 9094901D57 91611G0612 91611G0612 9161261045 9161961250 9161961250 9613251000 9613251000
Part # Description Qty Price
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-60220

GRJ12#,KDJ12#..5FC

 1
35104-60221

GRJ12#,KDJ12#..5FC

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

GRJ12#,KDJ12#..5FC

 5
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

GRJ12#,KDJ12#..5FC

 5
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

GRJ12#,KDJ12#..5FC

 5
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

GRJ12#,KDJ12#..5FC

 5
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

GRJ12#,KDJ12#..5FC

 5
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03168

GRJ12#,KDJ12#..5FC

 1
35104V - HOSE (FOR BREATHER PLUG)
90445-11118

KDJ12#..5FC

 1
90445-11155

KDJ12#..5FC

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-60180

GRJ12#,KDJ12#..5FC

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10011

GRJ12#,KDJ12#..ATM

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

GRJ12#,KDJ12#..5FC

 2
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

GRJ12#,KDJ12#..5FC

 2
35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06117

GRJ12#,KDJ12#..5FC

 20
90119-06173

GRJ12#,KDJ12#..5FC

 20
35106Q - PLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)
90341-10021

GRJ12#,KDJ12#..5FC

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-60160

KDJ12#..5FC

 1
35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING)
90119-10947

GRJ12#,KDJ12#..5FC

*10-1.50PX35-29.3,NO.1

 2
90119-10232

GRJ12#,KDJ12#..5FC

*10-1.5PX35-30,NO.1

 6
90119-12378

GRJ12#,KDJ12#..5FC

*12-1.75PX38-30,NO.2

 2
35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING)
90119-10947

GRJ12#,KDJ12#..5FC

*10-1.50PX35-29.3,NO.1

 2
90119-10232

GRJ12#,KDJ12#..5FC

*10-1.5PX35-30,NO.1

 6
90119-12378

GRJ12#,KDJ12#..5FC

*12-1.75PX38-30,NO.2

 2
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

GRJ12#,KDJ12#..5FC

 5
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

GRJ12#,KDJ12#..5FC

 5
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

GRJ12#,KDJ12#..5FC

 5
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

GRJ12#,KDJ12#..5FC

 5
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

GRJ12#,KDJ12#..5FC

 5
35122 - TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)
35122-60020

GRJ12#,KDJ12#..5FC

 1
35122B - RING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)
90301-04014

GRJ12#,KDJ12#..5FC

 1
35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE)
90341-14011

GRJ12#,KDJ12#..5FC

 1
35141G - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-11006

KDJ12#..5FC

 1
90301-11030

KDJ12#..5FC

 1
35145C - GASKET, TRANSAXLE CASE
35145-60020

GRJ12#,KDJ12#..5FC

 3
35145C - GASKET, TRANSAXLE CASE
35145-60020

GRJ12#,KDJ12#..5FC

 3
35145C - GASKET, TRANSAXLE CASE
35145-60020

GRJ12#,KDJ12#..5FC

 3
35159 - GASKET, BRAKE DRUM
35159-60010

GRJ12#,KDJ12#..5FC

 3
35159 - GASKET, BRAKE DRUM
35159-60010

GRJ12#,KDJ12#..5FC

 3
35159 - GASKET, BRAKE DRUM
35159-60010

GRJ12#,KDJ12#..5FC

 3
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-60010

GRJ12#,KDJ12#..5FC

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

GRJ12#,KDJ12#..5FC

 4
Common parts
90949-01826
90949-01B73
90949-01D57
91611-G0612
91612-61045
91619-61250
96132-51000
