KDJ120R-GKAEYW (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )5FC

Click highlighted areas on diagram

A750F

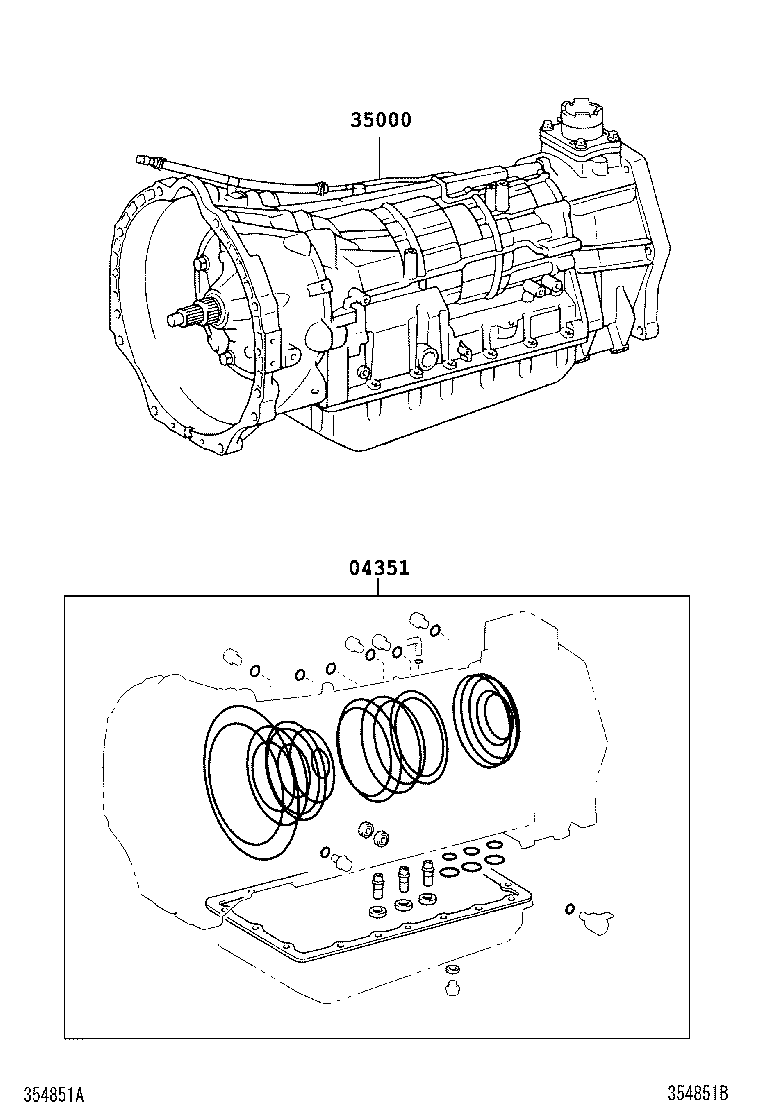

diagram 04351 35000
Part # Description Qty Price
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-60470

GRJ12#,KDJ12#..5FC

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-60B00

KDJ12#..5FC

A750F,OVER FENDER & CHROME PLATED SPEC&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

 1
35000-60B50

KDJ12#..5FC

A750F

 1
35000-60B00

KDJ12#..5FC

A750F,CHROME PLATED SPEC&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

 1
35000-60B40

KDJ12#..5FC

A750F,ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

 1
35000-60B10

KDJ12#..5FC

A750F

 1
