KDJ120R-GKAEYW (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

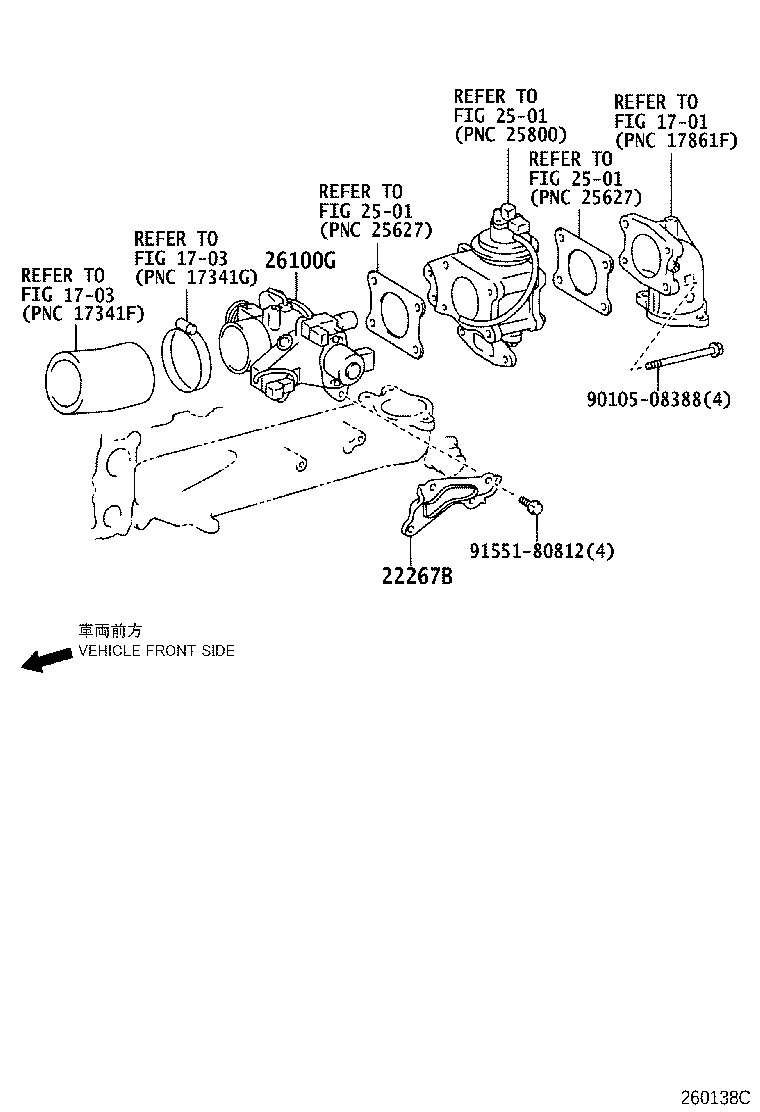

(0408-0608)1KDFTV

Click highlighted areas on diagram

diagram 1701 1703 1703 22267B 2501 2501 2501 26100G 9010508388 9155180812
Part # Description Qty Price
22267B - BRACKET, THROTTLE BODY
22267-30010

1KDFTV..KDJ12#

 1
26100G - BODY ASSY, DIESEL THROTTLE
26100-30070

1KDFTV..KDJ12#

 1
26100-30050

1KDFTV..KDJ12#

 1
26100-30030

1KDFTV..KDJ12#

 1
Common parts
90105-08388
91551-80812
Linked diagrams
1701
1703
2501

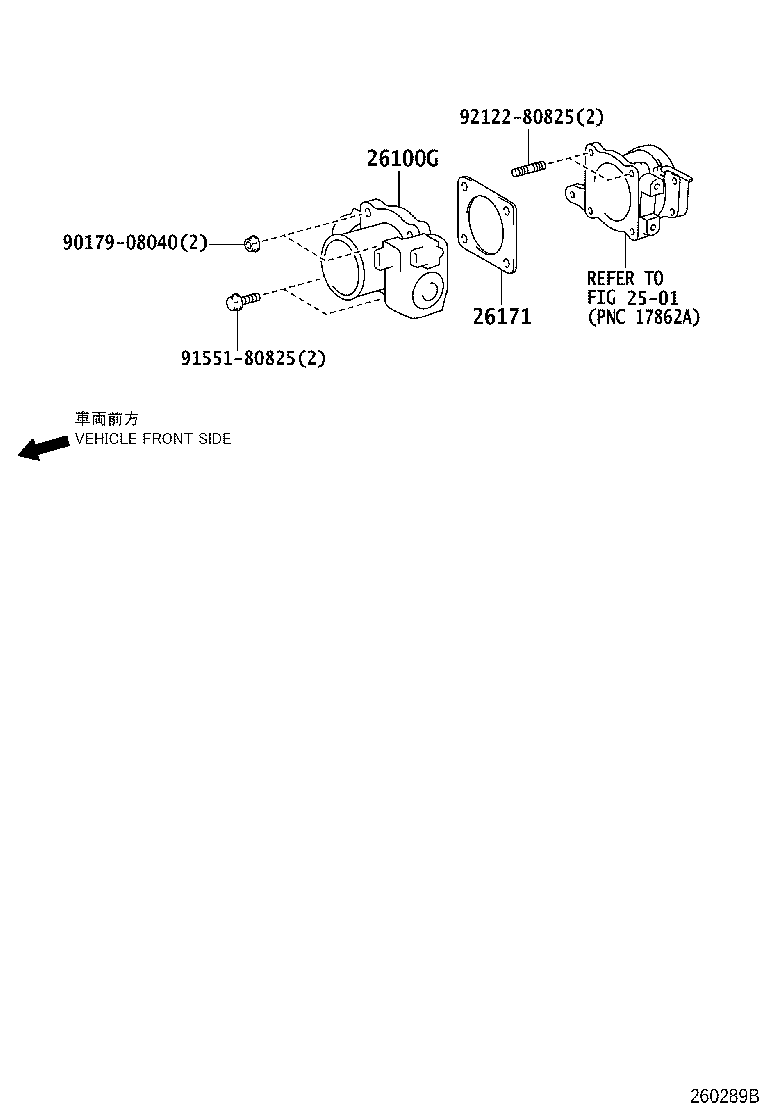

(0608- )1KDFTV

Click highlighted areas on diagram

diagram 2501 26100G 26171 9017908040 9155180825 9212280825
Part # Description Qty Price
26100G - BODY ASSY, DIESEL THROTTLE
26100-30070

1KDFTV..KDJ12#

 1
26100-30050

1KDFTV..KDJ12#

 1
26100-30030

1KDFTV..KDJ12#

 1
26171 - GASKET, VENTURI
26171-30011

1KDFTV..KDJ12#

 1
26171-30020

1KDFTV..KDJ12#

 1
Common parts
90179-08040
91551-80825
92122-80825
Linked diagrams
2501
