KDJ120R-GKAEYW (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0608)1KDFTV

Click highlighted areas on diagram

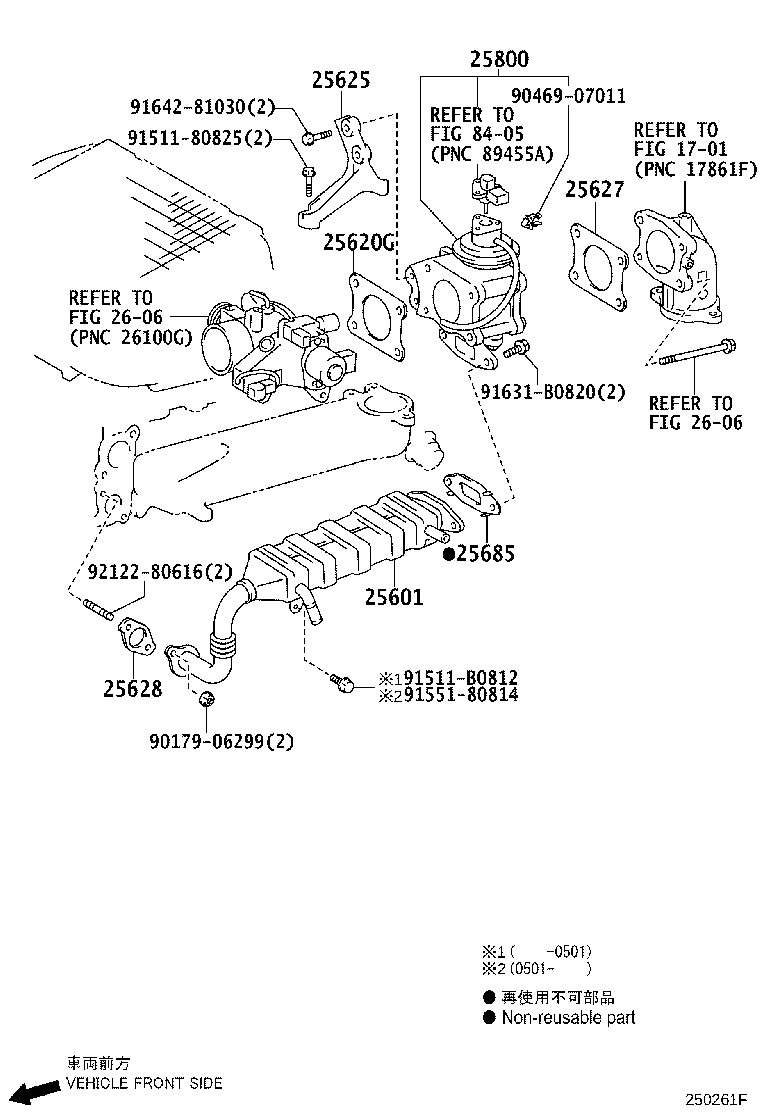

diagram 1701 25601 25620G 25625 25627 25628 25685 25800 2606 2606 8405 9017906299 9046907011 9151180825 91511B0812 9155180814 91631B0820 9164281030 9212280616
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-30080

1KDFTV..KDJ12#

 1
25601-30010

1KDFTV..KDJ12#

 1
25601-30060

1KDFTV..KDJ12#

 1
25620G - GASKET, DIESEL THROTTLE
26171-30011

1KDFTV..KDJ12#

 1
25627-30020

1KDFTV..KDJ12#

 1
26171-30030

1KDFTV..KDJ12#

 2
25625 - BRACKET, EGR VALVE
25625-30010

1KDFTV..KDJ12#

 1
26127-30030

1KDFTV..KDJ12#

 1
25627 - GASKET, EGR VALVE
25627-30020

1KDFTV..KDJ12#

 1
25627-30010

1KDFTV..KDJ12#

 1
25627-30010

1KDFTV..KDJ12#

 1
25628 - GASKET, EGR INLET
25628-30010

1KDFTV..KDJ12#

 1
25685 - GASKET, EGR COOLER, NO.1
25685-30010

1KDFTV..KDJ12#

 1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-30010

1KDFTV..KDJ12#

 1
25800-30120

1KDFTV..KDJ12#

 1
25800-30120

1KDFTV..KDJ12#

 1
25800-30180

1KDFTV..KDJ12#

 1
25800-30090

1KDFTV..KDJ12#

 1
Common parts
90179-06299
90469-07011
91511-80825
91511-B0812
91551-80814
91631-B0820
91642-81030
92122-80616
Linked diagrams
1701
2606
8405

(0608- )1KDFTV

Click highlighted areas on diagram

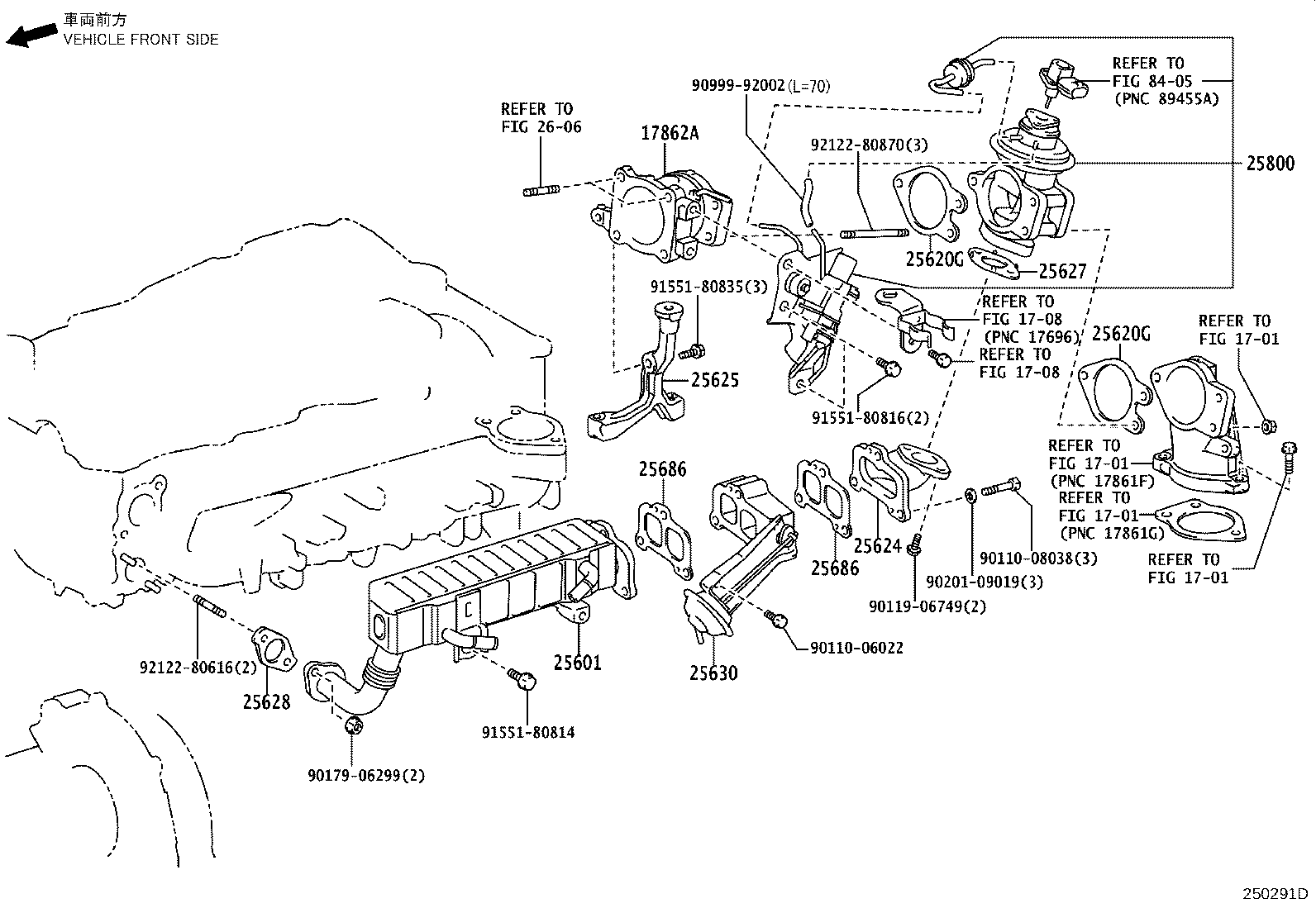

diagram 1701 1701 1701 1701 1708 1708 17862A 25601 25620G 25620G 25624 25625 25627 25628 25630 25686 25686 25800 2606 8405 9011006022 9011008038 9011906749 9017906299 9020109019 9099992002 9155180814 9155180816 9155180835 9212280616 9212280870
Part # Description Qty Price
17862A - CONNECTOR, INTAKE AIR, NO.2
17862-30020

1KDFTV..KDJ12#

 1
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-30080

1KDFTV..KDJ12#

 1
25601-30010

1KDFTV..KDJ12#

 1
25601-30060

1KDFTV..KDJ12#

 1
25620G - GASKET, DIESEL THROTTLE
26171-30011

1KDFTV..KDJ12#

 1
25627-30020

1KDFTV..KDJ12#

 1
26171-30030

1KDFTV..KDJ12#

 2
25620G - GASKET, DIESEL THROTTLE
26171-30011

1KDFTV..KDJ12#

 1
25627-30020

1KDFTV..KDJ12#

 1
26171-30030

1KDFTV..KDJ12#

 2
25624 - ADAPTER, EGR VALVE
25611-30010

1KDFTV..KDJ12#

 1
25625 - BRACKET, EGR VALVE
25625-30010

1KDFTV..KDJ12#

 1
26127-30030

1KDFTV..KDJ12#

 1
25627 - GASKET, EGR VALVE
25627-30020

1KDFTV..KDJ12#

 1
25627-30010

1KDFTV..KDJ12#

 1
25627-30010

1KDFTV..KDJ12#

 1
25628 - GASKET, EGR INLET
25628-30010

1KDFTV..KDJ12#

 1
25630 - VALVE ASSY, EGR, NO.2
25630-30020

1KDFTV..KDJ12#

 1
25686 - GASKET, EGR COOLER, NO.2
25686-30010

1KDFTV..KDJ12#

 2
25686 - GASKET, EGR COOLER, NO.2
25686-30010

1KDFTV..KDJ12#

 2
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-30010

1KDFTV..KDJ12#

 1
25800-30120

1KDFTV..KDJ12#

 1
25800-30120

1KDFTV..KDJ12#

 1
25800-30180

1KDFTV..KDJ12#

 1
25800-30090

1KDFTV..KDJ12#

 1
Common parts
90110-06022
90110-08038
90119-06749
90179-06299
90201-09019
90999-92002
91551-80814
91551-80816
91551-80835
92122-80616
92122-80870
Linked diagrams
1701
1708
2606
8405
