KDJ120R-GKAEYW (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

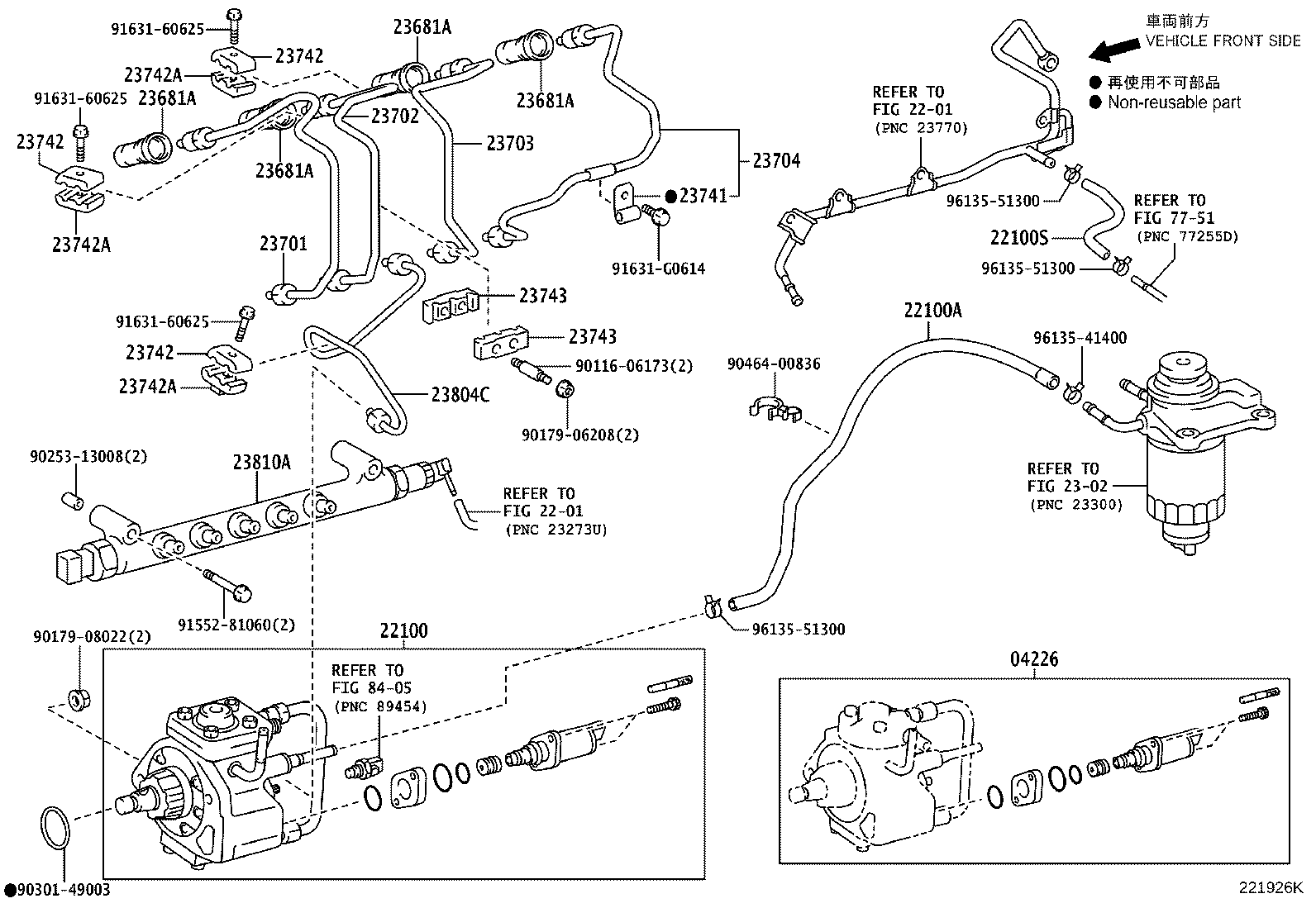

(0608- )1KDFTV

Click highlighted areas on diagram

diagram 04226 2201 2201 22100 22100A 22100S 2302 23681A 23681A 23681A 23681A 23701 23702 23703 23704 23741 23742 23742 23742 23742A 23742A 23742A 23743 23743 23804C 23810A 7751 8405 9011606173 9017906208 9017908022 9025313008 9030149003 9046400836 9155281060 9163160625 9163160625 9163160625 91631G0614 9613541400 9613551300 9613551300 9613551300
Part # Description Qty Price
04226 - VALVE KIT, SUCTION CONTROL
04226-30010

1KDFTV..KDJ12#

 1
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-30050

1KDFTV..KDJ12#

 1
22100-30030

1KDFTV..KDJ12#

 1
22100-30040

1KDFTV..KDJ12#

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23271-30230

1KDFTV..KDJ12#

 1
23271-30120

1KDFTV..KDJ12#

 1
23271-30130

1KDFTV..KDJ12#

 1
23271-30121

1KDFTV..KDJ12#

 1
22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
23273-30090

1KDFTV..KDJ12#

 1
23273-30080

1KDFTV..KDJ12#

 1
23273-30081

1KDFTV..KDJ12#

 1
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDJ12#

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDJ12#

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDJ12#

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDJ12#

 4
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-30060

1KDFTV..KDJ12#

 1
23701-30030

1KDFTV..KDJ12#

 1
23701-30010

1KDFTV..KDJ12#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-30060

1KDFTV..KDJ12#

 1
23702-30010

1KDFTV..KDJ12#

 1
23702-30030

1KDFTV..KDJ12#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-30030

1KDFTV..KDJ12#

 1
23703-30010

1KDFTV..KDJ12#

 1
23703-30060

1KDFTV..KDJ12#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-39015

1KDFTV..KDJ12#

 1
23704-39035

1KDFTV..KDJ12#

 1
23704-39055

1KDFTV..KDJ12#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-30010

1KDFTV..KDJ12#

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1KDFTV..KDJ12#

 3
23742-27010

1KDFTV..KDJ12#

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1KDFTV..KDJ12#

 3
23742-27010

1KDFTV..KDJ12#

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1KDFTV..KDJ12#

 3
23742-27010

1KDFTV..KDJ12#

 1
23742A - CLAMP, INJECTION PIPE, NO.3
23742-58020

1KDFTV..KDJ12#

 1
23742-58020

1KDFTV..KDJ12#

 3
23742A - CLAMP, INJECTION PIPE, NO.3
23742-58020

1KDFTV..KDJ12#

 1
23742-58020

1KDFTV..KDJ12#

 3
23742A - CLAMP, INJECTION PIPE, NO.3
23742-58020

1KDFTV..KDJ12#

 1
23742-58020

1KDFTV..KDJ12#

 3
23743 - CLAMP, INJECTION PIPE, NO.3
23743-30011

1KDFTV..KDJ12#

 1
23743-30011

1KDFTV..KDJ12#

 2
23743 - CLAMP, INJECTION PIPE, NO.3
23743-30011

1KDFTV..KDJ12#

 1
23743-30011

1KDFTV..KDJ12#

 2
23804C - PIPE SUB-ASSY, FUEL INLET
23804-30010

1KDFTV..KDJ12#

 1
23804-30060

1KDFTV..KDJ12#

 1
23804-30030

1KDFTV..KDJ12#

 1
23810A - RAIL ASSY, COMMON
23810-30080

1KDFTV..KDJ12#

 1
23810-30060

1KDFTV..KDJ12#

 1
23810-30100

1KDFTV..KDJ12#

 1
Common parts
90116-06173
90179-06208
90179-08022
90253-13008
90301-49003
90464-00836
91552-81060
91631-60625
91631-G0614
96135-41400
96135-51300
Linked diagrams
2201
2302
7751
8405

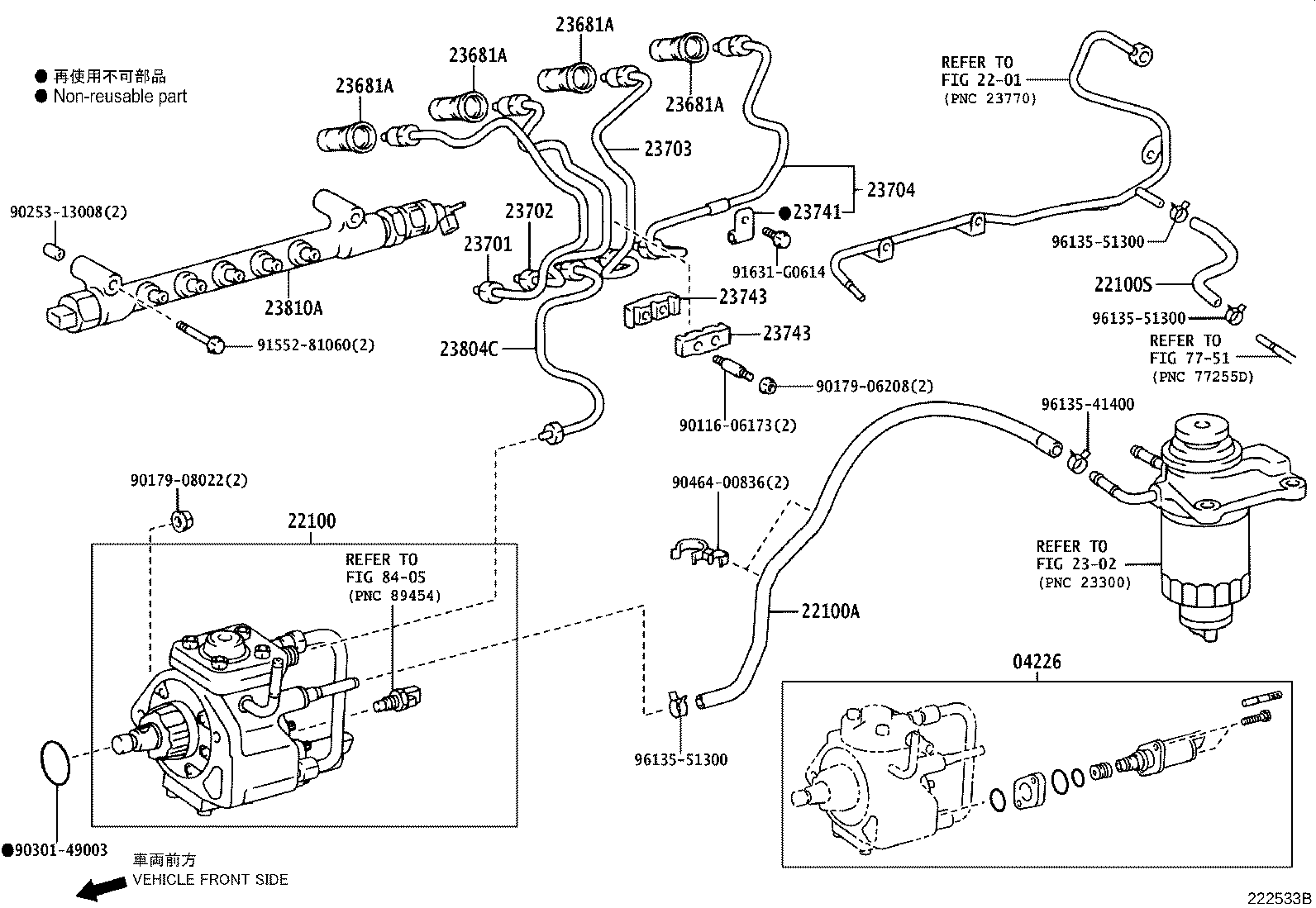

(0408-0608)1KDFTV

Click highlighted areas on diagram

diagram 04226 2201 22100 22100A 22100S 2302 23681A 23681A 23681A 23681A 23701 23702 23703 23704 23741 23743 23743 23804C 23810A 7751 8405 9011606173 9017906208 9017908022 9025313008 9030149003 9046400836 9155281060 91631G0614 9613541400 9613551300 9613551300 9613551300
Part # Description Qty Price
04226 - VALVE KIT, SUCTION CONTROL
04226-30010

1KDFTV..KDJ12#

 1
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-30050

1KDFTV..KDJ12#

 1
22100-30030

1KDFTV..KDJ12#

 1
22100-30040

1KDFTV..KDJ12#

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23271-30230

1KDFTV..KDJ12#

 1
23271-30120

1KDFTV..KDJ12#

 1
23271-30130

1KDFTV..KDJ12#

 1
23271-30121

1KDFTV..KDJ12#

 1
22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
23273-30090

1KDFTV..KDJ12#

 1
23273-30080

1KDFTV..KDJ12#

 1
23273-30081

1KDFTV..KDJ12#

 1
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDJ12#

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDJ12#

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDJ12#

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDJ12#

 4
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-30060

1KDFTV..KDJ12#

 1
23701-30030

1KDFTV..KDJ12#

 1
23701-30010

1KDFTV..KDJ12#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-30060

1KDFTV..KDJ12#

 1
23702-30010

1KDFTV..KDJ12#

 1
23702-30030

1KDFTV..KDJ12#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-30030

1KDFTV..KDJ12#

 1
23703-30010

1KDFTV..KDJ12#

 1
23703-30060

1KDFTV..KDJ12#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-39015

1KDFTV..KDJ12#

 1
23704-39035

1KDFTV..KDJ12#

 1
23704-39055

1KDFTV..KDJ12#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-30010

1KDFTV..KDJ12#

 1
23743 - CLAMP, INJECTION PIPE, NO.3
23743-30011

1KDFTV..KDJ12#

 1
23743-30011

1KDFTV..KDJ12#

 2
23743 - CLAMP, INJECTION PIPE, NO.3
23743-30011

1KDFTV..KDJ12#

 1
23743-30011

1KDFTV..KDJ12#

 2
23804C - PIPE SUB-ASSY, FUEL INLET
23804-30010

1KDFTV..KDJ12#

 1
23804-30060

1KDFTV..KDJ12#

 1
23804-30030

1KDFTV..KDJ12#

 1
23810A - RAIL ASSY, COMMON
23810-30080

1KDFTV..KDJ12#

 1
23810-30060

1KDFTV..KDJ12#

 1
23810-30100

1KDFTV..KDJ12#

 1
Common parts
90116-06173
90179-06208
90179-08022
90253-13008
90301-49003
90464-00836
91552-81060
91631-G0614
96135-41400
96135-51300
Linked diagrams
2201
2302
7751
8405
