KDJ120R-GKAEYW (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0608)1KDFTV

Click highlighted areas on diagram

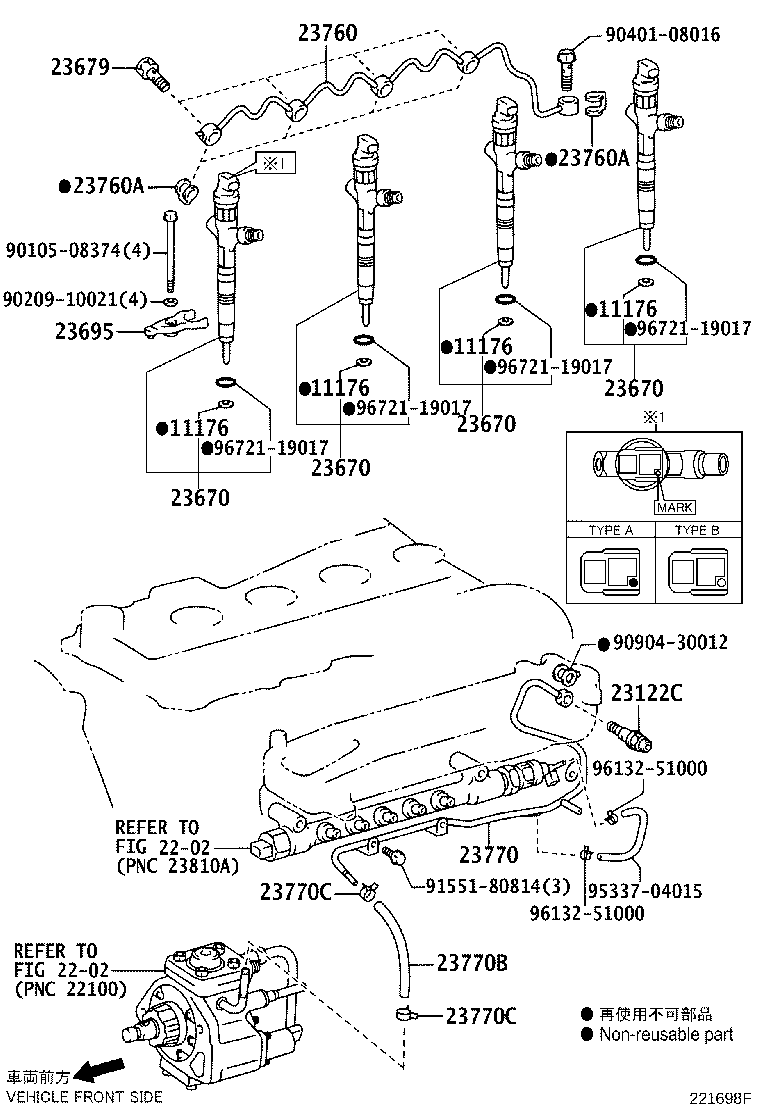

diagram 11176 11176 11176 11176 2202 2202 23122C 23670 23670 23670 23670 23679 23695 23760 23760A 23760A 23770 23770B 23770C 23770C 9010508374 9020910021 9040108016 9090430012 9155180814 9533704015 9613251000 9613251000 9672119017 9672119017 9672119017 9672119017
Part # Description Qty Price
11176 - SEAT, INJECTION NOZZLE
11176-30010

1KDFTV..KDJ12#

 4
11176-30011

1KDFTV..KDJ12#

 4
11176 - SEAT, INJECTION NOZZLE
11176-30010

1KDFTV..KDJ12#

 4
11176-30011

1KDFTV..KDJ12#

 4
11176 - SEAT, INJECTION NOZZLE
11176-30010

1KDFTV..KDJ12#

 4
11176-30011

1KDFTV..KDJ12#

 4
11176 - SEAT, INJECTION NOZZLE
11176-30010

1KDFTV..KDJ12#

 4
11176-30011

1KDFTV..KDJ12#

 4
23122C - VALVE, CHECK
23769-30010

1KDFTV..KDJ12#

PNC 23670=TYPE A

 1
23769-30010

1KDFTV..KDJ12#

 1
23670 - INJECTOR ASSY
23670-39025

1KDFTV..KDJ12#

 4
23670-39185

1KDFTV..KDJ12#

TYPE B:REFER ILLUST.

 4
23670-39135

1KDFTV..KDJ12#

TYPE A:REFER ILLUST.

 4
23670-39186

1KDFTV..KDJ12#

 4
23670-39316

1KDFTV..KDJ12#

 4
23670 - INJECTOR ASSY
23670-39025

1KDFTV..KDJ12#

 4
23670-39185

1KDFTV..KDJ12#

TYPE B:REFER ILLUST.

 4
23670-39135

1KDFTV..KDJ12#

TYPE A:REFER ILLUST.

 4
23670-39186

1KDFTV..KDJ12#

 4
23670-39316

1KDFTV..KDJ12#

 4
23670 - INJECTOR ASSY
23670-39025

1KDFTV..KDJ12#

 4
23670-39185

1KDFTV..KDJ12#

TYPE B:REFER ILLUST.

 4
23670-39135

1KDFTV..KDJ12#

TYPE A:REFER ILLUST.

 4
23670-39186

1KDFTV..KDJ12#

 4
23670-39316

1KDFTV..KDJ12#

 4
23670 - INJECTOR ASSY
23670-39025

1KDFTV..KDJ12#

 4
23670-39185

1KDFTV..KDJ12#

TYPE B:REFER ILLUST.

 4
23670-39135

1KDFTV..KDJ12#

TYPE A:REFER ILLUST.

 4
23670-39186

1KDFTV..KDJ12#

 4
23670-39316

1KDFTV..KDJ12#

 4
23679 - SCREW, INJECTOR FOLLOW
23679-27020

1KDFTV..KDJ12#

 4
23679-30020

1KDFTV..KDJ12#

 4
23695 - CLAMP, NOZZLE HOLDER, NO.1
23695-30011

1KDFTV..KDJ12#

 4
23695-0L010

1KDFTV..KDJ12#

 4
23695-30010

1KDFTV..KDJ12#

 4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23760-30020

1KDFTV..KDJ12#

 1
23760A - GASKET
90904-30013

1KDFTV..KDJ12#

 5
23760A - GASKET
90904-30013

1KDFTV..KDJ12#

 5
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770-30080

1KDFTV..KDJ12#

PNC 23670=TYPE B

 1
23770-30040

1KDFTV..KDJ12#

PNC 23670=TYPE A

 1
23770-30011

1KDFTV..KDJ12#

 1
23770B - HOSE, FUEL
23271-30020

1KDFTV..KDJ12#

 1
95337-06022

1KDFTV..KDJ12#

L=220,PNC 23670=TYPE A

 1
95337-06010

1KDFTV..KDJ12#

L=100,PNC 23670=TYPE B

 1
95333-06030

1KDFTV..KDJ12#

*H,L=220

 1
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
96135-51100

1KDFTV..KDJ12#

 2
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
96135-51100

1KDFTV..KDJ12#

 2
Common parts
90105-08374
90209-10021
90401-08016
90904-30012
91551-80814
95337-04015
96132-51000
96721-19017
Linked diagrams
2202

(0608- )1KDFTV

Click highlighted areas on diagram

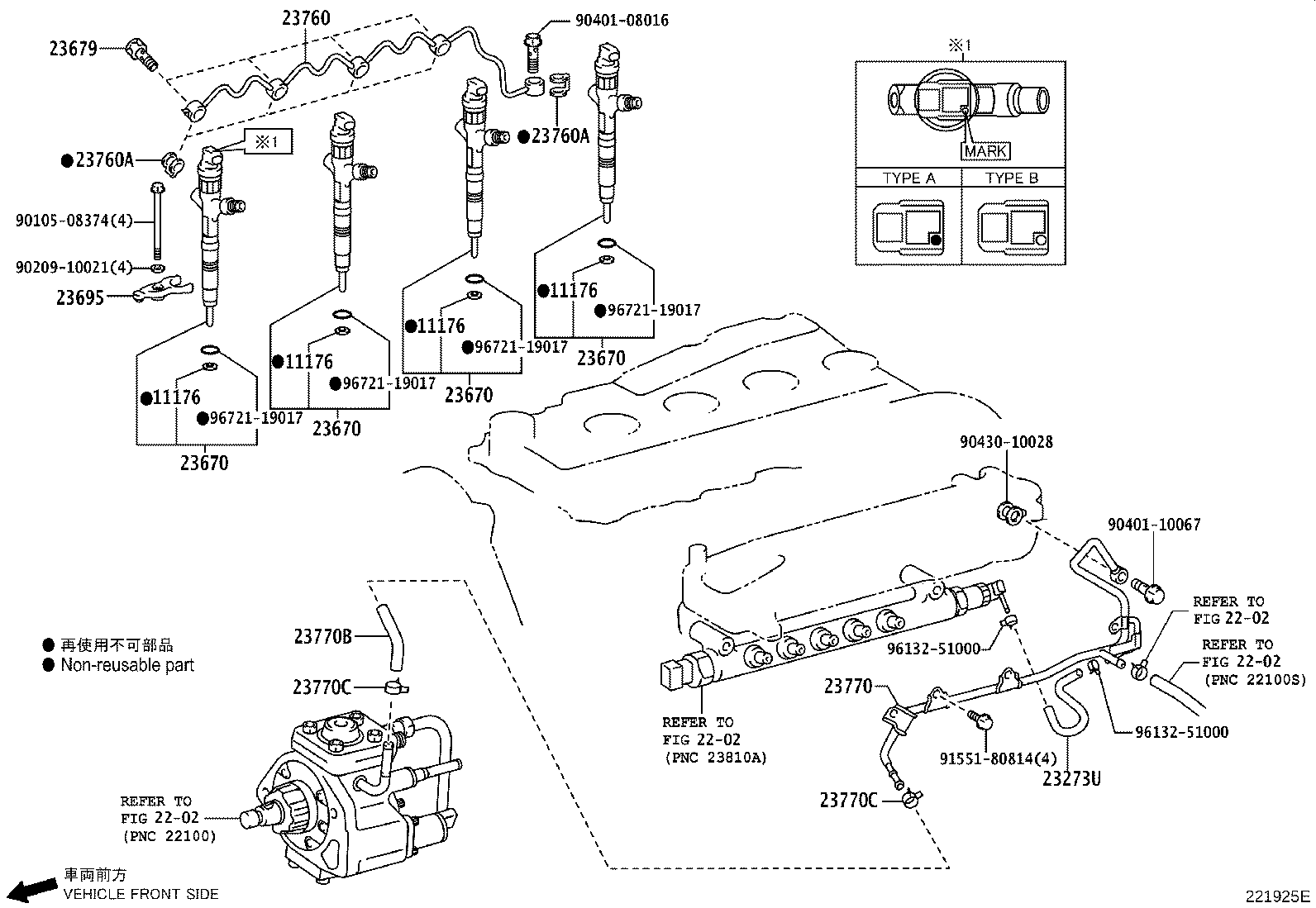

diagram 11176 11176 11176 11176 2202 2202 2202 2202 23273U 23670 23670 23670 23670 23679 23695 23760 23760A 23760A 23770 23770B 23770C 23770C 9010508374 9020910021 9040108016 9040110067 9043010028 9155180814 9613251000 9613251000 9672119017 9672119017 9672119017 9672119017
Part # Description Qty Price
11176 - SEAT, INJECTION NOZZLE
11176-30010

1KDFTV..KDJ12#

 4
11176-30011

1KDFTV..KDJ12#

 4
11176 - SEAT, INJECTION NOZZLE
11176-30010

1KDFTV..KDJ12#

 4
11176-30011

1KDFTV..KDJ12#

 4
11176 - SEAT, INJECTION NOZZLE
11176-30010

1KDFTV..KDJ12#

 4
11176-30011

1KDFTV..KDJ12#

 4
11176 - SEAT, INJECTION NOZZLE
11176-30010

1KDFTV..KDJ12#

 4
11176-30011

1KDFTV..KDJ12#

 4
23273U - HOSE, FUEL, NO.2
23271-30200

1KDFTV..KDJ12#

PNC 23670=TYPE B

 1
23670 - INJECTOR ASSY
23670-39025

1KDFTV..KDJ12#

 4
23670-39185

1KDFTV..KDJ12#

TYPE B:REFER ILLUST.

 4
23670-39135

1KDFTV..KDJ12#

TYPE A:REFER ILLUST.

 4
23670-39186

1KDFTV..KDJ12#

 4
23670-39316

1KDFTV..KDJ12#

 4
23670 - INJECTOR ASSY
23670-39025

1KDFTV..KDJ12#

 4
23670-39185

1KDFTV..KDJ12#

TYPE B:REFER ILLUST.

 4
23670-39135

1KDFTV..KDJ12#

TYPE A:REFER ILLUST.

 4
23670-39186

1KDFTV..KDJ12#

 4
23670-39316

1KDFTV..KDJ12#

 4
23670 - INJECTOR ASSY
23670-39025

1KDFTV..KDJ12#

 4
23670-39185

1KDFTV..KDJ12#

TYPE B:REFER ILLUST.

 4
23670-39135

1KDFTV..KDJ12#

TYPE A:REFER ILLUST.

 4
23670-39186

1KDFTV..KDJ12#

 4
23670-39316

1KDFTV..KDJ12#

 4
23670 - INJECTOR ASSY
23670-39025

1KDFTV..KDJ12#

 4
23670-39185

1KDFTV..KDJ12#

TYPE B:REFER ILLUST.

 4
23670-39135

1KDFTV..KDJ12#

TYPE A:REFER ILLUST.

 4
23670-39186

1KDFTV..KDJ12#

 4
23670-39316

1KDFTV..KDJ12#

 4
23679 - SCREW, INJECTOR FOLLOW
23679-27020

1KDFTV..KDJ12#

 4
23679-30020

1KDFTV..KDJ12#

 4
23695 - CLAMP, NOZZLE HOLDER, NO.1
23695-30011

1KDFTV..KDJ12#

 4
23695-0L010

1KDFTV..KDJ12#

 4
23695-30010

1KDFTV..KDJ12#

 4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23760-30020

1KDFTV..KDJ12#

 1
23760A - GASKET
90904-30013

1KDFTV..KDJ12#

 5
23760A - GASKET
90904-30013

1KDFTV..KDJ12#

 5
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770-30080

1KDFTV..KDJ12#

PNC 23670=TYPE B

 1
23770-30040

1KDFTV..KDJ12#

PNC 23670=TYPE A

 1
23770-30011

1KDFTV..KDJ12#

 1
23770B - HOSE, FUEL
23271-30020

1KDFTV..KDJ12#

 1
95337-06022

1KDFTV..KDJ12#

L=220,PNC 23670=TYPE A

 1
95337-06010

1KDFTV..KDJ12#

L=100,PNC 23670=TYPE B

 1
95333-06030

1KDFTV..KDJ12#

*H,L=220

 1
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
96135-51100

1KDFTV..KDJ12#

 2
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
96135-51100

1KDFTV..KDJ12#

 2
Common parts
90105-08374
90209-10021
90401-08016
90401-10067
90430-10028
91551-80814
96132-51000
96721-19017
Linked diagrams
2202
