KDJ120R-GKAEYW (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

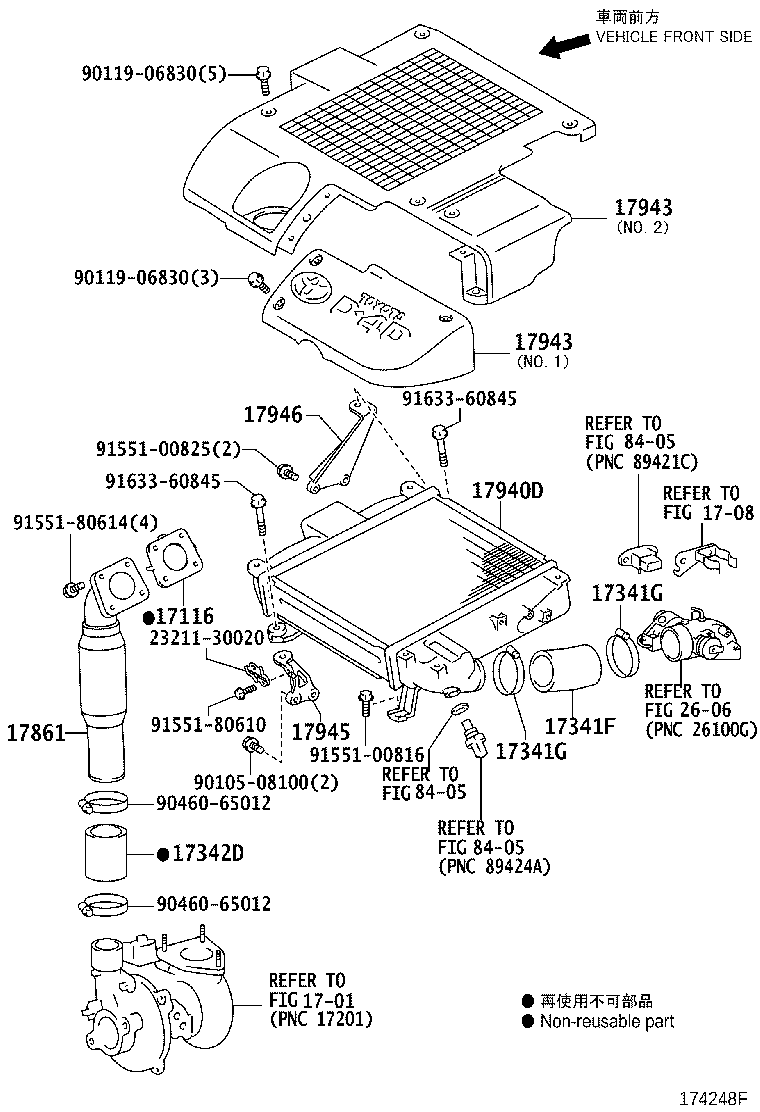

ILLUST NO. 2 OF 2(0408-0608)1KDFTV

Click highlighted areas on diagram

diagram 1701 1708 17116 17341F 17341G 17341G 17342D 17861 17940D 17943 17943 17945 17946 2321130020 2606 8405 8405 8405 9010508100 9011906830 9011906830 9046065012 9046065012 9155100816 9155100825 9155180610 9155180614 9163360845 9163360845
Part # Description Qty Price
17116 - GASKET, INTAKE FLANGE
17116-67021

1KDFTV..KDJ12#

 1
17341F - HOSE, AIR, NO.1
17341-30010

1KDFTV..KDJ12#

 1
17341-30050

1KDFTV..KDJ12#

 1
17341-30060

1KDFTV..KDJ12#

 1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006

1KDFTV..KDJ12#

 2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006

1KDFTV..KDJ12#

 2
17342D - HOSE, AIR, NO.2
17342-30010

1KDFTV..KDJ12#

 1
17861 - CONNECTOR, INTAKE AIR
17860-30020

1KDFTV..KDJ12#

 1
17860-30070

1KDFTV..KDJ12#

 1
17940D - INTERCOOLER ASSY
17940-30080

1KDFTV..KDJ12#

 1
17940-30020

1KDFTV..KDJ12#

 1
17940-30070

1KDFTV..KDJ12#

 1
17943 - PROTECTOR, INTERCOOLER
17943-30020

1KDFTV..KDJ12#

NO.2

 1
17943-30022

1KDFTV..KDJ12#

NO.2

 1
17943-30030

1KDFTV..KDJ12#

NO.2

 1
12602-30010

1KDFTV..KDJ12#

NO.1

 1
17943 - PROTECTOR, INTERCOOLER
17943-30020

1KDFTV..KDJ12#

NO.2

 1
17943-30022

1KDFTV..KDJ12#

NO.2

 1
17943-30030

1KDFTV..KDJ12#

NO.2

 1
12602-30010

1KDFTV..KDJ12#

NO.1

 1
17945 - BRACKET, INTERCOOLER SUPPORT
17945-30030

1KDFTV..KDJ12#

 1
17945-30080

1KDFTV..KDJ12#

 1
17945-30060

1KDFTV..KDJ12#

 1
17946 - BRACKET, INTERCOOLER SUPPORT, NO.2
17946-30050

1KDFTV..KDJ12#

 1
17946-30010

1KDFTV..KDJ12#

 1
17946-30020

1KDFTV..KDJ12#

 1
Common parts
23211-30020
90105-08100
90119-06830
90460-65012
91551-00816
91551-00825
91551-80610
91551-80614
91633-60845
Linked diagrams
1701
1708
2606
8405

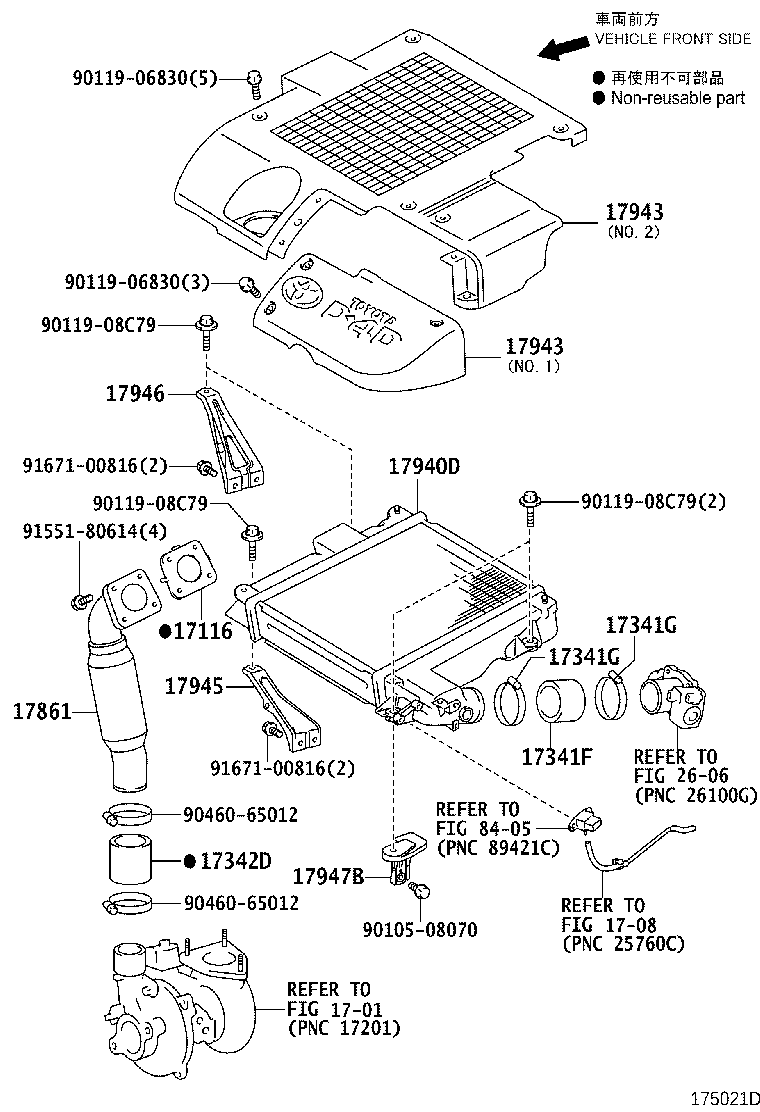

ILLUST NO. 2 OF 2(0608- )1KDFTV

Click highlighted areas on diagram

diagram 1701 1708 17116 17341F 17341G 17341G 17342D 17861 17940D 17943 17943 17945 17946 17947B 2606 8405 9010508070 9011906830 9011906830 9011908C79 9011908C79 9011908C79 9046065012 9046065012 9155180614 9167100816 9167100816
Part # Description Qty Price
17116 - GASKET, INTAKE FLANGE
17116-67021

1KDFTV..KDJ12#

 1
17341F - HOSE, AIR, NO.1
17341-30010

1KDFTV..KDJ12#

 1
17341-30050

1KDFTV..KDJ12#

 1
17341-30060

1KDFTV..KDJ12#

 1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006

1KDFTV..KDJ12#

 2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006

1KDFTV..KDJ12#

 2
17342D - HOSE, AIR, NO.2
17342-30010

1KDFTV..KDJ12#

 1
17861 - CONNECTOR, INTAKE AIR
17860-30020

1KDFTV..KDJ12#

 1
17860-30070

1KDFTV..KDJ12#

 1
17940D - INTERCOOLER ASSY
17940-30080

1KDFTV..KDJ12#

 1
17940-30020

1KDFTV..KDJ12#

 1
17940-30070

1KDFTV..KDJ12#

 1
17943 - PROTECTOR, INTERCOOLER
17943-30020

1KDFTV..KDJ12#

NO.2

 1
17943-30022

1KDFTV..KDJ12#

NO.2

 1
17943-30030

1KDFTV..KDJ12#

NO.2

 1
12602-30010

1KDFTV..KDJ12#

NO.1

 1
17943 - PROTECTOR, INTERCOOLER
17943-30020

1KDFTV..KDJ12#

NO.2

 1
17943-30022

1KDFTV..KDJ12#

NO.2

 1
17943-30030

1KDFTV..KDJ12#

NO.2

 1
12602-30010

1KDFTV..KDJ12#

NO.1

 1
17945 - BRACKET, INTERCOOLER SUPPORT
17945-30030

1KDFTV..KDJ12#

 1
17945-30080

1KDFTV..KDJ12#

 1
17945-30060

1KDFTV..KDJ12#

 1
17946 - BRACKET, INTERCOOLER SUPPORT, NO.2
17946-30050

1KDFTV..KDJ12#

 1
17946-30010

1KDFTV..KDJ12#

 1
17946-30020

1KDFTV..KDJ12#

 1
17947B - BRACKET, INTERCOOLER SUPPORT, NO.3
17947-30010

1KDFTV..KDJ12#

 1
Common parts
90105-08070
90119-06830
90119-08C79
90460-65012
91551-80614
91671-00816
Linked diagrams
1701
1708
2606
8405
