Toyota Land cruiser prado KDJ120 RADIATOR & WATER OUTLET

KDJ120R-GKAEYW (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009

Engine 1KDFTV

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

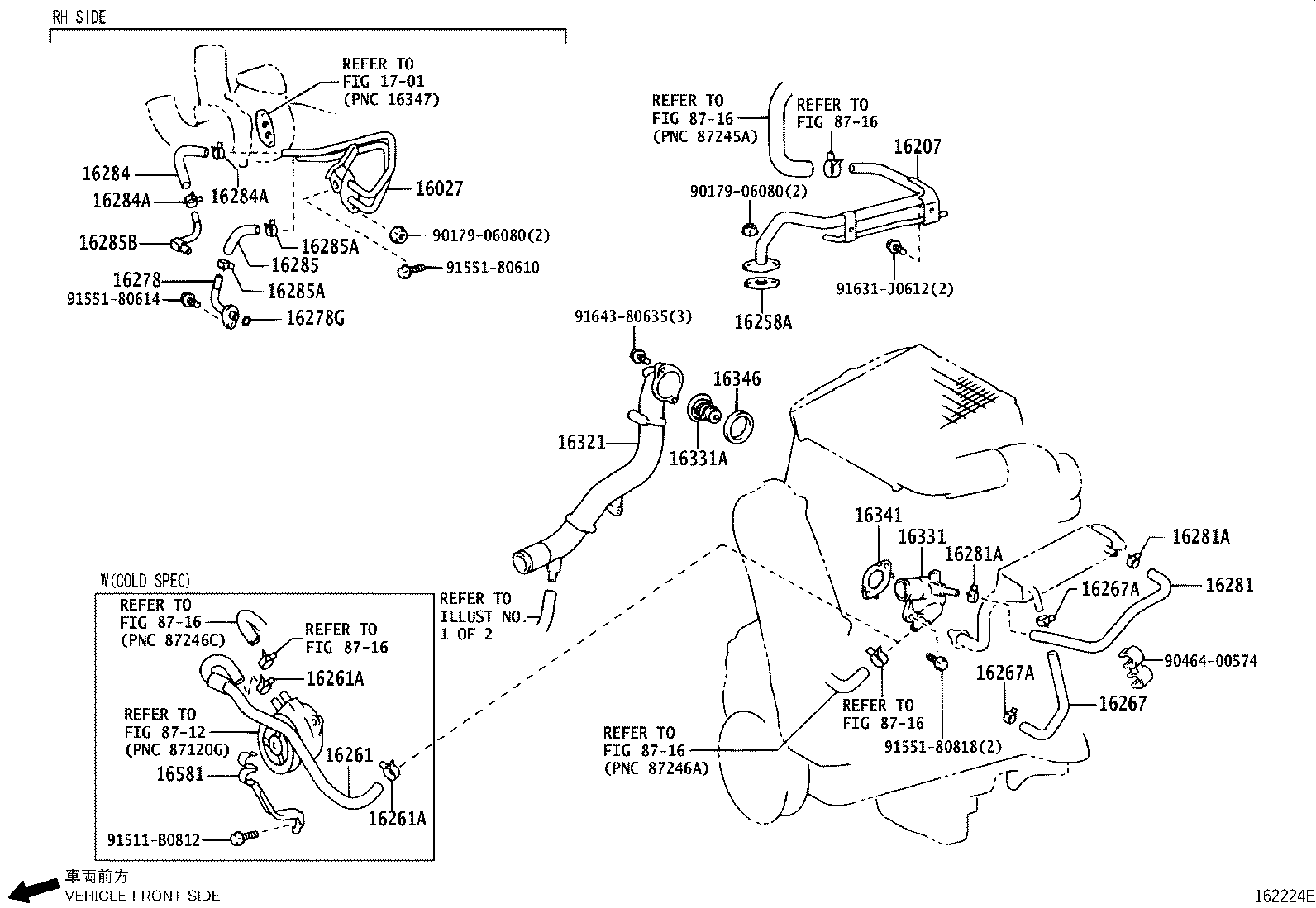

ILLUST NO. 2 OF 2(0408-0608)1KDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16027-30041	1KDFTV..KDJ12#	08/2004 - 08/2006	1
16027-30010	1KDFTV..KDJ12#	09/2002 - 08/2004	1
16027-30070	1KDFTV..KDJ12#	08/2006 - 12/2999	1
16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2
16207-30050	1KDFTV..KDJ12#	09/2002 - 08/2006	1
16207-30140	1KDFTV..KDJ12#	08/2006 - 12/2999	1
16258A - GASKET(FOR HEATER RETURN)
16258-67010	1KDFTV..KDJ12#	09/2002 - 12/2999	1
16261 - HOSE, WATER BY-PASS
16261-30090	1KDFTV..KDJ12# COLD SPEC	08/2006 - 12/2999	1
16261-30040	1KDFTV..KDJ12# COLD SPEC	09/2002 - 08/2006	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90466-21001	1KDFTV..KDJ12# COLD SPEC	09/2002 - 12/2999	2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90466-21001	1KDFTV..KDJ12# COLD SPEC	09/2002 - 12/2999	2
16267 - HOSE, WATER BY-PASS, NO.3
16267-30030	1KDFTV..KDJ12#	08/2004 - 08/2006	1
16267-30010	1KDFTV..KDJ12#	09/2002 - 08/2004	1
16267-30090	1KDFTV..KDJ12#	08/2006 - 12/2999	1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-19022	1KDFTV..KDJ12#	09/2002 - 12/2999	2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-19022	1KDFTV..KDJ12#	09/2002 - 12/2999	2
16278 - PIPE, WATER BY-PASS, NO.2
16278-67010	1KDFTV..KDJ12#	09/2002 - 08/2006	1
16278G - RING, O(FOR WATER BY-PASS NO.2 PIPE)
96761-24010	1KDFTV..KDJ12#	09/2002 - 08/2006	1
16281 - HOSE, WATER BY-PASS, NO.4
16281-30070	1KDFTV..KDJ12#	08/2006 - 12/2999	1
99555-10080	1KDFTV..KDJ12# NO.2	09/2002 - 08/2004	1
16281-30030	1KDFTV..KDJ12#	08/2004 - 08/2006	1
16281-30040	1KDFTV..KDJ12# NO.1	09/2002 - 08/2004	1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-19022	1KDFTV..KDJ12#	08/2004 - 12/2999	2
90467-19022	1KDFTV..KDJ12# NO.1	09/2002 - 08/2004	2
90467-13073	1KDFTV..KDJ12# NO.2	09/2002 - 08/2004	2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-19022	1KDFTV..KDJ12#	08/2004 - 12/2999	2
90467-19022	1KDFTV..KDJ12# NO.1	09/2002 - 08/2004	2
90467-13073	1KDFTV..KDJ12# NO.2	09/2002 - 08/2004	2
16284 - HOSE, TURBO WATER, NO.1
16284-30010	1KDFTV..KDJ12#	09/2002 - 08/2006	1
16284-30070	1KDFTV..KDJ12#	08/2006 - 12/2999	1
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-15022	1KDFTV..KDJ12#	09/2002 - 08/2006	2
90467-13073	1KDFTV..KDJ12#	08/2006 - 12/2999	2
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-15022	1KDFTV..KDJ12#	09/2002 - 08/2006	2
90467-13073	1KDFTV..KDJ12#	08/2006 - 12/2999	2
16285 - HOSE, TURBO WATER, NO.2
16285-67010	1KDFTV..KDJ12#	09/2002 - 08/2006	1
16285-30100	1KDFTV..KDJ12#	08/2006 - 12/2999	1
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-13073	1KDFTV..KDJ12#	08/2006 - 12/2999	2
90467-15022	1KDFTV..KDJ12#	09/2002 - 08/2006	2
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-13073	1KDFTV..KDJ12#	08/2006 - 12/2999	2
90467-15022	1KDFTV..KDJ12#	09/2002 - 08/2006	2
16285B - UNION(FOR TURBO WATER HOSE NO.2)
90405-10044	1KDFTV..KDJ12#	09/2002 - 08/2006	1
90405-08029	1KDFTV..KDJ12#	08/2006 - 12/2999	1
16321 - INLET, WATER
16321-30030	1KDFTV..KDJ12#	09/2002 - 07/2003	1
16321-30032	1KDFTV..KDJ12#	05/2008 - 12/2008	1
16321-30033	1KDFTV..KDJ12#	12/2008 - 12/2999	1
16331 - OUTLET, WATER
16331-30061	1KDFTV..KDJ12#	08/2004 - 08/2006	1
16331-30060	1KDFTV..KDJ12#	09/2002 - 08/2004	1
16304-30020	1KDFTV..KDJ12#	08/2006 - 12/2999	1
16331A - THERMOSTAT
90916-03118	1KDFTV..KDJ12# *WAX 82-95	09/2002 - 12/2999	1
16341 - GASKET, WATER OUTLET
16341-30020	1KDFTV..KDJ12#	09/2002 - 12/2999	1
16346 - GASKET, THERMOSTAT
16346-67010	1KDFTV..KDJ12#	09/2002 - 12/2999	1
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-30050	1KDFTV..KDJ12# COLD SPEC	09/2002 - 12/2999	1
Common parts
90179-06080
90464-00574
91511-B0812
91551-80610
91551-80614
91551-80818
91631-J0612
91643-80635
Linked diagrams
1701
8712
8716

ILLUST NO. 2 OF 2(0608- )1KDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16027-30041	1KDFTV..KDJ12#	08/2004 - 08/2006	1
16027-30010	1KDFTV..KDJ12#	09/2002 - 08/2004	1
16027-30070	1KDFTV..KDJ12#	08/2006 - 12/2999	1
16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2
16207-30050	1KDFTV..KDJ12#	09/2002 - 08/2006	1
16207-30140	1KDFTV..KDJ12#	08/2006 - 12/2999	1
16258A - GASKET(FOR HEATER RETURN)
16258-67010	1KDFTV..KDJ12#	09/2002 - 12/2999	1
16261 - HOSE, WATER BY-PASS
16261-30090	1KDFTV..KDJ12# COLD SPEC	08/2006 - 12/2999	1
16261-30040	1KDFTV..KDJ12# COLD SPEC	09/2002 - 08/2006	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90466-21001	1KDFTV..KDJ12# COLD SPEC	09/2002 - 12/2999	2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90466-21001	1KDFTV..KDJ12# COLD SPEC	09/2002 - 12/2999	2
16267 - HOSE, WATER BY-PASS, NO.3
16267-30030	1KDFTV..KDJ12#	08/2004 - 08/2006	1
16267-30010	1KDFTV..KDJ12#	09/2002 - 08/2004	1
16267-30090	1KDFTV..KDJ12#	08/2006 - 12/2999	1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-19022	1KDFTV..KDJ12#	09/2002 - 12/2999	2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-19022	1KDFTV..KDJ12#	09/2002 - 12/2999	2
16281 - HOSE, WATER BY-PASS, NO.4
16281-30070	1KDFTV..KDJ12#	08/2006 - 12/2999	1
99555-10080	1KDFTV..KDJ12# NO.2	09/2002 - 08/2004	1
16281-30030	1KDFTV..KDJ12#	08/2004 - 08/2006	1
16281-30040	1KDFTV..KDJ12# NO.1	09/2002 - 08/2004	1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-19022	1KDFTV..KDJ12#	08/2004 - 12/2999	2
90467-19022	1KDFTV..KDJ12# NO.1	09/2002 - 08/2004	2
90467-13073	1KDFTV..KDJ12# NO.2	09/2002 - 08/2004	2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-19022	1KDFTV..KDJ12#	08/2004 - 12/2999	2
90467-19022	1KDFTV..KDJ12# NO.1	09/2002 - 08/2004	2
90467-13073	1KDFTV..KDJ12# NO.2	09/2002 - 08/2004	2
16284 - HOSE, TURBO WATER, NO.1
16284-30010	1KDFTV..KDJ12#	09/2002 - 08/2006	1
16284-30070	1KDFTV..KDJ12#	08/2006 - 12/2999	1
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-15022	1KDFTV..KDJ12#	09/2002 - 08/2006	2
90467-13073	1KDFTV..KDJ12#	08/2006 - 12/2999	2
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-15022	1KDFTV..KDJ12#	09/2002 - 08/2006	2
90467-13073	1KDFTV..KDJ12#	08/2006 - 12/2999	2
16285 - HOSE, TURBO WATER, NO.2
16285-67010	1KDFTV..KDJ12#	09/2002 - 08/2006	1
16285-30100	1KDFTV..KDJ12#	08/2006 - 12/2999	1
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-13073	1KDFTV..KDJ12#	08/2006 - 12/2999	2
90467-15022	1KDFTV..KDJ12#	09/2002 - 08/2006	2
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-13073	1KDFTV..KDJ12#	08/2006 - 12/2999	2
90467-15022	1KDFTV..KDJ12#	09/2002 - 08/2006	2
16285B - UNION(FOR TURBO WATER HOSE NO.2)
90405-10044	1KDFTV..KDJ12#	09/2002 - 08/2006	1
90405-08029	1KDFTV..KDJ12#	08/2006 - 12/2999	1
16321 - INLET, WATER
16321-30030	1KDFTV..KDJ12#	09/2002 - 07/2003	1
16321-30032	1KDFTV..KDJ12#	05/2008 - 12/2008	1
16321-30033	1KDFTV..KDJ12#	12/2008 - 12/2999	1
16331 - OUTLET, WATER
16331-30061	1KDFTV..KDJ12#	08/2004 - 08/2006	1
16331-30060	1KDFTV..KDJ12#	09/2002 - 08/2004	1
16304-30020	1KDFTV..KDJ12#	08/2006 - 12/2999	1
16331A - THERMOSTAT
90916-03118	1KDFTV..KDJ12# *WAX 82-95	09/2002 - 12/2999	1
16341 - GASKET, WATER OUTLET
16341-30020	1KDFTV..KDJ12#	09/2002 - 12/2999	1
16346 - GASKET, THERMOSTAT
16346-67010	1KDFTV..KDJ12#	09/2002 - 12/2999	1
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-30050	1KDFTV..KDJ12# COLD SPEC	09/2002 - 12/2999	1
Common parts
90179-06080
90464-00574
91511-B0812
91551-80612
91551-80818
91631-J0612
91643-80635
Linked diagrams
1105
1701
8712
8716

KDJ120R-GKAEYW (2004)

ILLUST NO. 2 OF 2(0408-0608)1KDFTV

ILLUST NO. 2 OF 2(0608- )1KDFTV
