KDJ120L-GKPEYW (2002)
Toyota Land Cruiser Prado

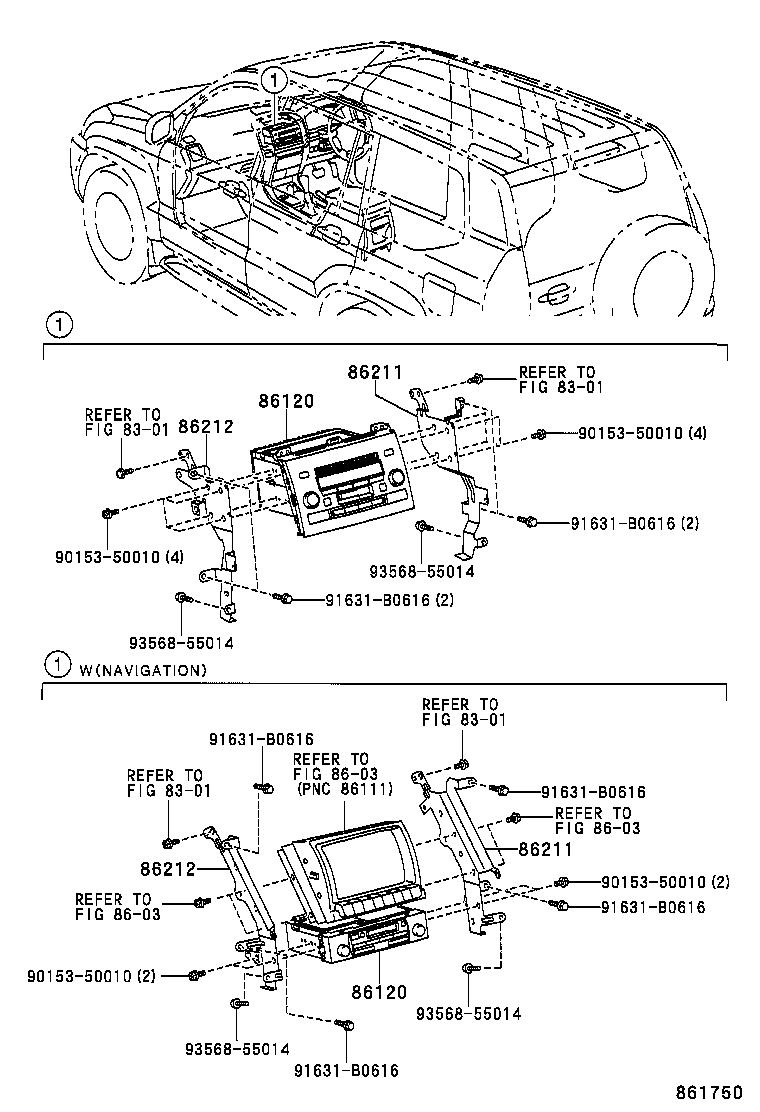

ILLUST NO. 1 OF 3(0209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-60530 |
GRJ12#,KDJ12#..LHD PIONEER,ID=P7809,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP |
1 | ||
| 86120-60510 |
GRJ12#,KDJ12#..LHD PIONEER,ID=P3914,AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 9SP |
1 | ||
| 86120-60530 |
GRJ12#,KDJ12#..LHD PIONEER,ID=P7809,TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 86120-60510 |
GRJ12#,KDJ12#..LHD PIONEER,ID=P3914,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 86120-60460 |
GRJ12#,KDJ12#..LHD PIONEER,ID=P3733,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-60460 |
GRJ12#,KDJ12#..LHD PIONEER,ID=P3733,AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-60530 |
GRJ12#,KDJ12#..LHD PIONEER,ID=P7809,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP |
1 | ||
| 86120-60510 |
GRJ12#,KDJ12#..LHD PIONEER,ID=P3914,AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 9SP |
1 | ||
| 86120-60530 |
GRJ12#,KDJ12#..LHD PIONEER,ID=P7809,TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 86120-60510 |
GRJ12#,KDJ12#..LHD PIONEER,ID=P3914,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 86120-60460 |
GRJ12#,KDJ12#..LHD PIONEER,ID=P3733,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-60460 |
GRJ12#,KDJ12#..LHD PIONEER,ID=P3733,AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-60170 |
GRJ12#,KDJ12#..LHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP |
1 | ||
| 86211-60110 |
GRJ12#,KDJ12# |
1 | ||
| 86211-60170 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 9SP |
1 | ||
| 86211-60120 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-60170 |
GRJ12#,KDJ12#..LHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP |
1 | ||
| 86211-60110 |
GRJ12#,KDJ12# |
1 | ||
| 86211-60170 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 9SP |
1 | ||
| 86211-60120 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-60120 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP |
1 | ||
| 86212-60110 |
GRJ12#,KDJ12# |
1 | ||
| 86212-60170 |
GRJ12#,KDJ12#..LHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP |
1 | ||
| 86212-60170 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 9SP |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-60120 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP |
1 | ||
| 86212-60110 |
GRJ12#,KDJ12# |
1 | ||
| 86212-60170 |
GRJ12#,KDJ12#..LHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP |
1 | ||
| 86212-60170 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 9SP |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 91631-B0616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8301 | ||||
| 8603 | ||||

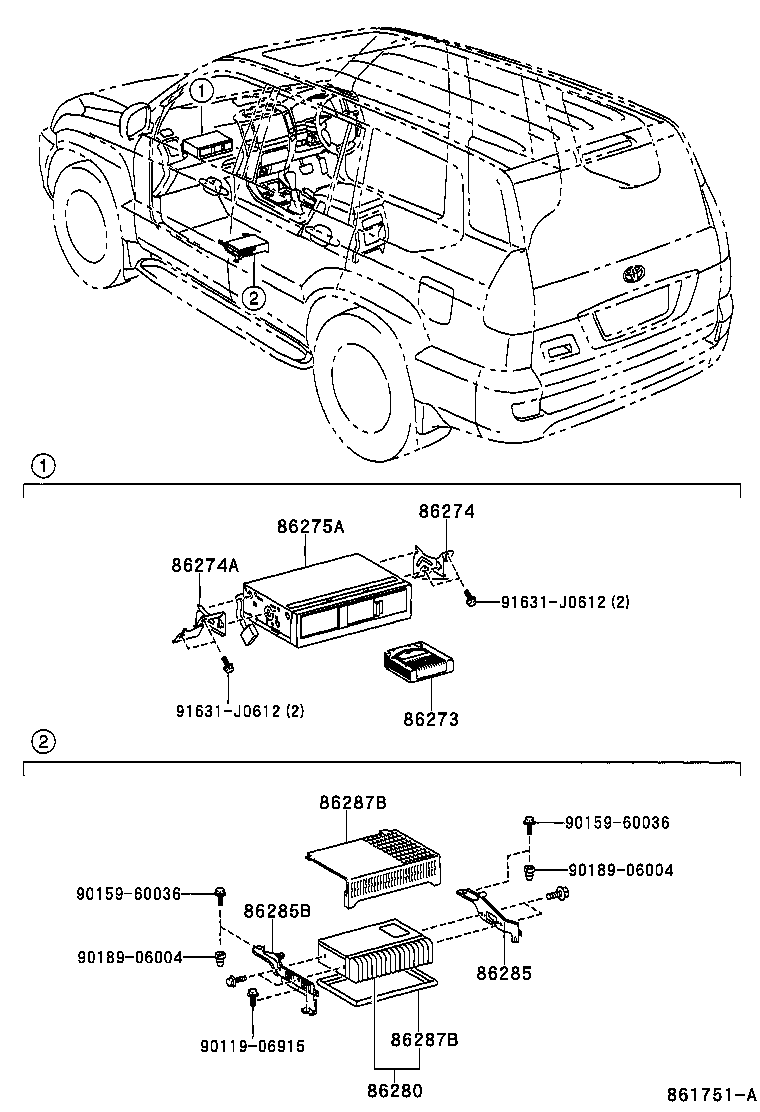

ILLUST NO. 2 OF 3(0209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86273 - MAGAZINE, DISC PLAYER | ||||
| 86273-50070 |
KDJ12#..LHD AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP |
1 | ||
| 86273-50070 |
GRJ120..4FC;GRJ125,KDJ12#..LHD CD PLAYER-W/6CD CHANGER |
1 | ||
| 86274 - BRACKET, DISC PLAYER | ||||
| 86274-60120 |
GRJ120..4FC;GRJ125,KDJ12#..LHD CD PLAYER-W/6CD CHANGER |
1 | ||
| 86274-60120 |
KDJ12#..LHD AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP |
1 | ||
| 86274A - BRACKET, DISC PLAYER | ||||
| 86274-60130 |
KDJ12#..LHD AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP |
1 | ||
| 86274-60130 |
GRJ120..4FC;GRJ125,KDJ12#..LHD CD PLAYER-W/6CD CHANGER |
1 | ||
| 86275A - CHANGER, DISC PLAYER | ||||
| 86275-60020 |
GRJ120..LHD..4FC;GRJ125,KDJ12#..LHD CD PLAYER-W/6CD CHANGER |
1 | ||
| 86275-60020 |
KDJ12#..LHD AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86100-60130 |
GRJ120,KDJ120..LHD AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP |
1 | ||
| 86100-60130 |
GRJ120,KDJ120..LHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 9SP |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-60040 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP |
1 | ||
| 86285-60040 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 9SP |
1 | ||
| 86285B - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-60051 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 9SP |
1 | ||
| 86285-60050 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP |
1 | ||
| 86285-60050 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 9SP |
1 | ||
| 86285-60051 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP |
1 | ||
| 86287B - COVER, AMPLIFIER | ||||
| 86287-60020 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP,UPPER |
1 | ||
| 86287-60021 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP,UPPER |
1 | ||
| 86287-60020 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 9SP,UPPER |
1 | ||
| 86287-60010 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP,LOWER |
1 | ||
| 86287-60010 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 9SP,LOWER |
1 | ||
| 86287-60021 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 9SP,UPPER |
1 | ||
| 86287B - COVER, AMPLIFIER | ||||
| 86287-60020 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP,UPPER |
1 | ||
| 86287-60021 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP,UPPER |
1 | ||
| 86287-60020 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 9SP,UPPER |
1 | ||
| 86287-60010 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP,LOWER |
1 | ||
| 86287-60010 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 9SP,LOWER |
1 | ||
| 86287-60021 |
GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 9SP,UPPER |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60036 | ||||
| 90189-06004 | ||||
| 91631-J0612 | ||||

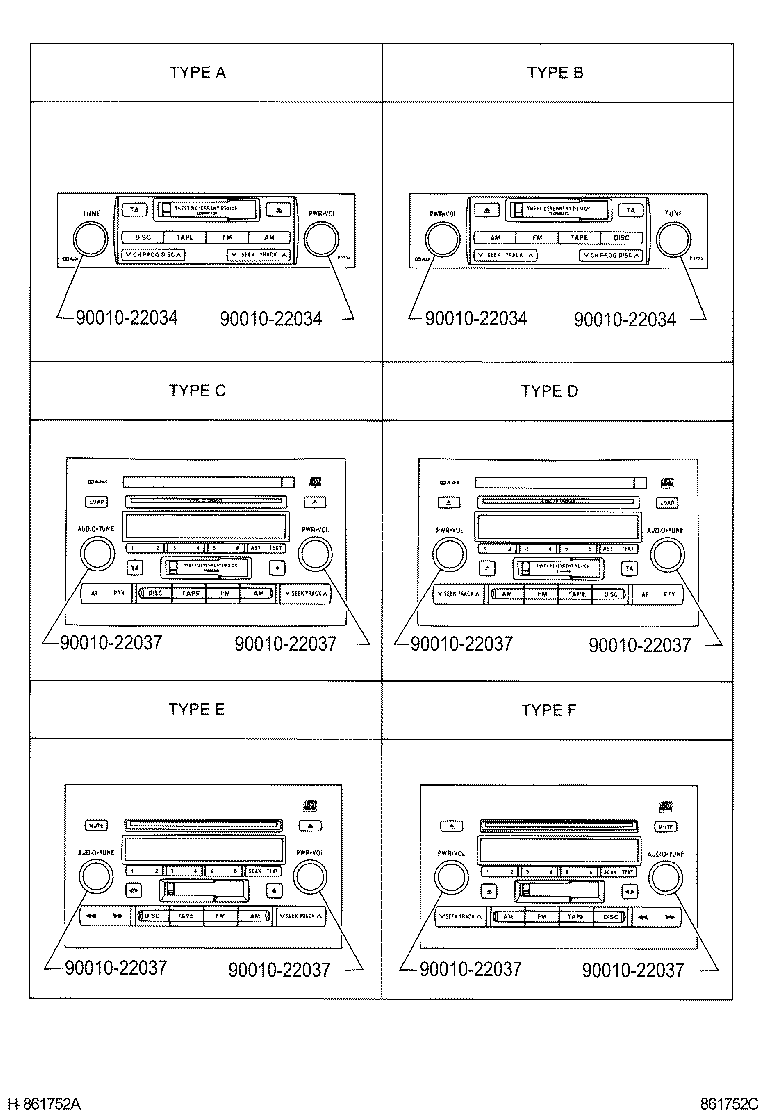

ILLUST NO. 3 OF 3(0209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90010-22034 | ||||
| 90010-22037 | ||||
