KDJ120L-GKPEYW (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004
Engine 1KDFTV
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )

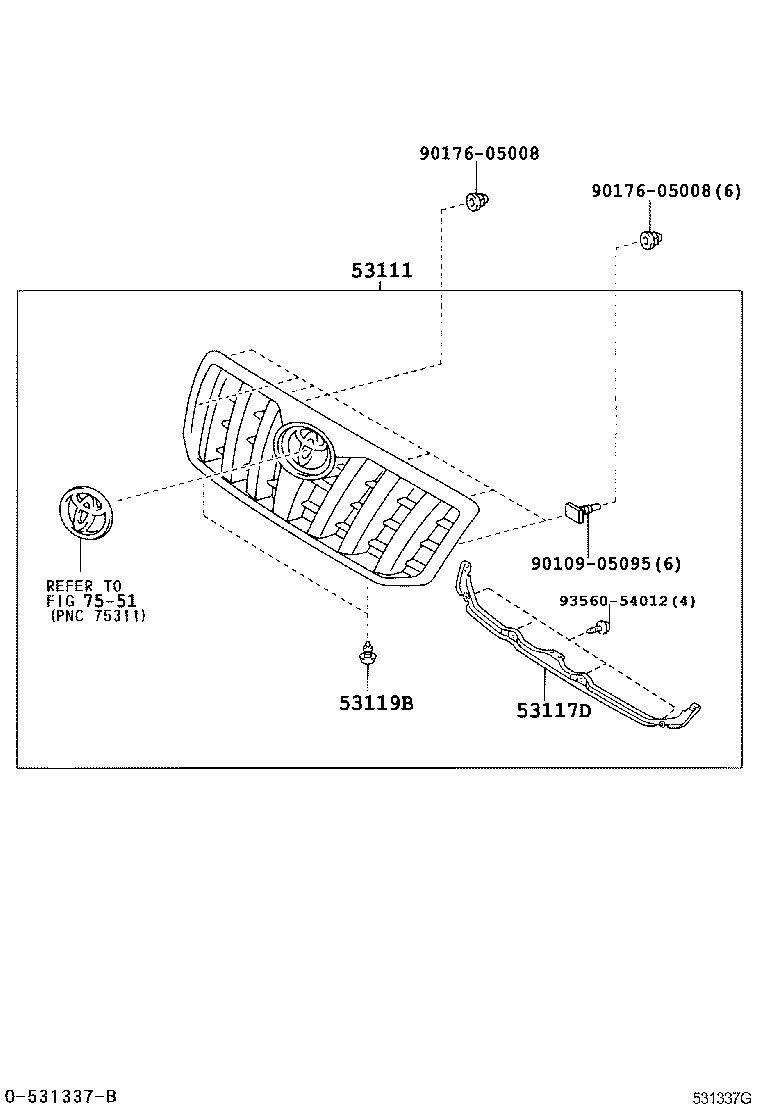

Click highlighted areas on diagram

diagram 53111 53117D 53119B 7551 9010905095 9017605008 9017605008 9356054012
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-60320

GRJ12#,KDJ12#

PLATED

 1
53117D - BRACKET, RADIATOR GRILLE, LOWER RH
53117-60040

GRJ12#,KDJ12#

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-30140

GRJ12#,KDJ12#

 2
Common parts
90109-05095
90176-05008
93560-54012
Linked diagrams
7551
