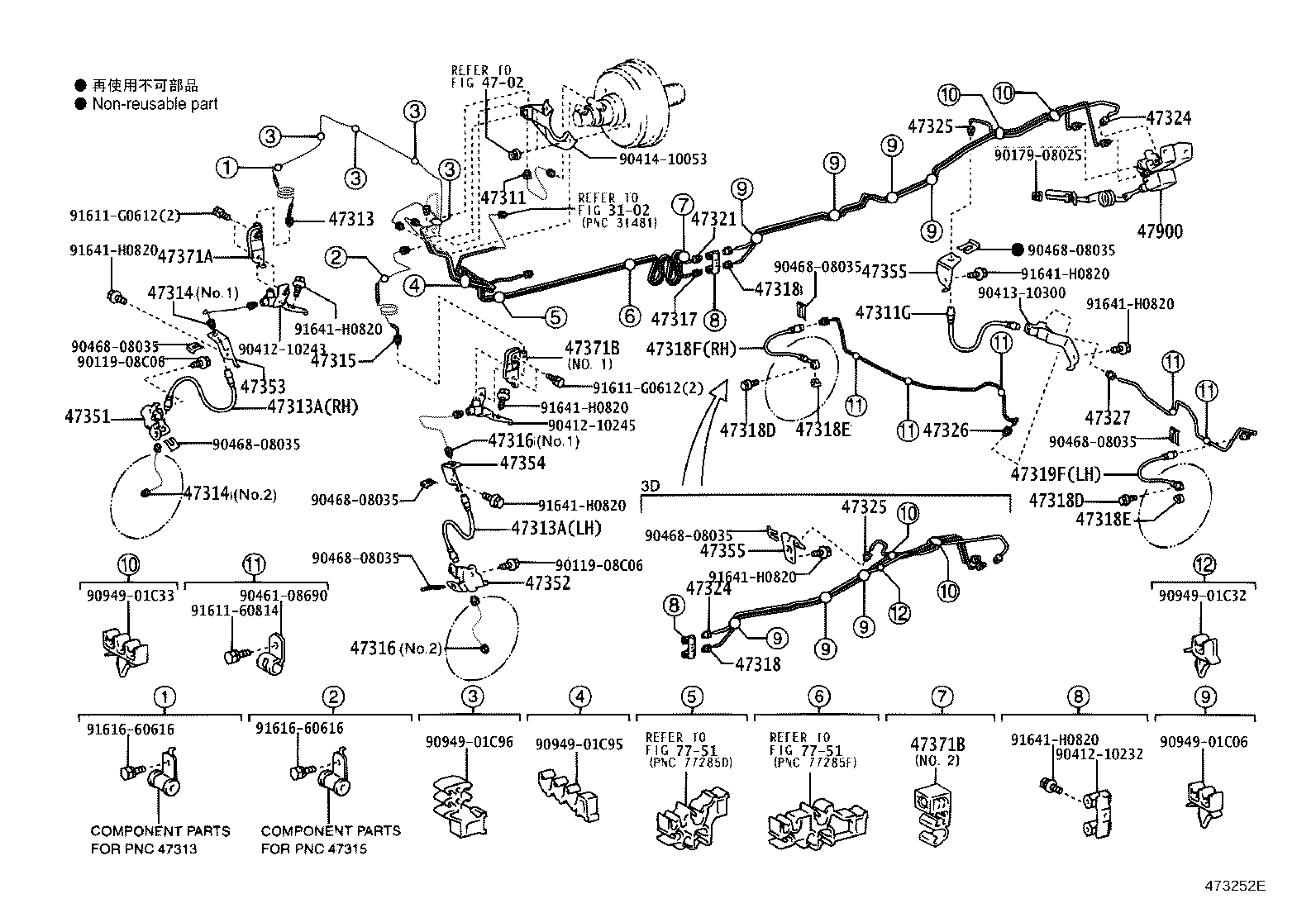

Toyota Land cruiser prado KDJ120 BRAKE TUBE & CLAMP

KDJ120L-GKPEYW (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004

Engine 1KDFTV

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0209-0408)LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-60610	GRJ12#,KDJ12#..LHD	09/2002 - 08/2004	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D40	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	2
90947-02D40	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	2
90947-02D39	GRJ12#,KDJ12#	09/2002 - 08/2004	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-3D171	GRJ12#,KDJ12#..LHD ABS-WITH	09/2002 - 08/2004	1
47313-60381	GRJ12#,KDJ12#..LHD	09/2002 - 08/2004	1
47313-3D181	GRJ12#,KDJ12#..LHD TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D35	GRJ12#,KDJ12#	09/2002 - 02/2007	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D35	GRJ12#,KDJ12#	09/2002 - 02/2007	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-35310	GRJ12#,KDJ12# NO.1	09/2002 - 12/2999	1
47314-35320	GRJ12#,KDJ12# NO.2	09/2002 - 12/2999	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-35310	GRJ12#,KDJ12# NO.1	09/2002 - 12/2999	1
47314-35320	GRJ12#,KDJ12# NO.2	09/2002 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-35461	GRJ12#,KDJ12#..LHD TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47315-60501	GRJ12#,KDJ12#..LHD	09/2002 - 08/2004	1
47315-35451	GRJ12#,KDJ12#..LHD ABS-WITH	09/2002 - 08/2004	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-35280	GRJ12#,KDJ12# NO.2	09/2002 - 12/2999	1
47316-35270	GRJ12#,KDJ12# NO.1	09/2002 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-35280	GRJ12#,KDJ12# NO.2	09/2002 - 12/2999	1
47316-35270	GRJ12#,KDJ12# NO.1	09/2002 - 12/2999	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-60120	GRJ12#,KDJ12#..LHD	09/2002 - 08/2004	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-60140	GRJ120,KDJ120	09/2002 - 08/2004	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-60140	GRJ120,KDJ120	09/2002 - 08/2004	1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	GRJ12#,KDJ12#	09/2002 - 08/2009	2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	GRJ12#,KDJ12#	09/2002 - 08/2009	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	GRJ12#,KDJ12#	09/2002 - 08/2009	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	GRJ12#,KDJ12#	09/2002 - 08/2009	2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02D31	GRJ12#,KDJ12#	09/2002 - 01/2007	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02D32	GRJ12#,KDJ12#	09/2002 - 01/2007	1
47321 - TUBE, REAR BRAKE, NO.1
47321-35850	GRJ12#,KDJ12#..LHD ABS-WITH	09/2002 - 08/2004	1
47321-60300	GRJ12#,KDJ12#..LHD	09/2002 - 08/2004	1
47324 - TUBE, REAR BRAKE, NO.4
47324-35310	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47324-60340	GRJ120,KDJ120	09/2002 - 08/2004	1
47324-35310	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	1
47324 - TUBE, REAR BRAKE, NO.4
47324-35310	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47324-60340	GRJ120,KDJ120	09/2002 - 08/2004	1
47324-35310	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	1
47325 - TUBE, REAR BRAKE, NO.5
47325-60300	GRJ120,KDJ120	09/2002 - 08/2004	1
47325-35390	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47325-35390	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	1
47325 - TUBE, REAR BRAKE, NO.5
47325-60300	GRJ120,KDJ120	09/2002 - 08/2004	1
47325-35390	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47325-35390	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	1
47326 - TUBE, REAR BRAKE, NO.6
47326-35120	GRJ12#,KDJ12# TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2003	1
47326-35130	GRJ12#,KDJ12# TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	08/2003 - 08/2004	1
47326-35120	GRJ12#,KDJ12# ABS-WITH	09/2002 - 08/2003	1
47326-35130	GRJ12#,KDJ12# ABS-WITH	08/2003 - 08/2004	1
47326-60320	GRJ12#,KDJ12#	09/2002 - 08/2004	1
47327 - TUBE, REAR BRAKE, NO.7
47327-60150	GRJ12#,KDJ12#	09/2002 - 08/2004	1
47327-35090	GRJ12#,KDJ12# ABS-WITH	09/2002 - 08/2003	1
47327-35090	GRJ12#,KDJ12# TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2003	1
47327-35100	GRJ12#,KDJ12# ABS-WITH	08/2003 - 08/2004	1
47327-35100	GRJ12#,KDJ12# TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	08/2003 - 08/2004	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35350	GRJ12#,KDJ12#	09/2002 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35390	GRJ12#,KDJ12#	09/2002 - 12/2999	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-35140	GRJ12#,KDJ12#	09/2002 - 12/2999	1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-35120	GRJ12#,KDJ12#	09/2002 - 12/2999	1
47355 - BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT)
47355-35130	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47355-60170	GRJ120,KDJ120	09/2002 - 08/2004	1
47355-35130	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	1
47355 - BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT)
47355-35130	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47355-60170	GRJ120,KDJ120	09/2002 - 08/2004	1
47355-35130	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-60150	GRJ12#,KDJ12#	09/2002 - 08/2004	1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-60160	GRJ12#,KDJ12# NO.1	09/2002 - 12/2999	1
77299-32030	GRJ12#,KDJ12# NO.2	09/2002 - 12/2999	1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-60160	GRJ12#,KDJ12# NO.1	09/2002 - 12/2999	1
77299-32030	GRJ12#,KDJ12# NO.2	09/2002 - 12/2999	1
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-60340	GRJ120,KDJ120	09/2002 - 08/2004	1
47900-60340	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	1
Common parts
90119-08C06
90179-08025
90412-10232
90412-10243
90412-10245
90413-10300
90414-10053
90461-08690
90468-08035
90949-01C06
90949-01C32
90949-01C33
90949-01C95
90949-01C96
91611-60814
91611-G0612
91616-60616
91641-H0820
Linked diagrams
3102
4702
7751

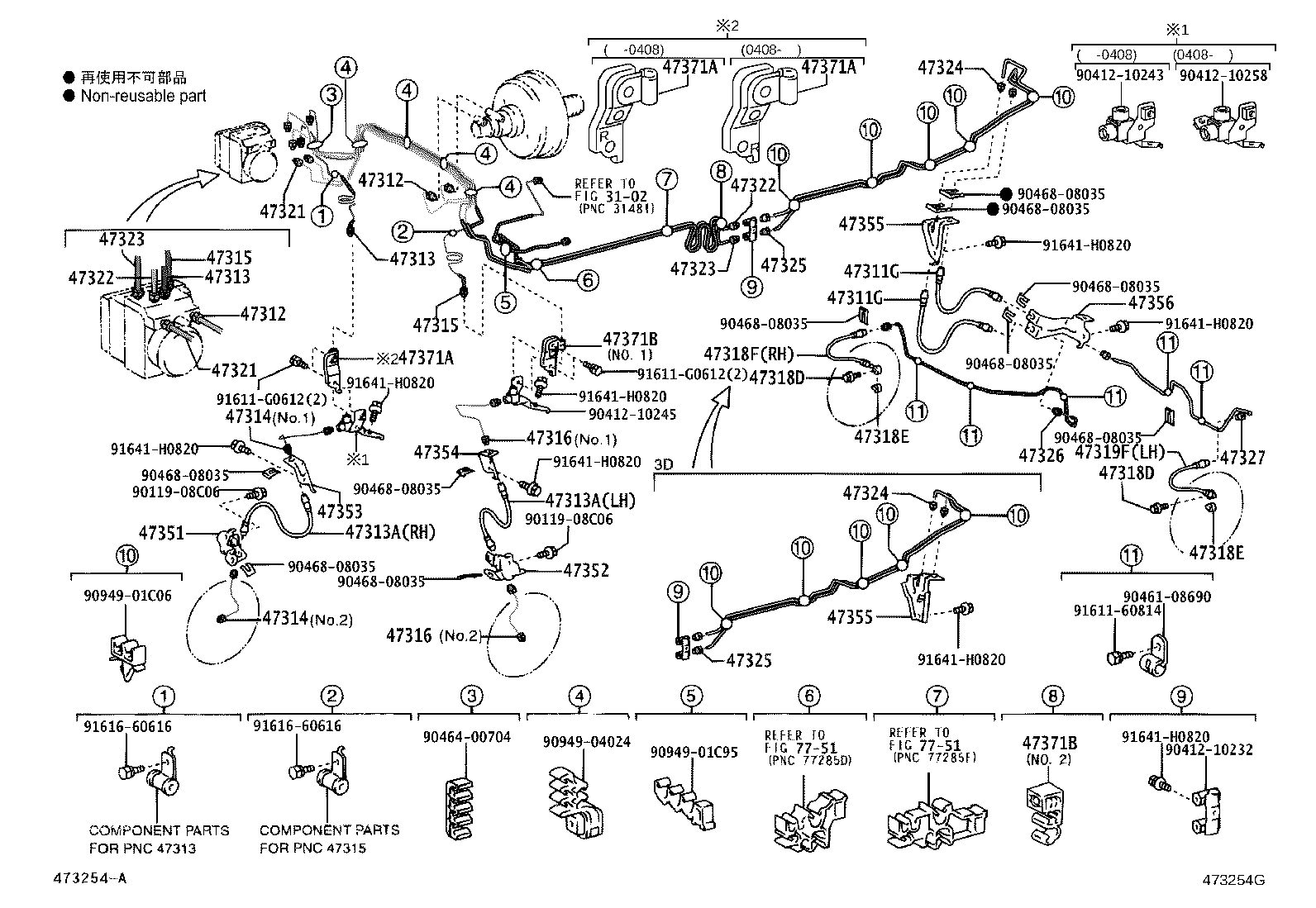

ILLUST NO. 1 OF 2(0209- )LHD

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D40	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	2
90947-02D40	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	2
90947-02D39	GRJ12#,KDJ12#	09/2002 - 08/2004	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D40	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	2
90947-02D40	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	2
90947-02D39	GRJ12#,KDJ12#	09/2002 - 08/2004	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-3D430	GRJ12#,KDJ12#..LHD ABS-WITH	09/2002 - 08/2004	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-3D430	GRJ12#,KDJ12#..LHD ABS-WITH	09/2002 - 08/2004	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-3D171	GRJ12#,KDJ12#..LHD ABS-WITH	09/2002 - 08/2004	1
47313-60381	GRJ12#,KDJ12#..LHD	09/2002 - 08/2004	1
47313-3D181	GRJ12#,KDJ12#..LHD TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-3D171	GRJ12#,KDJ12#..LHD ABS-WITH	09/2002 - 08/2004	1
47313-60381	GRJ12#,KDJ12#..LHD	09/2002 - 08/2004	1
47313-3D181	GRJ12#,KDJ12#..LHD TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D35	GRJ12#,KDJ12#	09/2002 - 02/2007	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D35	GRJ12#,KDJ12#	09/2002 - 02/2007	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-35310	GRJ12#,KDJ12# NO.1	09/2002 - 12/2999	1
47314-35320	GRJ12#,KDJ12# NO.2	09/2002 - 12/2999	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-35310	GRJ12#,KDJ12# NO.1	09/2002 - 12/2999	1
47314-35320	GRJ12#,KDJ12# NO.2	09/2002 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-35461	GRJ12#,KDJ12#..LHD TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47315-60501	GRJ12#,KDJ12#..LHD	09/2002 - 08/2004	1
47315-35451	GRJ12#,KDJ12#..LHD ABS-WITH	09/2002 - 08/2004	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-35461	GRJ12#,KDJ12#..LHD TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47315-60501	GRJ12#,KDJ12#..LHD	09/2002 - 08/2004	1
47315-35451	GRJ12#,KDJ12#..LHD ABS-WITH	09/2002 - 08/2004	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-35280	GRJ12#,KDJ12# NO.2	09/2002 - 12/2999	1
47316-35270	GRJ12#,KDJ12# NO.1	09/2002 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-35280	GRJ12#,KDJ12# NO.2	09/2002 - 12/2999	1
47316-35270	GRJ12#,KDJ12# NO.1	09/2002 - 12/2999	1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	GRJ12#,KDJ12#	09/2002 - 08/2009	2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	GRJ12#,KDJ12#	09/2002 - 08/2009	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	GRJ12#,KDJ12#	09/2002 - 08/2009	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	GRJ12#,KDJ12#	09/2002 - 08/2009	2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02D31	GRJ12#,KDJ12#	09/2002 - 01/2007	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02D32	GRJ12#,KDJ12#	09/2002 - 01/2007	1
47321 - TUBE, REAR BRAKE, NO.1
47321-35850	GRJ12#,KDJ12#..LHD ABS-WITH	09/2002 - 08/2004	1
47321-60300	GRJ12#,KDJ12#..LHD	09/2002 - 08/2004	1
47321 - TUBE, REAR BRAKE, NO.1
47321-35850	GRJ12#,KDJ12#..LHD ABS-WITH	09/2002 - 08/2004	1
47321-60300	GRJ12#,KDJ12#..LHD	09/2002 - 08/2004	1
47322 - TUBE, REAR BRAKE, NO.2
47322-3D070	GRJ12#,KDJ12#..LHD ABS-WITH	09/2002 - 08/2004	1
47322-3D080	GRJ12#,KDJ12#..LHD TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47322 - TUBE, REAR BRAKE, NO.2
47322-3D070	GRJ12#,KDJ12#..LHD ABS-WITH	09/2002 - 08/2004	1
47322-3D080	GRJ12#,KDJ12#..LHD TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47323 - TUBE, REAR BRAKE, NO.3
47323-35260	GRJ12#,KDJ12#..LHD ABS-WITH	09/2002 - 08/2004	1
47323-35270	GRJ12#,KDJ12#..LHD TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47323 - TUBE, REAR BRAKE, NO.3
47323-35260	GRJ12#,KDJ12#..LHD ABS-WITH	09/2002 - 08/2004	1
47323-35270	GRJ12#,KDJ12#..LHD TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47324 - TUBE, REAR BRAKE, NO.4
47324-35310	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47324-60340	GRJ120,KDJ120	09/2002 - 08/2004	1
47324-35310	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	1
47324 - TUBE, REAR BRAKE, NO.4
47324-35310	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47324-60340	GRJ120,KDJ120	09/2002 - 08/2004	1
47324-35310	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	1
47325 - TUBE, REAR BRAKE, NO.5
47325-60300	GRJ120,KDJ120	09/2002 - 08/2004	1
47325-35390	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47325-35390	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	1
47325 - TUBE, REAR BRAKE, NO.5
47325-60300	GRJ120,KDJ120	09/2002 - 08/2004	1
47325-35390	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47325-35390	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	1
47326 - TUBE, REAR BRAKE, NO.6
47326-35120	GRJ12#,KDJ12# TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2003	1
47326-35130	GRJ12#,KDJ12# TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	08/2003 - 08/2004	1
47326-35120	GRJ12#,KDJ12# ABS-WITH	09/2002 - 08/2003	1
47326-35130	GRJ12#,KDJ12# ABS-WITH	08/2003 - 08/2004	1
47326-60320	GRJ12#,KDJ12#	09/2002 - 08/2004	1
47327 - TUBE, REAR BRAKE, NO.7
47327-60150	GRJ12#,KDJ12#	09/2002 - 08/2004	1
47327-35090	GRJ12#,KDJ12# ABS-WITH	09/2002 - 08/2003	1
47327-35090	GRJ12#,KDJ12# TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2003	1
47327-35100	GRJ12#,KDJ12# ABS-WITH	08/2003 - 08/2004	1
47327-35100	GRJ12#,KDJ12# TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	08/2003 - 08/2004	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35350	GRJ12#,KDJ12#	09/2002 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35390	GRJ12#,KDJ12#	09/2002 - 12/2999	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-35140	GRJ12#,KDJ12#	09/2002 - 12/2999	1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-35120	GRJ12#,KDJ12#	09/2002 - 12/2999	1
47355 - BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT)
47355-35130	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47355-60170	GRJ120,KDJ120	09/2002 - 08/2004	1
47355-35130	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	1
47355 - BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT)
47355-35130	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47355-60170	GRJ120,KDJ120	09/2002 - 08/2004	1
47355-35130	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	1
47356 - BRACKET, FLEXIBLE HOSE, NO.6
47356-35010	GRJ12#,KDJ12# ABS-WITH	09/2002 - 08/2004	1
47356-35010	GRJ12#,KDJ12# TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-60150	GRJ12#,KDJ12#	09/2002 - 08/2004	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-60150	GRJ12#,KDJ12#	09/2002 - 08/2004	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-60150	GRJ12#,KDJ12#	09/2002 - 08/2004	1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-60160	GRJ12#,KDJ12# NO.1	09/2002 - 12/2999	1
77299-32030	GRJ12#,KDJ12# NO.2	09/2002 - 12/2999	1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-60160	GRJ12#,KDJ12# NO.1	09/2002 - 12/2999	1
77299-32030	GRJ12#,KDJ12# NO.2	09/2002 - 12/2999	1
Common parts
90119-08C06
90412-10232
90412-10243
90412-10245
90412-10258
90461-08690
90464-00704
90468-08035
90949-01C06
90949-01C95
90949-04024
91611-60814
91611-G0612
91616-60616
91641-H0820
Linked diagrams
3102
7751

ILLUST NO. 2 OF 2(0209- )

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty

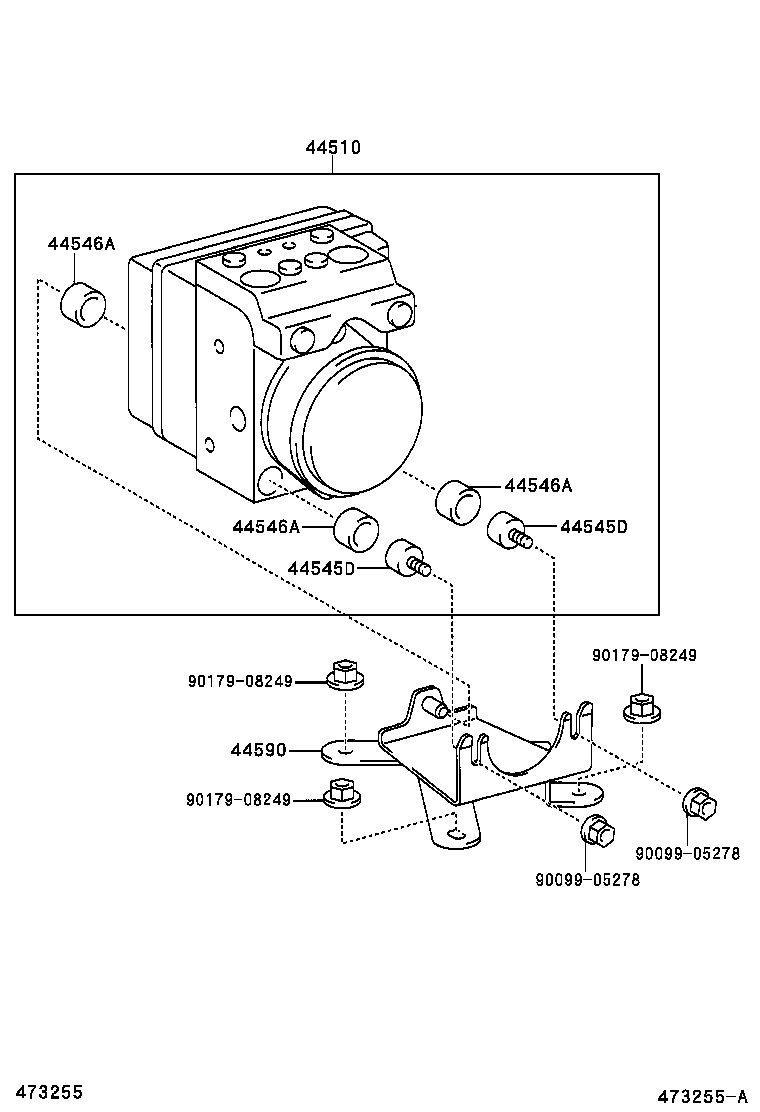

44510 - ACTUATOR ASSY, BRAKE
44050-60100	GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH&ABS-WITH	09/2002 - 08/2004	1
44050-60090	GRJ12#,KDJ12# ABS-WITH	09/2002 - 08/2004	1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-12010	GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH&ABS-WITH	09/2002 - 08/2004	2
44545-12010	GRJ12#,KDJ12# ABS-WITH	09/2002 - 08/2004	2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-12010	GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH&ABS-WITH	09/2002 - 08/2004	2
44545-12010	GRJ12#,KDJ12# ABS-WITH	09/2002 - 08/2004	2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060	GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH&ABS-WITH	09/2002 - 08/2004	3
44546-60060	GRJ12#,KDJ12# ABS-WITH	09/2002 - 08/2004	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060	GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH&ABS-WITH	09/2002 - 08/2004	3
44546-60060	GRJ12#,KDJ12# ABS-WITH	09/2002 - 08/2004	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060	GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH&ABS-WITH	09/2002 - 08/2004	3
44546-60060	GRJ12#,KDJ12# ABS-WITH	09/2002 - 08/2004	3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-60020	GRJ12#,KDJ12# ABS-WITH	09/2002 - 08/2004	1
44590-60020	GRJ12#,KDJ12# DIFFERENTIAL LOCK-WITH&ABS-WITH	09/2002 - 08/2004	1
Common parts
90099-05278
90179-08249

(0209- )LHD

Click highlighted areas on diagram

W(ABS & VSC & ACTIVE TRC)

Part #	Description	Period	Qty
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D40	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	2
90947-02D40	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	2
90947-02D39	GRJ12#,KDJ12#	09/2002 - 08/2004	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D40	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	2
90947-02D40	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	2
90947-02D39	GRJ12#,KDJ12#	09/2002 - 08/2004	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-3D171	GRJ12#,KDJ12#..LHD ABS-WITH	09/2002 - 08/2004	1
47313-60381	GRJ12#,KDJ12#..LHD	09/2002 - 08/2004	1
47313-3D181	GRJ12#,KDJ12#..LHD TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D35	GRJ12#,KDJ12#	09/2002 - 02/2007	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D35	GRJ12#,KDJ12#	09/2002 - 02/2007	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-35310	GRJ12#,KDJ12# NO.1	09/2002 - 12/2999	1
47314-35320	GRJ12#,KDJ12# NO.2	09/2002 - 12/2999	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-35310	GRJ12#,KDJ12# NO.1	09/2002 - 12/2999	1
47314-35320	GRJ12#,KDJ12# NO.2	09/2002 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-35461	GRJ12#,KDJ12#..LHD TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47315-60501	GRJ12#,KDJ12#..LHD	09/2002 - 08/2004	1
47315-35451	GRJ12#,KDJ12#..LHD ABS-WITH	09/2002 - 08/2004	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-35280	GRJ12#,KDJ12# NO.2	09/2002 - 12/2999	1
47316-35270	GRJ12#,KDJ12# NO.1	09/2002 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-35280	GRJ12#,KDJ12# NO.2	09/2002 - 12/2999	1
47316-35270	GRJ12#,KDJ12# NO.1	09/2002 - 12/2999	1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	GRJ12#,KDJ12#	09/2002 - 08/2009	2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	GRJ12#,KDJ12#	09/2002 - 08/2009	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	GRJ12#,KDJ12#	09/2002 - 08/2009	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	GRJ12#,KDJ12#	09/2002 - 08/2009	2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02D31	GRJ12#,KDJ12#	09/2002 - 01/2007	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02D32	GRJ12#,KDJ12#	09/2002 - 01/2007	1
47322 - TUBE, REAR BRAKE, NO.2
47322-3D070	GRJ12#,KDJ12#..LHD ABS-WITH	09/2002 - 08/2004	1
47322-3D080	GRJ12#,KDJ12#..LHD TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47323 - TUBE, REAR BRAKE, NO.3
47323-35260	GRJ12#,KDJ12#..LHD ABS-WITH	09/2002 - 08/2004	1
47323-35270	GRJ12#,KDJ12#..LHD TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47324 - TUBE, REAR BRAKE, NO.4
47324-35310	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47324-60340	GRJ120,KDJ120	09/2002 - 08/2004	1
47324-35310	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	1
47324 - TUBE, REAR BRAKE, NO.4
47324-35310	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47324-60340	GRJ120,KDJ120	09/2002 - 08/2004	1
47324-35310	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	1
47325 - TUBE, REAR BRAKE, NO.5
47325-60300	GRJ120,KDJ120	09/2002 - 08/2004	1
47325-35390	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47325-35390	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	1
47325 - TUBE, REAR BRAKE, NO.5
47325-60300	GRJ120,KDJ120	09/2002 - 08/2004	1
47325-35390	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47325-35390	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	1
47326 - TUBE, REAR BRAKE, NO.6
47326-35120	GRJ12#,KDJ12# TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2003	1
47326-35130	GRJ12#,KDJ12# TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	08/2003 - 08/2004	1
47326-35120	GRJ12#,KDJ12# ABS-WITH	09/2002 - 08/2003	1
47326-35130	GRJ12#,KDJ12# ABS-WITH	08/2003 - 08/2004	1
47326-60320	GRJ12#,KDJ12#	09/2002 - 08/2004	1
47327 - TUBE, REAR BRAKE, NO.7
47327-60150	GRJ12#,KDJ12#	09/2002 - 08/2004	1
47327-35090	GRJ12#,KDJ12# ABS-WITH	09/2002 - 08/2003	1
47327-35090	GRJ12#,KDJ12# TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2003	1
47327-35100	GRJ12#,KDJ12# ABS-WITH	08/2003 - 08/2004	1
47327-35100	GRJ12#,KDJ12# TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	08/2003 - 08/2004	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35350	GRJ12#,KDJ12#	09/2002 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35390	GRJ12#,KDJ12#	09/2002 - 12/2999	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-35140	GRJ12#,KDJ12#	09/2002 - 12/2999	1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-35120	GRJ12#,KDJ12#	09/2002 - 12/2999	1
47355 - BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT)
47355-35130	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47355-60170	GRJ120,KDJ120	09/2002 - 08/2004	1
47355-35130	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	1
47355 - BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT)
47355-35130	GRJ120,KDJ120 TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47355-60170	GRJ120,KDJ120	09/2002 - 08/2004	1
47355-35130	GRJ120,KDJ120 ABS-WITH	09/2002 - 08/2004	1
47356 - BRACKET, FLEXIBLE HOSE, NO.6
47356-35010	GRJ12#,KDJ12# ABS-WITH	09/2002 - 08/2004	1
47356-35010	GRJ12#,KDJ12# TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)	09/2002 - 08/2004	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-60150	GRJ12#,KDJ12#	09/2002 - 08/2004	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-60150	GRJ12#,KDJ12#	09/2002 - 08/2004	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-60150	GRJ12#,KDJ12#	09/2002 - 08/2004	1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-60160	GRJ12#,KDJ12# NO.1	09/2002 - 12/2999	1
77299-32030	GRJ12#,KDJ12# NO.2	09/2002 - 12/2999	1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-60160	GRJ12#,KDJ12# NO.1	09/2002 - 12/2999	1
77299-32030	GRJ12#,KDJ12# NO.2	09/2002 - 12/2999	1
Common parts
90119-08C06
90412-10232
90412-10243
90412-10245
90412-10258
90461-08690
90468-08035
90949-01C06
90949-01C95
90949-04024
90949-04025
91611-60814
91611-G0612
91616-60616
91641-H0820
Linked diagrams
7751

KDJ120L-GKPEYW (2002)

(0209-0408)LHD

ILLUST NO. 1 OF 2(0209- )LHD

ILLUST NO. 2 OF 2(0209- )

(0209- )LHD

Part Price Details
