KDJ120L-GKPEYW (2002)
Toyota Land Cruiser Prado
(0209-0408)KDJ12#..4FC
A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-60280 |
KDJ12#..4FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16009 |
KDJ12#..4FC NO.2 |
1 | ||
| 90407-14024 |
GRJ12#,KDJ12#..4FC NO.1 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16009 |
KDJ12#..4FC NO.2 |
1 | ||
| 90407-14024 |
GRJ12#,KDJ12#..4FC NO.1 |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-60270 |
KDJ12#..4FC |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
KDJ12#..4FC ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
2 | ||
| 90301-11030 |
GRJ12#..5FC;KDJ12#..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
KDJ12#..4FC ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
2 | ||
| 90301-11030 |
GRJ12#..5FC;KDJ12#..4FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GRJ12#,KDJ12#..ATM |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GRJ12#,KDJ12#..ATM |
2 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
KDJ12#..ATM |
2 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
KDJ12#..ATM |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-60300 |
KDJ12#..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32942-60380 |
KDJ12#..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32929-24060 |
KDJ12#..ATM |
1 | ||
| 32923D - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5 | ||||
| 32909-60100 |
KDJ12#..ATM |
1 | ||
| 32923G - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.8 | ||||
| 32928-60100 |
GRJ12#,KDJ12#..ATM |
1 | ||
| 32923L - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3 | ||||
| 32909-60050 |
KDJ12#..ATM |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30030 |
GRJ12#..4FC;KDJ12#..ATM L=35,ID=10,NO.2 |
2 | ||
| 32926-30020 |
GRJ12#,KDJ12#..ATM L=35,ID=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30030 |
GRJ12#..4FC;KDJ12#..ATM L=35,ID=10,NO.2 |
2 | ||
| 32926-30020 |
GRJ12#,KDJ12#..ATM L=35,ID=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30030 |
GRJ12#..4FC;KDJ12#..ATM L=35,ID=10,NO.2 |
2 | ||
| 32926-30020 |
GRJ12#,KDJ12#..ATM L=35,ID=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30030 |
GRJ12#..4FC;KDJ12#..ATM L=35,ID=10,NO.2 |
2 | ||
| 32926-30020 |
GRJ12#,KDJ12#..ATM L=35,ID=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30030 |
GRJ12#..4FC;KDJ12#..ATM L=35,ID=10,NO.2 |
2 | ||
| 32926-30020 |
GRJ12#,KDJ12#..ATM L=35,ID=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30030 |
GRJ12#..4FC;KDJ12#..ATM L=35,ID=10,NO.2 |
2 | ||
| 32926-30020 |
GRJ12#,KDJ12#..ATM L=35,ID=10,NO.1 |
4 | ||
| Common parts | ||||
| 90119-08650 | ||||
| 91611-60814 | ||||
| 91611-B0614 | ||||
| 91611-F0612 | ||||
| 91619-61216 | ||||

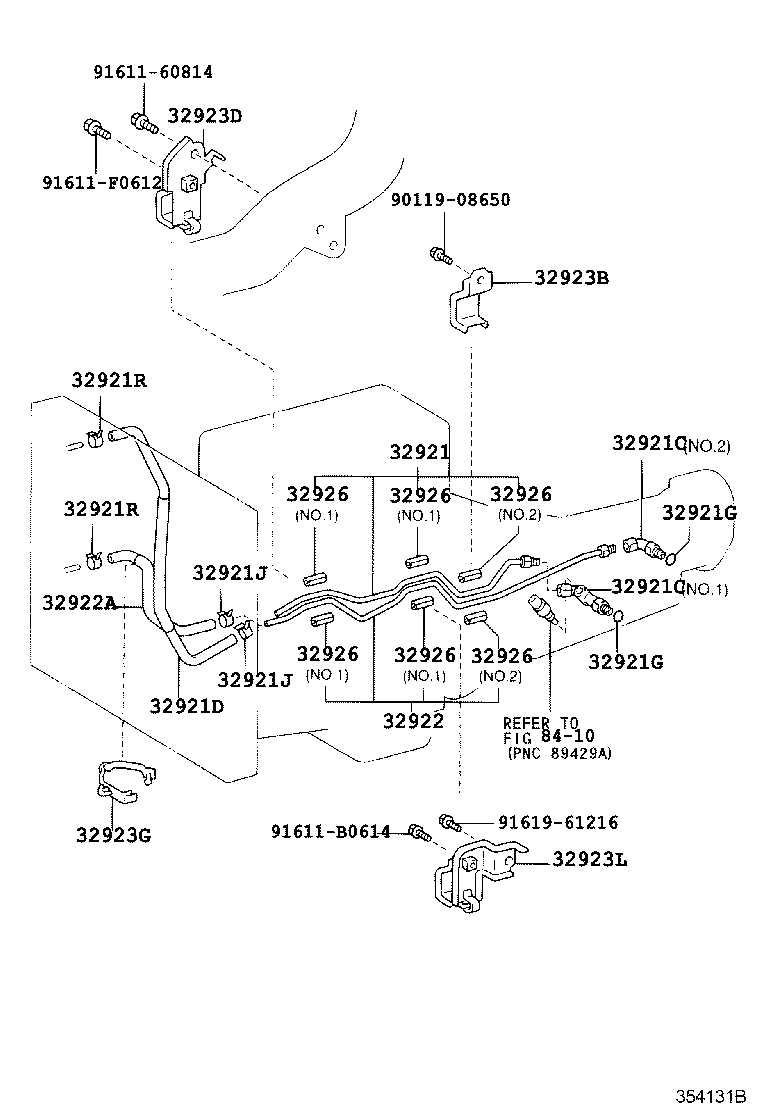

| Linked diagrams | ||||
| 8410 | ||||
