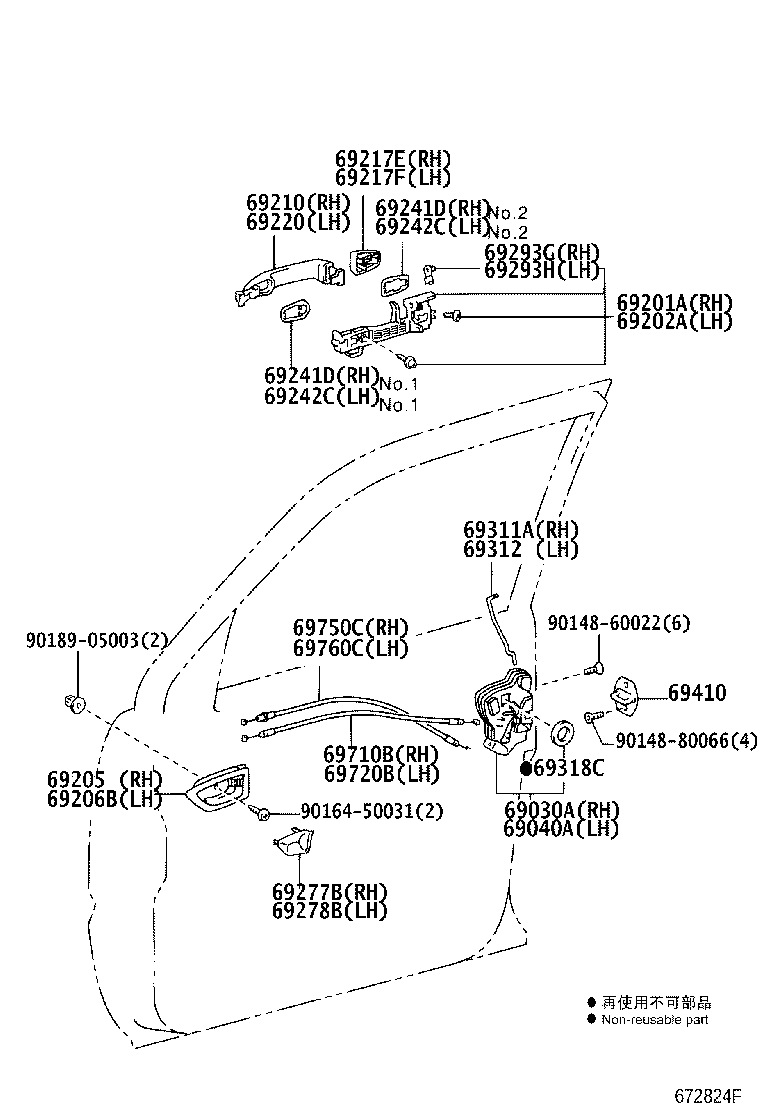

KDJ120L-GKMEYW (2002)
Toyota Land Cruiser Prado
(0209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-33271 |
GRJ12#,KDJ12#..LHD |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-33231 |
GRJ12#,KDJ12#..LHD |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-28010 |
GRJ12#,KDJ12# |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-28010 |
GRJ12#,KDJ12# |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-60100B0 |
GRJ125,KDJ125;GRJ120,KDJ120..4FC,5F W(*LEP1),MD.GRAY,TRIM1# |
1 | ||
| 69205-60090A0 |
GRJ12#,KDJ12# IVORY,TRIM0# |
1 | ||
| 69205-60100A0 |
GRJ125,KDJ125;GRJ120,KDJ120..4FC,5F W(*LEP1),IVORY,TRIM0# |
1 | ||
| 69205-60100B0 |
GRJ125,KDJ125;GRJ120,KDJ120..4FC,5F W(*LEP1) & LEATHER SEAT PACKAGE,MD.GRAY,TRIM1# |
1 | ||
| 69205-60090B0 |
GRJ12#,KDJ12# MD.GRAY,TRIM1# |
1 | ||
| 69205-60100A0 |
GRJ125,KDJ125;GRJ120,KDJ120..4FC,5F W(*LEP1) & LEATHER SEAT PACKAGE,IVORY,TRIM0# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-60100A0 |
GRJ125,KDJ125;GRJ120,KDJ120..4FC,5F W(*LEP1) & LEATHER SEAT PACKAGE,IVORY,TRIM0# |
1 | ||
| 69206-60100A0 |
GRJ125,KDJ125;GRJ120,KDJ120..4FC,5F W(*LEP1),IVORY,TRIM0# |
1 | ||
| 69206-60100B0 |
GRJ125,KDJ125;GRJ120,KDJ120..4FC,5F W(*LEP1),MD.GRAY,TRIM1# |
1 | ||
| 69206-60090B0 |
GRJ12#,KDJ12# MD.GRAY,TRIM1# |
1 | ||
| 69206-60100B0 |
GRJ125,KDJ125;GRJ120,KDJ120..4FC,5F W(*LEP1) & LEATHER SEAT PACKAGE,MD.GRAY,TRIM1# |
1 | ||
| 69206-60090A0 |
GRJ12#,KDJ12# IVORY,TRIM0# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69211-28070B4 |
KDJ12# DK.GRAY M.M.,1E9 |
1 | ||
| 69211-28070D3 |
KDJ12# DARK RED MC.,3Q8 |
1 | ||
| 69211-28070B0 |
KDJ12# SILVER ME.,1D4 |
1 | ||
| 69211-28070C1 |
KDJ12# OVER FENDER & CHROME PLATED SPEC,BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 69211-28070J3 |
KDJ12# DARK BLUE M.M.,8R4 |
1 | ||
| 69211-28070F2 |
KDJ12# CHAMPAGNE M.M.,587 |
1 | ||
| 69211-28070C1 |
KDJ12# CHROME PLATED SPEC,BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 69211-28070C1 |
KDJ12# BLACK,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 69211-28070B0 |
KDJ12# CHROME PLATED SPEC,SILVER ME.,1D4 |
1 | ||
| 69211-28070A2 |
KDJ12# WHITE,056 |
1 | ||
| 69211-28070A2 |
KDJ12# OVER FENDER & CHROME PLATED SPEC,WHITE,056 |
1 | ||
| 69211-28070D3 |
KDJ12# OVER FENDER & CHROME PLATED SPEC,DARK RED MC.,3Q8 |
1 | ||
| 69211-28070F2 |
KDJ12# OVER FENDER & CHROME PLATED SPEC,CHAMPAGNE M.M.,587 |
1 | ||
| 69211-28070G1 |
KDJ12# DK.GREEN MC.,6Q7 |
1 | ||
| 69211-28070A2 |
KDJ12# CHROME PLATED SPEC,WHITE,056 |
1 | ||
| 69211-28070F2 |
KDJ12# CHROME PLATED SPEC,CHAMPAGNE M.M.,587 |
1 | ||
| 69211-60060 |
KDJ12# NO PAINT REQ. |
1 | ||
| 69211-28070B4 |
KDJ12# CHROME PLATED SPEC,DK.GRAY M.M.,1E9 |
1 | ||
| 69211-28070G1 |
KDJ12# OVER FENDER & CHROME PLATED SPEC,DK.GREEN MC.,6Q7 |
1 | ||
| 69211-28070D3 |
KDJ12# CHROME PLATED SPEC,DARK RED MC.,3Q8 |
1 | ||
| 69211-28070G1 |
KDJ12# CHROME PLATED SPEC,DK.GREEN MC.,6Q7 |
1 | ||
| 69211-28070B0 |
KDJ12# OVER FENDER & CHROME PLATED SPEC,SILVER ME.,1D4 |
1 | ||
| 69211-28070B4 |
KDJ12# OVER FENDER & CHROME PLATED SPEC,DK.GRAY M.M.,1E9 |
1 | ||
| 69211-28070J3 |
KDJ12# OVER FENDER & CHROME PLATED SPEC,DARK BLUE M.M.,8R4 |
1 | ||
| 69211-28070J3 |
KDJ12# CHROME PLATED SPEC,DARK BLUE M.M.,8R4 |
1 | ||
| 69211-28070C1 |
GRJ12#,KDJ12# BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-60020B0 |
KDJ12#..LHD SILVER ME.,1D4 |
1 | ||
| 69217-60020C0 |
KDJ12#..LHD BLACK,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 69217-60020A0 |
KDJ12#..LHD WHITE,056 |
1 | ||
| 69217-60020B1 |
KDJ12#..LHD DK.GRAY M.M.,1E9 |
1 | ||
| 69217-60020G0 |
KDJ12#..LHD DK.GREEN MC.,6Q7 |
1 | ||
| 69217-60020F0 |
KDJ12#..LHD CHAMPAGNE M.M.,587 |
1 | ||
| 69217-60020D1 |
KDJ12#..LHD DARK RED MC.,3Q8 |
1 | ||
| 69217-60020J2 |
KDJ12#..LHD DARK BLUE M.M.,8R4 |
1 | ||
| 69217-60020C0 |
KDJ12#..LHD OVER FENDER & CHROME PLATED SPEC,BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 69217-60020C0 |
KDJ12#..LHD CHROME PLATED SPEC,BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 69217-60020A0 |
KDJ12#..LHD OVER FENDER & CHROME PLATED SPEC,WHITE,056 |
1 | ||
| 69217-60020G0 |
KDJ12#..LHD OVER FENDER & CHROME PLATED SPEC,DK.GREEN MC.,6Q7 |
1 | ||
| 69217-60020D1 |
KDJ12#..LHD CHROME PLATED SPEC,DARK RED MC.,3Q8 |
1 | ||
| 69217-60020F0 |
KDJ12#..LHD OVER FENDER & CHROME PLATED SPEC,CHAMPAGNE M.M.,587 |
1 | ||
| 69217-60020B1 |
KDJ12#..LHD OVER FENDER & CHROME PLATED SPEC,DK.GRAY M.M.,1E9 |
1 | ||
| 69217-60020B0 |
KDJ12#..LHD CHROME PLATED SPEC,SILVER ME.,1D4 |
1 | ||
| 69217-60020B1 |
KDJ12#..LHD CHROME PLATED SPEC,DK.GRAY M.M.,1E9 |
1 | ||
| 69217-60020D1 |
KDJ12#..LHD OVER FENDER & CHROME PLATED SPEC,DARK RED MC.,3Q8 |
1 | ||
| 69217-60010 |
KDJ12#..LHD |
1 | ||
| 69217-60020B0 |
KDJ12#..LHD OVER FENDER & CHROME PLATED SPEC,SILVER ME.,1D4 |
1 | ||
| 69217-60020C0 |
GRJ12#,KDJ12#..LHD BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 69217-60020A0 |
KDJ12#..LHD CHROME PLATED SPEC,WHITE,056 |
1 | ||
| 69217-60020J2 |
KDJ12#..LHD CHROME PLATED SPEC,DARK BLUE M.M.,8R4 |
1 | ||
| 69217-60020F0 |
KDJ12#..LHD CHROME PLATED SPEC,CHAMPAGNE M.M.,587 |
1 | ||
| 69217-60020J2 |
KDJ12#..LHD OVER FENDER & CHROME PLATED SPEC,DARK BLUE M.M.,8R4 |
1 | ||
| 69217-60020G0 |
KDJ12#..LHD CHROME PLATED SPEC,DK.GREEN MC.,6Q7 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-28010B4 |
KDJ12#..LHD DK.GRAY M.M.,1E9 |
1 | ||
| 69217-28010A2 |
KDJ12#..LHD WHITE,056 |
1 | ||
| 69217-28010J3 |
KDJ12#..LHD DARK BLUE M.M.,8R4 |
1 | ||
| 69217-28010C1 |
KDJ12#..LHD BLACK,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 69217-28010D3 |
KDJ12#..LHD DARK RED MC.,3Q8 |
1 | ||
| 69217-28010B0 |
KDJ12#..LHD SILVER ME.,1D4 |
1 | ||
| 69217-28010C1 |
KDJ12#..LHD OVER FENDER & CHROME PLATED SPEC,BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 69217-28010F2 |
KDJ12#..LHD CHAMPAGNE M.M.,587 |
1 | ||
| 69217-28010B0 |
KDJ12#..LHD CHROME PLATED SPEC,SILVER ME.,1D4 |
1 | ||
| 69217-28010A2 |
KDJ12#..LHD CHROME PLATED SPEC,WHITE,056 |
1 | ||
| 69217-28010B4 |
KDJ12#..LHD CHROME PLATED SPEC,DK.GRAY M.M.,1E9 |
1 | ||
| 69217-28010C1 |
KDJ12#..LHD CHROME PLATED SPEC,BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 69217-28010D3 |
KDJ12#..LHD OVER FENDER & CHROME PLATED SPEC,DARK RED MC.,3Q8 |
1 | ||
| 69217-28010A2 |
KDJ12#..LHD OVER FENDER & CHROME PLATED SPEC,WHITE,056 |
1 | ||
| 69217-28010B4 |
KDJ12#..LHD OVER FENDER & CHROME PLATED SPEC,DK.GRAY M.M.,1E9 |
1 | ||
| 69217-28010G1 |
KDJ12#..LHD DK.GREEN MC.,6Q7 |
1 | ||
| 69217-28010F2 |
KDJ12#..LHD OVER FENDER & CHROME PLATED SPEC,CHAMPAGNE M.M.,587 |
1 | ||
| 69217-28010D3 |
KDJ12#..LHD CHROME PLATED SPEC,DARK RED MC.,3Q8 |
1 | ||
| 69217-28010J3 |
KDJ12#..LHD CHROME PLATED SPEC,DARK BLUE M.M.,8R4 |
1 | ||
| 69217-28010G1 |
KDJ12#..LHD OVER FENDER & CHROME PLATED SPEC,DK.GREEN MC.,6Q7 |
1 | ||
| 69217-60030 |
KDJ12#..LHD |
1 | ||
| 69217-28010J3 |
KDJ12#..LHD OVER FENDER & CHROME PLATED SPEC,DARK BLUE M.M.,8R4 |
1 | ||
| 69217-28010G1 |
KDJ12#..LHD CHROME PLATED SPEC,DK.GREEN MC.,6Q7 |
1 | ||
| 69217-28010B0 |
KDJ12#..LHD OVER FENDER & CHROME PLATED SPEC,SILVER ME.,1D4 |
1 | ||
| 69217-28010F2 |
KDJ12#..LHD CHROME PLATED SPEC,CHAMPAGNE M.M.,587 |
1 | ||
| 69217-28010C1 |
GRJ12#,KDJ12#..LHD BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69211-28070C1 |
KDJ12# BLACK,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 69211-28070F2 |
KDJ12# CHAMPAGNE M.M.,587 |
1 | ||
| 69211-28070B0 |
KDJ12# SILVER ME.,1D4 |
1 | ||
| 69211-28070B4 |
KDJ12# DK.GRAY M.M.,1E9 |
1 | ||
| 69211-28070D3 |
KDJ12# DARK RED MC.,3Q8 |
1 | ||
| 69211-28070J3 |
KDJ12# DARK BLUE M.M.,8R4 |
1 | ||
| 69211-28070A2 |
KDJ12# WHITE,056 |
1 | ||
| 69211-28070G1 |
KDJ12# DK.GREEN MC.,6Q7 |
1 | ||
| 69211-28070B4 |
KDJ12# CHROME PLATED SPEC,DK.GRAY M.M.,1E9 |
1 | ||
| 69211-28070C1 |
KDJ12# CHROME PLATED SPEC,BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 69211-28070A2 |
KDJ12# OVER FENDER & CHROME PLATED SPEC,WHITE,056 |
1 | ||
| 69211-28070B0 |
KDJ12# OVER FENDER & CHROME PLATED SPEC,SILVER ME.,1D4 |
1 | ||
| 69211-28070A2 |
KDJ12# CHROME PLATED SPEC,WHITE,056 |
1 | ||
| 69211-28070D3 |
KDJ12# OVER FENDER & CHROME PLATED SPEC,DARK RED MC.,3Q8 |
1 | ||
| 69211-28070G1 |
KDJ12# OVER FENDER & CHROME PLATED SPEC,DK.GREEN MC.,6Q7 |
1 | ||
| 69211-28070B0 |
KDJ12# CHROME PLATED SPEC,SILVER ME.,1D4 |
1 | ||
| 69211-28070G1 |
KDJ12# CHROME PLATED SPEC,DK.GREEN MC.,6Q7 |
1 | ||
| 69211-28070C1 |
GRJ12#,KDJ12# BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 69211-28070J3 |
KDJ12# OVER FENDER & CHROME PLATED SPEC,DARK BLUE M.M.,8R4 |
1 | ||
| 69211-28070C1 |
KDJ12# OVER FENDER & CHROME PLATED SPEC,BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4 |
1 | ||
| 69211-28070J3 |
KDJ12# CHROME PLATED SPEC,DARK BLUE M.M.,8R4 |
1 | ||
| 69211-28070F2 |
KDJ12# OVER FENDER & CHROME PLATED SPEC,CHAMPAGNE M.M.,587 |
1 | ||
| 69211-28070F2 |
KDJ12# CHROME PLATED SPEC,CHAMPAGNE M.M.,587 |
1 | ||
| 69211-28070B4 |
KDJ12# OVER FENDER & CHROME PLATED SPEC,DK.GRAY M.M.,1E9 |
1 | ||
| 69211-60060 |
KDJ12# NO PAINT REQ. |
1 | ||
| 69211-28070D3 |
KDJ12# CHROME PLATED SPEC,DARK RED MC.,3Q8 |
1 | ||
| 69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69241-28060 |
GRJ12#,KDJ12# NO.1 |
1 | ||
| 69242-60030 |
GRJ12#,KDJ12# NO.2 |
1 | ||
| 69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69241-28060 |
GRJ12#,KDJ12# NO.1 |
1 | ||
| 69242-60030 |
GRJ12#,KDJ12# NO.2 |
1 | ||
| 69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69242-60030 |
GRJ12#,KDJ12# NO.2 |
1 | ||
| 69241-28060 |
GRJ12#,KDJ12# NO.1 |
1 | ||
| 69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69242-60030 |
GRJ12#,KDJ12# NO.2 |
1 | ||
| 69241-28060 |
GRJ12#,KDJ12# NO.1 |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69297-30030A0 |
GRJ12#,KDJ12# IVORY,TRIM0# |
1 | ||
| 69297-30030B4 |
GRJ12#,KDJ12# MD.GRAY,TRIM1# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69298-30030A0 |
GRJ12#,KDJ12# IVORY,TRIM0# |
1 | ||
| 69298-30030B4 |
GRJ12#,KDJ12# MD.GRAY,TRIM1# |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
GRJ12#,KDJ12# |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
GRJ12#,KDJ12# |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-60040 |
GRJ12#,KDJ12# |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-60040 |
GRJ12#,KDJ12# |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
GRJ12#,KDJ12# |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33010 |
GRJ12#,KDJ12# |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-60010 |
GRJ12#,KDJ12# |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-60010 |
GRJ12#,KDJ12# |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-60020 |
GRJ12#,KDJ12# |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-60020 |
GRJ12#,KDJ12# |
1 | ||
| Common parts | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| 90164-50031 | ||||
| 90189-05003 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
