KDJ120L-GKMEYW (2002)
Toyota Land Cruiser Prado
ILLUST NO. 1 OF 2(0209- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-51020C0 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),BLACK,TRIM0#,1# |
1 | ||
| 55539-51020C0 |
GRJ12#,KDJ12# BLACK,TRIM0#,1# |
1 | ||
| 55539-51020C0 |
GRJ12#,KDJ12# WITH(SEAT HEATER),BLACK,TRIM0#,1# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-51020C0 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),BLACK,TRIM0#,1# |
1 | ||
| 55539-51020C0 |
GRJ12#,KDJ12# BLACK,TRIM0#,1# |
1 | ||
| 55539-51020C0 |
GRJ12#,KDJ12# WITH(SEAT HEATER),BLACK,TRIM0#,1# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-51020C0 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),BLACK,TRIM0#,1# |
1 | ||
| 55539-51020C0 |
GRJ12#,KDJ12# BLACK,TRIM0#,1# |
1 | ||
| 55539-51020C0 |
GRJ12#,KDJ12# WITH(SEAT HEATER),BLACK,TRIM0#,1# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-51020C0 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),BLACK,TRIM0#,1# |
1 | ||
| 55539-51020C0 |
GRJ12#,KDJ12# BLACK,TRIM0#,1# |
1 | ||
| 55539-51020C0 |
GRJ12#,KDJ12# WITH(SEAT HEATER),BLACK,TRIM0#,1# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-51020C0 |
GRJ12#,KDJ12# ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),BLACK,TRIM0#,1# |
1 | ||
| 55539-51020C0 |
GRJ12#,KDJ12# BLACK,TRIM0#,1# |
1 | ||
| 55539-51020C0 |
GRJ12#,KDJ12# WITH(SEAT HEATER),BLACK,TRIM0#,1# |
1 | ||
| 55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1 | ||||
| 55633-60040 |
GRJ12#,KDJ12# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-60170 |
KDJ12#..LHD..5F |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-60170 |
KDJ12#..LHD..5F |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-60170 |
KDJ12#..LHD..5F |
1 | ||
| 58812A - BOX, CONSOLE, LOWER | ||||
| 58812-60030E0 |
GRJ12#,KDJ12#..LHD SANDAL WOOD,TRIM0# |
1 | ||
| 58812-60030C0 |
GRJ12#,KDJ12#..LHD BLACK,TRIM1# |
1 | ||
| 58816B - INSERT, CONSOLE BOX | ||||
| 58816-60010C0 |
GRJ12#,KDJ12#..LHD BLACK,TRIM1# |
1 | ||
| 58816-60010E0 |
GRJ12#,KDJ12#..LHD SANDAL WOOD,TRIM0# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-60010C0 |
GRJ12#,KDJ12#..LHD BLACK,TRIM1# |
1 | ||
| 58817-60010E0 |
GRJ12#,KDJ12#..LHD SANDAL WOOD,TRIM0# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-60060 |
KDJ12#..LHD..5F |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-60060 |
KDJ12#..LHD..5F |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-60050 |
GRJ12#,KDJ12#..LHD |
1 | ||
| 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58831-60020 |
GRJ12#,KDJ12#..LHD..(4FC,5F,5FC) |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-60050 |
GRJ12#,KDJ12#..LHD W(*LEP1) & LEATHER SEAT PACKAGE |
1 | ||
| 58833-60050 |
GRJ12#,KDJ12#..LHD W(*LEP1) |
1 | ||
| 58833-60030 |
GRJ12#,KDJ12#..LHD |
1 | ||
| 58834B - GARNISH, CONSOLE UPPER PANEL, NO.2 | ||||
| 58834-60040 |
GRJ12#,KDJ12#..LHD W(*LEP1) & LEATHER SEAT PACKAGE |
1 | ||
| 58834-60020 |
GRJ12#,KDJ12#..LHD |
1 | ||
| 58834-60040 |
GRJ12#,KDJ12#..LHD W(*LEP1) |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-60030 |
GRJ12#,KDJ12# |
1 | ||
| 58839-60040 |
GRJ12#,KDJ12# |
1 | ||
| 58839-60030 |
GRJ120,KDJ120 TEMS |
1 | ||
| 58839-60040 |
GRJ120,KDJ120 TEMS |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-60030 |
GRJ12#,KDJ12# |
1 | ||
| 58839-60040 |
GRJ12#,KDJ12# |
1 | ||
| 58839-60030 |
GRJ120,KDJ120 TEMS |
1 | ||
| 58839-60040 |
GRJ120,KDJ120 TEMS |
1 | ||
| 58916G - MAT, BOX BOTTOM, NO.2 | ||||
| 58916-60030 |
GRJ12#,KDJ12# |
1 | ||
| 58941A - COVER, PARKING BRAKE HOLE | ||||
| 58809-60040 |
GRJ12#,KDJ12#..LHD |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-60060 |
GRJ12#,KDJ12# |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90183-05103 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91631-B0610 | ||||
| 91635-G0618 | ||||
| 93568-55016 | ||||

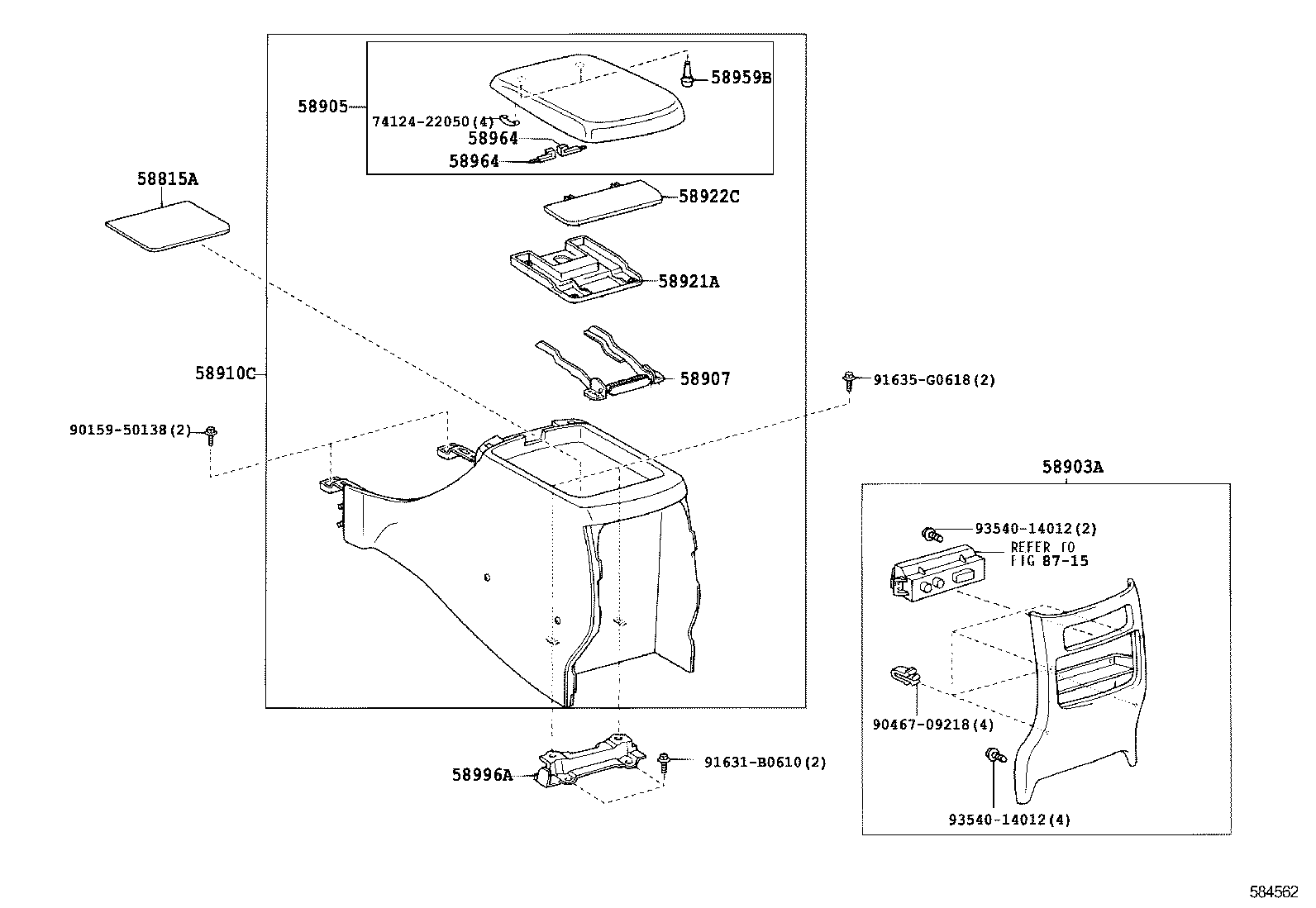

ILLUST NO. 2 OF 2(0209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-60100 |
GRJ12#,KDJ12# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-60050C0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,BLACK,TRIM1# |
1 | ||
| 58903-60030E0 |
GRJ12#,KDJ12# SANDAL WOOD,TRIM0# |
1 | ||
| 58903-60050E0 |
GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,SANDAL WOOD,TRIM0# |
1 | ||
| 58903-60030C0 |
GRJ12#,KDJ12# BLACK,TRIM1# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-60170C0 |
GRJ12#,KDJ12# BLACK,TRIM1# |
1 | ||
| 58905-60170E0 |
GRJ12#,KDJ12# SANDAL WOOD,TRIM0# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-60070 |
GRJ12#,KDJ12# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-60020E0 |
GRJ12#,KDJ12# SANDAL WOOD,TRIM0# |
1 | ||
| 58910-60020C0 |
GRJ12#,KDJ12# BLACK,TRIM1# |
1 | ||
| 58921A - PANEL, REAR CONSOLE, UPPER | ||||
| 58921-60030 |
GRJ12#,KDJ12# |
1 | ||
| 58922C - PLATE, BOX, UPPER NO.2 | ||||
| 58922-60020 |
GRJ12#,KDJ12# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
GRJ12#,KDJ12# |
2 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-22090 |
GRJ12#,KDJ12# |
2 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-22090 |
GRJ12#,KDJ12# |
2 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-60060 |
GRJ12#,KDJ12# |
1 | ||
| Common parts | ||||
| 74124-22050 | ||||
| 90159-50138 | ||||
| 90467-09218 | ||||
| 91631-B0610 | ||||
| 91635-G0618 | ||||
| 93540-14012 | ||||
| Linked diagrams | ||||
| 8715 | ||||
