KDJ120L-GKMEYW (2002)
Toyota Land Cruiser Prado
ILLUST NO. 1 OF 2(0209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-60390 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 42611-60400 |
GRJ12#,KDJ12# 17X7.5JJ, #,OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 42611-60390 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,CANARY ISLAND&OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 42611-60400 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,ISRAEL SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 42611-60390 |
GRJ12#,KDJ12# 17X7.5JJ, #,OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 42611-60390 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,ISRAEL SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 42611-35300 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 42611-60400 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 42611-35310 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 42611-60400 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,CANARY ISLAND&OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 42611-60420 |
GRJ12#,KDJ12# 17X6JJ, #,TYPE C:REFER ILLUST. |
1 | ||
| 42611-60390 |
GRJ12#,KDJ12# 17X7.5JJ, #,OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 42611-60400 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,CANARY ISLAND&OVER FENDER & CHROME PLATED SPEC;EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC;ISRAEL SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 42611-60400 |
GRJ12#,KDJ12# 17X7.5JJ, #,OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 42611-60390 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,CANARY ISLAND&OVER FENDER & CHROME PLATED SPEC;EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC;ISRAEL SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 42611-35310 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 42611-35300 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 42611-60420 |
GRJ12#,KDJ12# 17X6JJ, #,TYPE C:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01058 |
GRJ120,KDJ120..LHD ISRAEL SPEC&TIRE & DISC WHEEL-265/65R17 ALMUI&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE,TYPE A:REFER ILLUST. |
24 | ||
| 90942-01104 |
GRJ12#,KDJ12# TYPE B:REFER ILLUST. |
24 | ||
| 90942-01058 |
GRJ12#,KDJ12# TIRE & DISC WHEEL-265/65R17 ALMUI,TYPE A:REFER ILLUST. |
24 | ||
| 90942-01058 |
GRJ12#,KDJ12#..LHD ISRAEL SPEC&TIRE & DISC WHEEL-265/65R17 ALMUI,TYPE A:REFER ILLUST. |
24 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01058 |
GRJ120,KDJ120..LHD ISRAEL SPEC&TIRE & DISC WHEEL-265/65R17 ALMUI&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE,TYPE A:REFER ILLUST. |
24 | ||
| 90942-01104 |
GRJ12#,KDJ12# TYPE B:REFER ILLUST. |
24 | ||
| 90942-01058 |
GRJ12#,KDJ12# TIRE & DISC WHEEL-265/65R17 ALMUI,TYPE A:REFER ILLUST. |
24 | ||
| 90942-01058 |
GRJ12#,KDJ12#..LHD ISRAEL SPEC&TIRE & DISC WHEEL-265/65R17 ALMUI,TYPE A:REFER ILLUST. |
24 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42611-60390 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,CANARY ISLAND&OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 42611-60390 |
GRJ12#,KDJ12# 17X7.5JJ, #,OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 42611-60390 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 42611-60400 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,ISRAEL SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 42611-60400 |
GRJ12#,KDJ12# 17X7.5JJ, #,OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 42611-60400 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 42611-60400 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,CANARY ISLAND&OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 42611-60390 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,ISRAEL SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 42611-35300 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 42611-35310 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 42611-60420 |
GRJ12#,KDJ12# 17X6JJ, #,TYPE C:REFER ILLUST. |
2 | ||
| 42611-60390 |
GRJ12#,KDJ12# 17X7.5JJ, #,OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 42611-60400 |
GRJ12#,KDJ12# 17X7.5JJ, #,OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 42611-60400 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,CANARY ISLAND&OVER FENDER & CHROME PLATED SPEC;EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC;ISRAEL SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 42611-35300 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 42611-60390 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,CANARY ISLAND&OVER FENDER & CHROME PLATED SPEC;EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC;ISRAEL SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 42611-35310 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 42611-60420 |
GRJ12#,KDJ12# 17X6JJ, #,TYPE C:REFER ILLUST. |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42611-60390 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 42611-60390 |
GRJ12#,KDJ12# 17X7.5JJ, #,OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 42611-60390 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,ISRAEL SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 42611-60400 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 42611-60390 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,CANARY ISLAND&OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 42611-60400 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,CANARY ISLAND&OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 42611-60400 |
GRJ12#,KDJ12# 17X7.5JJ, #,OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 42611-35310 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 42611-60400 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,ISRAEL SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 42611-35300 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 42611-60420 |
GRJ12#,KDJ12# 17X6JJ, #,TYPE C:REFER ILLUST. |
2 | ||
| 42611-60400 |
GRJ12#,KDJ12# 17X7.5JJ, #,OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 42611-60390 |
GRJ12#,KDJ12# 17X7.5JJ, #,OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 42611-60400 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,CANARY ISLAND&OVER FENDER & CHROME PLATED SPEC;EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC;ISRAEL SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 42611-60390 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,CANARY ISLAND&OVER FENDER & CHROME PLATED SPEC;EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC;ISRAEL SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 42611-35300 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 42611-35310 |
GRJ12#,KDJ12#..LHD 17X7.5JJ, #,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 42611-60420 |
GRJ12#,KDJ12# 17X6JJ, #,TYPE C:REFER ILLUST. |
2 | ||
| 42603A - ORNAMENT SUB-ASSY, WHEEL HUB(FOR FRONT) | ||||
| 42603-60500 |
GRJ12#,KDJ12#..LHD *ALU,ISRAEL SPEC&TIRE & DISC WHEEL-265/65R17 ALMUI,TYPE A:REFER ILLUST. |
2 | ||
| 42603-60510 |
GRJ12#,KDJ12# *STE,TYPE B:REFER ILLUST. |
2 | ||
| 42603-60500 |
GRJ120,KDJ120..LHD *ALU,ISRAEL SPEC&TIRE & DISC WHEEL-265/65R17 ALMUI&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE,TYPE A:REFER ILLUST. |
2 | ||
| 42603-60500 |
GRJ12#,KDJ12# *ALU,TIRE & DISC WHEEL-265/65R17 ALMUI,TYPE A:REFER ILLUST. |
2 | ||
| 42603B - ORNAMENT SUB-ASSY, WHEEL HUB(FOR REAR) | ||||
| 42603-60500 |
GRJ12#,KDJ12# *ALU,TIRE & DISC WHEEL-265/65R17 ALMUI,TYPE A:REFER ILLUST. |
2 | ||
| 42603-60500 |
GRJ120,KDJ120..LHD *ALU,ISRAEL SPEC&TIRE & DISC WHEEL-265/65R17 ALMUI&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE,TYPE A:REFER ILLUST. |
2 | ||
| 42603-60510 |
GRJ12#,KDJ12# *STE,TYPE B:REFER ILLUST. |
2 | ||
| 42603-60500 |
GRJ12#,KDJ12#..LHD *ALU,ISRAEL SPEC&TIRE & DISC WHEEL-265/65R17 ALMUI,TYPE A:REFER ILLUST. |
2 | ||
| 42603D - ORNAMENT SUB-ASSY, WHEEL HUB(FOR SPARE) | ||||
| 42603-60500 |
GRJ12#,KDJ12#..LHD ISRAEL SPEC&TIRE & DISC WHEEL-265/65R17 ALMUI,TYPE A:REFER ILLUST. |
1 | ||
| 42607B - VALVE SUB-ASSY, TIRE PRESSURE BALANCER | ||||
| 42607-35020 |
GRJ12#,KDJ12#..LHD EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 42607C - VALVE SUB-ASSY, TIRE PRESSURE BALANCER (FOR SPARE) | ||||
| 42607-35020 |
GRJ12#,KDJ12#..LHD EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 90942-05004 |
GRJ12#,KDJ12#..LHD CANARY ISLAND |
4 | ||
| 90942-05009 |
GRJ12#,KDJ12#..LHD EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 90942-05004 |
GRJ12#,KDJ12#..LHD ISRAEL SPEC |
4 | ||
| 90942-05009 |
GRJ12#,KDJ12#..LHD CANARY ISLAND&OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 90942-05009 |
GRJ12#,KDJ12#..LHD ISRAEL SPEC&OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 90942-05004 |
GRJ12#,KDJ12#..LHD EAST EUROEPE COUNTRY SPEC |
4 | ||
| 90942-05004 |
GRJ12#,KDJ12#..LHD |
8 | ||
| 90942-05004 |
GRJ12#,KDJ12#..LHD..(4FC,5F) |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
GRJ12#,KDJ12#..LHD ISRAEL SPEC&OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 90942-05009 |
GRJ12#,KDJ12#..LHD CANARY ISLAND&OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 90942-05009 |
GRJ12#,KDJ12# OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 90942-05009 |
GRJ12#,KDJ12#..LHD EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 90942-05004 |
GRJ12#,KDJ12# |
1 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-05035 |
GRJ12#,KDJ12#..LHD EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 42611W - CAP, TIRE VALVE (FOR SPARE) | ||||
| 90942-05035 |
GRJ12#,KDJ12#..LHD EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 42652 - TIRE | ||||
| 42652-60640 |
GRJ12#,KDJ12#..LHD P265/65R17 110S,*B/S,OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 42652-60670 |
GRJ12#,KDJ12#..LHD 225/70R17 108S,*B/S,CANARY ISLAND |
4 | ||
| 42652-60680 |
GRJ12#,KDJ12#..LHD 265/65R17 112S,*B/S,CANARY ISLAND&OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 42652-60680 |
GRJ12#,KDJ12#..LHD 265/65R17 112S,*B/S,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 42652-6A040 |
GRJ120,KDJ120..LHD P265/65R17 112S,*D/L,OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 42652-60680 |
GRJ12#,KDJ12#..LHD 265/65R17 112S,*B/S,ISRAEL SPEC&OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 42652-60650 |
GRJ12#,KDJ12#..LHD 225/70R17 108S,*B/S |
4 | ||
| 42652-60670 |
GRJ12#,KDJ12#..LHD 225/70R17 108S,*B/S,EAST EUROEPE COUNTRY SPEC |
4 | ||
| 42652-60670 |
GRJ12#,KDJ12#..LHD 225/70R17 108S,*B/S,ISRAEL SPEC |
4 | ||
| 42652-60671 |
GRJ12#,KDJ12#..LHD 225/70R17 108S,*B/S,EAST EUROEPE COUNTRY SPEC |
4 | ||
| 42652-60681 |
GRJ12#,KDJ12#..LHD 265/65R17 112S,*B/S,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 42652-60670 |
GRJ12#,KDJ12#..LHD 225/70R17 108S,*B/S,CANARY ISLAND;EAST EUROEPE COUNTRY SPEC;ISRAEL SPEC |
4 | ||
| 42652-60680 |
GRJ12#,KDJ12#..LHD 265/65R17 112S,*B/S,CANARY ISLAND&OVER FENDER & CHROME PLATED SPEC;EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC;ISRAEL SPEC&OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 42652-60650 |
GRJ12#,KDJ12#..LHD 225/70R17 108S,*B/S |
4 | ||
| 42652-60640 |
GRJ12#,KDJ12#..LHD P265/65R17 110S,*B/S,OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 42652-6A040 |
GRJ120,KDJ120..LHD P265/65R17 112S,*D/L,OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 42652-60681 |
GRJ12#,KDJ12#..LHD 265/65R17 112S,*B/S,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC |
4 | ||
| 42652-60671 |
GRJ12#,KDJ12#..LHD 225/70R17 108S,*B/S,EAST EUROEPE COUNTRY SPEC |
4 | ||
| 42652A - TIRE (FOR SPARE) | ||||
| 42652-60640 |
GRJ12#,KDJ12#..LHD P265/65R17 110S,*B/S,OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 42652-60650 |
GRJ12#,KDJ12#..LHD 225/70R17 108S,*B/S |
1 | ||
| 42652-60670 |
GRJ12#,KDJ12#..LHD 225/70R17 108S,*B/S,CANARY ISLAND |
1 | ||
| 42652-60670 |
GRJ12#,KDJ12#..LHD 225/70R17 108S,*B/S,ISRAEL SPEC |
1 | ||
| 42652-60670 |
GRJ12#,KDJ12#..LHD 225/70R17 108S,*B/S,EAST EUROEPE COUNTRY SPEC |
1 | ||
| 42652-60680 |
GRJ12#,KDJ12#..LHD 265/65R17 112S,*B/S,CANARY ISLAND&OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 42652-60680 |
GRJ12#,KDJ12#..LHD 265/65R17 112S,*B/S,ISRAEL SPEC&OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 42652-6A040 |
GRJ120,KDJ120..LHD P265/65R17 112S,*D/L,OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 42652-60671 |
GRJ12#,KDJ12#..LHD 225/70R17 108S,*B/S,EAST EUROEPE COUNTRY SPEC |
1 | ||
| 42652-60680 |
GRJ12#,KDJ12#..LHD 265/65R17 112S,*B/S,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 42652-60681 |
GRJ12#,KDJ12#..LHD 265/65R17 112S,*B/S,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 42652-60670 |
GRJ12#,KDJ12#..LHD 225/70R17 108S,*B/S,CANARY ISLAND;EAST EUROEPE COUNTRY SPEC;ISRAEL SPEC |
1 | ||
| 42652-60650 |
GRJ12#,KDJ12#..LHD 225/70R17 108S,*B/S |
1 | ||
| 42652-60680 |
GRJ12#,KDJ12#..LHD 265/65R17 112S,*B/S,CANARY ISLAND&OVER FENDER & CHROME PLATED SPEC;EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC;ISRAEL SPEC&OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 42652-6A040 |
GRJ120,KDJ120..LHD P265/65R17 112S,*D/L,OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 42652-60640 |
GRJ12#,KDJ12#..LHD P265/65R17 110S,*B/S,OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 42652-60681 |
GRJ12#,KDJ12#..LHD 265/65R17 112S,*B/S,EAST EUROEPE COUNTRY SPEC&OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 42652-60671 |
GRJ12#,KDJ12#..LHD 225/70R17 108S,*B/S,EAST EUROEPE COUNTRY SPEC |
1 | ||

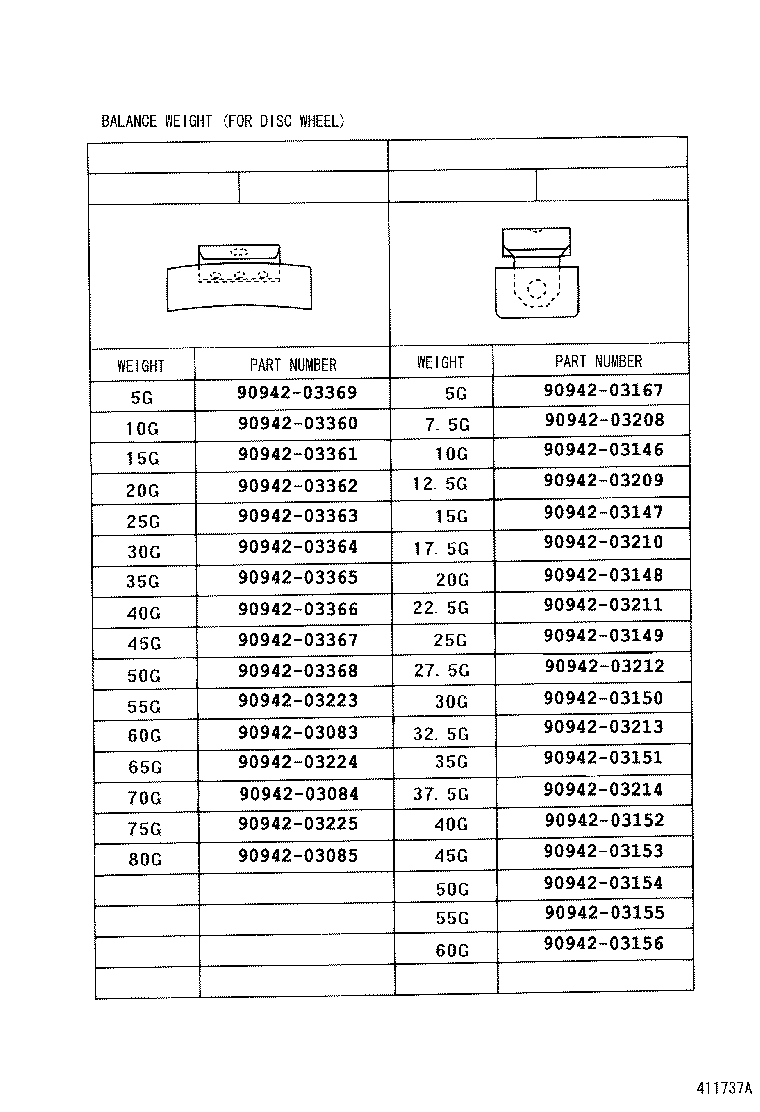

ILLUST NO. 2 OF 2(0209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03083 | ||||
| 90942-03084 | ||||
| 90942-03085 | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03155 | ||||
| 90942-03156 | ||||
| 90942-03167 | ||||
| 90942-03208 | ||||
| 90942-03209 | ||||
| 90942-03210 | ||||
| 90942-03211 | ||||
| 90942-03212 | ||||
| 90942-03213 | ||||
| 90942-03214 | ||||
| 90942-03223 | ||||
| 90942-03224 | ||||
| 90942-03225 | ||||
| 90942-03360 | ||||
| 90942-03361 | ||||
| 90942-03362 | ||||
| 90942-03363 | ||||
| 90942-03364 | ||||
| 90942-03365 | ||||
| 90942-03366 | ||||
| 90942-03367 | ||||
| 90942-03368 | ||||
| 90942-03369 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
