KDJ120L-GKMEYW (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004
Engine 1KDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0209-0408)1KDFTV

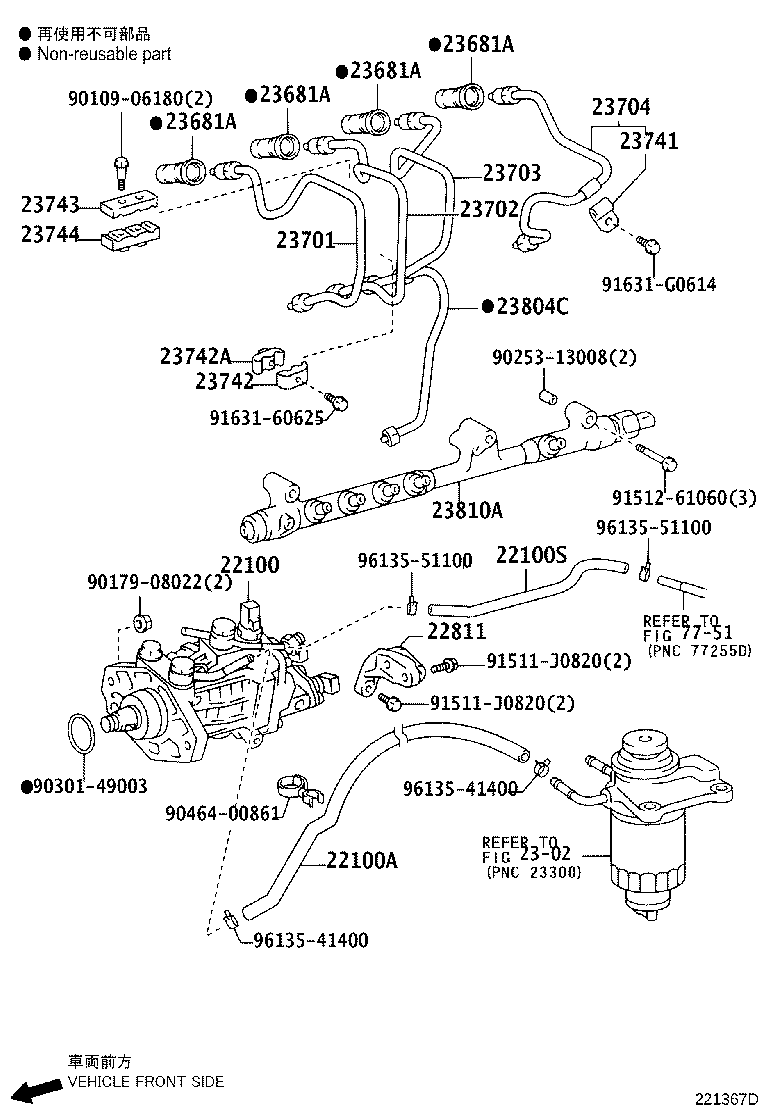

Click highlighted areas on diagram

diagram 22100 22100A 22100S 22811 2302 23681A 23681A 23681A 23681A 23701 23702 23703 23704 23741 23742 23742A 23743 23744 23804C 23810A 7751 9010906180 9017908022 9025313008 9030149003 9046400861 91511J0820 91511J0820 9151261060 9163160625 91631G0614 9613541400 9613541400 9613551100 9613551100
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-30030

1KDFTV..KDJ12#

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23271-30130

1KDFTV..KDJ12#

 1
22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
23273-30090

1KDFTV..KDJ12#

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-30010

1KDFTV..KDJ12#

 1
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDJ12#

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDJ12#

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDJ12#

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDJ12#

 4
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-30010

1KDFTV..KDJ12#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-30010

1KDFTV..KDJ12#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-30010

1KDFTV..KDJ12#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-39015

1KDFTV..KDJ12#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-30010

1KDFTV..KDJ12#

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1KDFTV..KDJ12#

 1
23742A - CLAMP, INJECTION PIPE, NO.3
23742-58020

1KDFTV..KDJ12#

 1
23743 - CLAMP, INJECTION PIPE, NO.3
23743-30011

1KDFTV..KDJ12#

 1
23744 - CLAMP, INJECTION PIPE, NO.4
23743-30021

1KDFTV..KDJ12#

 1
23804C - PIPE SUB-ASSY, FUEL INLET
23804-30010

1KDFTV..KDJ12#

 1
23810A - RAIL ASSY, COMMON
23810-30060

1KDFTV..KDJ12#

 1
Common parts
90109-06180
90179-08022
90253-13008
90301-49003
90464-00861
91511-J0820
91512-61060
91631-60625
91631-G0614
96135-41400
96135-51100
Linked diagrams
2302
7751
