GRJ150R-GKAEKW (2009)
Toyota Land Cruiser Prado
Production
Aug 2009
-
Oct 2011
Engine
1GRFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0908- )1GRFE

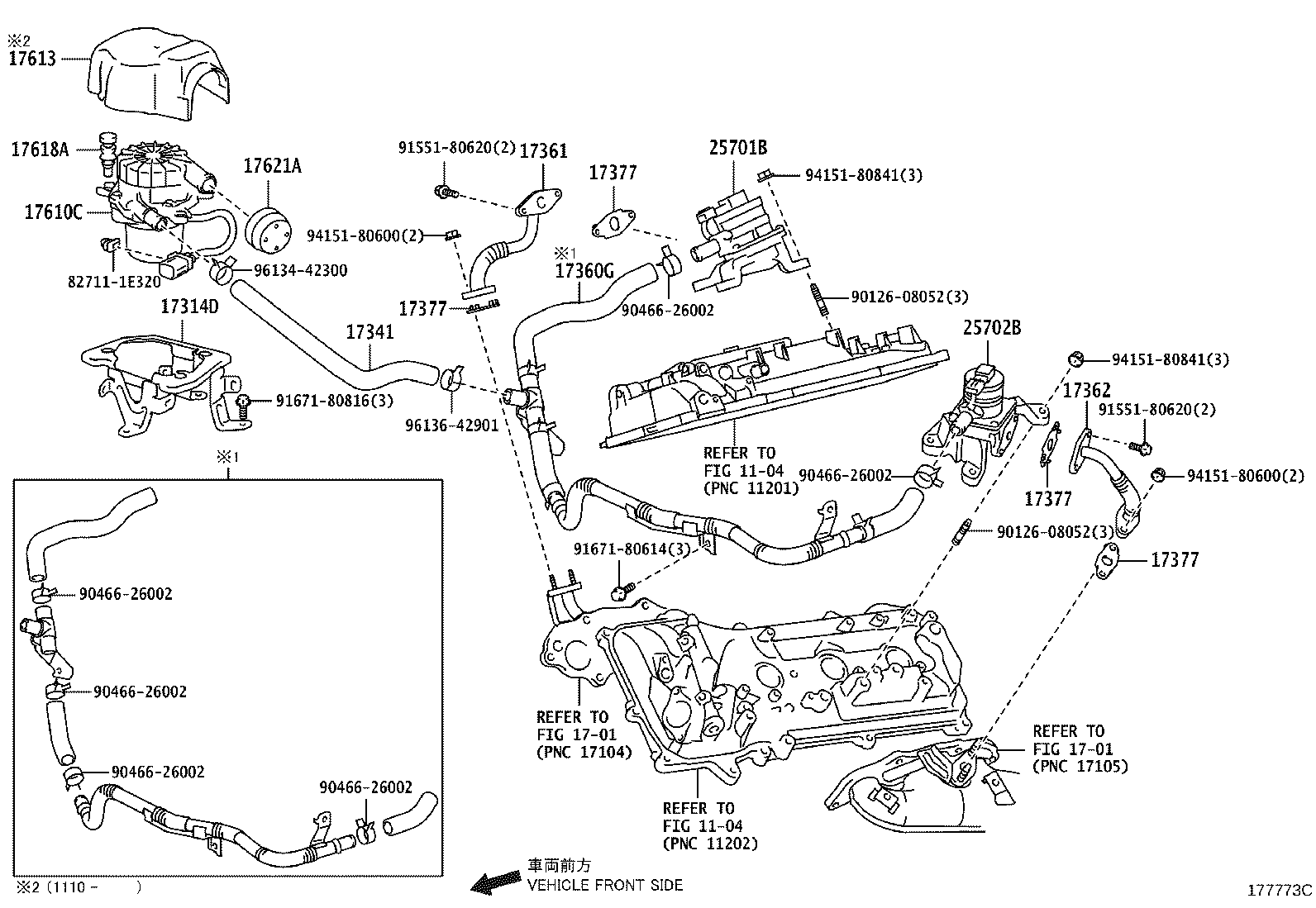

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17314D - BRACKET, AIR PUMP, NO.1 | ||||
| 17314-0W030 |
1GRFE..GRJ150..RHD |
1 | ||
| 17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 17341-31080 |
1GRFE..GRJ150..RHD |
1 | ||
| 17360G - TUBE ASSY, AIR | ||||
| 17360-31010 |
1GRFE..GRJ150..RHD |
1 | ||
| 17361 - TUBE, AIR | ||||
| 17361-31030 |
1GRFE..GRJ150..RHD |
1 | ||
| 17362 - TUBE, AIR, NO.2 | ||||
| 17362-31020 |
1GRFE..GRJ150..RHD |
1 | ||
| 17377 - GASKET, AIR TUBE, NO.2 | ||||
| 17377-38010 |
1GRFE..GRJ150..RHD |
4 | ||
| 17377 - GASKET, AIR TUBE, NO.2 | ||||
| 17377-38010 |
1GRFE..GRJ150..RHD |
4 | ||
| 17377 - GASKET, AIR TUBE, NO.2 | ||||
| 17377-38010 |
1GRFE..GRJ150..RHD |
4 | ||
| 17377 - GASKET, AIR TUBE, NO.2 | ||||
| 17377-38010 |
1GRFE..GRJ150..RHD |
4 | ||
| 17610C - PUMP ASSY, AIR | ||||
| 17610-0C030 |
1GRFE..GRJ150..RHD |
1 | ||
| 17618A - INSULATOR, AIR PUMP | ||||
| 17618-0C010 |
1GRFE..GRJ150..RHD |
3 | ||
| 17621A - INLET, AIR PUMP | ||||
| 17621-0C010 |
1GRFE..GRJ150..RHD |
1 | ||
| 25701B - VALVE SET, EMISSION CONTROL, NO.1 | ||||
| 25701-31010 |
1GRFE..GRJ150 |
1 | ||
| 25701-31011 |
1GRFE..GRJ150..RHD |
1 | ||
| 25702B - VALVE SET, EMISSION CONTROL, NO.2 | ||||
| 25702-31010 |
1GRFE..GRJ150 |
1 | ||
| 25702-31011 |
1GRFE..GRJ150..RHD |
1 | ||
| Common parts | ||||
| 82711-1E320 | ||||
| 90126-08052 | ||||
| 90466-26002 | ||||
| 91551-80620 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 94151-80600 | ||||
| 94151-80841 | ||||
| 96134-42300 | ||||
| 96136-42901 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1701 | ||||
