GRJ150L-GKTEKW (2015)

Toyota Land Cruiser Prado

Production Jun 2015 - Aug 2017
Engine 1GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )6FC

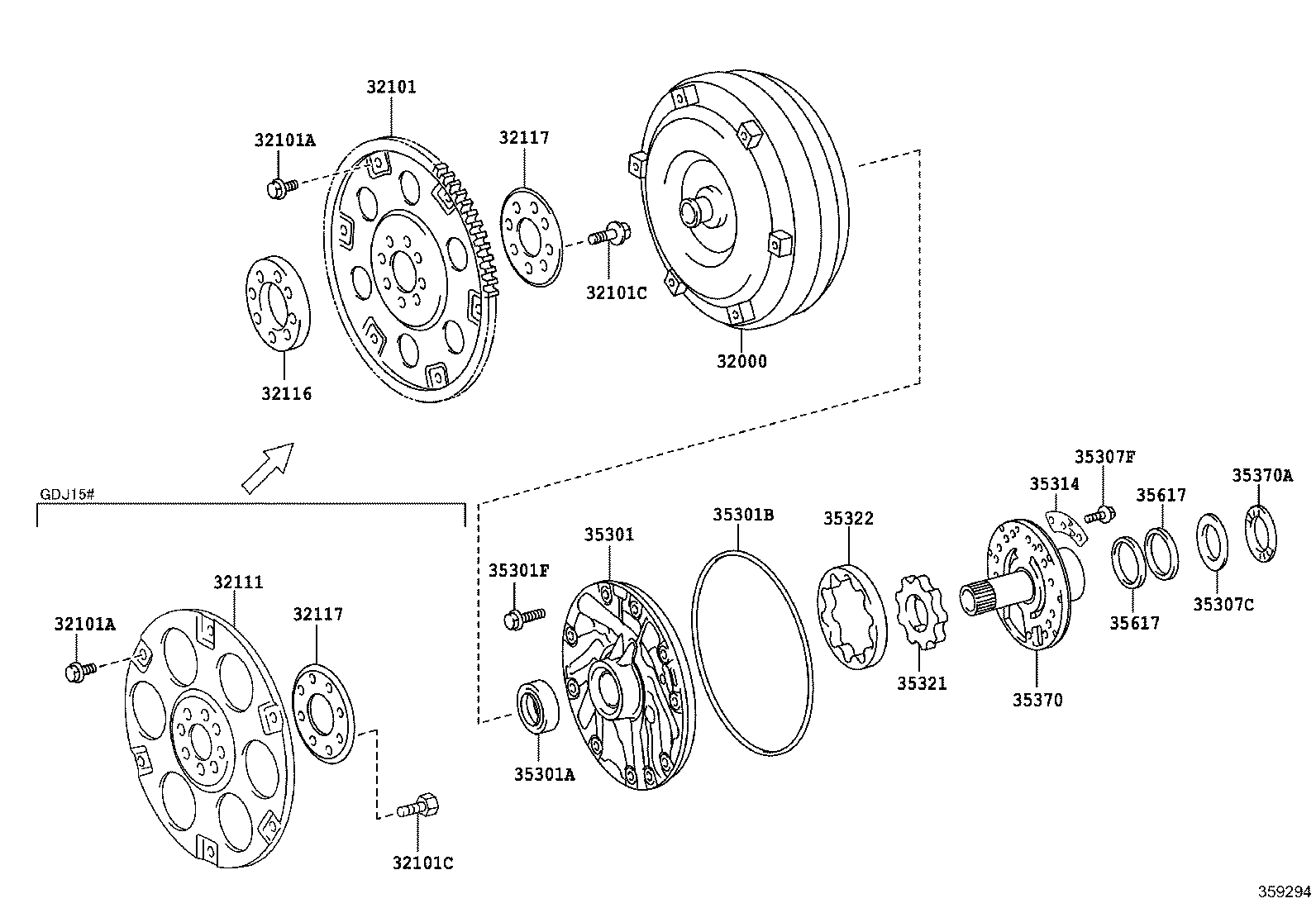

Click highlighted areas on diagram

AC60F

diagram 32000 32101 32101A 32101A 32101C 32101C 32111 32116 32117 32117 35301 35301A 35301B 35301F 35307C 35307F 35314 35321 35322 35370 35370A 35617 35617
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-71060

GRJ150

 1
32000-71020

GRJ150..LHD

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-60060

GRJ150..LHD

 1
32101-60060

GRJ150

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09027

GRJ150

*9-1.25PX12.8-8.8,SILVER WHITE

 5
90119-09027

GRJ150..LHD

*9-1.25PX12.8-8.8,SILVER WHITE

 5
90119-09026

GRJ150..LHD

*9-1.25PX12.8-9,BLACK

 1
90119-09026

GRJ150

*9-1.25PX12.8-9,BLACK

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09027

GRJ150

*9-1.25PX12.8-8.8,SILVER WHITE

 5
90119-09027

GRJ150..LHD

*9-1.25PX12.8-8.8,SILVER WHITE

 5
90119-09026

GRJ150..LHD

*9-1.25PX12.8-9,BLACK

 1
90119-09026

GRJ150

*9-1.25PX12.8-9,BLACK

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10543

GRJ150..LHD

*10-1.25PX22-15

 8
90105-10543

GRJ150

*10-1.25PX22-15

 8
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10543

GRJ150..LHD

*10-1.25PX22-15

 8
90105-10543

GRJ150

*10-1.25PX22-15

 8
32116 - SPACER, DRIVE PLATE, FRONT
32116-60050

GRJ150..LHD

 1
32116-60050

GRJ150

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-60060

GRJ150..LHD

 1
32117-60060

GRJ150

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-60060

GRJ150..LHD

 1
32117-60060

GRJ150

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-60030

GRJ150..LHD;KDJ15#..5FC

 1
35301-71010

GDJ15#,GRJ150..6FC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38101

GDJ15#,GRJ150..6FC

 1
90311-38083

GRJ150..LHD;KDJ15#..5FC

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99139

GRJ150..LHD;KDJ15#..5FC

OUTER

 1
90301-99148

GRJ150..LHD;KDJ15#..5FC

INNER

 1
35697-60010

GDJ15#,GRJ150..6FC

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08091

GDJ15#,GRJ150..6FC

*8-1.25PX35-35

 10
90105-08451

GRJ150..LHD;KDJ15#..5FC

*8-1.25PX40-30

 10
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-71070

GDJ15#,GRJ150..6FC

 1
35307F - BOLT (FOR STATOR SHAFT)
90148-60079

GDJ15#,GRJ150..6FC

 10
90148-60079

GRJ150..LHD;KDJ15#..5FC

 14
35314 - PLATE, FRONT OIL PUMP
35314-71010

GDJ15#,GRJ150..6FC

 1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-50010

GRJ150..LHD;KDJ15#..5FC

T=10.736-10.742

 1
35321-50060

GRJ150..LHD;KDJ15#..5FC

T=10.771-10.777

 1
35321-50030

GRJ150..LHD;KDJ15#..5FC

T=10.750-10.756

 1
35321-50050

GRJ150..LHD;KDJ15#..5FC

T=10.764-10.770

 1
35321-50020

GRJ150..LHD;KDJ15#..5FC

T=10.743-10.749

 1
35321-50040

GRJ150..LHD;KDJ15#..5FC

T=10.757-10.763

 1
35321-50070

GRJ150..LHD;KDJ15#..5FC

T=10.778-10.784

 1
35321-71010

GDJ15#,GRJ150..6FC

T=9.977-9.983

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-50010

GRJ150..LHD;KDJ15#..5FC

T=10.736-10.742

 1
35322-50060

GRJ150..LHD;KDJ15#..5FC

T=10.771-10.777

 1
35322-50030

GRJ150..LHD;KDJ15#..5FC

T=10.750-10.756

 1
35322-50050

GRJ150..LHD;KDJ15#..5FC

T=10.764-10.770

 1
35322-50020

GRJ150..LHD;KDJ15#..5FC

T=10.743-10.749

 1
35322-50040

GRJ150..LHD;KDJ15#..5FC

T=10.757-10.763

 1
35322-50070

GRJ150..LHD;KDJ15#..5FC

T=10.778-10.784

 1
35322-71010

GDJ15#,GRJ150..6FC

T=9.977-9.983

 1
35370 - SHAFT ASSY, STATOR
35370-50030

GRJ150..LHD;KDJ15#..5FC

 1
35370-71010

GDJ15#,GRJ150..6FC

 1
35370A - BEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)
90374-71002

GDJ15#,GRJ150..6FC

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030

GDJ15#,GRJ150..6FC

 2
35617-50030

GRJ150..LHD;KDJ15#..5FC

 3
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030

GDJ15#,GRJ150..6FC

 2
35617-50030

GRJ150..LHD;KDJ15#..5FC

 3
