GRJ125L-GJAEKW (2004)
Toyota Land Cruiser Prado
Production
Aug 2004
-
Aug 2009
Engine
1GRFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

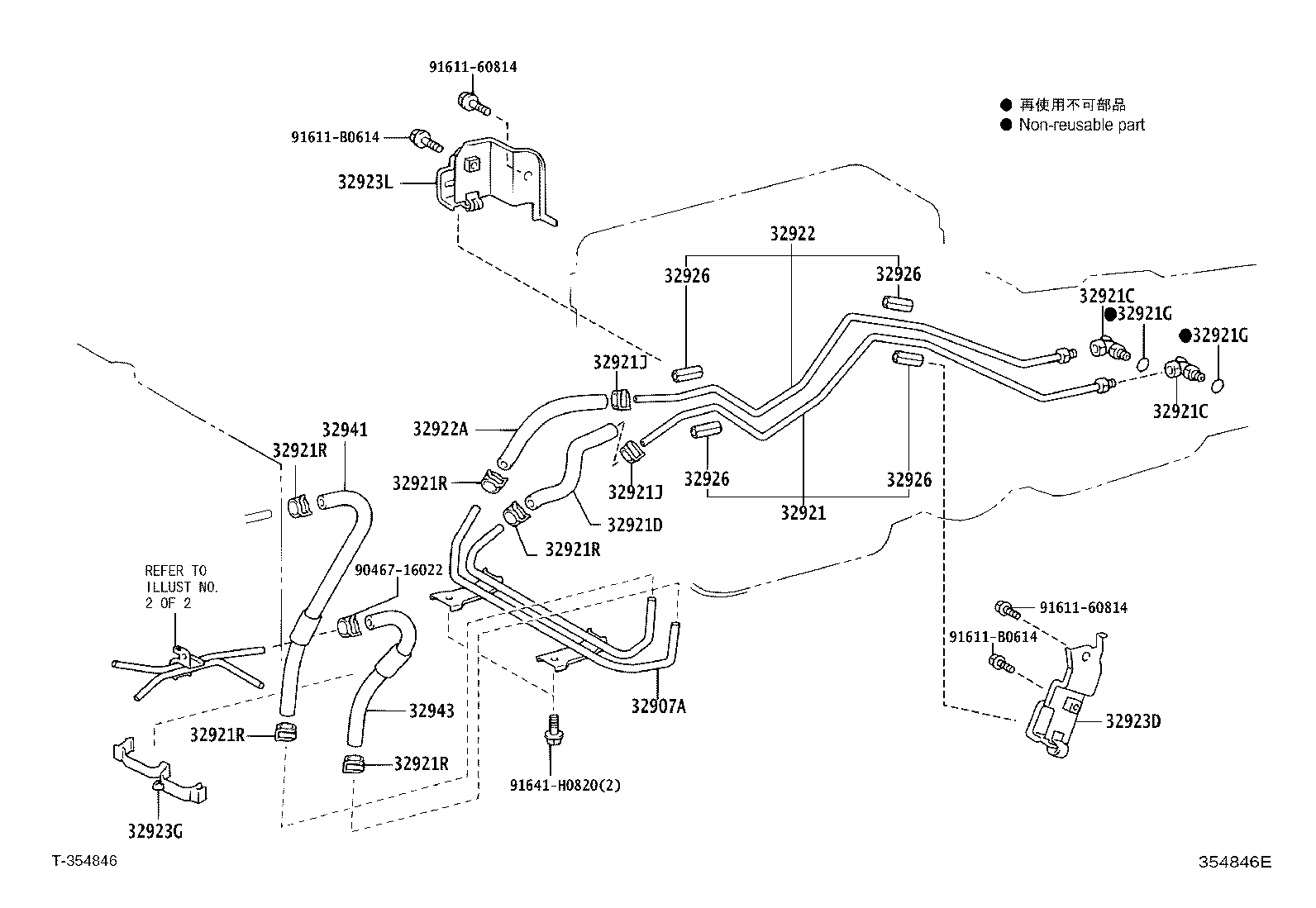

ILLUST NO. 1 OF 2(0408- )GRJ12#
Click highlighted areas on diagram
A750F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-60250 |
GRJ12# |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16009 |
GRJ12#,KDJ12#..5FC |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16009 |
GRJ12#,KDJ12#..5FC |
2 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17124 |
GRJ12# |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11030 |
GRJ12#..5FC;KDJ12#..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11030 |
GRJ12#..5FC;KDJ12#..4FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GRJ12#,KDJ12#..5FC |
2 | ||
| 90467-16022 |
GRJ12#,KDJ12#..ATM |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GRJ12#,KDJ12#..5FC |
2 | ||
| 90467-16022 |
GRJ12#,KDJ12#..ATM |
2 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GRJ12# |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GRJ12# |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GRJ12# |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GRJ12# |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GRJ12# |
6 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-60270 |
GRJ12# |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32941-26170 |
GRJ12# |
1 | ||
| 32923D - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5 | ||||
| 32909-60160 |
GRJ12# |
1 | ||
| 32923G - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.8 | ||||
| 32928-60100 |
GRJ12#,KDJ12#..ATM |
1 | ||
| 32923L - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3 | ||||
| 32909-60130 |
GRJ12# |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GRJ12#,KDJ12#..ATM L=35,ID=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GRJ12#,KDJ12#..ATM L=35,ID=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GRJ12#,KDJ12#..ATM L=35,ID=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GRJ12#,KDJ12#..ATM L=35,ID=10,NO.1 |
4 | ||
| Common parts | ||||
| 90467-16022 | ||||
| 91611-60814 | ||||
| 91611-B0614 | ||||
| 91641-H0820 | ||||
