GDJ155L-GJFEYW (2015)

Toyota Land Cruiser Prado

Production Jun 2015 - Aug 2017
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF12(1506- )GDJ15#

Click highlighted areas on diagram

ENGINE ROOM(EURO 6)

diagram 82111 82111B 82112 82345 82345A 82345A 8271260B20 8271260B20 8271260B90 82817 82817 82817B 82821N 82821P 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8601 9011906923 9011906923
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-6AQ60

GDJ15#..LHD

 1
82111B - CONDENSER
90980-04083

GDJ15#,GRJ150,KDJ15#

 1
82112 - WIRE, ENGINE ROOM, NO.2
82112-60810

KDJ150..LHD;GDJ15#,GRJ150,KDJ155

FRONT FOG LAMP-WITH

 1
82112-60820

KDJ150..LHD;GDJ15#,GRJ150,KDJ155

FRONT FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

 1
82345 - DIODE
82345-12030

GDJ15#,GRJ150,KDJ15#

3.0A

 1
82345A - DIODE
82345-12050

GDJ15#,GRJ150,KDJ15#

1.5A

 1
82345A - DIODE
82345-12050

GDJ15#,GRJ150,KDJ15#

1.5A

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-32840

GDJ15#

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-32840

GDJ15#

 2
82821N - COVER, CONNECTOR
82821-12400

GDJ15#,GRJ150,KDJ15#

 1
82821P - COVER, CONNECTOR
82821-50560

GDJ15#,GRJ150,KDJ15#

 1
Common parts
82712-60B20
82712-60B90
90119-06923
Linked diagrams
8401
8601

ILLUST NO. 2 OF12(1506- )GDJ15#..LHD

Click highlighted areas on diagram

ENGINE

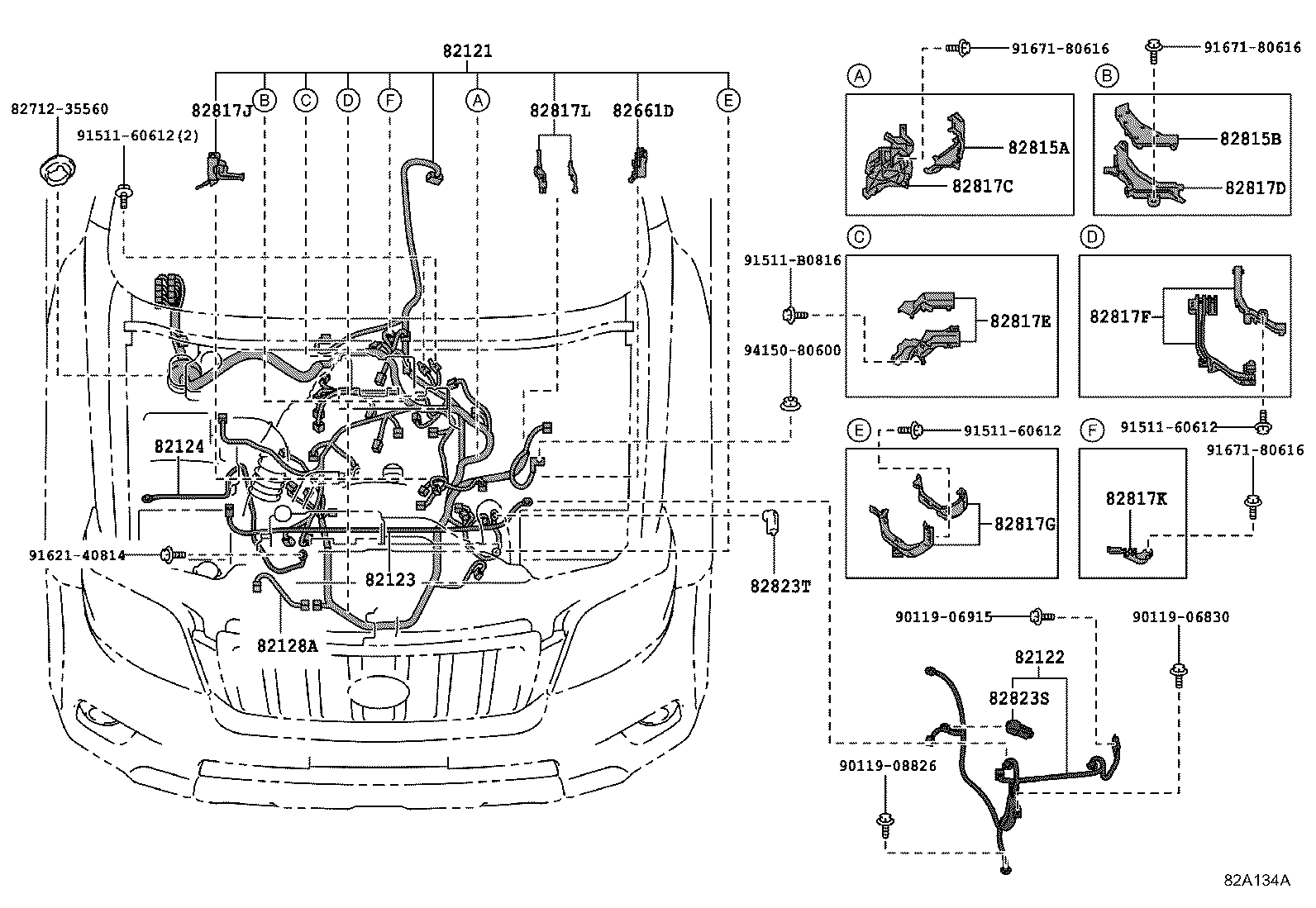

diagram 82121 82122 82123 82124 82128A 82661D 8271235560 82815A 82815B 82817C 82817D 82817E 82817F 82817G 82817J 82817K 82817L 82823S 82823T 9011906830 9011906915 9011908826 9151160612 9151160612 9151160612 91511B0816 9162140814 9167180616 9167180616 9167180616 9415080600
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-60Z80

GDJ15#..LHD..6F

 1
82122 - WIRE, ENGINE, NO.2
82122-60A30

GDJ15#

COLD AREA SPEC

 1
82122-60A50

GDJ15#

 1
82123 - WIRE, ENGINE, NO.3
82123-60340

GDJ15#

COLD AREA SPEC

 1
82124 - WIRE, ENGINE, NO.4
82124-60210

GDJ15#

COLD AREA SPEC

 1
82128A - WIRE, ENGINE, NO.8
82128-60240

GDJ15#..LHD

COLD AREA SPEC&HEATER-WITH(PTC & VISCOUS)

 1
82128-60240

GDJ15#..LHD

COLD AREA SPEC&HEATER-STOVE TYPE & W(PTC & VISCOUS)

 1
82661D - COVER, RELAY BLOCK, SIDE NO.1
82661-60420

GDJ15#

 1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-0K270

GDJ15#

 1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-0K280

GDJ15#

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-0K270

GDJ15#

 1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-0K280

GDJ15#

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-60V40

GDJ15#..LHD

 1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-60V60

GDJ15#

 1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-60V70

GDJ15#

 1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-60V80

GDJ15#

 1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-60W50

GDJ15#

 1
82817L - PROTECTOR, WIRING HARNESS, NO.11
82817-60W60

GDJ15#

 1
82823S - CAP, STARTER TERMINAL
82823-30080

GDJ15#

COLD AREA SPEC

 1
82823-60070

GDJ15#

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

GDJ15#,KDJ15#

 1
Common parts
82712-35560
90119-06830
90119-06915
90119-08826
91511-60612
91511-B0816
91621-40814
91671-80616
94150-80600
