GDJ150R-GKFEYW (2015)

Toyota Land Cruiser Prado

Production Jun 2015 - Aug 2017
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(0908- )

Click highlighted areas on diagram

REAR(W(REAR *AIC) & W(COOL BOX))

diagram 8714 8714 8714 8857860260 886886A680 886886A690 886886B220 88712C 88716C 88716D 88717B 887182J230 887186B280 887186B280 887186B290 887186B300 887186B310 887186B400 887186B400 9009914119 9009914120 9009914121 91551A0630 9331914012 9415180641 9415180641 9415180641 9415180641 9415180641 9415180641 9415180641
Part # Description Qty Price
88712C - HOSE, SUCTION
88712-6A500

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88712-6A500

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-6C560

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88716-6C570

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88716-6C580

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-6C550

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88716-6C550

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-6B260

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88717-6B250

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88717-6B240

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
Common parts
88578-60260
88688-6A680
88688-6A690
88688-6B220
88718-2J230
88718-6B280
88718-6B290
88718-6B300
88718-6B310
88718-6B400
90099-14119
90099-14120
90099-14121
91551-A0630
93319-14012
94151-80641
Linked diagrams
8714

ILLUST NO. 3 OF 3(0908- )

Click highlighted areas on diagram

REAR(W(REAR *AIC) & W/O(COOL BOX))

diagram 8714 886886B220 88712C 88716C 88716D 88717B 887182J230 887186B280 887186B280 887186B290 887186B300 887186B310 887186B400 887186B400 9009914119 9009914120 9009914121 91551A0630 9415180641 9415180641 9415180641 9415180641 9415180641 9415180641
Part # Description Qty Price
88712C - HOSE, SUCTION
88712-6A500

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88712-6A500

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-6C560

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88716-6C570

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88716-6C580

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-6C550

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88716-6C550

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-6B260

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88717-6B250

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88717-6B240

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
Common parts
88688-6B220
88718-2J230
88718-6B280
88718-6B290
88718-6B300
88718-6B310
88718-6B400
90099-14119
90099-14120
90099-14121
91551-A0630
94151-80641
Linked diagrams
8714

ILLUST NO. 1 OF 3(0908- )

Click highlighted areas on diagram

W(CONDENSER FAN)

diagram 16793C 827112B640 88453 88454A 88550 88590 8889760170 8889760180 8889760200 9009904117 9009904119 9009904119 9011906192
Part # Description Qty Price
16793C - LABEL, COOLING FAN CAUTION
16793-38010

1GDFTV,1KDFTV..GDJ15#,KDJ15#

 1
16793-31070

1GDFTV,1KDFTV..GDJ15#,KDJ150

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-60030

GDJ15#,KDJ150

 1
88454A - SHROUD, FAN
88454-60071

GDJ15#,KDJ150

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-34010

GDJ15#,KDJ150

 1
88590 - BLOWER ASSY, W/SHROUD
88590-60101

GDJ15#,KDJ150

 1
Common parts
82711-2B640
88897-60170
88897-60180
88897-60200
90099-04117
90099-04119
90119-06192

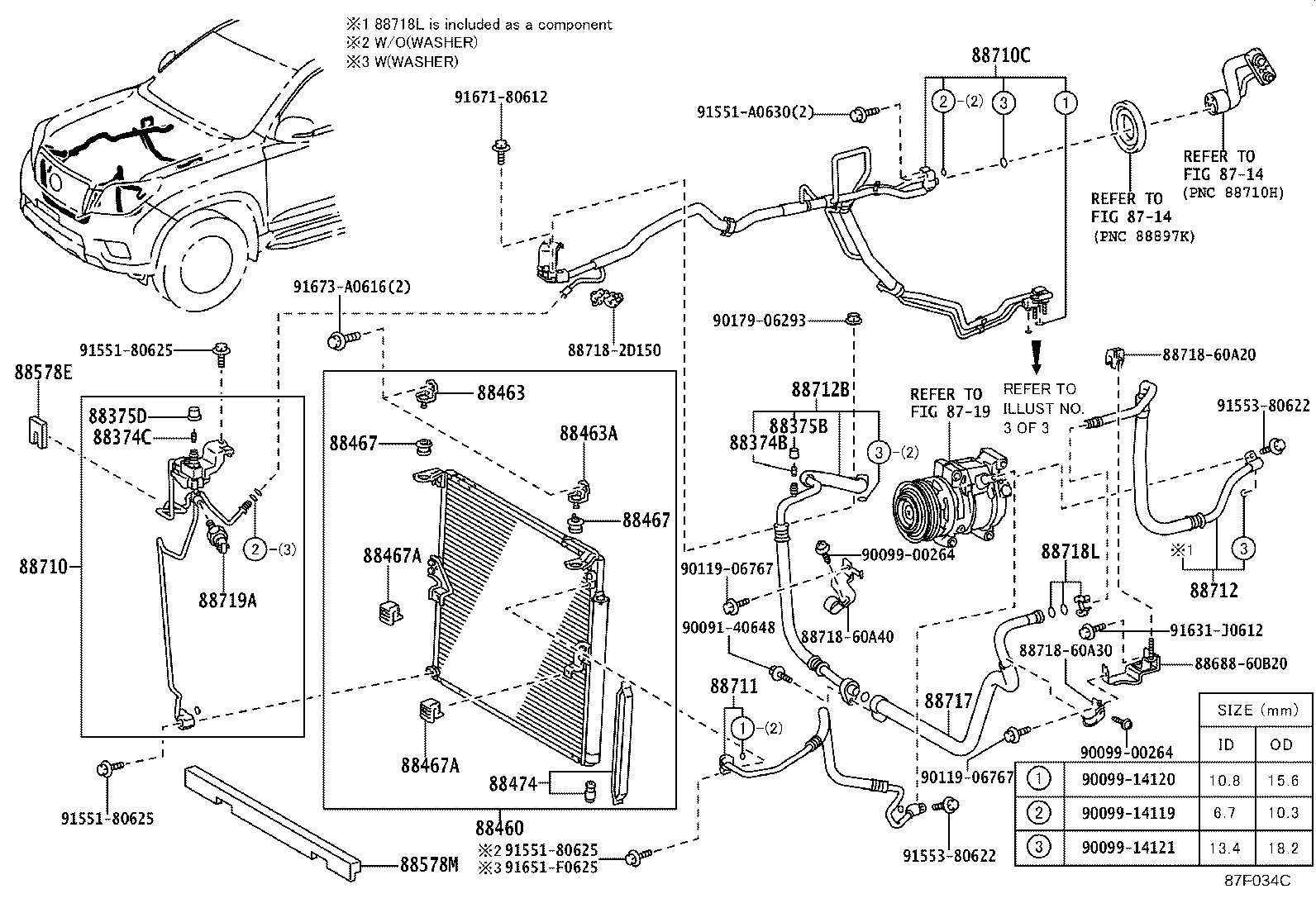

ILLUST NO. 2 OF 3(1506- )GDJ15#..RHD

Click highlighted areas on diagram

FRONT

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88463 88463A 88467 88467 88467A 88467A 88474 88578E 88578M 8868860B20 88710 88710C 88711 88712 88712B 88717 887182D150 8871860A20 8871860A30 8871860A40 88718L 88719A 9009140648 9009900264 9009900264 9009914119 9009914120 9009914121 9011906767 9011906767 9017906293 9155180625 9155180625 9155180625 91551A0630 9155380622 9155380622 91631J0612 91651F0625 9167180612 91673A0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GDJ15#,GRJ150,KDJ15#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

GDJ15#,GRJ150,KDJ15#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30310

GDJ15#..RHD

IRELAND SPEC

 1
88375-30310

GDJ15#..RHD

ENGLAND SPEC

 1
88375-30290

GDJ15#,GRJ150,KDJ15#

 1
88375-30310

GDJ15#..RHD

MALTA SPEC

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30320

GDJ15#..RHD

ENGLAND SPEC

 1
88375-30320

GDJ15#..RHD

IRELAND SPEC

 1
88375-30280

GDJ15#,GRJ150,KDJ15#

 1
88375-30320

GDJ15#..RHD

MALTA SPEC

 1
88460 - CONDENSER ASSY, COOLER
88460-60490

GDJ15#..RHD

ENGLAND SPEC

 1
88460-60440

GDJ15#

 1
88460-60490

GDJ15#..RHD

IRELAND SPEC

 1
88460-60490

GDJ15#..RHD

MALTA SPEC

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010

GDJ15#,GRJ150,KDJ15#

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020

GDJ15#,GRJ150,KDJ15#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

GDJ15#,GRJ150,KDJ15#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

GDJ15#,GRJ150,KDJ15#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

GDJ15#,GRJ150,KDJ15#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

GDJ15#,GRJ150,KDJ15#

 2
88474 - DRYER, COOLER
88474-17010

GDJ15#,GRJ150,KDJ15#

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-60540

GDJ15#

 1
88578M - PACKING, COOLING PIPE, NO.3
88578-60480

GDJ15#,GRJ150,KDJ150

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-60D90

GDJ15#

 1
88710-60J10

GDJ15#..RHD

IRELAND SPEC

 1
88710-60J10

GDJ15#..RHD

ENGLAND SPEC

 1
88710-60J10

GDJ15#..RHD

MALTA SPEC

 1
88710C - TUBE ASSY, AIR CONDITIONER
88710-60F20

GDJ15#..RHD

 1
88710-60F60

GDJ150..RHD

AIR CONDITIONER-DUAL(AUTO)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60A30

GDJ15#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60A40

GDJ15#

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-60A90

GDJ15#..RHD

ENGLAND SPEC

 1
88712-60A90

GDJ15#..RHD

IRELAND SPEC

 1
88712-60A70

GDJ15#

 1
88712-60A90

GDJ15#..RHD

MALTA SPEC

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-60B00

GDJ15#

 1
88718L - CLAMP, PIPING
88718-52280

GDJ15#

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

GDJ15#,KDJ15#

 1
Common parts
88688-60B20
88718-2D150
88718-60A20
88718-60A30
88718-60A40
90091-40648
90099-00264
90099-14119
90099-14120
90099-14121
90119-06767
90179-06293
91551-80625
91551-A0630
91553-80622
91631-J0612
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(1506- )GDJ15#..RHD

Click highlighted areas on diagram

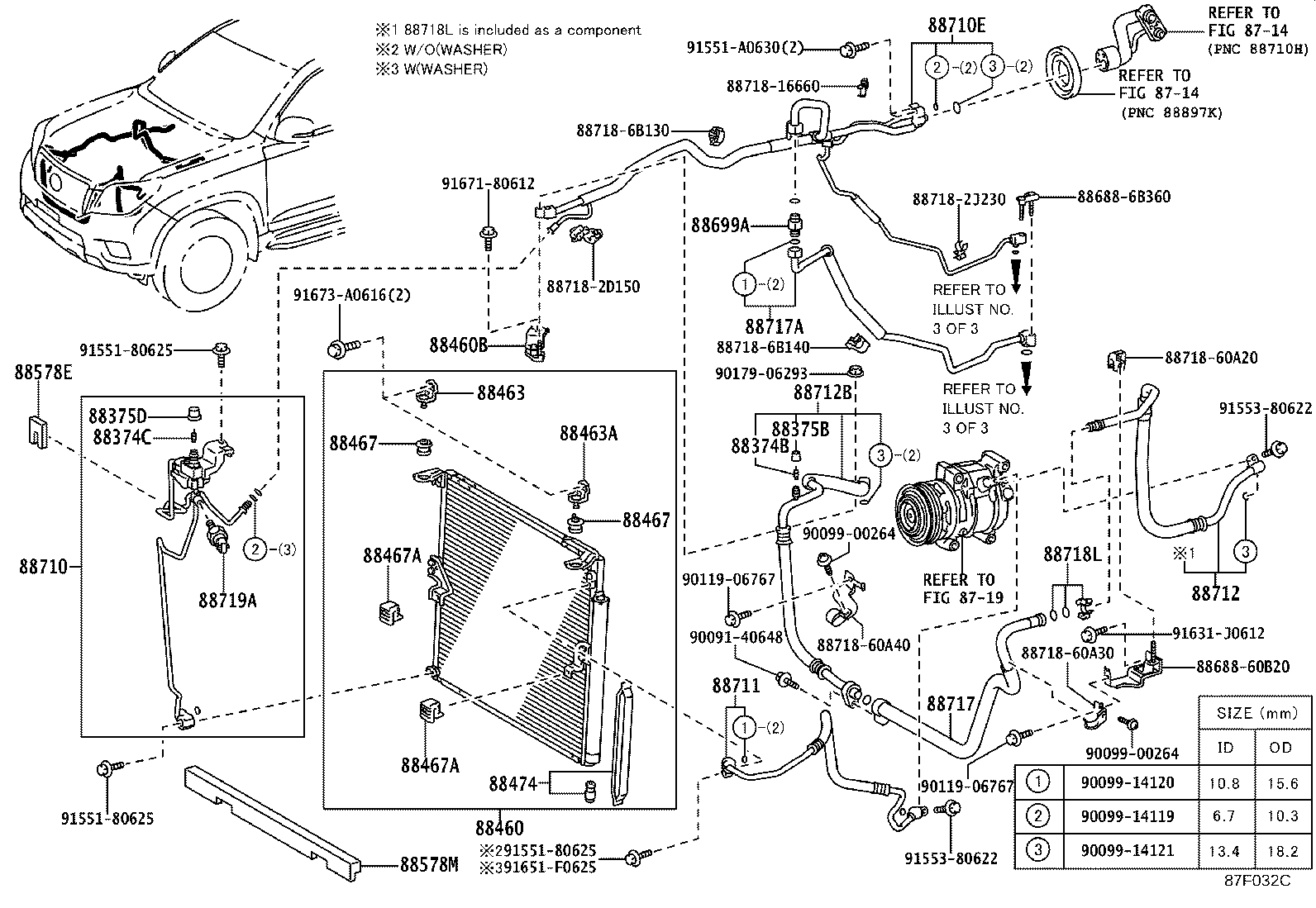

FRONT(W(COOL BOX))

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88460B 88463 88463A 88467 88467 88467A 88467A 88474 88578E 88578M 8868860B20 886886B360 88699A 88710 88710E 88711 88712 88712B 88717 88717A 8871816660 887182D150 887182J230 8871860A20 8871860A30 8871860A40 887186B130 887186B140 88718L 88719A 9009140648 9009900264 9009900264 9009914119 9009914120 9009914121 9011906767 9011906767 9017906293 9155180625 9155180625 9155180625 91551A0630 9155380622 9155380622 91631J0612 91651F0625 9167180612 91673A0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GDJ15#,GRJ150,KDJ15#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

GDJ15#,GRJ150,KDJ15#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30310

GDJ15#..RHD

IRELAND SPEC

 1
88375-30310

GDJ15#..RHD

ENGLAND SPEC

 1
88375-30290

GDJ15#,GRJ150,KDJ15#

 1
88375-30310

GDJ15#..RHD

MALTA SPEC

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30320

GDJ15#..RHD

ENGLAND SPEC

 1
88375-30320

GDJ15#..RHD

IRELAND SPEC

 1
88375-30280

GDJ15#,GRJ150,KDJ15#

 1
88375-30320

GDJ15#..RHD

MALTA SPEC

 1
88460 - CONDENSER ASSY, COOLER
88460-60490

GDJ15#..RHD

ENGLAND SPEC

 1
88460-60440

GDJ15#

 1
88460-60490

GDJ15#..RHD

IRELAND SPEC

 1
88460-60490

GDJ15#..RHD

MALTA SPEC

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-60B30

GDJ150

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010

GDJ15#,GRJ150,KDJ15#

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020

GDJ15#,GRJ150,KDJ15#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

GDJ15#,GRJ150,KDJ15#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

GDJ15#,GRJ150,KDJ15#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

GDJ15#,GRJ150,KDJ15#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

GDJ15#,GRJ150,KDJ15#

 2
88474 - DRYER, COOLER
88474-17010

GDJ15#,GRJ150,KDJ15#

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-60540

GDJ15#

 1
88578M - PACKING, COOLING PIPE, NO.3
88578-60480

GDJ15#,GRJ150,KDJ150

 1
88699A - VALVE, AIR
88699-60010

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-60D90

GDJ15#

 1
88710-60J10

GDJ15#..RHD

IRELAND SPEC

 1
88710-60J10

GDJ15#..RHD

ENGLAND SPEC

 1
88710-60J10

GDJ15#..RHD

MALTA SPEC

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-60G10

GDJ150..RHD

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60A30

GDJ15#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60A40

GDJ15#

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-60A90

GDJ15#..RHD

ENGLAND SPEC

 1
88712-60A90

GDJ15#..RHD

IRELAND SPEC

 1
88712-60A70

GDJ15#

 1
88712-60A90

GDJ15#..RHD

MALTA SPEC

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-60B00

GDJ15#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-6B190

GDJ150..RHD;GRJ150,KDJ150..LHD

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88718L - CLAMP, PIPING
88718-52280

GDJ15#

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

GDJ15#,KDJ15#

 1
Common parts
88688-60B20
88688-6B360
88718-16660
88718-2D150
88718-2J230
88718-60A20
88718-60A30
88718-60A40
88718-6B130
88718-6B140
90091-40648
90099-00264
90099-14119
90099-14120
90099-14121
90119-06767
90179-06293
91551-80625
91551-A0630
91553-80622
91631-J0612
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(1506- )GDJ150..RHD

Click highlighted areas on diagram

FRONT(W(REAR *AIC))

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88463 88463A 88467 88467 88467A 88467A 88474 88578E 88578M 8868860B20 88710 88710C 88711 88712 88712B 88717 887182D150 8871860A20 8871860A30 8871860A40 88718L 88719A 9009140648 9009900264 9009900264 9009914119 9009914120 9009914121 9011906767 9011906767 9017906293 9155180625 9155180625 9155180625 91551A0630 9155380622 9155380622 91631J0612 91651F0625 9167180612 91673A0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GDJ15#,GRJ150,KDJ15#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

GDJ15#,GRJ150,KDJ15#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30310

GDJ15#..RHD

IRELAND SPEC

 1
88375-30310

GDJ15#..RHD

ENGLAND SPEC

 1
88375-30290

GDJ15#,GRJ150,KDJ15#

 1
88375-30310

GDJ15#..RHD

MALTA SPEC

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30320

GDJ15#..RHD

ENGLAND SPEC

 1
88375-30320

GDJ15#..RHD

IRELAND SPEC

 1
88375-30280

GDJ15#,GRJ150,KDJ15#

 1
88375-30320

GDJ15#..RHD

MALTA SPEC

 1
88460 - CONDENSER ASSY, COOLER
88460-60490

GDJ15#..RHD

ENGLAND SPEC

 1
88460-60440

GDJ15#

 1
88460-60490

GDJ15#..RHD

IRELAND SPEC

 1
88460-60490

GDJ15#..RHD

MALTA SPEC

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010

GDJ15#,GRJ150,KDJ15#

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020

GDJ15#,GRJ150,KDJ15#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

GDJ15#,GRJ150,KDJ15#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

GDJ15#,GRJ150,KDJ15#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

GDJ15#,GRJ150,KDJ15#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

GDJ15#,GRJ150,KDJ15#

 2
88474 - DRYER, COOLER
88474-17010

GDJ15#,GRJ150,KDJ15#

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-60540

GDJ15#

 1
88578M - PACKING, COOLING PIPE, NO.3
88578-60480

GDJ15#,GRJ150,KDJ150

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-60D90

GDJ15#

 1
88710-60J10

GDJ15#..RHD

IRELAND SPEC

 1
88710-60J10

GDJ15#..RHD

ENGLAND SPEC

 1
88710-60J10

GDJ15#..RHD

MALTA SPEC

 1
88710C - TUBE ASSY, AIR CONDITIONER
88710-60F20

GDJ15#..RHD

 1
88710-60F60

GDJ150..RHD

AIR CONDITIONER-DUAL(AUTO)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60A30

GDJ15#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60A40

GDJ15#

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-60A90

GDJ15#..RHD

ENGLAND SPEC

 1
88712-60A90

GDJ15#..RHD

IRELAND SPEC

 1
88712-60A70

GDJ15#

 1
88712-60A90

GDJ15#..RHD

MALTA SPEC

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-60B00

GDJ15#

 1
88718L - CLAMP, PIPING
88718-52280

GDJ15#

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

GDJ15#,KDJ15#

 1
Common parts
88688-60B20
88718-2D150
88718-60A20
88718-60A30
88718-60A40
90091-40648
90099-00264
90099-14119
90099-14120
90099-14121
90119-06767
90179-06293
91551-80625
91551-A0630
91553-80622
91631-J0612
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

ILLUST NO. 3 OF 3(0908- )

Click highlighted areas on diagram

REAR(W/O(REAR *AIC) & W(COOL BOX))

diagram 8714 8714 8857860260 886886A680 886886A690 88716C 88717B 887186B280 887186B290 9331914012 9415180641 9415180641 9415180641 9415180641
Part # Description Qty Price
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-6C560

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88716-6C570

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88716-6C580

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-6B260

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88717-6B250

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88717-6B240

KDJ150..LHD;GDJ150,GRJ150

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
Common parts
88578-60260
88688-6A680
88688-6A690
88718-6B280
88718-6B290
93319-14012
94151-80641
Linked diagrams
8714
