GDJ150R-GKFEYW (2015)
Toyota Land Cruiser Prado
ILLUST NO. 3 OF12(0908- )RHD
INSTRUMENT PANEL & CONSOLE BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO)&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&HEADLAMP-LED&AIR CONDITIONER-SINGLE(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO)&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO)&HEADLAMP-LED&AIR CONDITIONER-SINGLE(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO)&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO)&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&HEADLAMP-LED&AIR CONDITIONER-SINGLE(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO)&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 82141-6BK30 |
GDJ15#..RHD..6F |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO)&HEADLAMP-LED&AIR CONDITIONER-SINGLE(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO)&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO)&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO)&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&HEADLAMP-LED&AIR CONDITIONER-SINGLE(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&HEADLAMP-LED&AIR CONDITIONER-SINGLE(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO)&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&HEADLAMP-LED&AIR CONDITIONER-SINGLE(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&HEADLAMP-LED&AIR CONDITIONER-SINGLE(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&HEADLAMP-LED&AIR CONDITIONER-SINGLE(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO)&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&HEADLAMP-LED&AIR CONDITIONER-SINGLE(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL& 14SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&HEADLAMP-LED&AIR CONDITIONER-SINGLE(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA& 9SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&HEADLAMP-LED&AIR CONDITIONER-SINGLE(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82141-6BK40 |
GDJ150..RHD..6F VX PACKAGE&VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&HEADLAMP-LED&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-60R30 |
GDJ150..RHD VX PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 82142-60Q80 |
GDJ15#..RHD AUDIO(FOR OVERSEAS MARKET)-CD & 6SPEAKER |
1 | ||
| 82142-60U10 |
GDJ150..RHD VX PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82142-60U20 |
GDJ150..RHD VX PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82142-60R30 |
GDJ150..RHD VX PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 82142-60R30 |
GDJ15#..RHD TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 82142-60U20 |
GDJ150..RHD VX PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82142-6A720 |
GDJ15#..RHD |
1 | ||
| 82142-60U10 |
GDJ150..RHD VX PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-60020 |
GDJ15#,GRJ150,KDJ150 |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-60A10 |
GDJ15#..RHD AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 82143-60820 |
GDJ15#..RHD AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82143-60A00 |
GDJ15#..RHD CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 82143-60A20 |
GDJ15#..RHD AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY)&BACK MONITOR-WITH |
1 | ||
| 82143-60820 |
GDJ150..RHD AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH |
1 | ||
| 82143-60B70 |
GDJ15#..RHD AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82143-60B70 |
GDJ150..RHD AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-60B20 |
GDJ150;KDJ150..LHD TX-L PACKAGE(*FAS) & SHIFT KNOB(LEATHER)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82166-60B10 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&AIR CONDITIONER-SINGLE(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82166-60B20 |
GDJ150;KDJ150..LHD *471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 82166-60B00 |
GDJ15#,GRJ150,KDJ150 |
1 | ||
| 82166-60B10 |
KDJ150..LHD;GDJ150,GRJ150 *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&AIR CONDITIONER-SINGLE(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82166-60B10 |
KDJ150..LHD;GDJ150,GRJ150 *471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&AIR CONDITIONER-SINGLE(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82166-60B40 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 82166-60B30 |
KDJ150..LHD;GDJ150,GRJ150 *471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82166-60B50 |
KDJ150..LHD;GDJ150,GRJ150 *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82166-60B50 |
KDJ150..LHD;GDJ150,GRJ150 *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82166-60B40 |
KDJ150..LHD;GDJ150,GRJ150 TX-L PACKAGE(*LES) & SHIFT KNOB(LEATHER)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82166-60B40 |
KDJ150..LHD;GDJ150,GRJ150 *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 82166-60B50 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82166-60B50 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82166-60B40 |
KDJ150..LHD;GDJ150,GRJ150 *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 82166-60B40 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-60880 |
GDJ15#..RHD..6F |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60730 |
GDJ15#,GRJ150,KDJ15# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60740 |
GDJ15#,GRJ150,KDJ15# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-60B20 |
GDJ15#,KDJ150..RHD |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60760 |
GDJ15#,GRJ150,KDJ15# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60820 |
GDJ15#,KDJ150..RHD |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-60800 |
GDJ15#,GRJ150,KDJ15# |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-60890 |
GDJ15#,KDJ150..RHD |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-60B30 |
GDJ15#,KDJ150..RHD |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-60070 |
GDJ15#,GRJ150,KDJ15# |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-60080 |
GDJ15#,GRJ150,KDJ15# |
1 | ||
| C8215 - WIRE, HAZARD SWITCH | ||||
| C8215-60030 |
KDJ150..LHD;GDJ15#,GRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| C8215-60030 |
KDJ150..LHD;GDJ150,GRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 8606 | ||||
ILLUST NO. 4 OF12(0908- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-60L60 |
GDJ150..RHD REAR SEAT-WITHOUT(WITH/ANCHOR) |
1 | ||
| 82151-60L80 |
GDJ15#..RHD VX PACKAGE |
1 | ||
| 82151-60L90 |
GDJ15#..RHD VX PACKAGE&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82151-60M20 |
GDJ15#..RHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL |
1 | ||
| 82151-60M10 |
GDJ15#..RHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL |
1 | ||
| 82151-60L70 |
GDJ15#..RHD |
1 | ||
| 82151-60M20 |
GDJ15#..RHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL |
1 | ||
| 82151-60M00 |
GDJ150..RHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&REAR SEAT-WITHOUT(WITH/ANCHOR) |
1 | ||
| 82151-60M10 |
GDJ15#..RHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL |
1 | ||
| 82151-60M30 |
GDJ15#..RHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&BACK MONITOR-WITH& W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82151-60M30 |
GDJ15#..RHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82151-60M00 |
GDJ150..RHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&REAR SEAT-WITHOUT(WITH/ANCHOR) |
1 | ||
| 82151A - WIRE, FRONT DOOR, NO.2, RH | ||||
| 82155-60080 |
GDJ15#,GRJ150,KDJ150 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-60K70 |
GDJ15#..RHD |
1 | ||
| 82152-60K90 |
GDJ15#..RHD VX PACKAGE&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82152-60K80 |
GDJ15#..RHD VX PACKAGE |
1 | ||
| 82152-60L00 |
GDJ150..RHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&REAR SEAT-WITHOUT(WITH/ANCHOR) |
1 | ||
| 82152-60K60 |
GDJ150..RHD REAR SEAT-WITHOUT(WITH/ANCHOR) |
1 | ||
| 82152-60L20 |
GDJ15#..RHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL |
1 | ||
| 82152-60L30 |
GDJ15#..RHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&BACK MONITOR-WITH& W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82152-60L00 |
GDJ150..RHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&REAR SEAT-WITHOUT(WITH/ANCHOR) |
1 | ||
| 82152-60L30 |
GDJ15#..RHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82152-60L10 |
GDJ15#..RHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL |
1 | ||
| 82152-60L20 |
GDJ15#..RHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL |
1 | ||
| 82152-60L10 |
GDJ15#..RHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82156-60030 |
GDJ15#,GRJ150,KDJ150 |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-60570 |
KDJ150..LHD;GDJ150,GRJ150 ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82153-60570 |
GDJ150..RHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82153-60550 |
KDJ150..LHD;GDJ150,GRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82153-60560 |
GDJ150,GRJ150,KDJ150 ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL |
1 | ||
| 82153-60540 |
GDJ150,GRJ150,KDJ150 |
1 | ||
| 82153-60560 |
GDJ150..RHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-60380 |
GDJ150,GRJ150,KDJ150 ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL |
1 | ||
| 82154-60360 |
GDJ150,GRJ150,KDJ150 |
1 | ||
| 82154-60370 |
KDJ150..LHD;GDJ150,GRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82154-60390 |
GDJ150..RHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82154-60380 |
GDJ150..RHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL |
1 | ||
| 82154-60390 |
KDJ150..LHD;GDJ150,GRJ150 ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-60620 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82184-60620 |
GDJ150;KDJ150..LHD VX PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA &9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60620 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA &9SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82184-60620 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60620 |
GDJ150;KDJ150..LHD TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60630 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82184-60630 |
GDJ150;KDJ150..LHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60630 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH &W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82184-60630 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82184-60630 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82184-60630 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60630 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60630 |
GDJ150;KDJ150..LHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60630 |
GDJ150..RHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&REAR QUARTERGLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60630 |
GDJ150..RHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&REAR QUARTERGLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82184-60630 |
GDJ150..RHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&REAR QUARTERGLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60630 |
GDJ150;KDJ150..LHD TX-L PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60630 |
GDJ150..RHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&REAR QUARTERGLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82184-60630 |
GDJ150;KDJ150..LHD TX-L PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60630 |
GDJ150..RHD TX-L PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60640 |
KDJ150..LHD;GDJ150,GRJ150 |
1 | ||
| 82184-60670 |
KDJ150..LHD;GDJ150,GRJ150 ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL |
1 | ||
| 82184-60670 |
KDJ150..LHD;GDJ150,GRJ150 ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) |
1 | ||
| 82184-60670 |
GDJ150..RHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-60620 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82184-60620 |
GDJ150;KDJ150..LHD VX PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA &9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60620 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA &9SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82184-60620 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60620 |
GDJ150;KDJ150..LHD TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60630 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82184-60630 |
GDJ150;KDJ150..LHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60630 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH &W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82184-60630 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82184-60630 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82184-60630 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS)&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60630 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60630 |
GDJ150;KDJ150..LHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60630 |
GDJ150..RHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&REAR QUARTERGLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60630 |
GDJ150..RHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&REAR QUARTERGLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82184-60630 |
GDJ150..RHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&REAR QUARTERGLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60630 |
GDJ150;KDJ150..LHD TX-L PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60630 |
GDJ150..RHD VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&REAR QUARTERGLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 82184-60630 |
GDJ150;KDJ150..LHD TX-L PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60630 |
GDJ150..RHD TX-L PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 82184-60640 |
KDJ150..LHD;GDJ150,GRJ150 |
1 | ||
| 82184-60670 |
KDJ150..LHD;GDJ150,GRJ150 ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL |
1 | ||
| 82184-60670 |
KDJ150..LHD;GDJ150,GRJ150 ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) |
1 | ||
| 82184-60670 |
GDJ150..RHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-60530 |
GDJ150,GRJ150,KDJ150 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-60530 |
GDJ150,GRJ150,KDJ150 |
1 | ||
| 82505 - WIRING SUB-ASSY, FRONT DOOR, RH | ||||
| 82505-60130 |
KDJ150..LHD;GDJ15#,GRJ150,KDJ155 VX PACKAGE |
1 | ||
| 82506 - WIRING SUB-ASSY, FRONT DOOR, LH | ||||
| 82506-60100 |
KDJ150..LHD;GDJ15#,GRJ150,KDJ155 VX PACKAGE |
1 | ||
| 82507 - WIRING SUB-ASSY, REAR DOOR, RH | ||||
| 82507-60050 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE |
1 | ||
| 82508 - WIRING SUB-ASSY, REAR DOOR, LH | ||||
| 82507-60050 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE |
1 | ||
| Common parts | ||||
| 82712-60810 | ||||
| 82712-60C20 | ||||
| 90119-06915 | ||||
| 91631-B0614 | ||||
| Linked diagrams | ||||
| 8504 | ||||
ILLUST NO. 5 OF12(0908- )GDJ150,GRJ150,KDJ150
FLOOR,FRAME & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82157 - WIRE, STEP PANEL, RH | ||||
| 82157-60030 |
KDJ150..LHD;GDJ150,GRJ150 SIDE STEP-WITH(STEP LAMP) |
1 | ||
| 82158 - WIRE, STEP PANEL, LH | ||||
| 82157-60030 |
KDJ150..LHD;GDJ150,GRJ150 SIDE STEP-WITH(STEP LAMP) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-6AD60 |
GDJ150..RHD AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-WITHOUT(WITH/ANCHOR) |
1 | ||
| 82161-6AE60 |
GDJ150..RHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82161-6AE20 |
GDJ150..RHD |
1 | ||
| 82161-6AE80 |
GDJ150..RHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82161-6AE61 |
GDJ150..RHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82161-6AE81 |
GDJ150..RHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82161-6AD61 |
GDJ150..RHD AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-WITHOUT(WITH/ANCHOR) |
1 | ||
| 82161-6AE21 |
GDJ150..RHD |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-6AM10 |
GDJ150..RHD REAR SEAT-WITHOUT(WITH/ANCHOR) |
1 | ||
| 82162-6AM30 |
GDJ150..RHD |
1 | ||
| 82162-6AM50 |
GDJ150..RHD SIDE STEP-WITH(STEP LAMP)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 82162-6AM90 |
GDJ150..RHD SIDE STEP-WITH(STEP LAMP)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&BLIND SPOTMONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 82162-6AM70 |
GDJ150..RHD SIDE STEP-WITH(STEP LAMP)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82162-6AN10 |
GDJ150..RHD STABILIZER-WITH(KDSS)&SIDE STEP-WITH(STEP LAMP LESS) |
1 | ||
| 82162-6AN10 |
GDJ150..RHD STABILIZER-WITH(KDSS)&SIDE STEP-WITH(STEP LAMP LESS)(DOP) |
1 | ||
| 82162-6AN50 |
GDJ150..RHD STABILIZER-WITH(KDSS)&SIDE STEP-WITH(STEP LAMP)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLEFLAT POWER |
1 | ||
| 82162-6AM90 |
GDJ150..RHD SIDE STEP-WITH(STEP LAMP)(DOP)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&BLINDSPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 82162-6AM50 |
GDJ150..RHD SIDE STEP-WITH(STEP LAMP)(DOP)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 82162-6AN30 |
GDJ150..RHD STABILIZER-WITH(KDSS)&SIDE STEP-WITH(STEP LAMP)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 82162-6AN50 |
GDJ150..RHD STABILIZER-WITH(KDSS)&SIDE STEP-WITH(STEP LAMP)(DOP)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82162-6AN70 |
GDJ150..RHD STABILIZER-WITH(KDSS)&SIDE STEP-WITH(STEP LAMP)(DOP)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 82162-6AN10 |
GDJ150..RHD STABILIZER-WITH(KDSS)&SIDE STEP-WITH(STEP LAMP)(DOP) |
1 | ||
| 82162-6AM70 |
GDJ150..RHD SIDE STEP-WITH(STEP LAMP)(DOP)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82162-6AN70 |
GDJ150..RHD STABILIZER-WITH(KDSS)&SIDE STEP-WITH(STEP LAMP)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLEFLAT POWER&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 82162-6AN10 |
GDJ150..RHD STABILIZER-WITH(KDSS)&SIDE STEP-WITH(STEP LAMP) |
1 | ||
| 82162-6AN30 |
GDJ150..RHD STABILIZER-WITH(KDSS)&SIDE STEP-WITH(STEP LAMP)(DOP)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 82163A - WIRE, FLOOR, NO.4 | ||||
| 8216A-60130 |
KDJ150..LHD;GDJ15#,GRJ150,KDJ155 |
1 | ||
| 8216A-60140 |
KDJ150..LHD;GDJ15#,GRJ150,KDJ155 CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 8216A-60140 |
KDJ150..LHD;GDJ15#,GRJ150,KDJ155 CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 82163B - WIRE, FLOOR NO.5 | ||||
| 8216B-60130 |
KDJ150..LHD;GDJ15#,GRJ150,KDJ155 |
1 | ||
| 8216B-60140 |
KDJ150..LHD;GDJ15#,GRJ150,KDJ155 CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 8216B-60140 |
KDJ150..LHD;GDJ15#,GRJ150,KDJ155 CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-60B90 |
GDJ150,KDJ150..6F HEADLAMP-LED |
1 | ||
| 82164-60B80 |
GDJ150,KDJ150..6F,6FC |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-60120 |
GDJ150 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60R70 |
KDJ150..LHD;GDJ150,GRJ150 |
1 | ||
| 82171-60R90 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC VX PACKAGE |
1 | ||
| 82171-60S00 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC VX PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82171-60S00 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC VX PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82171-60S10 |
GDJ150..RHD;GDJ150,KDJ150..LHD..6F TX-L PACKAGE&MOON ROOF-WITH |
1 | ||
| 82171-60S40 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC VX PACKAGE&MOON ROOF-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82171-60S31 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC VX PACKAGE&MOON ROOF-WITH |
1 | ||
| 82171-60S40 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC VX PACKAGE&MOON ROOF-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82171-60S70 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC VX PACKAGE&MOON ROOF-WITH&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82171-60S80 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC VX PACKAGE&MOON ROOF-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&REAR SEATENTERTAINMENT-WITH |
1 | ||
| 82171-60S80 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC VX PACKAGE&MOON ROOF-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82171-60R71 |
KDJ150..LHD;GDJ150,GRJ150 |
1 | ||
| 82171-60R91 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC VX PACKAGE |
1 | ||
| 82171-60S01 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC VX PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82171-60S01 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC VX PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82171-60S11 |
GDJ150..RHD;GDJ150,KDJ150..LHD..6F TX-L PACKAGE&MOON ROOF-WITH |
1 | ||
| 82171-60S32 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC VX PACKAGE&MOON ROOF-WITH |
1 | ||
| 82171-60S41 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC VX PACKAGE&MOON ROOF-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82171-60S41 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC VX PACKAGE&MOON ROOF-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82171-60S71 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC VX PACKAGE&MOON ROOF-WITH&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82171-60S81 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC VX PACKAGE&MOON ROOF-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82171-60S81 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC VX PACKAGE&MOON ROOF-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&REAR SEATENTERTAINMENT-WITH |
1 | ||
| 82177A - WIRE, FRAME, NO.4 | ||||
| 82177-60030 |
GDJ15# |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-60830 |
GDJ15#,GRJ150,KDJ150 |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-60E80 |
GDJ15#,GRJ150,KDJ150 |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-60850 |
GDJ150,GRJ150,KDJ150 |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-60220 |
GDJ15#,GRJ150,KDJ150 |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-60D00 |
GDJ15#,GRJ150,KDJ150 |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-60E90 |
GDJ150 |
1 | ||
| 82821U - COVER, CONNECTOR | ||||
| 82821-60370 |
KDJ150..LHD;GDJ15#,GRJ150 |
1 | ||
| 82821-60370 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC SIDE STEP-WITH(STEP LAMP)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 82821-60370 |
KDJ150..LHD;GDJ15#,GRJ150 CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 82821-60370 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC SIDE STEP-WITH(STEP LAMP)(DOP)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 82821V - COVER, CONNECTOR | ||||
| 82821-35090 |
KDJ150..LHD;GDJ15#,GRJ150 |
1 | ||
| 82821-35090 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC SIDE STEP-WITH(STEP LAMP)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82821-35090 |
GRJ150;GDJ150..RHD AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-WITHOUT(WITH/ANCHOR) |
1 | ||
| 82821-35090 |
GDJ150..RHD SIDE STEP-WITH(STEP LAMP LESS)&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-WITHOUT(WITH/ANCHOR) |
1 | ||
| 82821-35090 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC SIDE STEP-WITH(STEP LAMP)&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 82821-35090 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC SIDE STEP-WITH(STEP LAMP)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82821W - COVER, CONNECTOR | ||||
| 82821-30580 |
GDJ150,GRJ150,KDJ150 |
1 | ||
| 82821X - COVER, CONNECTOR | ||||
| 82821-35090 |
KDJ150..LHD;GDJ15#,GRJ150 |
1 | ||
| 82821-35090 |
GDJ150..RHD STABILIZER-WITH(KDSS)&SIDE STEP-WITH(STEP LAMP)(DOP)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 82821-35090 |
GDJ150..RHD;GDJ150..LHD..6F;GRJ150,KDJ150..6F,6FC SIDE STEP-WITH(STEP LAMP) |
1 | ||
| 82821-35090 |
GDJ150..RHD SIDE STEP-WITH(STEP LAMP LESS)&REAR SEAT-WITHOUT(WITH/ANCHOR) |
1 | ||
| 82821-35090 |
GDJ150..RHD STABILIZER-WITH(KDSS)&SIDE STEP-WITH(STEP LAMP)(DOP)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82821-35090 |
GDJ150..RHD SIDE STEP-WITH(STEP LAMP)(DOP)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 82821-35090 |
GRJ150;GDJ150..RHD REAR SEAT-WITHOUT(WITH/ANCHOR) |
1 | ||
| 8970A - CORD SUB-ASSY, THEFT WARNING SENSOR | ||||
| 8970A-60030 |
GDJ150,GRJ150,KDJ150 ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL |
2 | ||
| 8970A-60030 |
GDJ150..RHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL |
2 | ||
| 8970A-60030 |
GDJ150,GRJ150,KDJ150 ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) |
2 | ||
| 8970A - CORD SUB-ASSY, THEFT WARNING SENSOR | ||||
| 8970A-60030 |
GDJ150,GRJ150,KDJ150 ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL |
2 | ||
| 8970A-60030 |
GDJ150..RHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL |
2 | ||
| 8970A-60030 |
GDJ150,GRJ150,KDJ150 ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) |
2 | ||
| Common parts | ||||
| 82712-60870 | ||||
| 82712-60880 | ||||
| 82712-60A10 | ||||
| 82715-6AA90 | ||||
| 82715-6AB10 | ||||
| 90119-06915 | ||||
| 90119-08A33 | ||||
| 90179-06178 | ||||
| 90980-11085 | ||||
| 90980-11863 | ||||
| 90980-12373 | ||||
| 91621-J0614 | ||||
| Linked diagrams | ||||
| 4101 | ||||
| 8121 | ||||
| 8417 | ||||
ILLUST NO. 6 OF12(0908- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 8219A-60020 |
GDJ150..RHD REAR SEAT-WITHOUT(WITH/ANCHOR) |
1 | ||
| 8219A-60020 |
GDJ15#..RHD |
1 | ||
| 8219A-60030 |
GDJ150..RHD..6F *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219A-60030 |
GDJ150..RHD..6F TX-L PACKAGE(*FAS) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219A-60030 |
GDJ150..RHD..6F FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219A-60030 |
GDJ150..RHD..6F *471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219A-60030 |
GDJ150..RHD..6F VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219A-60030 |
GDJ150..RHD..6F TX-L PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 8219A-60020 |
GDJ150..RHD REAR SEAT-WITHOUT(WITH/ANCHOR) |
1 | ||
| 8219A-60020 |
GDJ15#..RHD |
1 | ||
| 8219A-60030 |
GDJ150..RHD..6F *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219A-60030 |
GDJ150..RHD..6F TX-L PACKAGE(*FAS) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219A-60030 |
GDJ150..RHD..6F FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219A-60030 |
GDJ150..RHD..6F *471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219A-60030 |
GDJ150..RHD..6F VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219A-60030 |
GDJ150..RHD..6F TX-L PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 8219B-60020 |
GDJ150..RHD..6F TX-L PACKAGE(*FAS) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219B-60020 |
GDJ150..RHD..6F *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219B-60020 |
GDJ150..RHD..6F VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219B-60020 |
GDJ150..RHD..6F TX-L PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219B-60020 |
GDJ150..RHD..6F *471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219B-60020 |
GDJ150..RHD..6F FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 8219B-60020 |
GDJ150..RHD..6F TX-L PACKAGE(*FAS) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219B-60020 |
GDJ150..RHD..6F *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219B-60020 |
GDJ150..RHD..6F VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219B-60020 |
GDJ150..RHD..6F TX-L PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219B-60020 |
GDJ150..RHD..6F *471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 8219B-60020 |
GDJ150..RHD..6F FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-60320 |
GDJ15#..RHD |
1 | ||
| 82191-60320 |
GDJ150..RHD REAR SEAT-WITHOUT(WITH/ANCHOR) |
1 | ||
| 82191-60340 |
GDJ150..RHD..6F VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82191-60340 |
GDJ150..RHD..6F *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82191-60340 |
GDJ150..RHD..6F TX-L PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82191-60760 |
GDJ150..RHD..6F *471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82191-60760 |
GDJ150..RHD..6F TX-L PACKAGE(*FAS) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-60320 |
GDJ15#..RHD |
1 | ||
| 82191-60320 |
GDJ150..RHD REAR SEAT-WITHOUT(WITH/ANCHOR) |
1 | ||
| 82191-60340 |
GDJ150..RHD..6F VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82191-60340 |
GDJ150..RHD..6F *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82191-60340 |
GDJ150..RHD..6F TX-L PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82191-60760 |
GDJ150..RHD..6F *471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82191-60760 |
GDJ150..RHD..6F TX-L PACKAGE(*FAS) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-60250 |
GDJ150..RHD..6F *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82192-60250 |
GDJ150..RHD..6F TX-L PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82192-60250 |
GDJ150..RHD..6F VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82192-60600 |
GDJ150..RHD..6F TX-L PACKAGE(*FAS) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82192-60600 |
GDJ150..RHD..6F *471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-60250 |
GDJ150..RHD..6F *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82192-60250 |
GDJ150..RHD..6F TX-L PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82192-60250 |
GDJ150..RHD..6F VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82192-60600 |
GDJ150..RHD..6F TX-L PACKAGE(*FAS) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82192-60600 |
GDJ150..RHD..6F *471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-60070 |
KDJ150..LHD;GDJ150,GRJ150 *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82193-60070 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82193-60070 |
KDJ150..LHD;GDJ150,GRJ150 *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82193-60070 |
KDJ150..LHD;GDJ150,GRJ150 TX-L PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82193-60070 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-60070 |
KDJ150..LHD;GDJ150,GRJ150 TX-L PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82194-60070 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82194-60070 |
KDJ150..LHD;GDJ150,GRJ150 *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82194-60070 |
KDJ150..LHD;GDJ150,GRJ150 *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82194-60070 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82195 - WIRE, REAR SEAT, RH NO.2 | ||||
| 82195-60031 |
KDJ150..LHD;GDJ150,GRJ150 *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&LUGGAGE BOX-WITH(UTILITY RAIL)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82195-60031 |
KDJ150..LHD;GDJ150,GRJ150 FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82195-60031 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&LUGGAGE BOX-WITH(UTILITY RAIL)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82196 - WIRE, REAR SEAT, LH NO.2 | ||||
| 82196-60031 |
KDJ150..LHD;GDJ150,GRJ150 *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&LUGGAGE BOX-WITH(UTILITY RAIL)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82196-60031 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&LUGGAGE BOX-WITH(UTILITY RAIL)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82196-60031 |
KDJ150..LHD;GDJ150,GRJ150 FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
ILLUST NO. 7 OF12(0908- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 32924-60160 | ||||
| 82711-1A750 | ||||
| 82715-35700 | ||||
| 82715-35A20 | ||||
| 82715-35C80 | ||||
| 82715-3D471 | ||||
| 82715-3D580 | ||||
| 82715-3D590 | ||||
| 82715-3D610 | ||||
| 82715-3D640 | ||||
| 82715-60C90 | ||||
| 82715-6A040 | ||||
| 82715-6A120 | ||||
| 82715-6A150 | ||||
| 82715-6A200 | ||||
| 82715-6A210 | ||||
| 82715-6A240 | ||||
| 82715-6A590 | ||||
| 82715-6A760 | ||||
| 82715-6A770 | ||||
| 82715-6A780 | ||||
| 82715-6A790 | ||||
| 82715-6A800 | ||||
| 82715-6A810 | ||||
| 82715-6A850 | ||||
| 82715-6A860 | ||||
| 82715-6A870 | ||||
| 82715-6A880 | ||||
| 82715-6A890 | ||||
| 82715-6AA10 | ||||
| 82715-6AA30 | ||||
| 82715-6AA40 | ||||
| 82715-6AA50 | ||||
| 82715-6AA60 | ||||
| 82715-6AA70 | ||||
| 82715-6AB30 | ||||
| 90119-06375 | ||||
| 90179-06178 | ||||
| 91162-61216 | ||||
| 91511-60612 | ||||
| 91511-B0610 | ||||
| 91511-B0812 | ||||
| 91551-80816 | ||||
| 91551-80820 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91672-81225 | ||||
ILLUST NO. 8 OF12(0908- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-3F040 | ||||
| 82712-60840 | ||||
| 82715-60190 | ||||
| 82715-60M50 | ||||
| 82715-60M60 | ||||
| 82715-60M80 | ||||
| 82715-60M90 | ||||
| 82715-60N00 | ||||
| 82715-60N10 | ||||
| 82715-60N20 | ||||
| 82715-60N30 | ||||
| 82715-60N50 | ||||
| 82715-60P00 | ||||
| 82715-60P50 | ||||
| 82715-60P60 | ||||
| 82715-60P70 | ||||
| 82715-60Q00 | ||||
| 82715-60R70 | ||||
| 82715-60U90 | ||||
| 82715-60V10 | ||||
| 82715-60X00 | ||||
| 82715-60X10 | ||||
| 82715-60X20 | ||||
| 82715-6A080 | ||||
| 82715-6A830 | ||||
| 82715-6A840 | ||||
| 82715-6AA00 | ||||
| 82715-89119 | ||||
| 82716-60020 | ||||
| 82729-60180 | ||||
| 91511-60612 | ||||
| 91511-B0610 | ||||
| 91511-B0812 | ||||
| 91551-80812 | ||||
| 91616-60616 | ||||
| 91621-40814 | ||||
| 91621-J0612 | ||||
| 91641-H0820 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 3609 | ||||
ILLUST NO.10 OF12(0908- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10897 | ||||
| 90980-11002 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11034 | ||||
| 90980-11095 | ||||
| 90980-11140 | ||||
| 90980-11156 | ||||
| 90980-11193 | ||||
| 90980-11194 | ||||
| 90980-11246 | ||||
| 90980-12831 | ||||
| 90980-12B06 | ||||
ILLUST NO.11 OF12(0908- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10619 | ||||
| 90980-11070 | ||||
| 90980-11856 | ||||
| 90980-11918 | ||||
| 90980-12292 | ||||
| 90980-12294 | ||||
| 90980-12297 | ||||
| 90980-12303 | ||||
| 90980-12380 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12686 | ||||
| 90980-12699 | ||||
| 90980-12831 | ||||

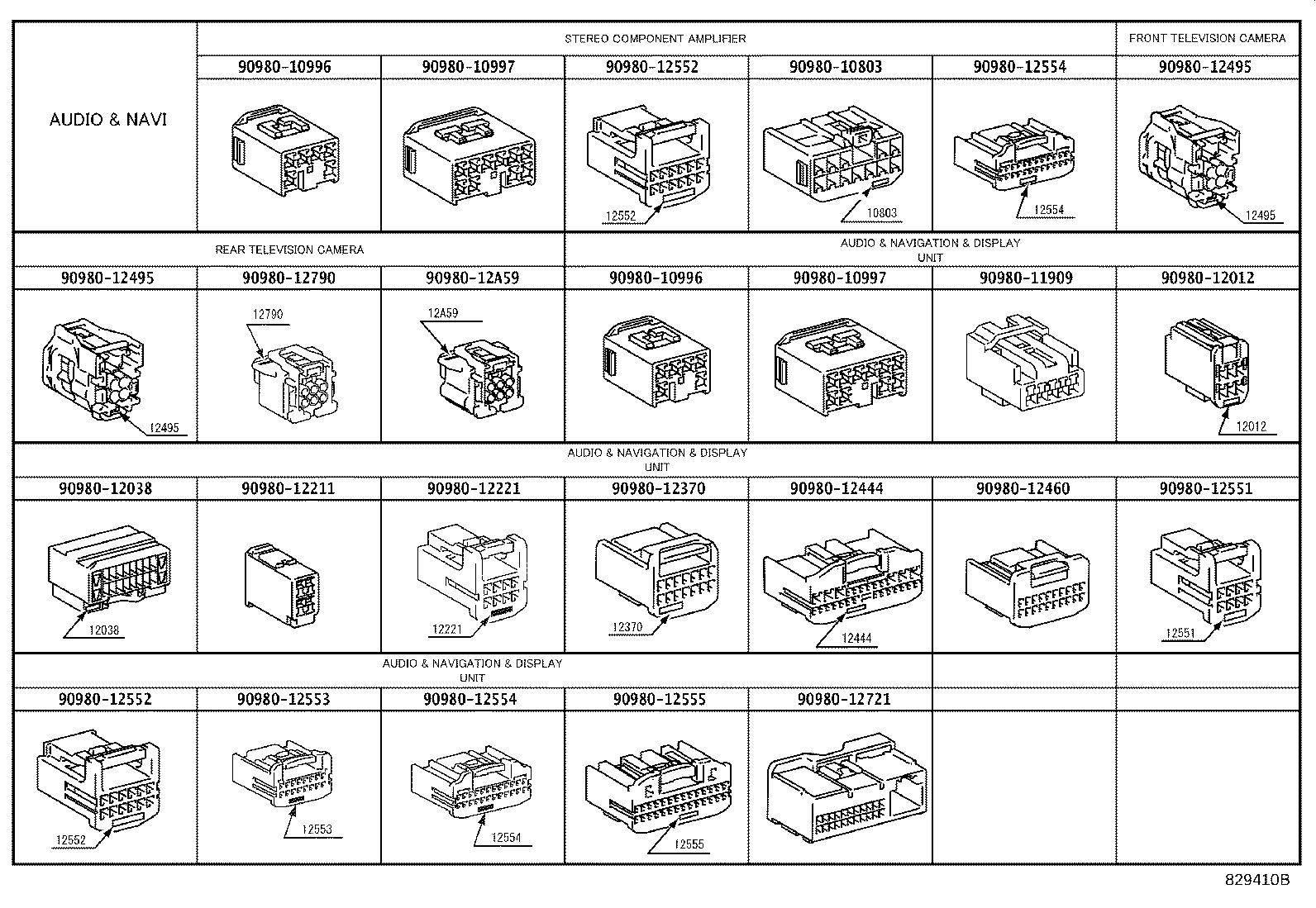

ILLUST NO.12 OF12(0908- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12012 | ||||
| 90980-12038 | ||||
| 90980-12211 | ||||
| 90980-12221 | ||||
| 90980-12370 | ||||
| 90980-12444 | ||||
| 90980-12460 | ||||
| 90980-12495 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12721 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
ILLUST NO. 1 OF12(1506- )GDJ15#
ENGINE ROOM(EURO 6)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-6AT90 |
GDJ150..RHD..6F TX-L PACKAGE(*FAS) & SHIFT KNOB(LEATHER)&HEADLAMP-LED |
1 | ||
| 82111-6AT80 |
GDJ15#..RHD |
1 | ||
| 82111-6AT90 |
GDJ150..RHD..6F VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&HEADLAMP-LED&FRONT SEAT-POWER(DRIVER & PASSENGER)&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 82111-6AT90 |
GDJ150..RHD..6F *471(*LES) & SHIFT KNOB(LEATHER,*WOO)&HEADLAMP-LED&FRONT SEAT-POWER(DRIVER & PASSENGER)&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 82111-6AT90 |
GDJ150..RHD..6F *471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&HEADLAMP-LED&FRONT SEAT-POWER(DRIVER & PASSENGER)&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 82111-6AT90 |
GDJ150..RHD..6F TX-L PACKAGE(*LES) & SHIFT KNOB(LEATHER)&HEADLAMP-LED&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 82111B - CONDENSER | ||||
| 90980-04083 |
GDJ15#,GRJ150,KDJ15# |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-60810 |
KDJ150..LHD;GDJ15#,GRJ150,KDJ155 FRONT FOG LAMP-WITH |
1 | ||
| 82112-60820 |
KDJ150..LHD;GDJ15#,GRJ150,KDJ155 FRONT FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
GDJ15#,GRJ150,KDJ15# 3.0A |
1 | ||
| 82345A - DIODE | ||||
| 82345-12050 |
GDJ15#,GRJ150,KDJ15# 1.5A |
1 | ||
| 82345A - DIODE | ||||
| 82345-12050 |
GDJ15#,GRJ150,KDJ15# 1.5A |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
GDJ15# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
GDJ15# |
2 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-12400 |
GDJ15#,GRJ150,KDJ15# |
1 | ||
| 82821P - COVER, CONNECTOR | ||||
| 82821-50560 |
GDJ15#,GRJ150,KDJ15# |
1 | ||
| Common parts | ||||
| 82712-60B20 | ||||
| 82712-60B90 | ||||
| 90119-06923 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||

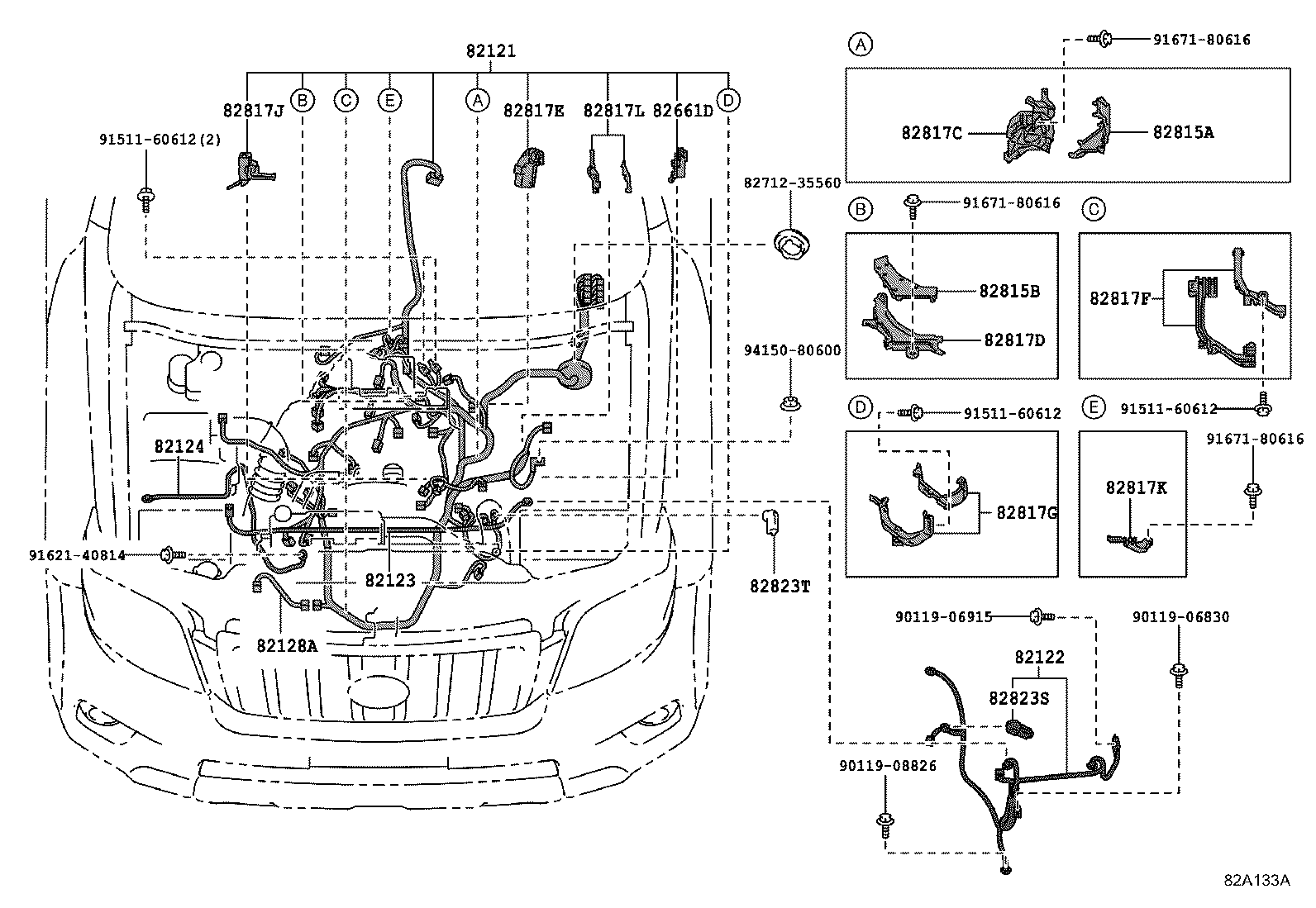

ILLUST NO. 2 OF12(1506- )GDJ15#..RHD
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-6AB30 |
GDJ15#..RHD..6F |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-60A30 |
GDJ15# COLD AREA SPEC |
1 | ||
| 82122-60A50 |
GDJ15# |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-60340 |
GDJ15# COLD AREA SPEC |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-60210 |
GDJ15# COLD AREA SPEC |
1 | ||
| 82128A - WIRE, ENGINE, NO.8 | ||||
| 82128-60240 |
GDJ15#..RHD COLD AREA SPEC |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-60420 |
GDJ15# |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-0K270 |
GDJ15# |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-0K280 |
GDJ15# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-0K270 |
GDJ15# |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-0K280 |
GDJ15# |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-60V50 |
GDJ15#..RHD |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-60V60 |
GDJ15# |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-60V70 |
GDJ15# |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-60V80 |
GDJ15# |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-60W50 |
GDJ15# |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-60W60 |
GDJ15# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-30080 |
GDJ15# COLD AREA SPEC |
1 | ||
| 82823-60070 |
GDJ15# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
GDJ15#,KDJ15# |
1 | ||
| Common parts | ||||
| 82712-35560 | ||||
| 90119-06830 | ||||
| 90119-06915 | ||||
| 90119-08826 | ||||
| 91511-60612 | ||||
| 91621-40814 | ||||
| 91671-80616 | ||||
| 94150-80600 | ||||
ILLUST NO. 9 OF12(0908- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 19529-30040 | ||||
| 82711-35690 | ||||
| 82711-60780 | ||||
| 82712-60500 | ||||
| 82712-60A90 | ||||
| 82715-3D870 | ||||
| 82715-60N80 | ||||
| 82715-60R10 | ||||
| 82715-6A820 | ||||
| 82715-6AA80 | ||||
| 82715-6AB00 | ||||
| 82715-6AB60 | ||||
| 82715-6AC60 | ||||
| 82715-6AC70 | ||||
| 90105-10523 | ||||
| 90119-08A33 | ||||
| 90170-10021 | ||||
| 91511-60612 | ||||
| 91641-H0820 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 5851 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
