GDJ150R-GKFEYW (2015)
Toyota Land Cruiser Prado
ILLUST NO. 1 OF 2(0908- )
PANEL,W(SPARE TIRE = BACK DOOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-60F90 |
GDJ150,GRJ150,KDJ150 |
1 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-60070 |
GDJ15#,GRJ150,KDJ150 |
3 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-60070 |
GDJ15#,GRJ150,KDJ150 |
3 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-60070 |
GDJ15#,GRJ150,KDJ150 |
3 | ||
| 67847A - COVER, BACK DOOR SERVICE HOLE | ||||
| 67847-60090 |
GDJ150,GRJ150,KDJ150 |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-60141 |
GDJ15#,GRJ150,KDJ150 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-60190 |
GDJ150,GRJ150,KDJ150 |
1 | ||
| 68105-60210 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA &9SPEAKER |
1 | ||
| 68105-60210 |
KDJ150..LHD;GDJ150,GRJ150 VX PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 75221B - BRACKET, TOOL BOX | ||||
| 75221-60010 |
GDJ15#,GRJ150,KDJ150 |
2 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-60110 |
GDJ150,GRJ150,KDJ150 |
1 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-60110 |
GDJ150,GRJ150,KDJ150 |
1 | ||
| Common parts | ||||
| 90119-06508 | ||||
| 90467-09206 | ||||
| 91621-60614 | ||||
| Linked diagrams | ||||
| 7554 | ||||

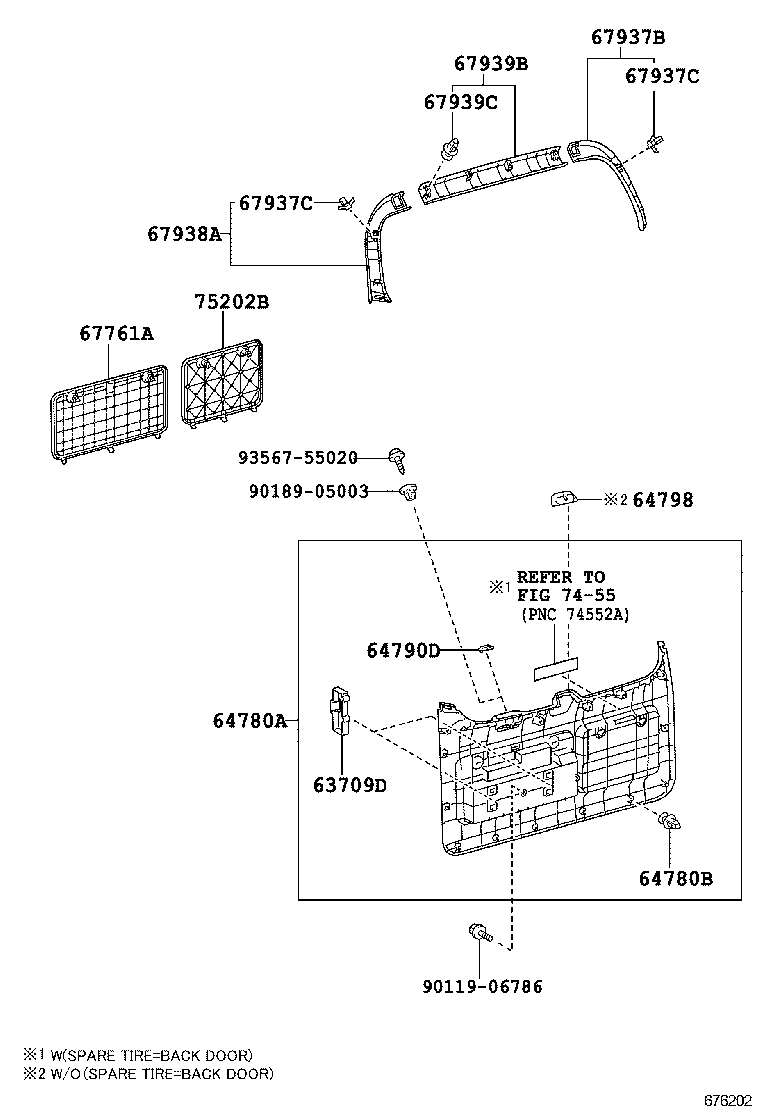

ILLUST NO. 2 OF 2(0908- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63709D - BAND SUB-ASSY, ROOM RACK | ||||
| 64279-60021 |
GDJ15#,GRJ150,KDJ150 |
2 | ||
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-60340A1 |
GDJ150,GRJ150,KDJ150 FLAXEN,TRIM0# |
1 | ||
| 64780-60340C0 |
GDJ150,GRJ150,KDJ150 BLACK,TRIM2# |
1 | ||
| 64780B - CLIP(FOR BACK DOOR TRIM PANEL) | ||||
| 90467-09206 |
GDJ150,GRJ150,KDJ150 |
15 | ||
| 64790D - CAP, BACK DOOR TRIM PANEL | ||||
| 74223-60050A1 |
GDJ15#,GRJ150,KDJ15# FLAXEN,TRIM0# |
1 | ||
| 74223-60050C0 |
GDJ15#,GRJ150,KDJ15# BLACK,TRIM2# |
1 | ||
| 64798 - COVER, BACK DOOR LOCK | ||||
| 64798-60010C0 |
GDJ150,GRJ150,KDJ150 BLACK |
1 | ||
| 67761A - COVER, BACK DOOR TRIM | ||||
| 67761-60050C0 |
GDJ15#,GRJ150,KDJ15# BLACK,TRIM2# |
1 | ||
| 67761-60050A1 |
GDJ15#,GRJ150,KDJ15# FLAXEN,TRIM0# |
1 | ||
| 67761-60060A0 |
GDJ15#,GRJ150,KDJ150 FLAXEN,TRIM0# |
1 | ||
| 67761-60060C0 |
GDJ15#,GRJ150,KDJ150 BLACK,TRIM2# |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-60171A2 |
GDJ150,GRJ150,KDJ150 FLAXEN,TRIM0# |
1 | ||
| 67937-60171C0 |
GDJ150,GRJ150,KDJ150 BLACK,TRIM2# |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 67771-58010 |
GDJ15#,GRJ150,KDJ150 |
4 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 67771-58010 |
GDJ15#,GRJ150,KDJ150 |
4 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-60121C0 |
GDJ150,GRJ150,KDJ150 BLACK,TRIM2# |
1 | ||
| 67938-60121A2 |
GDJ150,GRJ150,KDJ150 FLAXEN,TRIM0# |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-60111A2 |
GDJ150,GRJ150,KDJ150 FLAXEN,TRIM0# |
1 | ||
| 67939-60111C0 |
GDJ150,GRJ150,KDJ150 BLACK,TRIM2# |
1 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-09206 |
GDJ15#,GRJ150,KDJ150 |
4 | ||
| 75202B - PANEL SUB-ASSY, TOOL BOX, UPPER | ||||
| 75202-60070C0 |
GDJ15#,GRJ150,KDJ15# BLACK,TRIM2# |
1 | ||
| 75202-60070A1 |
GDJ15#,GRJ150,KDJ15# FLAXEN,TRIM0# |
1 | ||
| 75202-60100C0 |
GDJ15#,GRJ150,KDJ150 BLACK,TRIM2# |
1 | ||
| 75202-60100A0 |
GDJ15#,GRJ150,KDJ150 FLAXEN,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-06786 | ||||
| 90189-05003 | ||||
| 93567-55020 | ||||
| Linked diagrams | ||||
| 7455 | ||||
