GDJ150R-GKFEYW (2015)

Toyota Land Cruiser Prado

Production Jun 2015 - Aug 2017
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )1G#

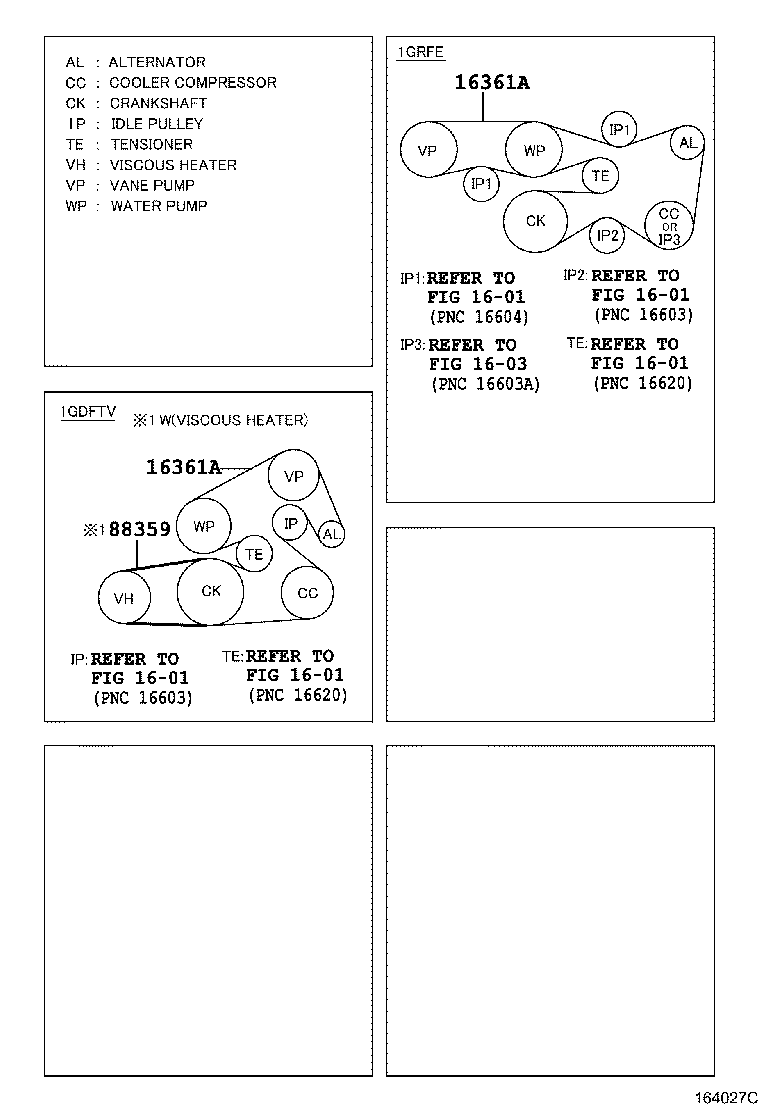

Click highlighted areas on diagram

diagram 1601 1601 1601 1601 1601 1603 16361A 16361A 88359
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99367-K2040

1GDFTV..GDJ15#

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99367-K2040

1GDFTV..GDJ15#

 1
88359 - BELT, V(FOR VISCOUS HEATER)
99364-K0890

GDJ15#..RHD

COLD AREA SPEC

 1
Linked diagrams
1601
1603
