GDJ150R-GKFEYW (2015)

Toyota Land Cruiser Prado

Production Jun 2015 - Aug 2017
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )1GDFTV

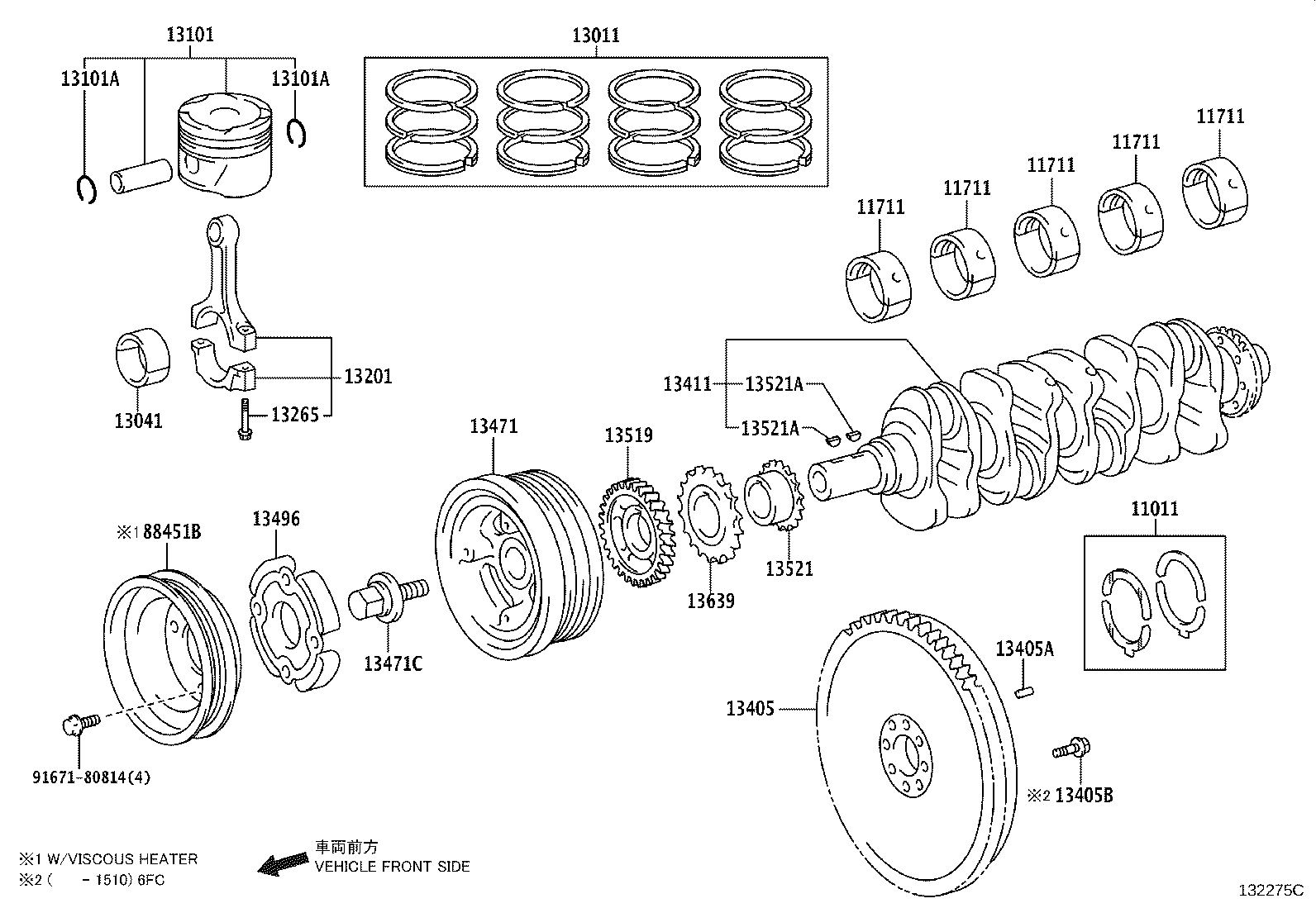

Click highlighted areas on diagram

diagram 11011 11711 11711 11711 11711 11711 13011 13041 13101 13101A 13101A 13201 13265 13405 13405A 13405B 13411 13471 13471C 13496 13519 13521 13521A 13521A 13639 88451B 9167180814
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-30010

1GDFTV..GDJ15#

STD

 1
11711 - BEARING, CRANKSHAFT
11701-1103003

1GDFTV..GDJ15#

MARK 3,REFER REPAIR MANUAL

 5
11701-1103002

1GDFTV..GDJ15#

MARK 2,REFER REPAIR MANUAL

 5
11701-1103004

1GDFTV..GDJ15#

MARK 4,REFER REPAIR MANUAL

 5
11701-1103005

1GDFTV..GDJ15#

MARK 5,REFER REPAIR MANUAL

 5
11701-1103006

1GDFTV..GDJ15#

MARK 6,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-1103003

1GDFTV..GDJ15#

MARK 3,REFER REPAIR MANUAL

 5
11701-1103002

1GDFTV..GDJ15#

MARK 2,REFER REPAIR MANUAL

 5
11701-1103004

1GDFTV..GDJ15#

MARK 4,REFER REPAIR MANUAL

 5
11701-1103005

1GDFTV..GDJ15#

MARK 5,REFER REPAIR MANUAL

 5
11701-1103006

1GDFTV..GDJ15#

MARK 6,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-1103003

1GDFTV..GDJ15#

MARK 3,REFER REPAIR MANUAL

 5
11701-1103002

1GDFTV..GDJ15#

MARK 2,REFER REPAIR MANUAL

 5
11701-1103004

1GDFTV..GDJ15#

MARK 4,REFER REPAIR MANUAL

 5
11701-1103005

1GDFTV..GDJ15#

MARK 5,REFER REPAIR MANUAL

 5
11701-1103006

1GDFTV..GDJ15#

MARK 6,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-1103003

1GDFTV..GDJ15#

MARK 3,REFER REPAIR MANUAL

 5
11701-1103002

1GDFTV..GDJ15#

MARK 2,REFER REPAIR MANUAL

 5
11701-1103004

1GDFTV..GDJ15#

MARK 4,REFER REPAIR MANUAL

 5
11701-1103005

1GDFTV..GDJ15#

MARK 5,REFER REPAIR MANUAL

 5
11701-1103006

1GDFTV..GDJ15#

MARK 6,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-1103003

1GDFTV..GDJ15#

MARK 3,REFER REPAIR MANUAL

 5
11701-1103002

1GDFTV..GDJ15#

MARK 2,REFER REPAIR MANUAL

 5
11701-1103004

1GDFTV..GDJ15#

MARK 4,REFER REPAIR MANUAL

 5
11701-1103005

1GDFTV..GDJ15#

MARK 5,REFER REPAIR MANUAL

 5
11701-1103006

1GDFTV..GDJ15#

MARK 6,REFER REPAIR MANUAL

 5
13011 - RING SET, PISTON
13011-11200

1GDFTV..GDJ15#

STD

 1
13041 - BEARING, CONNECTING ROD
13041-1106002

1GDFTV..GDJ15#

MARK 2

 4
13041-1106006

1GDFTV..GDJ15#

MARK 6

 4
13041-1106003

1GDFTV..GDJ15#

MARK 3

 4
13041-1106005

1GDFTV..GDJ15#

MARK 5

 4
13041-1106004

1GDFTV..GDJ15#

MARK 4

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-1119001

1GDFTV..GDJ15#

STD,MARK 1

 4
13101-1119002

1GDFTV..GDJ15#

STD,MARK 2

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-32013

1GDFTV..GDJ15#

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-32013

1GDFTV..GDJ15#

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-11050A0

1GDFTV..GDJ15#

MARK A

 4
13201-11050C0

1GDFTV..GDJ15#

MARK C

 4
13201-11050B0

1GDFTV..GDJ15#

MARK B

 4
13265 - BOLT, CONNECTING ROD
13265-22031

1GDFTV..GDJ15#

 8
13405 - FLYWHEEL SUB-ASSY
13405-11100

1GDFTV..GDJ15#..6F

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-10192

1GDFTV..GDJ15#..6F

L=22,OD=10

 3
13405B - BOLT, FLYWHEEL SETTING
90105-13010

1GDFTV..GDJ15#..6F

 8
13411 - CRANKSHAFT
13401-11090

1GDFTV..GDJ15#

 1
13471 - PULLEY, CRANKSHAFT
13408-11060

1GDFTV..GDJ15#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-18003

1GDFTV..GDJ15#

 1
13496 - COVER, CRANKSHAFT PULLY
13496-11010

1GDFTV..GDJ15#

 1
13519 - GEAR, OIL PUMP DRIVE
13519-11010

1GDFTV..GDJ15#

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-11050

1GDFTV..GDJ15#

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
95161-30516

1GDFTV..GDJ15#

 2
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
95161-30516

1GDFTV..GDJ15#

 2
13639 - SPROCKET, BALANCESHAFT TIMING
13639-11010

1GDFTV..GDJ15#

 1
88451B - PULLEY, CRANKSHAFT(FOR VISCOUS HEATER)
88451-60090

GDJ15#..RHD

COLD AREA SPEC

 1
Common parts
91671-80814
